2010 PEUGEOT 807 air conditioning
[x] Cancel search: air conditioningPage 4 of 237
9
1
FAMILIARISATION
Interior
13. B a t t e r y / F u s e b o x .
14. Passenger air bag.
15. Passenger’s lower glove box/RCA
sockets.
16. Air conditioning controls.
17. L i g h t e r / 1 2 V a c c e s s o r i e s s o c k e t .
18. Hazard warning lights switch.
19. Storage compartment or additional
telematics control.
20. Cooled compartment.
21. Ashtray/Can holder.
22. Seat adjustment control.
23. Storage compartment.
24. F u s e b o x .
25. Handbrake - on the right.
1. E l e c t r i c m i r r o r c o n t r o l s .
- E l e c t r i c w i n d o w c o n t r o l s .
- Deactivation of the rear electric controls.
2. Driver’s upper glove box.
3. Central adjustable vents.
4. Audio equipment or GPS
multimedia audio equipment with
fl a p .
5. I n s t r u m e n t p a n e l / L a r g e c o l o u r
display.
6. Sunshine and passenger
compartment temperature sensor.
7. Passenger’s upper glove box.
26. B o n n e t r e l e a s e u n d e r c o v e r -
on the left.
27. Acoustic windscreen.
INTERIOR OVERVIEW
SETTING THE DATE AND
TIME
F o r m o r e i n f o r m a t i o n a b o u t
this adjustment, refer to the
"Setting the date and time" section of
t h e " I n - c a r t e c h n o l o g y " c h a p t e r .
ADDITIONAL HEATER
With the engine at idle
or when the vehicle is
stationary, it is normal
to notice a high-pitched
whistling and a slight emission of
smoke and odour.
B l u e t o o t h .
8. Windscreen demisting vents.
9. Speaker (tweeter).
10. F r o n t w i n d o w d e m i s t i n g v e n t s .
11. Passenger air bag disarming
s w i t c h , i f fi t t e d o n y o u r v e h i c l e .
12. Side adjustable vent.
Page 11 of 237
33
16
Interior
VENTILATION
65 - 73 56

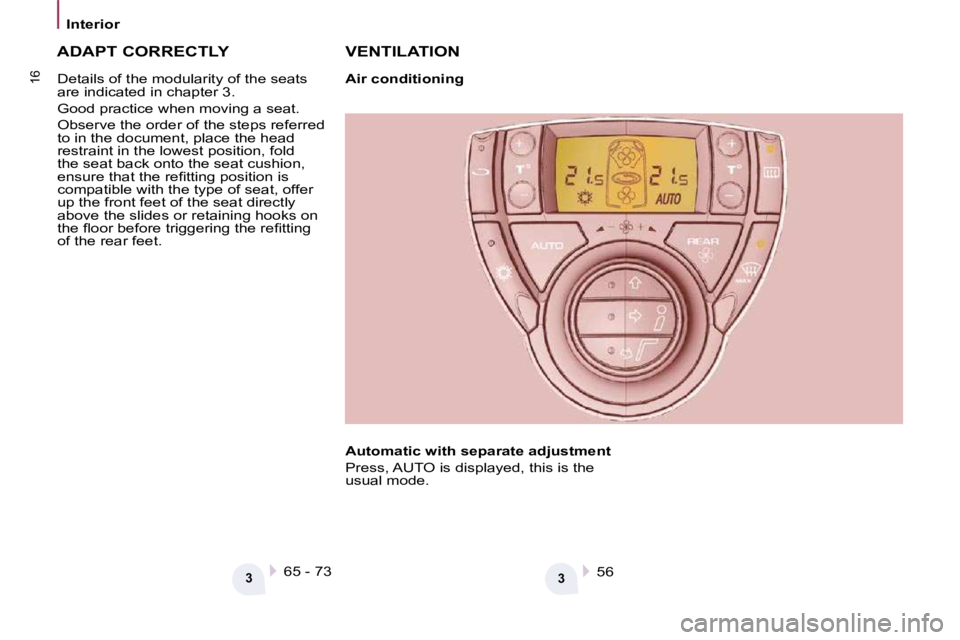

ADAPT CORRECTLY
Automatic with separate adjustment
P r e s s , A U T O i s d i s p l a y e d , t h i s i s t h e
usual mode.
Details of the modularity of the seats
are indicated in chapter 3.
Good practice when moving a seat.
O b s e r v e t h e o r d e r o f t h e s t e p s r e f e r r e d
to in the document, place the head
restraint in the lowest position, fold
the seat back onto the seat cushion,
e n s u r e t h a t t h e r e fi t t i n g p o s i t i o n i s
compatible with the type of seat, offer
up the front feet of the seat directly
above the slides or retaining hooks on
t h e fl o o r b e f o r e t r i g g e r i n g t h e r e fi t t i n g
of the rear feet.
Air conditioning
Page 53 of 237
54
Ventilation
VENTILATION

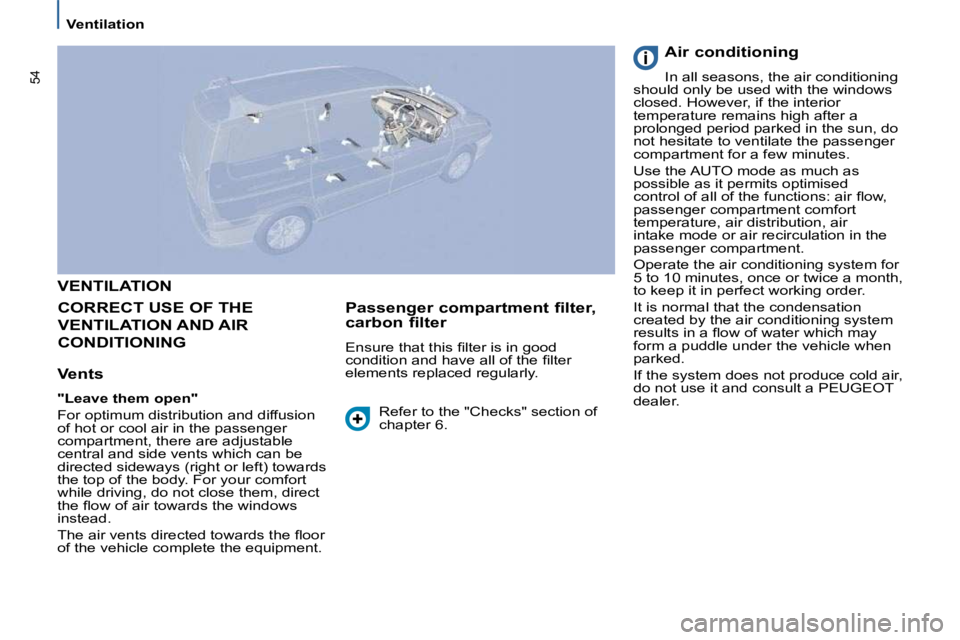

CORRECT USE OF THE
VENTILATION AND AIR
CONDITIONING
Vents
"Leave them open"
F o r o p t i m u m d i s t r i b u t i o n a n d d i f f u s i o n
of hot or cool air in the passenger
c o m p a r t m e n t , t h e r e a r e a d j u s t a b l e
c e n t r a l a n d s i d e v e n t s w h i c h c a n b e
d i r e c t e d s i d e w a y s ( r i g h t o r l e f t ) t o w a r d s
t h e t o p o f t h e b o d y . F o r y o u r c o m f o r t
w h i l e d r i v i n g , d o n o t c l o s e t h e m , d i r e c t
t h e fl o w o f a i r t o w a r d s t h e w i n d o w s
i n s t e a d .
T h e a i r v e n t s d i r e c t e d t o w a r d s t h e fl o o r
of the vehicle complete the equipment. Passenger compartment filter,
carbon filter
E n s u r e t h a t t h i s fi l t e r i s i n g o o d
c o n d i t i o n a n d h a v e a l l o f t h e fi l t e r
e l e m e n t s r e p l a c e d r e g u l a r l y .
Refer to the "Checks" section of
c h a p t e r 6 . Air conditioning
I n a l l s e a s o n s , t h e a i r c o n d i t i o n i n g
s h o u l d o n l y b e u s e d w i t h t h e w i n d o w s
c l o s e d . H o w e v e r , i f t h e i n t e r i o r
temperature remains high after a
p r o l o n g e d p e r i o d p a r k e d i n t h e s u n , d o
not hesitate to ventilate the passenger
compartment for a few minutes.
U s e t h e A U T O m o d e a s m u c h a s
p o s s i b l e a s i t p e r m i t s o p t i m i s e d
c o n t r o l o f a l l o f t h e f u n c t i o n s : a i r fl o w ,
passenger compartment comfort
t e m p e r a t u r e , a i r d i s t r i b u t i o n , a i r
i n t a k e m o d e o r a i r r e c i r c u l a t i o n i n t h e
passenger compartment.
O p e r a t e t h e a i r c o n d i t i o n i n g s y s t e m f o r
5 t o 1 0 m i n u t e s , o n c e o r t w i c e a m o n t h ,
t o k e e p i t i n p e r f e c t w o r k i n g o r d e r .
I t i s n o r m a l t h a t t h e c o n d e n s a t i o n
c r e a t e d b y t h e a i r c o n d i t i o n i n g s y s t e m
r e s u l t s i n a fl o w o f w a t e r w h i c h m a y
f o r m a p u d d l e u n d e r t h e v e h i c l e w h e n
p a r k e d .
I f t h e s y s t e m d o e s n o t p r o d u c e c o l d a i r ,
d o n o t u s e i t a n d c o n s u l t a P E U G E O T
d e a l e r .
Page 55 of 237
5 6
Ventilation

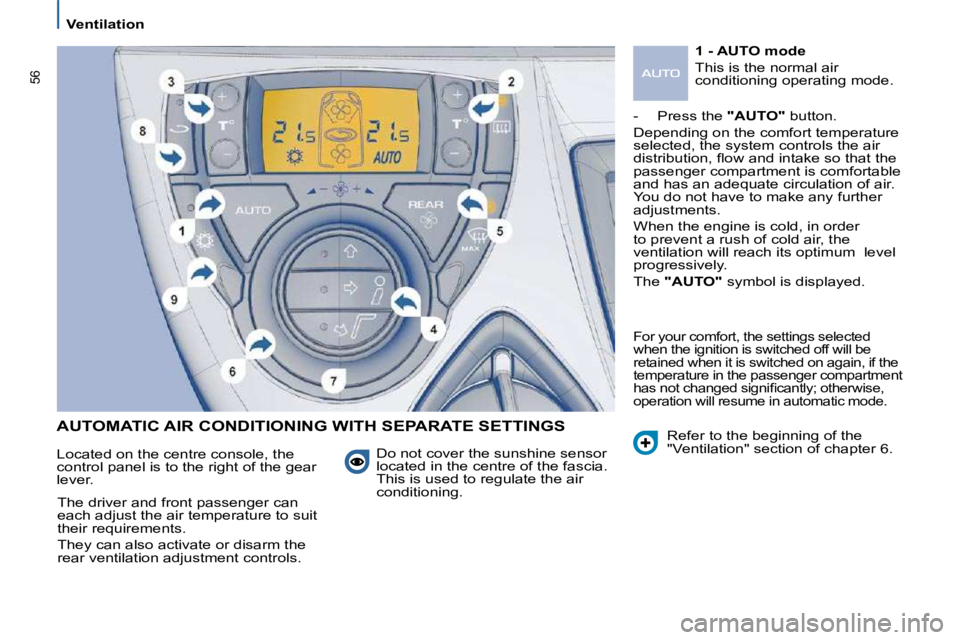

AUTOMATIC AIR CONDITIONING WITH SEPARATE SETTINGS
Do not cover the sunshine sensor
l o c a t e d i n t h e c e n t r e o f t h e f a s c i a .
T h i s i s u s e d t o r e g u l a t e t h e a i r
c o n d i t i o n i n g .
L o c a t e d o n t h e c e n t r e c o n s o l e , t h e
control panel is to the right of the gear
lever.
1 - AUTO mode
This is the normal air
c o n d i t i o n i n g o p e r a t i n g m o d e .
Refer to the beginning of the
" V e n t i l a t i o n " s e c t i o n o f c h a p t e r 6 .
T h e d r i v e r a n d f r o n t p a s s e n g e r c a n
e a c h a d j u s t t h e a i r t e m p e r a t u r e t o s u i t
their requirements.
T h e y c a n a l s o a c t i v a t e o r d i s a r m t h e
r e a r v e n t i l a t i o n a d j u s t m e n t c o n t r o l s .
F o r y o u r c o m f o r t , t h e s e t t i n g s s e l e c t e d
w h e n t h e i g n i t i o n i s s w i t c h e d o f f w i l l b e
r e t a i n e d w h e n i t i s s w i t c h e d o n a g a i n , i f t h e
temperature in the passenger compartment
h a s n o t c h a n g e d s i g n i fi c a n t l y ; o t h e r w i s e ,
o p e r a t i o n w i l l r e s u m e i n a u t o m a t i c m o d e .
- Press the "AUTO" button.
D e p e n d i n g o n t h e c o m f o r t t e m p e r a t u r e
s e l e c t e d , t h e s y s t e m c o n t r o l s t h e a i r
d i s t r i b u t i o n , fl o w a n d i n t a k e s o t h a t t h e
passenger compartment is comfortable
a n d h a s a n a d e q u a t e c i r c u l a t i o n o f a i r .
Y o u d o n o t h a v e t o m a k e a n y f u r t h e r
a d j u s t m e n t s .
W h e n t h e e n g i n e i s c o l d , i n o r d e r
t o p r e v e n t a r u s h o f c o l d a i r , t h e
ventilation will reach its optimum level
progressively.
The "AUTO" s y m b o l i s d i s p l a y e d .
Page 57 of 237
5 8
Ventilation
6 - Adjustment of the air
fl o w
- Turn control knob 6 to
the right or to the left
respectively to increase or
d e c r e a s e t h e a i r fl o w .
O n t h e d i s p l a y , t h e b l a d e s o f t h e f a n
d a r k e n w h e n t h e a i r fl o w i s i n c r e a s e d .
8 - Intake of exterior air/
Recirculation of interior air
- Press this button to r e c i r c u l a t e t h e a i r i n s i d e .
T h e a i r r e c i r c u l a t i o n s y m b o l a n d
i n d i c a t o r l i g h t 8 a r e d i s p l a y e d .
Recirculation insulates the passenger
c o m p a r t m e n t f r o m o u t s i d e s m e l l s a n d
smoke.
9 - Air conditioning On/Off
- Press this button to activate automatic
operation of the air
c o n d i t i o n i n g .
T h e s y m b o l a n d t h e i n d i c a t o r l i g h t 9
a r e d i s p l a y e d .
- Press this button again to switch off t h e a i r c o n d i t i o n i n g .
T h e s y m b o l a n d t h e i n d i c a t o r l i g h t 9
switch off.
A v o i d p r o l o n g e d o p e r a t i o n o f
i n t e r i o r a i r r e c i r c u l a t i o n ( r i s k
o f m i s t i n g o f t h e w i n d o w s a n d
d e t e r i o r a t i o n o f a i r q u a l i t y ) .
- Press this button again to return air intake to automatic control.
7 - Switching the system off
- T u r n a i r fl o w c o n t r o l k n o b 6 to the
l e f t u n t i l t h e d i s p l a y s w i t c h e s o f f .
T h e a c t i o n d i s a r m s a l l t h e s y s t e m
f u n c t i o n s , w i t h t h e e x c e p t i o n o f
d e m i s t i n g o f t h e r e a r s c r e e n . Y o u r
c o m f o r t s e t t i n g i s n o l o n g e r m a i n t a i n e d
a n d s w i t c h e s o f f .
F o r y o u r c o m f o r t , a v o i d r e m a i n i n g i n
the off position.
- Operating control knob 6 again or
the "Visibility" button or "AUTO"
button reactivates the system with
the values which were present
b e f o r e i t w a s s w i t c h e d o f f .
Flashing of the points in the
t e m p e r a t u r e s e t t i n g v a l u e s i n d i c a t e s
that there is a malfunction of the air
c o n d i t i o n i n g .
C o n s u l t a P E U G E O T d e a l e r .
Page 106 of 237
104
Towing a trailer
On the contrary, use a high gear to
lower the engine speed and reduce
your speed.
In all cases, pay attention to the
coolant temperature.
Brakes: towing increases the braking
distance. Drive at a moderate speed,
change down early and brake
gradually. Please contact a PEUGEOT dealer
fi r s t f o r f u r t h e r i n f o r m a t i o n .
Automatic adjustment
For vehicles with Xenon bulbs, and if
the change in load makes it necessary,
this system automatically corrects the
height of the beam after approximately
2 minutes. The driver is then assured
of having optimum lighting and not
causing a nuisance to other road
users.
In certain cases of particularly
arduous use (towing the
maximum load up a steep slope
in high temperatures), the engine
automatically limits its power. In this
case, cutting off the air conditioning
allows the engine power to be
recovered, and therefore the towing
s p e e d t o b e s i g n i fi c a n t l y i n c r e a s e d
(approximately 12 mph [20 km/h]
more). Sequential control of the
gearbox may also become unavailable. Lighting
Bicycle carrier
R e f e r t o t h e " I d e n t i fi c a t i o n
features" section of chapter 8. Refer to the "Steering wheel
controls" section of chapter 3.
When using a trailer connection,
you must add a fuse. Refer to
the "Changing a fuse" section of
chapter 7.
If the coolant temperature warning light
comes on, stop the vehicle and switch
off the engine as soon as possible.
Tyres: check the tyre pressures of
the towing vehicle and of the trailer,
observing the recommended pressure.
Side wind: sensitivity to side wind is
increased. Drive smoothly and at a
moderate speed.
Towbar
We recommend the use of original
PEUGEOT towbars, which have been
tested for endurance from the design
stage of your vehicle.
T o w i n g e q u i p m e n t m u s t b e fi t t e d i n
accordance with the manufacturer's
instructions, with particular attention to
the towing capacities of your vehicle,
the load towed, the nose weight and
t h e e l e c t r i c a l c o n n e c t i o n . A s t h i s fi t t i n g
should be carried out by a professional,
we recommend that you entrust the
fi t t i n g o f t h i s e q u i p m e n t t o a P E U G E O T
dealer.
In accordance with the general
instructions referred to above, we draw
your attention to the risk connected
w i t h fi t t i n g a t o w b a r o r o t h e r e l e c t r i c a l
accessory which is not recommended
by the PEUGEOT network. Fitting such
equipment could result in a failure of
your vehicle's electronic system. Manual adjustment
Adjust your headlamps so as not to
dazzle other road users. Check the
electrical signalling of the trailer.
I f y o u fi t a b i c y c l e c a r r i e r o n
the tailgate, deactivate the
rear wiper from the display's
c o n fi g u r a t i o n m e n u .
Page 117 of 237
115
Checks
CHECKS
6
CHECKS
To check the main levels
and certain components,
in accordance with the
manufacturer’s servicing schedule,
refer to the pages of the Maintenance
and Warranty Guide which correspond
to your vehicle’s engine.
Only use products recommended
by PEUGEOT or products
of equivalent quality and
s p e c i fi c a t i o n .
In order to optimise the operation
of units as important as the braking
system, PEUGEOT selects and offers
s p e c i fi c p r o d u c t s .
In order to avoid damaging the
electrical units, high pressure washing
to clean the engine compartment is
strictly prohibited.
Oil filter
C h a n g e t h e fi l t e r r e g u l a r l y , i n
accordance with the servicing
schedule. Refer to the servicing booklet to
fi n d o u t t h e r e p l a c e m e n t i n t e r v a l
for these components.
Depending on the environment (dusty
atmosphere...) and the use of the
vehicle (urban driving...), change them
twice as often if necessary.
Refer to the "Under the bonnet" section
of chapter 6. Particle emission filter (Diesel)
It is imperative that particle emission
fi l t e r m a i n t e n a n c e i s c a r r i e d o u t b y a
PEUGEOT dealer.
On acceleration after the vehicle has
been running for a prolonged period
at very low speed or at idle, you may,
in exceptional circumstances, notice
the emission of water vapour at the
exhaust. This water vapour does not
have any adverse effect on vehicle
handling or the environment.
Battery
At the start of winter, have your battery
checked by a PEUGEOT dealer.
Brake pads
Brake pad wear depends on the style
of driving, in particular for vehicles
which are used in town, over short
distances. It may be necessary to
check the thickness of the pads, even
between services.
Unless there is a leak on the circuit, a
d r o p i n t h e b r a k e fl u i d l e v e l i n d i c a t e s
that the brake pads are worn.
Brake disc/drum wear status
For any information relating to
checking the brake disc/drum wear
status, contact a PEUGEOT dealer.
Handbrake
Where the handbrake travel is too
great or there is a reduction in the
performance of the system, the
handbrake should be adjusted, even
between services.
Have the system checked by a
PEUGEOT dealer. Carbon filter and passenger
compartment filter
T h e c a r b o n fi l t e r p e r m i t s c o n t i n u o u s
a n d e f f e c t i v e fi l t e r i n g o f d u s t .
I f t h e p a s s e n g e r c o m p a r t m e n t fi l t e r
becomes clogged, this may reduce
the performance of the air conditioning
system and generate unpleasant
odours.
We recommend the use of a combined
p a s s e n g e r c o m p a r t m e n t fi l t e r . B y
means of its second special active
fi l t e r , i t c o n t r i b u t e s t o t h e p u r i fi c a t i o n
of the air breathed by the occupants
and to the cleanness of the passenger
compartment (reduction of allergic
symptoms, unpleasant odours and
greasy deposits).
Manual gearbox
Have the level checked in accordance with
the manufacturer’s servicing schedule.
Page 128 of 237
125
TROUBLESHOOTING
7
Changing a fuse

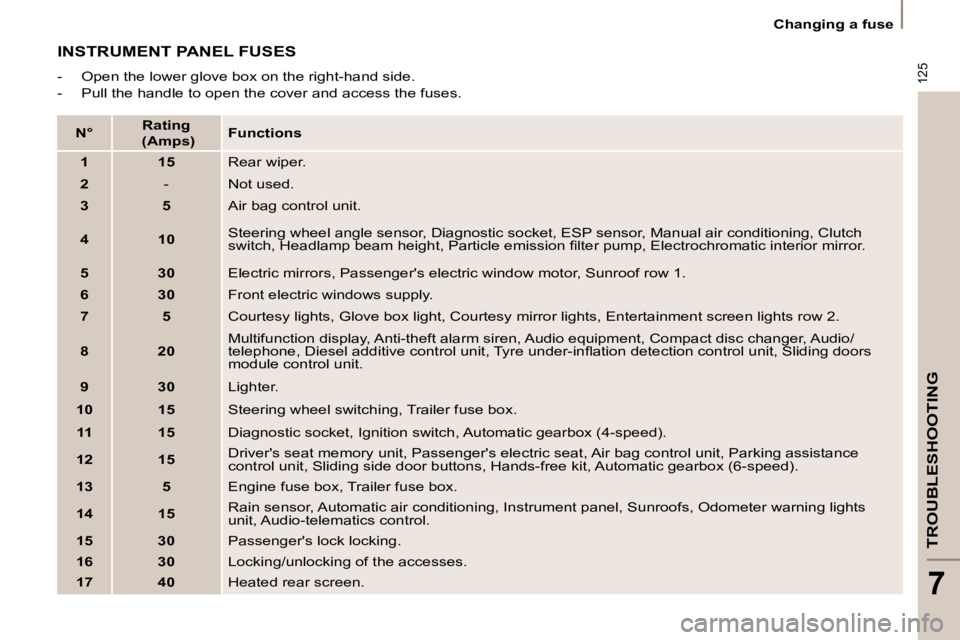

INSTRUMENT PANEL FUSES
- O p e n t h e l o w e r g l o v e b o x o n t h e r i g h t - h a n d s i d e .
- Pull the handle to open the cover and access the fuses.
N°
Rating
(Amps)
Functions
1 15 Rear wiper.
2 - Not used.
3 5 Air bag control unit.
4 10 Steering wheel angle sensor, Diagnostic socket, ESP sensor, Manu
al air conditioning, Clutch
s w i t c h , H e a d l a m p b e a m h e i g h t , P a r t i c l e e m i s s i o n fi l t e r p u m p , E l e c t r o c h r o m a t i c i n t e r i o r m i r r o r .
5 30 Electric mirrors, Passenger's electric window motor, Sunroof row 1.
6 30 Front electric windows supply.
7 5 C o u r t e s y l i g h t s , G l o v e b o x l i g h t , C o u r t e s y m i r r o r l i g h t s , E n t e r t a i n m e n t s c r e e n l i g h t s r o w 2 .
8 20 Multifunction display, Anti-theft alarm siren, Audio equipmen
t, Compact disc changer, Audio/
t e l e p h o n e , D i e s e l a d d i t i v e c o n t r o l u n i t , T y r e u n d e r - i n fl a t i o n d e t e c t i o n c o n t r o l u n i t , S l i d i n g d o o r s
module control unit.
9 30 Lighter.
10 15 S t e e r i n g w h e e l s w i t c h i n g , T r a i l e r f u s e b o x .
11 15 D i a g n o s t i c s o c k e t , I g n i t i o n s w i t c h , A u t o m a t i c g e a r b o x ( 4 - s p e e d ) .
12 15 Driver's seat memory unit, Passenger's electric seat, Air bag control un
it, Parking assistance
c o n t r o l u n i t , S l i d i n g s i d e d o o r b u t t o n s , H a n d s - f r e e k i t , A u t o m a t i c g e a r b o x ( 6 - s p e e d ) .
13 5 E n g i n e f u s e b o x , T r a i l e r f u s e b o x .
14 15 Rain sensor, Automatic air conditioning, Instrument panel, Su
nroofs, Odometer warning lights
unit, Audio-telematics control.
15 30 Passenger's lock locking.
16 30 Locking/unlocking of the accesses.
17 40 Heated rear screen.
