129
TROUBLESHOOTING
7

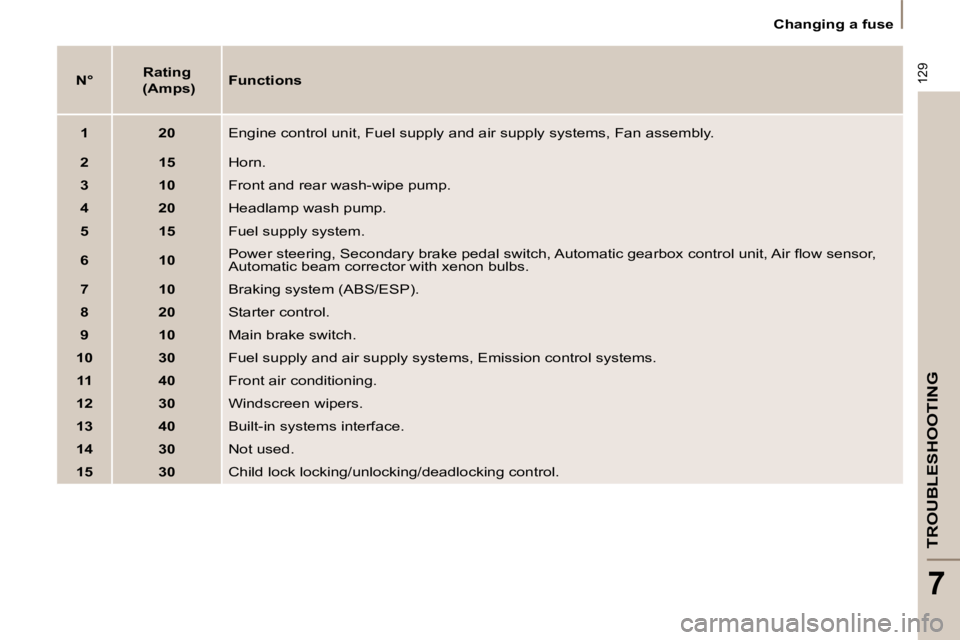

Changing a fuse
N°
Rating
(Amps)
Functions
1 20 Engine control unit, Fuel supply and air supply systems, Fan assembly.
2 15 Horn.
3 10 Front and rear wash-wipe pump.
4 20 Headlamp wash pump.
5 15 Fuel supply system.
6 10 P o w e r s t e e r i n g , S e c o n d a r y b r a k e p e d a l s w i t c h , A u t o m a t i c g e a r b o x c o n t
r o l u n i t , A i r fl o w s e n s o r ,
A u t o m a t i c b e a m c o r r e c t o r w i t h x e n o n b u l b s .
7 10 Braking system (ABS/ESP).
8 20 Starter control.
9 10 Main brake switch.
10 30 Fuel supply and air supply systems, Emission control systems.
11 40 Front air conditioning.
12 30 Windscreen wipers.
13 40 Built-in systems interface.
14 30 Not used.
15 30 Child lock locking/unlocking/deadlocking control.
