1
INSTRUMENTS and CONTROLS
INSTRUMENT PANELINSTRUMENT PANEL
3. Instrument panel screen:
- Warning and status displays.
- Total and trip distance recorders.
- Service indicator.
- Coolant temperature.
- Trip computer information.
- Cruise control setting.
- Dashboard lighting and parameter settings.
- Fuel level.
- Ambient temperature.
- Transmission mode.
Panel grouping together the dials and
warning/indicator lamps. These inform
the driver of the activation/deactivation
of a system or of the occurrence of a
fault.
Screen type 1
Screen type 2
1. Rev counter.
2. Speedometer.
Page 5 of 215
1
INSTRUMENTS and CONTROLS
E a c h t i m e t h e e n g i n e i s s t a r t e d : a s e r i e s o f w a r n i n g l a m p s a n d / o r m e s s a g e s c o m e o n , a p p l y i n g a c h e c k i n g s e l f t e s t . T h e y g o
off after a few seconds. Engine running: the warning lamp o r the message becomes a warning if it remains on continuously
o r fl a s h e s . T h i s i n i t i a l w a r n i n g m a y b e a c c o m p a n i e d b y a n a u d i b l e s i g n a l a n d a m e s s a g e o n t h e s c r e e n . D o n o t i g n o r e t h e s e
warnings.
The messages displayed may differ between the type 1 instrument panel and the type 2 instrument panel.
W h e n t h e c a u s e o f t h e a p p e a r a n c e o f t h e w a r n i n g l a m p o r w a r n i n g m e s s a g e h a s b e e n r e c t i fi e d , t h e w a r n i n g d i s a p p e a r s
f r o m t h e s c r e e n a u t o m a t i c a l l y . I f t h e c a u s e o f t h e w a r n i n g i s n o t r e c t i fi e d , y o u c a n r e t u r n t o t h e p r e v i o u s s c r e e n a t a n y t i m e
by pressing the INFO button on the dashboard.
The symbol "!" is displayed.
To return to the previous screen (with the "!" s y m b o l ) , y o u m u s t p r e s s t h e INFO button several times.
INSTRUMENT PANELINSTRUMENT PANEL DISPLAYS
Warning messages (ignition at "OFF")
You can close the warning messages which show these symbols in ord
er to move on to the next screen.
T o d o t h i s , p r e s s t h e INFO button according to the symbol displayed.
Press b r i e fl y . Press and hold .
S y m b o l s w h i c h a p p e a r i n t h e t o p r i g h t c o r n e r o f t h e s c r
e e n .
Message is on Cause Solution - action Observations
K e y i n
ignition Fixed The driver's door is open
and you have forgotten
to remove the key from
the ignition. Turn the ignition switch
to the LOCK position
and remove the key. Only if the engine has
been started.
An intermittent audible
signal is heard.
Lighting
l e f t
on Fixed You have forgotten to
switch off the vehicle
lighting. Switch off the vehicle
lighting by placing the
stalk at OFF.
An intermittent audible
signal is heard.
Page 100 of 215
6
SAFETY

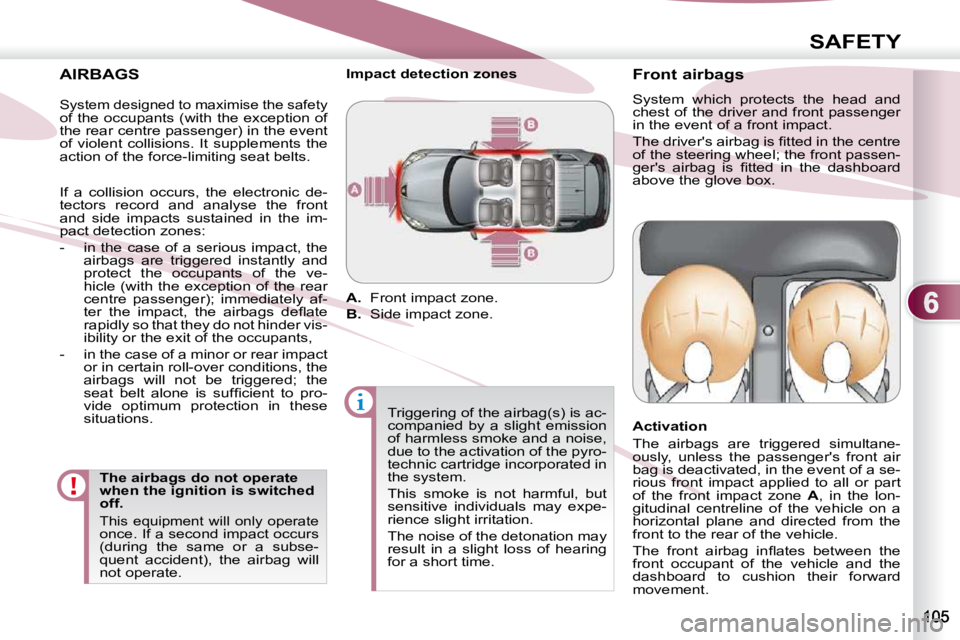

AIRBAGS The airbags do not operate
when the ignition is switched
off.
This equipment will only operate once. If a second impact occurs
(during the same or a subse-
quent accident), the airbag will
not operate. Front airbags
System which protects the head and
chest of the driver and front passenger
in the event of a front impact.
T h e d r i v e r ' s a i r b a g i s fi t t e d i n t h e c e n t r e
of the steering wheel; the front passen-
g e r ' s a i r b a g i s fi t t e d i n t h e d a s h b o a r d
above the glove box.
Activation
The airbags are triggered simultane-
ously, unless the passenger's front air
bag is deactivated, in the event of a se-
rious front impact applied to all or part
of the front impact zone
A , in the lon-
gitudinal centreline of the vehicle on a
horizontal plane and directed from the
front to the rear of the vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
dashboard to cushion their forward
movement.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
Triggering of the airbag(s) is ac-
companied by a slight emission
of harmless smoke and a noise,
due to the activation of the pyro-
technic cartridge incorporated in
the system.
This smoke is not harmful, but
sensitive individuals may expe-
rience slight irritation.
The noise of the detonation may
result in a slight loss of hearing
for a short time.
System designed to maximise the safety of the occupants (with the exception of
the rear centre passenger) in the event
of violent collisions. It supplements the
action of the force-limiting seat belts.
If a collision occurs, the electronic de-
tectors record and analyse the front
and side impacts sustained in the im-
pact detection zones:
- in the case of a serious impact, the airbags are triggered instantly and
protect the occupants of the ve-
hicle (with the exception of the rear
centre passenger); immediately af-
t e r t h e i m p a c t , t h e a i r b a g s d e fl a t e
rapidly so that they do not hinder vis-
ibility or the exit of the occupants,
- in the case of a minor or rear impact or in certain roll-over conditions, the
airbags will not be triggered; the
s e a t b e l t a l o n e i s s u f fi c i e n t t o p r o -
vide optimum protection in these
situations.
Page 103 of 215
6
SAFETY
For the airbags to be fully
effective, observe the
following safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat
belt.
Do not leave anything between
the occupants and the airbags
(a child, pet, object...). This could
hamper the operation of the air-
bags or injure the occupants. Lateral airbags
U s e o n l y a p p r o v e d c o v e r s o n t h e s e a t s . T h e s e w i l l n o t h i n d e r i
n fl a t i o n o f t h e
lateral airbags. Consult a PEUGEOT dealer.
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e s e a t b a c k s ( c l o t h i n g . . . ) . T h i s c o u l d c a u s e
injury to the chest or arms if the lateral airbag is triggered.
Do not sit with the upper part of the body any nea rer to the door than necessary.
After an accident or if the vehicle
has been stolen or broken into,
have the airbag systems checked.
All work on the airbag system is
strictly forbidden unless it is car-
r i e d o u t b y q u a l i fi e d p e r s o n n e l o f
the PEUGEOT dealer network.
Even if all of the precautions men-tioned are observed, a risk of in-
jury or of minor burns to the head,
chest or arms when an airbag
is triggered cannot be ruled out.
T h e b a g i n fl a t e s a l m o s t i n s t a n t l y
(within a few milliseconds) then
d e fl a t e s w i t h i n t h e s a m e t i m e d i s -
charging the hot gas via openings
provided for this purpose. Curtain airbags
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e r o o f . T h i s c o u l d c a u s e
i n j u r y t o t h e h e a d i f
the curtain airbag is triggered.
Do not remove the grab handles installed on the ro of, they play a part in securing
the curtain airbags. Front airbags
Do not drive holding the steering wheel by its spokes or resti
ng your hands on
the centre part of the wheel.
Passengers must not place their feet on the dashboard.
If possible, do not smoke as deployment of the airbags can cau se burns or the
risk of injury from a cigarette or pipe.
Never remove or pierce the steering wheel or hit it violently.
Page 138 of 215
9
PRACTICAL INFORMATION
Dashboard fuses
T h e f u s e b o x e s a r e p l a c e d i n t h e l o w e r
d a s h b o a r d b e h i n d t h e g l o v e b o x .
Access to the fuses
O p e n t h e g l o v e b o x ,
Push the two opening guides A in-
w a r d s t o p a s s t h e fi r s t n o t c h ,
Remove the retaining tab B pulling
it outwards,
Support the cover and tilt it down-
wards,
Change the fuse (refer to the cor-
responding paragraph).
Fuse N° Rating Functions
1 * 30 A Heating.
2 15 A Brake lamps, third brake lamp, built-in systems
interface.
3 10 A Rear foglamps.
4 30 A Windscreen wipers and screenwash.
5 10 A Diagnostic socket.
6 20 A Central locking, door mirrors.
7 15 A Audio system, telematics, multifunction screen,
hands-free kit.
8 7.5 A Remote control key, air conditioning control unit,
instrument panel, switch panel, steering mounted
controls.
9 15 A Multifunction screen, instrument panel.
10 15 A Built-in systems interface.
11 15 A Rear wiper.
12 7.5 A Instrument panel, 4 wheel drive control unit,
air conditioning control panel, ABS control
unit, multifunction screen, automatic headlamp
adjustment, heated seats, airbag control unit,
steering wheel angle sensor, sunroof, rear screen
demisting, remote control.
13 - Not used.
14 10 A Ignition switch.
15 20 A Sunroof.
16 10 A Door mirrors, audio system, telematics.
