6
SAFETY
The ASC/TCL systems offer
exceptional safety in normal driv-
ing, but this should not encourage
the driver to take extra risks or
drive at high speed.
The correct functioning of these
systems depends on observa-
tion of the manufacturer's rec-
ommendations regarding the
wheels (tyres and rims), the
braking components, the elec-
tronic components and the as-
sembly and repair procedures
used by PEUGEOT dealers.
After an impact, have these sys-
tems checked by a PEUGEOT
dealer.
Deactivation
In exceptional conditions (starting a
vehicle which is bogged down, stuck
in snow, on soft ground, ...), it may be
better to deactivate the ASC system, so
that the wheels can move freely and re-
gain grip.
Press the "ASC OFF" button, located
to the right of the steering wheel, until
the ASC OFF symbol appears in the
instrument panel screen.
The display of this symbol in the top
right corner of the instrument panel
screen indicates that the ASC and TCL
systems are deactivated. Reactivation
These systems are not reactivated au-
t o m a t i c a l l y a b o v e 3 0 m p h ( 5 0 k m / h ) .
Press the "ASC OFF" button again
to reactivate them manually.
Switching off of the symbol in the top
right corner of the instrument panel
screen indicates the reactivation of the
ASC and TCL systems.
Operating fault
The display of this mes-
sage in the instrument
panel screen indicates a
malfunction of these sys-
tems.
Contact a PEUGEOT dealer to have
the ASC/TCL systems checked.
SYSTEMS
Activation
These systems are activated automati-
cally each time the vehicle is started.
They operate when the vehicle speed is
h i g h e r t h a n 1 0 m p h ( 1 5 k m / h ) .
Traction control and automatic
stability control
Traction control optimises traction to
prevent wheel spin, by acting on the
brakes of the driving wheels and on the
engine.
Automatic stability control acts on the
brake of one or more wheels and on the
engine to keep the vehicle on the tra-
jectory required by the driver.
They come into operation in
the event of a grip or trajectory
problem.
T h i s i s i n d i c a t e d b y fl a s h i n g
of this symbol on the instrument panel
screen.
Associated systems which guarantee
the directional stability of the vehicle
within the limits of the laws of physics:
- traction control (TCL),
- automatic stability control (ASC).
Page 100 of 215
6
SAFETY
AIRBAGS The airbags do not operate
when the ignition is switched
off.
This equipment will only operate once. If a second impact occurs
(during the same or a subse-
quent accident), the airbag will
not operate. Front airbags
System which protects the head and
chest of the driver and front passenger
in the event of a front impact.
T h e d r i v e r ' s a i r b a g i s fi t t e d i n t h e c e n t r e
of the steering wheel; the front passen-
g e r ' s a i r b a g i s fi t t e d i n t h e d a s h b o a r d
above the glove box.
Activation
The airbags are triggered simultane-
ously, unless the passenger's front air
bag is deactivated, in the event of a se-
rious front impact applied to all or part
of the front impact zone
A , in the lon-
gitudinal centreline of the vehicle on a
horizontal plane and directed from the
front to the rear of the vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
dashboard to cushion their forward
movement.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
Triggering of the airbag(s) is ac-
companied by a slight emission
of harmless smoke and a noise,
due to the activation of the pyro-
technic cartridge incorporated in
the system.
This smoke is not harmful, but
sensitive individuals may expe-
rience slight irritation.
The noise of the detonation may
result in a slight loss of hearing
for a short time.
System designed to maximise the safety of the occupants (with the exception of
the rear centre passenger) in the event
of violent collisions. It supplements the
action of the force-limiting seat belts.
If a collision occurs, the electronic de-
tectors record and analyse the front
and side impacts sustained in the im-
pact detection zones:
- in the case of a serious impact, the airbags are triggered instantly and
protect the occupants of the ve-
hicle (with the exception of the rear
centre passenger); immediately af-
t e r t h e i m p a c t , t h e a i r b a g s d e fl a t e
rapidly so that they do not hinder vis-
ibility or the exit of the occupants,
- in the case of a minor or rear impact or in certain roll-over conditions, the
airbags will not be triggered; the
s e a t b e l t a l o n e i s s u f fi c i e n t t o p r o -
vide optimum protection in these
situations.
Page 122 of 215
8
CHECKS
Diesel additive level (Diesel
with particle emission filter)
The minimum level of this additive is indica-
ted by lighting of the service warning lamp,
accompanied by an audible signal and a
message on the multifunction screen.
Topping up
This additive must be topped up by a
PEUGEOT dealer without delay.
Used products
CHECKS CHECKS
Battery Check the electrolyte level
regularly. If necessary, top up
the level with distilled water.
Check that the terminals are
clean and correctly tightened,
particularly in summer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter and passenger
compartment filter
Refer to the servicing booklet
for details of the replacement
intervals for these compo-
nents.
Depending on the environ-
ment (dusty atmosphere...) and the use
of the vehicle (city driving...), replace
them twice as often if necessary (refer
to the "Engines" paragraph).
A c l o g g e d p a s s e n g e r c o m p a r t m e n t fi l -
ter may have an adverse effect on the
performance of the air conditioning sys-
tem and generate undesirable odours. Oil filter
R e p l a c e t h e o i l fi l t e r e a c h t i m e
the engine oil is changed.
Refer to the servicing booklet
for details of the replacement
interval for this component.
Particle emission filter (Diesel)
M a i n t e n a n c e o f t h e p a r t i c l e e m i s s i o n fi l -
ter must be carried out by a PEUGEOT
dealer.
Following prolonged operation
of the vehicle at very low speed
or at idle, you may, exception-
ally, notice the emission of water
vapour at the exhaust on accel-
eration. This does not have any
adverse effect on the perform-
ance of the vehicle or on the
environment.
Avoid any prolonged contact of
u s e d o i l o r fl u i d s w i t h t h e s k i n .
M o s t o f t h e s e fl u i d s a r e h a r m f u l t o
health or indeed very corrosive.
D o n o t d i s c a r d u s e d o i l o r fl u i d s
into sewers or onto the ground.
Empty used oil into the contain-
ers provided for this purpose in
the PEUGEOT network (France)
or take them to an authorised
waste disposal site.
D o n o t d i s c a r d t h e o i l fi l t e r t h r o u g h p u b -
lic channels, deposit it in the containers
dedicated to this use in the PEUGEOT
network (France) or take them to an au-
thorised waste disposal site.
Unless otherwise indicated, check
these components in accordance with
the servicing booklet and in relation to
your engine.
Otherwise, have them checked by a
PEUGEOT dealer.
Page 123 of 215
8
CHECKS
Diesel additive level (Diesel
with particle emission filter)
The minimum level of this additive is indica-
ted by lighting of the service warning lamp,
accompanied by an audible signal and a
message on the multifunction screen.
Topping up
This additive must be topped up by a
PEUGEOT dealer without delay.
Used products
CHECKS CHECKS
Battery Check the electrolyte level
regularly. If necessary, top up
the level with distilled water.
Check that the terminals are
clean and correctly tightened,
particularly in summer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter and passenger
compartment filter
Refer to the servicing booklet
for details of the replacement
intervals for these compo-
nents.
Depending on the environ-
ment (dusty atmosphere...) and the use
of the vehicle (city driving...), replace
them twice as often if necessary (refer
to the "Engines" paragraph).
A c l o g g e d p a s s e n g e r c o m p a r t m e n t fi l -
ter may have an adverse effect on the
performance of the air conditioning sys-
tem and generate undesirable odours. Oil filter
R e p l a c e t h e o i l fi l t e r e a c h t i m e
the engine oil is changed.
Refer to the servicing booklet
for details of the replacement
interval for this component.
Particle emission filter (Diesel)
M a i n t e n a n c e o f t h e p a r t i c l e e m i s s i o n fi l -
ter must be carried out by a PEUGEOT
dealer.
Following prolonged operation
of the vehicle at very low speed
or at idle, you may, exception-
ally, notice the emission of water
vapour at the exhaust on accel-
eration. This does not have any
adverse effect on the perform-
ance of the vehicle or on the
environment.
Avoid any prolonged contact of
u s e d o i l o r fl u i d s w i t h t h e s k i n .
M o s t o f t h e s e fl u i d s a r e h a r m f u l t o
health or indeed very corrosive.
D o n o t d i s c a r d u s e d o i l o r fl u i d s
into sewers or onto the ground.
Empty used oil into the contain-
ers provided for this purpose in
the PEUGEOT network (France)
or take them to an authorised
waste disposal site.
D o n o t d i s c a r d t h e o i l fi l t e r t h r o u g h p u b -
lic channels, deposit it in the containers
dedicated to this use in the PEUGEOT
network (France) or take them to an au-
thorised waste disposal site.
Unless otherwise indicated, check
these components in accordance with
the servicing booklet and in relation to
your engine.
Otherwise, have them checked by a
PEUGEOT dealer.
Page 138 of 215
9
PRACTICAL INFORMATION
Dashboard fuses
T h e f u s e b o x e s a r e p l a c e d i n t h e l o w e r
d a s h b o a r d b e h i n d t h e g l o v e b o x .
Access to the fuses
O p e n t h e g l o v e b o x ,
Push the two opening guides A in-
w a r d s t o p a s s t h e fi r s t n o t c h ,
Remove the retaining tab B pulling
it outwards,
Support the cover and tilt it down-
wards,
Change the fuse (refer to the cor-
responding paragraph).
Fuse N° Rating Functions
1 * 30 A Heating.
2 15 A Brake lamps, third brake lamp, built-in systems
interface.
3 10 A Rear foglamps.
4 30 A Windscreen wipers and screenwash.
5 10 A Diagnostic socket.
6 20 A Central locking, door mirrors.
7 15 A Audio system, telematics, multifunction screen,
hands-free kit.
8 7.5 A Remote control key, air conditioning control unit,
instrument panel, switch panel, steering mounted
controls.
9 15 A Multifunction screen, instrument panel.
10 15 A Built-in systems interface.
11 15 A Rear wiper.
12 7.5 A Instrument panel, 4 wheel drive control unit,
air conditioning control panel, ABS control
unit, multifunction screen, automatic headlamp
adjustment, heated seats, airbag control unit,
steering wheel angle sensor, sunroof, rear screen
demisting, remote control.
13 - Not used.
14 10 A Ignition switch.
15 20 A Sunroof.
16 10 A Door mirrors, audio system, telematics.
Page 140 of 215
9
PRACTICAL INFORMATION
Engine compartment fuses
T h e f u s e b o x i s p l a c e d i n t h e e n g i n e c o m p a r t m e n t n e a r t h e
battery (left-hand side).
Access to the fuses
Open the bonnet (refer to the "Access" section),
Press on the hook A to release the catch,
Remove the cover completely,
Change the fuse (refer to the corresponding paragraph).
W h e n y o u h a v e fi n i s h e d , c l o s e t h e c o v e r c a r e f u l l y t o e n -
s u r e s e a l i n g o f t h e f u s e b o x .
Fuse N° Rating Functions
1 15 A Front foglamps.
2 7 A 2.4 litre 16V engine control unit.
3 20 A C V T a u t o m a t i c g e a r b o x c o n t r o l u n i t ,
C V T a u t o m a t i c g e a r b o x c o n t r o l r e l a y .
4 10 A Horn.
5 7.5 A 2.4 litre 16V alternator.
6 20 A Headlamp wash.
7 10 A Air conditioning.
8 15 A 2.4 litre 16V engine control unit.
9 - Not used.
10 15 A Demisting, wipers.
11 - Not used.
12 - Not used.
13 - Not used.
14 10 A Left-hand main beam headlamp.
15 10 A Right-hand main beam headlamp.
16 20 A
L e f t - h a n d d i p p e d b e a m h e a d l a m p ( x e n o n ) .
17 20 A R i g h t - h a n d d i p p e d b e a m h e a d l a m p ( x e n o n ) .
18 10 A Left-hand dipped beam headlamp, manual
and automatic headlamp adjustment.
19 10 A Right-hand dipped beam headlamp.
20 - Not used.
21 10 A Ignition coils.
Page 180 of 215
11
AUDIO EQUIPMENT and TELEMATICS
AUDIO-VIDEO AUDIO-VIDEO
What is RDS? RDS station following T r a f fi c i n f o r m a t i o n f u n c t i o n
Your radio automatically checks
and selects the best frequency
for the radio station to which it is
tuned (if the station broadcasts on se-
veral transmitters or frequencies).
The frequency of a radio station covers
approximately 30 miles (50 km). The
change from one frequency to another
explains the loss of reception during a
journey.
If the station to which you are listening
does not have several frequencies in
the region in which you are currently
located, you can deactivate the auto-
matic frequency following.
Radio, RDS, AF, REG, TP, PTY
Radio Data System (RDS) func-
tion on the FM waveband permits:
- tuning to the same station while travelling through different regions
(if the transmitters of this station
cover the area through which you
are travelling),
- t e m p o r a r y t u n i n g t o t r a f fi c i n f o r m a - tion announcements,
-
display of the name of the station, etc...
Most FM stations use RDS.
These stations transmit non-audible
data in addition to their programmes.
The data transmitted in this way allows
you access to various functions, mainly
displaying of the name of the station,
t e m p o r a r y t u n i n g t o t r a f fi c i n f o r m a t i o n
announcements or automatic station
following.
RDS allows you to continue listening to the
same station by means of the frequency
following. However, in certain conditions,
this RDS frequency following cannot be
provided throughout the country. Radio
stations do not cover the whole country,
which explains the loss of reception of the
station during a journey. T h e T r a f fi c P r o g r a m ( T P ) f u n c t i o n
permits automatic and temporary
switching to an FM station broad-
c a s t i n g t r a f fi c i n f o r m a t i o n .
The radio station or the source that you
are listening to at this point is paused.
O n c e t h e t r a f fi c i n f o r m a t i o n h a s e n d e d ,
the system switches back to the radio
station or the source that you were lis-
tening to initially.
Regional following mode Some stations are organised in
a network.
In different regions, they broad-
cast different or shared programmes de-
pending on the time of day.
You can follow:
- a regional station only,
- the entire network, with the possibility that you will be listening to a different
programme. Programme types
Some stations offer the option
of listening to a themed type of
programme as a priority, select-
ed from the list available below:
NEWS, AFFAIRS, INFOS, SPORT,
EDUCATE, DRAMA, CULTURE,
SCIENCE, VARIED, POP M, ROCK M,
EASY M, LIGHT M, CLASSICS, OTHER M,
WEATHER, FINANCE, CHILDREN,
SOCIAL, RELIGION, PHONE IN, TRAVEL,
LEISURE, JAZZ, COUNTRY, NATION M,
OLDIES, FOLK M, DOCUMENT.
Page 201 of 215
11
AUDIO EQUIPMENT and TELEMATICS

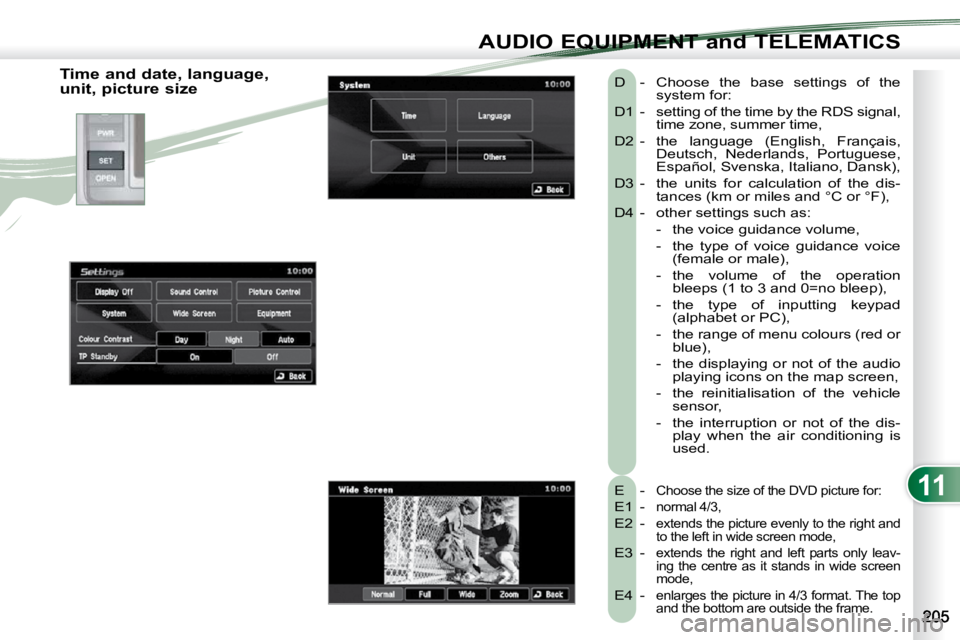

Time and date, language,
unit, picture size E -
Choose the size of the DVD picture for:
E1 - normal 4/3,
E2 - extends the picture evenly to the right and
to the left in wide screen mode,
E3 - extends the right and left parts only leav-
ing the centre as it stands in wide screen
mode,
E4 - enlarges the picture in 4/3 format. The top
and the bottom are outside the frame.
D - Choose the base settings of the system for:
D1 - setting of the time by the RDS signal, time zone, summer time,
D2 - the language (English, Français, Deutsch, Nederlands, Portuguese,
Español, Svenska, Italiano, Dansk),
D3 - the units for calculation of the dis- tances (km or miles and °C or °F),
D4 - other settings such as:
- the voice guidance volume,
- the type of voice guidance voice (female or male),
- the volume of the operation b l e e p s ( 1 t o 3 a n d 0 = n o b l e e p ) ,
- the type of inputting keypad (alphabet or PC),
- the range of menu colours (red or blue),
- the displaying or not of the audio playing icons on the map screen,
- the reinitialisation of the vehicle sensor,
- the interruption or not of the dis- play when the air conditioning is
used.
