2010 PEUGEOT 4007 stop start

1
INSTRUMENTS and CONTROLS

Warning
lamp is on Cause Actions/Observations
Driver's
seat belt not fastened Fixed The driver has not
fastened or has
unfastened their seat
belt. This is accompanied by a message on the
instrument panel screen.
Fasten the driver's seat belt.
ABS Fixed
This comes on if an
anti-lock braking system
fault occurs. It is accompanied by a message on the
instrument panel screen. The vehicle retains
conventional braking without assistance but
you are advised to stop. Have it checked by a
PEUGEOT dealer.
Airbags and
pretensioners Fixed This comes on for a
few seconds when the
ignition is turned to "ON"
then goes off.
It should go off when the engine is started. If it
does not go off, contact a PEUGEOT dealer.
This comes on if an
airbag or pretensioner
fault occurs. It is accompanied by a message on the
instrument panel screen. Have the system
checked by a PEUGEOT dealer without delay.
Dynamic
stability control system (ASC) Fixed This comes on if a
dynamic stability control
system fault occurs. It is accompanied by a message on the
instrument panel screen. Have the system
checked by a PEUGEOT dealer without delay.

1
INSTRUMENTS and CONTROLS
Set the time using the buttons as
indicated below:

 with the ignition on or in the ACC
(Accessories) position, press and
hold the CLOCK button until the
time display fl ashes.

 Press the appropriate button to set
the time:

Button
H: to set the hours
The hours digits scroll when you press
this button.

Button M: to set the minutes
The minutes digits scroll when you
press this button.

Button 00: to reset the minutes to
zero.
- from 1 to 29 min
: rounded down to
the previous hour,
- from 30 to 59 min: rounded up to
the next hour.

 After setting the time, press the

DISP button; the time display stops
fl ashing.
Manual mode
Automatic mode
In this mode, setting is automatic using
the signal from the RDS radio stations. The digital clock does not display
seconds.
When the "minutes" display is
set or reset to zero, the clock
starts at the zero second of the
minute selected.
The time setting is lost if the
battery is disconnected.

 Turn button B "TUNE" to the left or
to the right to select "CT ON" (auto-
matic mode) or "CT OFF" (manual
mode).

 After selecting the mode, you can
exit the "Functions setting mode"
menu by pressing button B "TUNE"
for approximately 2 seconds.
If no action is carried out within
10 seconds, the system will exit
the "Functions setting mode"
menu automatically.

3
ACCESS
Keys
Make a careful note of the number of each key. This number is coded on the label attached to the key.
If the keys are lost, a PEUGEOT dealer can supply you with new keys.
Do not throw the remote control batteries away, t hey contain metals which are harmful to the environment.
Take them to an approved collection point.
Remote control
The high frequency remote control is a sensitive system; do not o
perate it while it is in your pocket as there is a
possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the
risk of stopping it from working.
The remote control does not operate when the key is in the ignition, even when the ignition is switched off.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart ment by the emergency services more
diffi cult in an emergency.
As a safety precaution (with children on board), r emove the key from the ignition when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobi liser system, this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones
which can start the vehicle.

3
ACCESS
Keys
Make a careful note of the number of each key. This number is coded on the label attached to the key.
If the keys are lost, a PEUGEOT dealer can supply you with new keys.
Do not throw the remote control batteries away, t hey contain metals which are harmful to the environment.
Take them to an approved collection point.
Remote control
The high frequency remote control is a sensitive system; do not o
perate it while it is in your pocket as there is a
possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the
risk of stopping it from working.
The remote control does not operate when the key is in the ignition, even when the ignition is switched off.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart ment by the emergency services more
diffi cult in an emergency.
As a safety precaution (with children on board), r emove the key from the ignition when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobi liser system, this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones
which can start the vehicle.

7
DRIVING

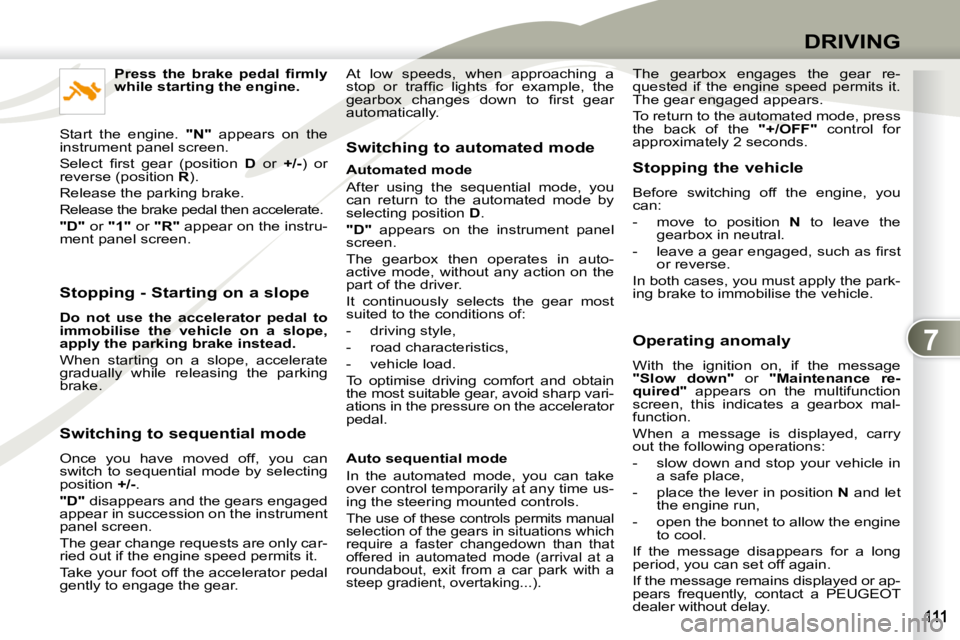

Stopping - Starting on a slope

Do not use the accelerator pedal to
immobilise the vehicle on a slope,
apply the
parking brake
instead.
When starting on a slope, accelerate
gradually while releasing the parking
brake.
Switching to sequential mode
Once you have moved off, you can
switch to sequential mode by selecting
position +/- .

"D" disappears and the gears engaged
appear in succession on the instrument
panel screen.
The gear change requests are only car-
ried out if the engine speed permits it.
Take your foot off the accelerator pedal
gently to engage the gear. Switching to automated mode
Automated mode
After using the sequential mode, you
can return to the automated mode by
selecting position
D .

"D" appears on the instrument panel
screen.
The gearbox then operates in auto-
active mode, without any action on the
part of the driver.
It continuously selects the gear most
suited to the conditions of:
- driving style,
- road characteristics,
- vehicle load.
To optimise driving comfort and obtain
the most suitable gear, avoid sharp vari-
ations in the pressure on the accelerator
pedal.
Auto sequential mode
In the automated mode, you can take
over control temporarily at any time us-
ing the steering mounted controls.
The use of these controls permits manual
selection of the gears in situations which
require a faster changedown than that
offered in automated mode (arrival at a
roundabout, exit from a car park with a
steep gradient, overtaking...).
Stopping the vehicle
Before switching off the engine, you
can:
- move to position N to leave the
gearbox in neutral.
- leave a gear engaged, such as fi rst or reverse.
In both cases, you must apply the park-
ing brake to immobilise the vehicle.
Operating anomaly
With the ignition on, if the message

"Slow down" or "Maintenance re-
quired" appears on the multifunction
screen, this indicates a gearbox mal-
function.
When a message is displayed, carry
out the following operations:
- slow down and stop your vehicle in a safe place,
- place the lever in position N and let
the engine run,
- open the bonnet to allow the engine to cool.
If the message disappears for a long
period, you can set off again.
If the message remains displayed or ap-
pears frequently, contact a PEUGEOT
dealer without delay.

Press the brake pedal fi rmly
while starting the engine.
Start the engine. "N" appears on the
instrument panel screen.
Select fi rst gear (position D or +/- ) or
reverse (position R ).
Release the parking brake.
Release the brake pedal then accelerate.

"D" or "1" or "R" appear on the instru-
ment panel screen. The gearbox engages the gear re-
quested if the engine speed permits it.
The gear engaged appears.
To return to the automated mode, press
the back of the
"+/OFF" control for
approximately 2 seconds.
At low speeds, when approaching a
stop or traffi c lights for example, the
gearbox changes down to fi rst gear
automatically.

7
DRIVING

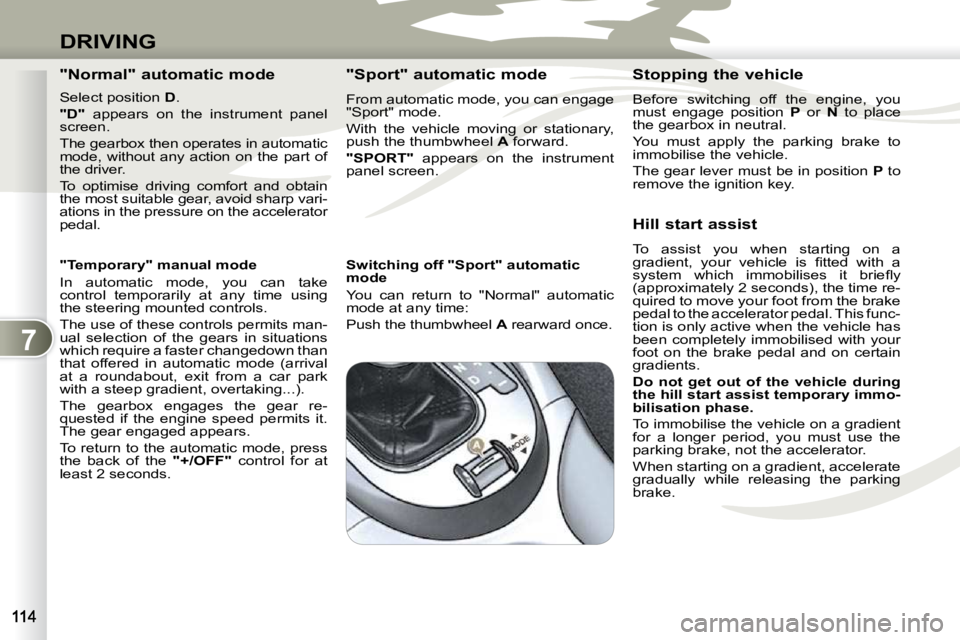

"Normal" automatic mode
Select position D .

"D" appears on the instrument panel
screen.
The gearbox then operates in automatic
mode, without any action on the part of
the driver.
To optimise driving comfort and obtain
the most suitable gear, avoid sharp vari-
ations in the pressure on the accelerator
pedal.
"Temporary" manual mode
In automatic mode, you can take
control temporarily at any time using
the steering mounted controls.
The use of these controls permits man-
ual selection of the gears in situations
which require a faster changedown than
that offered in automatic mode (arrival
at a roundabout, exit from a car park
with a steep gradient, overtaking...).
The gearbox engages the gear re-
quested if the engine speed permits it.
The gear engaged appears.
To return to the automatic mode, press
the back of the "+/OFF" control for at
least 2 seconds. "Sport" automatic mode
From automatic mode, you can engage
"Sport" mode.
With the vehicle moving or stationary,
push the thumbwheel
A forward.

"SPORT" appears on the instrument
panel screen.
Switching off "Sport" automatic
mode
You can return to "Normal" automatic
mode at any time:
Push the thumbwheel A rearward once. Stopping the vehicle
Before switching off the engine, you
must engage position
P or N to place
the gearbox in neutral.
You must apply the parking brake to
immobilise the vehicle.
The gear lever must be in position P
to
remove the ignition key.
Hill start assist
To assist you when starting on a
gradient, your vehicle is fi tted with a
system which immobilises it briefl y
(approximately 2 seconds), the time re-
quired to move your foot from the brake
pedal to the accelerator pedal. This func-
tion is only active when the vehicle has
been completely immobilised with your
foot on the brake pedal and on certain
gradients.

Do not get out of the vehicle during
the hill start
assist
temporary immo-
bilisation phase.
To immobilise the vehicle on a gradient
for a longer period, you must use the
parking brake, not the accelerator.
When starting on a gradient, accelerate
gradually while releasing the parking
brake.

11
AUDIO EQUIPMENT and TELEMATICS

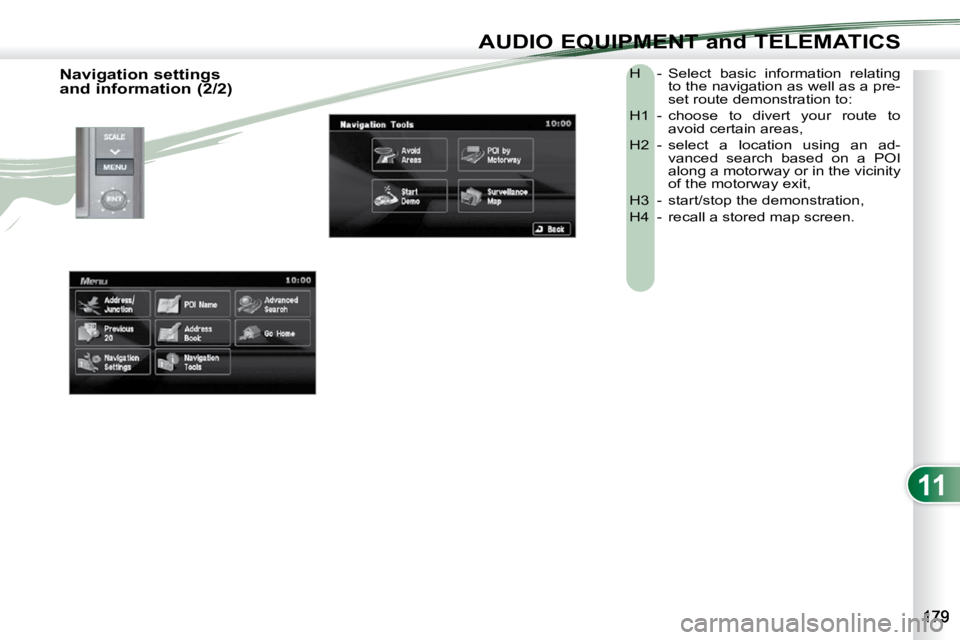

H - Select basic information relating to the navigation as well as a pre-
set route demonstration to:
H1 - choose to divert your route to avoid certain areas,
H2 - select a location using an ad- vanced search based on a POI
along a motorway or in the vicinity
of the motorway exit,
H3 - start/stop the demonstration,
H4 - recall a stored map screen. Navigation settings
and information (2/2)

11
AUDIO EQUIPMENT and TELEMATICS

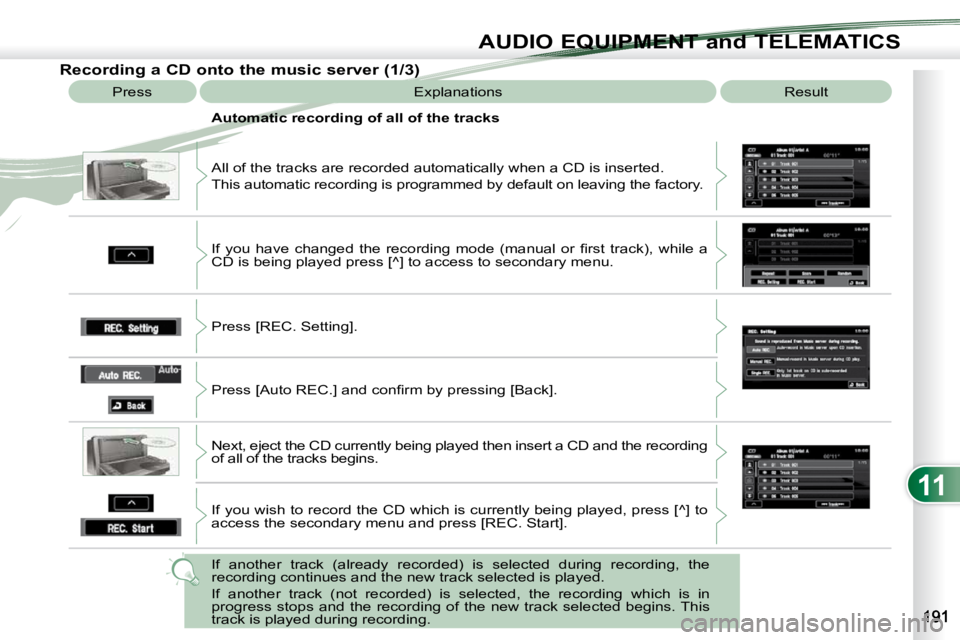

Recording a CD onto the music server (1/3)
Press Explanations Result
All of the tracks are recorded automatically when a CD is inserte d.
This automatic recording is programmed by default on leaving the factory.
Automatic recording of all of the tracks
If you have changed the recording mode (manual or fi rst track), wh
ile a
CD is being played press [^] to access to secondary menu.
Press [REC. Setting].
Press [Auto REC.] and confi rm by pressing [Back].
Next, eject the CD currently being played then ins ert a CD and the recording
of all of the tracks begins.
If you wish to record the CD which is currently being played, press [^] to
access the secondary menu and press [REC. Start].
If another track (already recorded) is selected during recording, th e
recording continues and the new track selected is played.
If another track (not recorded) is selected, the recording which i s in
progress stops and the recording of the new track selected begins. This
track is played during recording.
