1
INSTRUMENTS and CONTROLS

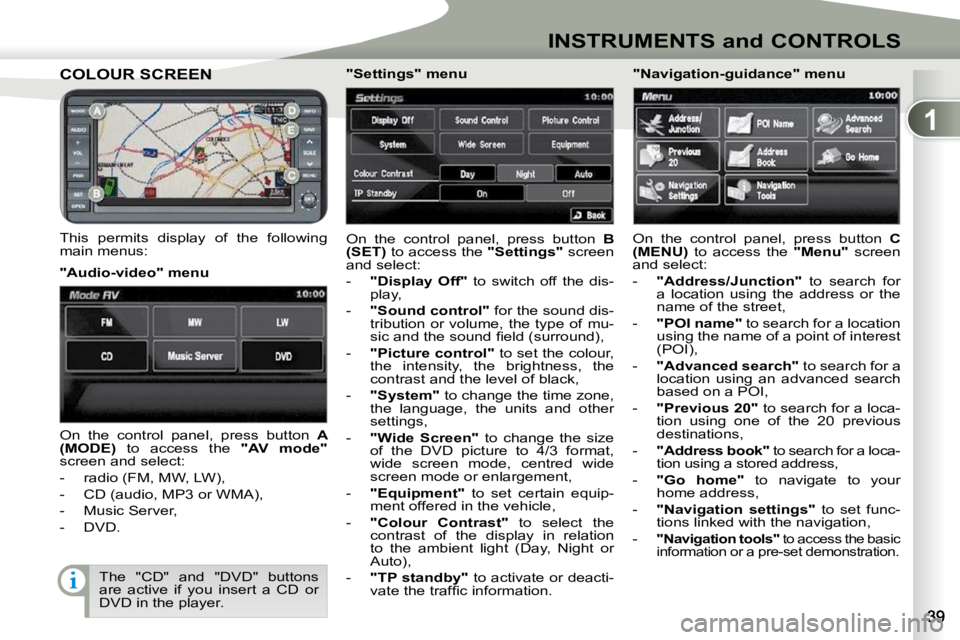

COLOUR SCREEN COLOUR SCREEN
This permits display of the following
main menus: O n t h e c o n t r o l p a n e l , p r e s s b u t t o n
B
(SET) to access the "Settings" screen
and select:
- " D i s p l a y
O f f
" to switch off the dis-
p l a y ,
- "Sound control" for the sound dis-
t r i b u t i o n o r v o l u m e , t h e t y p e o f m u -
s i c a n d t h e s o u n d fi e l d ( s u r r o u n d ) ,
- "Picture control" t o s e t t h e c o l o u r ,
t h e i n t e n s i t y , t h e b r i g h t n e s s , t h e
c o n t r a s t a n d t h e l e v e l o f b l a c k ,
- " S y s t e m " t o c h a n g e t h e t i m e z o n e ,
t h e l a n g u a g e , t h e u n i t s a n d o t h e r
s e t t i n g s ,
- "Wide Screen" to change the size
o f t h e D V D p i c t u r e t o 4 / 3 f o r m a t ,
w i d e s c r e e n m o d e , c e n t r e d w i d e
s c r e e n m o d e o r e n l a r g e m e n t ,
- "Equipment" t o s e t c e r t a i n e q u i p -
m e n t o f f e r e d i n t h e v e h i c l e ,
- "
Colour
Contrast" to select the
contrast of the display in relation
t o t h e a m b i e n t l i g h t ( D a y , N i g h t o r
A u t o ) ,
- " T P s t a n d b y " to activate or deacti-
v a t e t h e t r a f fi c i n f o r m a t i o n .
"Audio-video" menu
"Navigation-guidance" menu
O n t h e c o n t r o l p a n e l , p r e s s b u t t o n A
(MODE) to access the "AV mode"
screen and select:
- r a d i o ( F M , M W , L W ) ,
- C D ( a u d i o , M P 3 o r W M A ) ,
- M u s i c S e r v e r ,
- DVD. "Settings" menu
O n t h e c o n t r o l p a n e l , p r e s s b u t t o n C
(MENU) to access the "Menu" screen
and select:
- "Address/Junction" to search for
a location using the address or the
n a m e o f t h e s t r e e t ,
- "POI name" to search for a location
using the name of a point of interest
( P O I ) ,
- "Advanced search" to search for a
location using an advanced search
b a s e d o n a P O I ,
- "
Previous
20
" to search for a loca-
tion using one of the 20 previous
d e s t i n a t i o n s ,
- "Address book" to search for a loca-
t i o n u s i n g a s t o r e d a d d r e s s ,
- "
Go home
" to navigate to your
h o m e a d d r e s s ,
- "Navigation settings" to set func-
t i o n s l i n k e d w i t h t h e n a v i g a t i o n ,
-
"Navigation tools" to access the basic
information or a pre-set demonstration.
The "CD" and "DVD" buttons
are active if you insert a CD or
DVD in the player.
Page 148 of 215
9
PRACTICAL INFORMATION
T h e fi t t i n g o f e l e c t r i c a l e q u i p -
ment or accessories which are
not recommended by PEUGEOT
may result in a failure of your
vehicle's electronic system.
P l e a s e n o t e t h i s s p e c i fi c w a r n -
ing. You are advised to contact
a your dealer to be shown the
range of recommended equip-
ment and accessories.
ACCESSORIES ACCESSORIES
"Protection": "Touring":
"In-car technology":
"Styling":
"Universal":
* To prevent any risk of jamming of the pedals:
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r . Depending on the country in
which the vehicle is sold, it is
compulsory to have a high vis-
ibility jacket, warning triangle
and spare bulbs available in the
vehicle.
anti-theft alarm, window etch-
i n g , w h e e l s e c u r i t y b o l t s , fi r s t
aid kit, warning triangle, high
visibility jacket, stolen vehicle
tracking system, anti-skid cov-
e r s , t y r e u n d e r - i n fl a t i o n d e t e c -
tion, rear parking sensors. mats * , boot tray, dog guard,
P V C d o o r s i l l s , c o o l b o x .
For leisure pursuits: roof bars,
bicycle carrier on roof bars,
s k i c a r r i e r , r o o f b o x , b o o s t e r
seats and child seats, side
blinds.
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y
the PEUGEOT network.
MP3/USB audio systems,
a u d i o - t e l e p h o n e , a m p l i fi e r s ,
satellite navigation systems,
hands-free kit, speakers, DVD
player, connection kit for MP3
player or portable CD player,
rear parking sensors, alarm. d o o r d e fl e c t o r s , r e a r s t y l i n g
strips, 18 inch alloy wheels,
c h r o m e d e x t e r i o r m i r r o r s h e l l s ,
chromed door handle shells,
diffuser on rear bumper, side
protection mouldings, aluminium
boot sill.
s c r e e n w a s h , i n t e r i o r a n d e x -
terior maintenance and clean-
ing products.
It is advisable to contact a
PEUGEOT dealer before install-
ing accessory radio communica-
t i o n t r a n s m i t t e r s w i t h a n e x t e r n a l
aerial on your vehicle.
The PEUGEOT network will pro-
v i d e t h e s p e c i fi c a t i o n s ( f r e q u e n c y
b a n d , m a x i m u m o u t p u t p o w e r ,
aerial position, special installa-
tion conditions) of the transmitters
w h i c h c a n b e fi t t e d , i n a c c o r d a n c e
with the Motor Vehicle Electro-
magnetic Compatibility Directive
(2004/104/EC).
You can obtain a wide range of
accessories and original parts from the
PEUGEOT network.
These accessories and parts have
been tested and approved for reliability
and safety.
They are all adapted to your vehicle
a n d b e n e fi t f r o m P E U G E O T ' s r e c o m -
mendation and warranty.
The product range offered by PEUGEOTAccessories is structured around 5 categories: PROTECTION - TOURING - IN-CAR TECHNOLOGY - STYLING -
UNIVERSAL.
Page 161 of 215
11
AUDIO EQUIPMENT and TELEMATICS
CD PLAYER CD PLAYER
This can play audio CDs (CD-DA, CD-
Text, CD-R/RW) or MP3 CDs. If the player already con-
tains a disc, press the "CD"
button.
"CD", the track number and
the playing time appear on the screen.
Functions setting mode
This permits activation or deactivation
of the functions below.
Press the "TUNE" button for
more than two seconds to
access the functions setting
mode.
Then, press this button
several times in succession;
the functions setting mode changes in
the following order:
AF/CT/REG/TO-S/PTY (languages)/SCV/
PHONE/OFF.
Turn the "TUNE" dial respectively to the
left to deactivate the function ("OFF") or
to the right to activate it ("ON").
The "PHONE" is not operational
at present.
The functions setting mode is
deactivated after approximately
10 seconds without any action. Selecting CD mode
After inserting a disc, printed face up-
wards, the player starts automatically.
Ejecting a disc
Press this button to remove
the disc from the player.
The system automatically
switches to radio mode. Fast search
Press and hold button " "
or " " to carry out a fast
backwards or forwards
search respectively.
Play begins when the button is re-
leased.
Selecting a track
Press button " " or " " to
select the previous or next
track respectively.
Repeating a track Press the "RPT" button to
repeat the play of the cur-
rent track. "RPT" appears
on the screen.
To exit this mode, press this button
again.
Random playing of a disc
Press the "RDM" button
to start random play of the
tracks on the disc. "RDM"
appears on the screen.
To exit this mode, press this button
again.
Insert circular compact discs
only.
8 cm compact discs must be in-
serted in the centre of the player
slot.
Once ejected, if the compact
disc is not removed within
fi f t e e n s e c o n d s , i t i s r e l o a d e d
into the player. Audio CDs
Page 162 of 215
11
AUDIO EQUIPMENT and TELEMATICS
CD PLAYER CD PLAYER
This can play audio CDs (CD-DA, CD-
Text, CD-R/RW) or MP3 CDs. If the player already con-
tains a disc, press the "CD"
button.
"CD", the track number and
the playing time appear on the screen.
Functions setting mode
This permits activation or deactivation
of the functions below.
Press the "TUNE" button for
more than two seconds to
access the functions setting
mode.
Then, press this button
several times in succession;
the functions setting mode changes in
the following order:
AF/CT/REG/TO-S/PTY (languages)/SCV/
PHONE/OFF.
Turn the "TUNE" dial respectively to the
left to deactivate the function ("OFF") or
to the right to activate it ("ON").
The "PHONE" is not operational
at present.
The functions setting mode is
deactivated after approximately
10 seconds without any action. Selecting CD mode
After inserting a disc, printed face up-
wards, the player starts automatically.
Ejecting a disc
Press this button to remove
the disc from the player.
The system automatically
switches to radio mode. Fast search
Press and hold button " "
or " " to carry out a fast
backwards or forwards
search respectively.
Play begins when the button is re-
leased.
Selecting a track
Press button " " or " " to
select the previous or next
track respectively.
Repeating a track Press the "RPT" button to
repeat the play of the cur-
rent track. "RPT" appears
on the screen.
To exit this mode, press this button
again.
Random playing of a disc
Press the "RDM" button
to start random play of the
tracks on the disc. "RDM"
appears on the screen.
To exit this mode, press this button
again.
Insert circular compact discs
only.
8 cm compact discs must be in-
serted in the centre of the player
slot.
Once ejected, if the compact
disc is not removed within
fi f t e e n s e c o n d s , i t i s r e l o a d e d
into the player. Audio CDs
Page 163 of 215
11
AUDIO EQUIPMENT and TELEMATICS

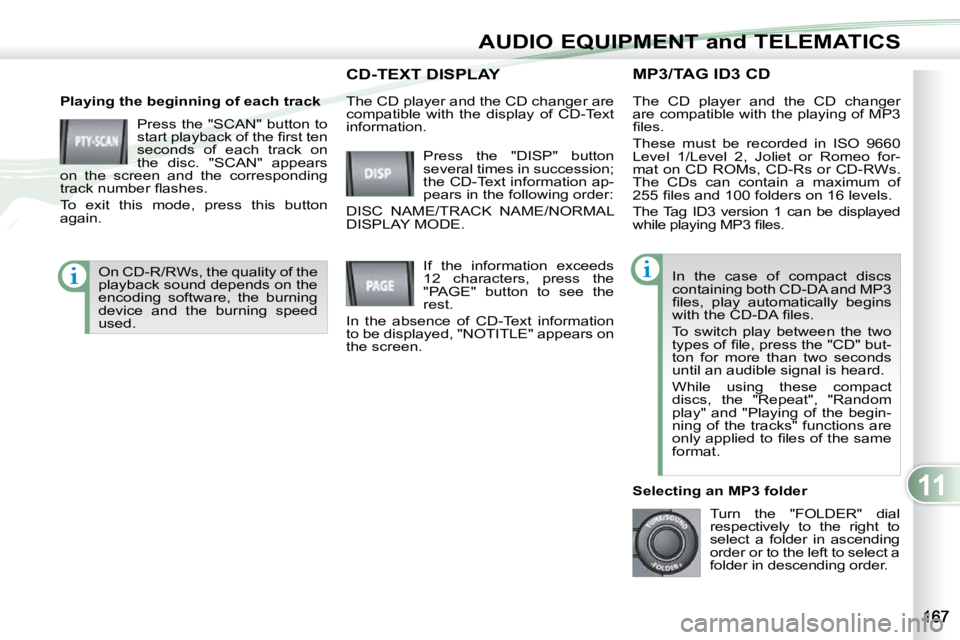

MP3/TAG ID3 CD
Playing the beginning of each track Press the "SCAN" button to
s t a r t p l a y b a c k o f t h e fi r s t t e n
seconds of each track on
the disc. "SCAN" appears
on the screen and the corresponding
t r a c k n u m b e r fl a s h e s .
To exit this mode, press this button
again. The CD player and the CD changer
are compatible with the playing of MP3
fi l e s .
These must be recorded in ISO 9660
Level 1/Level 2, Joliet or Romeo for-
mat on CD ROMs, CD-Rs or CD-RWs.
The CDs can contain a maximum of
2 5 5 fi l e s a n d 1 0 0 f o l d e r s o n 1 6 l e v e l s .
The Tag ID3 version 1 can be displayed
w h i l e p l a y i n g M P 3 fi l e s .
In the case of compact discs
containing both CD-DA and MP3
fi l e s , p l a y a u t o m a t i c a l l y b e g i n s
w i t h t h e C D - D A fi l e s .
To switch play between the two
t y p e s o f fi l e , p r e s s t h e " C D " b u t -
ton for more than two seconds
until an audible signal is heard.
While using these compact
discs, the "Repeat", "Random
play" and "Playing of the begin-
ning of the tracks" functions are
o n l y a p p l i e d t o fi l e s o f t h e s a m e
format.
Selecting an MP3 folder Turn the "FOLDER" dial
respectively to the right to
select a folder in ascending
order or to the left to select a
folder in descending order.
Press the "DISP" button
several times in succession;
the CD-Text information ap-
pears in the following order:
DISC NAME/TRACK NAME/NORMAL
DISPLAY MODE.
CD-TEXT DISPLAY CD-TEXT DISPLAY
If the information exceeds
12 characters, press the
"PAGE" button to see the
rest.
In the absence of CD-Text information
to be displayed, "NOTITLE" appears on
the screen.
The CD player and the CD changer are
compatible with the display of CD-Text
information.
On CD-R/RWs, the quality of the
playback sound depends on the
encoding software, the burning
device and the burning speed
used.
Page 184 of 215
11
AUDIO EQUIPMENT and TELEMATICS

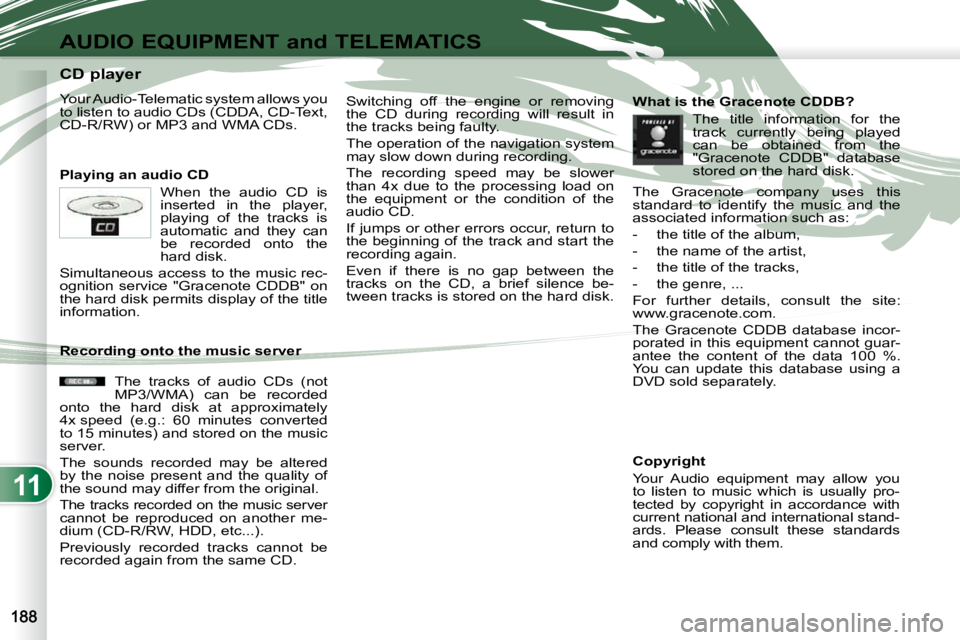

CD player
Your Audio-Telematic system allows you
to listen to audio CDs (CDDA, CD-Text,
CD-R/RW) or MP3 and WMA CDs.
Playing an audio CD When the audio CD is
inserted in the player,
playing of the tracks is
automatic and they can
be recorded onto the
hard disk.
Simultaneous access to the music rec-
ognition service "Gracenote CDDB" on
the hard disk permits display of the title
information. Switching off the engine or removing
the CD during recording will result in
the tracks being faulty.
The operation of the navigation system
may slow down during recording.
The recording speed may be slower
than 4x due to the processing load on
the equipment or the condition of the
audio CD.
If jumps or other errors occur, return to
the beginning of the track and start the
recording again.
Even if there is no gap between the
tracks on the CD, a brief silence be-
tween tracks is stored on the hard disk.
What is the Gracenote CDDB?
Copyright
Your Audio equipment may allow you
to listen to music which is usually pro-
tected by copyright in accordance with
current national and international stand-
ards. Please consult these standards
and comply with them.
Recording onto the music server
The tracks of audio CDs (not
MP3/WMA) can be recorded
onto the hard disk at approximately
4x speed (e.g.: 60 minutes converted
to 15 minutes) and stored on the music
server.
The sounds recorded may be altered
by the noise present and the quality of
the sound may differ from the original.
The tracks recorded on the music server
cannot be reproduced on another me-
dium (CD-R/RW, HDD, etc...).
Previously recorded tracks cannot be
recorded again from the same CD. The title information for the
track currently being played
can be obtained from the
"Gracenote CDDB" database
stored on the hard disk.
The Gracenote company uses this
standard to identify the music and the
associated information such as:
- the title of the album,
- the name of the artist,
- the title of the tracks,
- the genre, ...
For further details, consult the site:
www.gracenote.com.
The Gracenote CDDB database incor-
porated in this equipment cannot guar-
antee the content of the data 100 %.
You can update this database using a
DVD sold separately.
Page 185 of 215
11
AUDIO EQUIPMENT and TELEMATICS

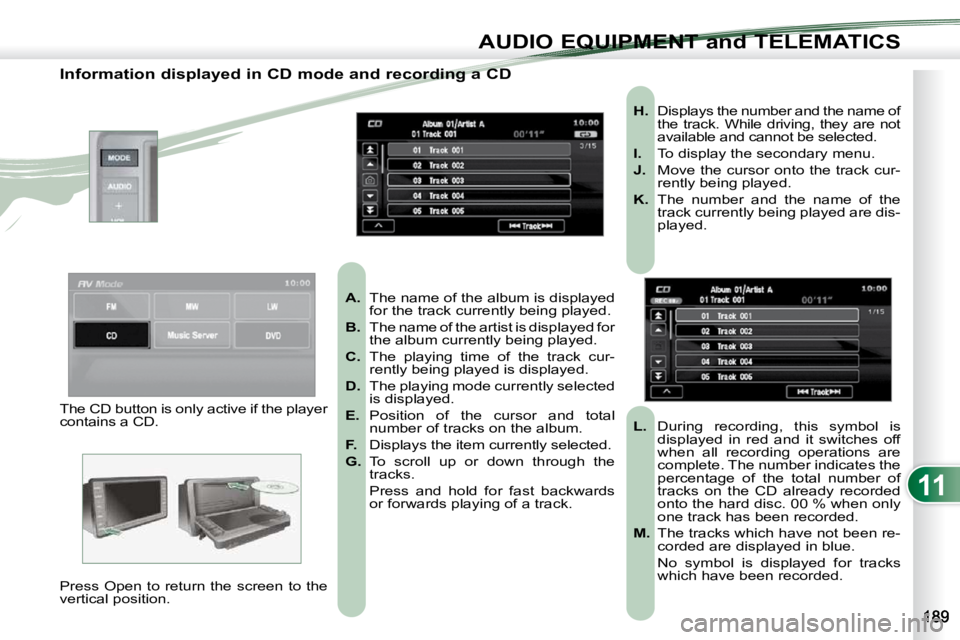

Information displayed in CD mode and recording a CD
A. The name of the album is displayed
for the track currently being played.
B. The name of the artist is displayed for
the album currently being played.
C. The playing time of the track cur-
rently being played is displayed.
D. The playing mode currently selected
is displayed.
E. Position of the cursor and total
number of tracks on the album.
F. Displays the item currently selected.
G. To scroll up or down through the
tracks.
Press and hold for fast backwards or forwards playing of a track.
H. Displays the number and the name of
the track. While driving, they are not
available and cannot be selected.
I. To display the secondary menu.
J. Move the cursor onto the track cur-
rently being played.
K. The number and the name of the
track currently being played are dis-
played.
L. During recording, this symbol is
displayed in red and it switches off
when all recording operations are
complete. The number indicates the
percentage of the total number of
tracks on the CD already recorded
onto the hard disc. 00 % when only
one track has been recorded.
M. The tracks which have not been re-
corded are displayed in blue.
No symbol is displayed for tracks which have been recorded.
The CD button is only active if the player
contains a CD.
Press Open to return the screen to the
vertical position.
Page 186 of 215
11
AUDIO EQUIPMENT and TELEMATICS

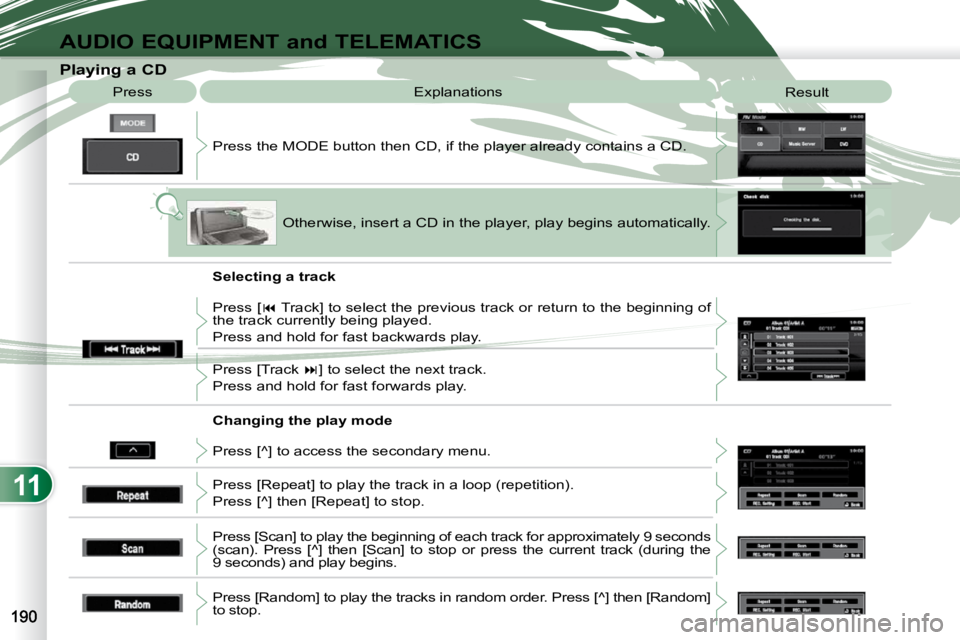

Playing a CD Press the MODE button then CD, if the player already contains a CD.
Press
Explanations
Result
Otherwise, insert a CD in the player, play begins automati cally.
Press [ Track] to select the previous track or return to the beginning of
the track currently being played.
Press and hold for fast backwards play.
Press [Track ] to select the next track.
Press and hold for fast forwards play.
Press [^] to access the secondary menu.
Press [Repeat] to play the track in a loop (repetition).
Press [^] then [Repeat] to stop.
Press [Scan] to play the beginning of each track f or approximately 9 seconds
(scan). Press [^] then [Scan] to stop or press the current track (during the
9 seconds) and play begins.
Press [Random] to play the tracks in random order. Press [^] then [Random]
to stop.
Selecting a track
Changing the play mode
