ACCESS
74
DOORS
After unlocking the vehicle using the
remote control or the key, pull the
door handle. From inside
Pull the front door control to open
the door; this unlocks the vehicle
completely.
Pull the rear door control to open
the door; this unlocks the door con-
cerned only.
The interior door controls do not
operate when the vehicle is dead-
locked. Closing
If a door is not closed correctly:
- when the engine is running, this warning lamp comes
on, accompanied by a mes-
sage on the multifunction
screen for a few seconds,
- when the vehicle is moving (speed above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a few
seconds.
Opening
From outside

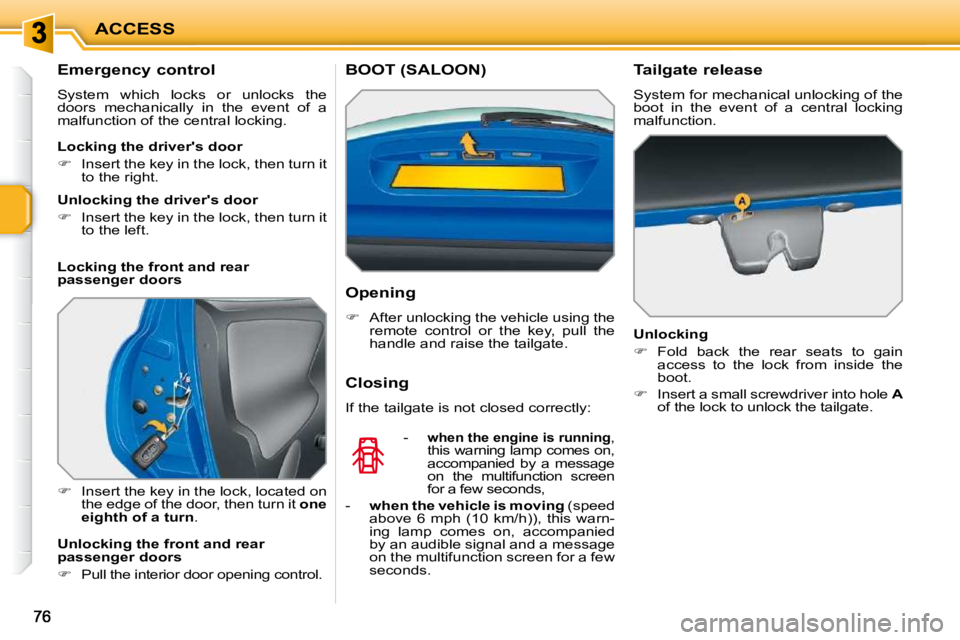

Page 68 of 218
ACCESS
Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the central locking.
Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn .
Locking the driver's door
Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door
Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors
Pull the interior door opening control. -
when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a few
seconds. Tailgate release
System for mechanical unlocking of the
boot in the event of a central locking
malfunction.
Unlocking
Fold back the rear seats to gain
access to the lock from inside the
boot.
Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
Opening
After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate.
BOOT (SALOON)
Closing
If the tailgate is not closed correctly:
Page 69 of 218
ACCESS
Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the central locking.
Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn .
Locking the driver's door
Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door
Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors
Pull the interior door opening control. -
when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a few
seconds. Tailgate release
System for mechanical unlocking of the
boot in the event of a central locking
malfunction.
Unlocking
Fold back the rear seats to gain
access to the lock from inside the
boot.
Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
Opening
After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate.
BOOT (SALOON)
Closing
If the tailgate is not closed correctly:

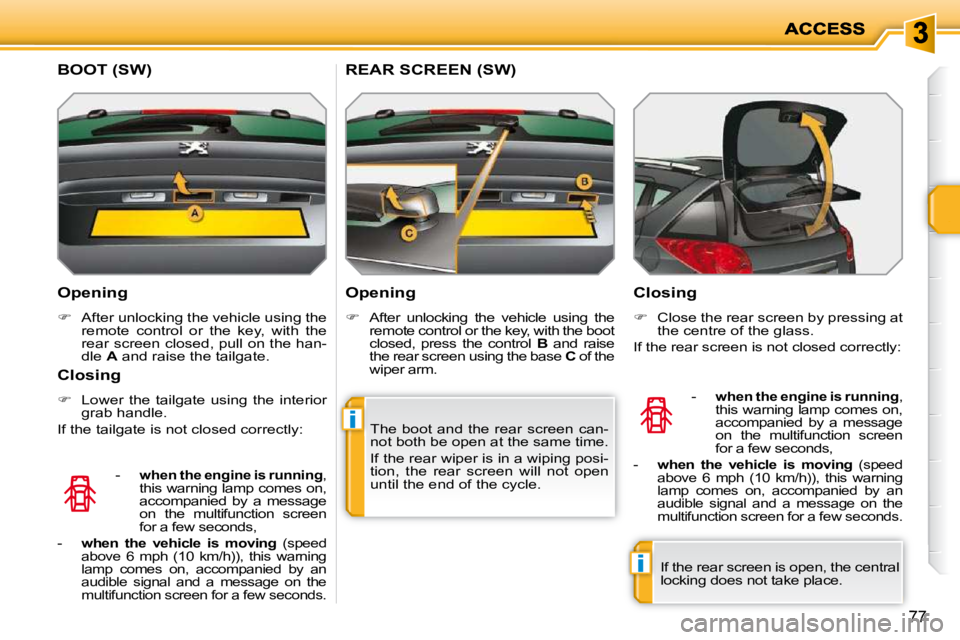

Page 70 of 218
i
i
77
Opening
After unlocking the vehicle using the
remote control or the key, with the
rear screen closed, pull on the han-
dle A and raise the tailgate.
-
when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
-
when the vehicle is moving (speed
above 6 mph (10 km/h)), this warning
lamp comes on, accompanied by an
audible signal and a message on the
multifunction screen for a few seconds.
Closing
Lower the tailgate using the interior
grab handle.
If the tailgate is not closed correctly:
REAR SCREEN (SW)
Opening
After unlocking the vehicle using the
remote control or the key, with the boot
closed, press the control B and raise
the rear screen using the base C of the
wiper arm.
The boot and the rear screen can-
not both be open at the same time.
If the rear wiper is in a wiping posi-
tion, the rear screen will not open
until the end of the cycle. Closing
Close the rear screen by pressing at
the centre of the glass.
If the rear screen is not closed correctly:
-
when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
-
when the vehicle is moving (speed
above 6 mph (10 km/h)), this warning
lamp comes on, accompanied by an
audible signal and a message on the
multifunction screen for a few seconds.
BOOT (SW)
If the rear screen is open, the central
locking does not take place.
Page 72 of 218
i
79
The key cannot be removed from
t h e l o c k u n t i l t h e c a p i s r e fi t t e d .
FUEL TANK
Fuel tank capacity: approximately
50 litres (petrol) or 48 litres (Diesel).
O p e n i n g t h e fi l l e r c a p m a y c r e a t e a
noise a caused by an inrush of air. This
vacuum is entirely normal, resulting
from the sealing of the fuel system.
T o fi l l t h e t a n k i n c o m p l e t e s a f e t y :
the engine must be switched off,
o p e n t h e f u e l fi l l e r fl a p ,
insert the key in the cap, then turn it
to the left,
W h e n y o u h a v e fi l l e d t h e t a n k :
put the cap back in place,
turn the key to the right, then remove
it from the cap,
c l o s e t h e fl a p .
remove the cap and hook it onto
the clip located on the inside of the
fl a p ,
fi l l t h e t a n k , but do not continue
after the 3rd cut-off of the pump ;
this could cause malfunctions.
Low fuel level
Filling
When the fuel tank minimum
level is reached this warning
lamp comes on on the instru-
m e n t p a n e l . W h e n i t fi r s t c o m e s
on there remains approximately 5 litres
of fuel in the tank.
You must refuel as soon as possible to
avoid running out of fuel.
If you run out of fuel (Diesel), refer also
to the "Checks" section.
A l a b e l a f fi x e d t o t h e i n s i d e o f t h e fl a p
reminds you of the type of fuel to be
used depending on your engine.
Additions of fuel must be of at least 5 litres,
in order to be taken into account by the fuel
gauge.
Page 77 of 218
!
83
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lighting will not come
on automatically.
Do not cover the brightness sensor,
coupled with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled.
Coupling with the "Guide-me-home"
lighting
Association with the automatic illumina-
tion of headlamps provides the "guide-
me-home" lighting with the following
additional options:
- selection of the lighting duration to
15, 30 or 60 seconds in the vehicle
parameters on the multifunction
s c r e e n c o n fi g u r a t i o n m e n u ,
- automatic activation of "guide-me- home" lighting when automatic illumi-
nation of headlamps is in operation.
Automatic illumination of headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected (sensor behind the rear view
m i r r o r ) o r w h e n t h e w i n d s c r e e n w i p e r s
are switched on.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lighting is
switched off automatically.
"Guide-me-home" lighting
The dipped headlamps remain on tem-
porarily, after switching off the vehicle's
ignition, to make the driver's exit easier
in poor light.
Activation
With the ignition off, activate a
" h e a d l a m p fl a s h " u s i n g s t a l k B .
A s e c o n d " h e a d l a m p fl a s h " s w i t c h e s
the function off again.
Switching off
The "guide-me-home" lighting is
switched off automatically following the
door locking command, after a given
time. Activation
Turn ring A to the " AUTO " position.
The automatic illumination of head-
lamps is accompanied by a mes-
sage on the multifunction screen. Operating fault
In the event of a malfunction of
the brightness sensor, the light-
ing comes on accompanied by
the service warning lamp, an
audible signal and a message on the
multifunction screen.
Have it checked by a PEUGEOT dealer.
Daytime running lamps *
O n v e h i c l e s fi t t e d w i t h d a y t i m e r u n n i n g
lamps, the dipped headlamps come on
when the vehicle is started.
This indicator lamp comes on
on the instrument panel.
The instruments and controls (multi-
function screen, air conditioning control
p a n e l , . . . ) a r e n o t l i t , u n l e s s t h e a u t o -
matic lighting mode is activated or the
lighting is switched on manually.
Deactivation
Turn ring A to a position other than
"
AUTO
" . Deactivation is accompa-
nied by a message on the multifunc-
tion screen.
* According to country.
Page 78 of 218
!
83
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lighting will not come
on automatically.
Do not cover the brightness sensor,
coupled with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled.
Coupling with the "Guide-me-home"
lighting
Association with the automatic illumina-
tion of headlamps provides the "guide-
me-home" lighting with the following
additional options:
- selection of the lighting duration to
15, 30 or 60 seconds in the vehicle
parameters on the multifunction
s c r e e n c o n fi g u r a t i o n m e n u ,
- automatic activation of "guide-me- home" lighting when automatic illumi-
nation of headlamps is in operation.
Automatic illumination of headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected (sensor behind the rear view
m i r r o r ) o r w h e n t h e w i n d s c r e e n w i p e r s
are switched on.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lighting is
switched off automatically.
"Guide-me-home" lighting
The dipped headlamps remain on tem-
porarily, after switching off the vehicle's
ignition, to make the driver's exit easier
in poor light.
Activation
With the ignition off, activate a
" h e a d l a m p fl a s h " u s i n g s t a l k B .
A s e c o n d " h e a d l a m p fl a s h " s w i t c h e s
the function off again.
Switching off
The "guide-me-home" lighting is
switched off automatically following the
door locking command, after a given
time. Activation
Turn ring A to the " AUTO " position.
The automatic illumination of head-
lamps is accompanied by a mes-
sage on the multifunction screen. Operating fault
In the event of a malfunction of
the brightness sensor, the light-
ing comes on accompanied by
the service warning lamp, an
audible signal and a message on the
multifunction screen.
Have it checked by a PEUGEOT dealer.
Daytime running lamps *
O n v e h i c l e s fi t t e d w i t h d a y t i m e r u n n i n g
lamps, the dipped headlamps come on
when the vehicle is started.
This indicator lamp comes on
on the instrument panel.
The instruments and controls (multi-
function screen, air conditioning control
p a n e l , . . . ) a r e n o t l i t , u n l e s s t h e a u t o -
matic lighting mode is activated or the
lighting is switched on manually.
Deactivation
Turn ring A to a position other than
"
AUTO
" . Deactivation is accompa-
nied by a message on the multifunc-
tion screen.
* According to country.
Page 96 of 218
i
SAFETY
100
HAZARD WARNING LAMPS
A visual warning by means of the direc-
tion indicators to alert other road users
to a vehicle breakdown, towing or acci-
dent.
Press this button, the direction indi-
c a t o r s fl a s h .
They can operate with the ignition off. Automatic operation of hazard
warning lamps
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lamps come on automatically.
T h e y s w i t c h o f f a u t o m a t i c a l l y t h e fi r s t
time you accelerate.
You can also switch them off by
pressing the button.
HORN
Press one of the spokes of the steering
wheel.
Use the horn moderately and only
in the following cases:
- immediate danger,
- when approaching an area.
- where there is no visibility.
Audible warning to alert other road users
to an imminent danger.
