i
111
When parking on a slope, direct
your wheels against the pavement,
apply the parking brake and en-
gage a gear.
PARKING BRAKE
Applying
Pull the parking brake lever fully up
to immobilise your vehicle. When the vehicle is being driven,
if this warning lamp and the
STOP warning lamp come on, accom-
panied by an audible signal and a
message on the multifunction screen, this
indicates that the parking brake is still on or
has not been properly released.
Releasing
Pull the parking brake lever gently,
press the release button then lower
the lever fully.
6-SPEED MANUAL GEARBOX
Engaging reverse gear
Raise the ring under the knob and
push the gear lever to the left then
forwards.
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.
As a safety precaution and to facili-
tate starting of the engine:
- always select neutral,
- press the clutch pedal.
Page 110 of 218
i
i
i
114
Instrument panel displays
Gear lever positions
N . Neutral
R . Reverse
1, 2, 3, 4, 5. Gears in sequential mode
AUTO. This comes on when the au-
tomated mode is selected. It
switches off on changing to se-
quential mode.
In the automated mode, if the gear-
box detects poor grip, this warning
lamp comes on. Moving off Sequential mode
After starting the vehicle, select
position M to change to sequential
mode.
Automated mode
Following use of the sequential
mode, select position A to return to
the automated mode.
When stopping on a slope, do not
use the accelerator to immobil-
ise the vehicle; apply the parking
brake.
When moving off on a slope, acce-
lerate gradually while releasing the
parking brake.
Place your foot on the
brake when this warning
l a m p fl a s h e s ( e . g . : s t a r t i n g
the engine).
Select position N .
Press the brake pedal.
Start the engine.
N appears on the instrument panel.
N fl a s h e s o n t h e i n s t r u m e n t p a n e l
screen if the gear lever is not in po-
sition N on starting.
S e l e c t fi r s t g e a r ( p o s i t i o n M or A ) or
reverse (position R )
Release the parking brake.
Take your foot off the brake pedal,
then accelerate.
AUTO and 1 or R appear on
the instrument panel.
AUTO disappears and the gears
engaged appear in succession on
the instrument panel.
The gear change requests are only car-
ried out if the engine speed permits.
When driving at low speed, on ap-
p r o a c h i n g a s t o p s i g n o r t r a f fi c l i g h t s f o r
example, the gearbox changes down to
fi r s t g e a r a u t o m a t i c a l l y .
AUTO and the gear engaged
appear on the instrument panel.
The gearbox then operates in auto-
adaptive mode, without any action on
the part of the driver. It continuously se-
lects the most suitable gear in relation
to the following parameters:
- driving style,
- road conditions,
- vehicle load.
There is an audible signal on en-
gagement of reverse.
Page 114 of 218
!i
118
Stopping the vehicle
Before switching off the engine, you
can engage position P or N to place the
gearbox in neutral.
In both cases, apply the parking brake
to immobilise the vehicle. Operating fault
When the ignition is on, the
lighting of this warning lamp,
accompanied by an audible sig-
nal and a message on the mul-
tifunction screen, indicates a gearbox
malfunction.
In this case, the gearbox switches to
back-up mode and is locked in 3rd gear.
You may feel a substantial knock when
changing from P to R and from N to R .
This will not cause any damage to the
gearbox.
Do not exceed 60 mph (100 km/h), local
speed restrictions permitting.
Contact a PEUGEOT dealer as soon as
possible.
There is a risk of damage to the
gearbox:
- if you press the accelerator and brake pedals at the same time,
- if you force the movement of the gear lever from the P posi-
tion to another position when
t h e b a t t e r y i s fl a t .
To reduce fuel consumption when
at a prolonged standstill with the
e n g i n e r u n n i n g ( t r a f fi c j a m . . . ) , p u t
the gear lever in the N position and
apply the parking brake.
Manual operation
Select position M for sequential
changing of the four gears.
Push the lever towards the + sign to
change up a gear.
Pull the lever towards the - sign to
change down a gear.
D disappears and the gears
engaged appear in succes-
sion on the instrument panel.
In the event of the engine la-
bouring or over-revving, the
g e a r s e l e c t e d fl a s h e s f o r a f e w s e c -
onds, then the actual gear engaged is
displayed.
It is possible to change from position D
(automatic) to position M (manual) at
any time.
When the vehicle is stationary or moving
very slowly, the gearbox selects gear M1
automatically.
The sport and snow programmes do not
operate in manual mode. If the lever is not in position
P ,
when the driver's door is opened
or approximately 45 seconds after
the ignition is switched off, a mes-
sage appears in the multifunction
screen.
Return the lever to position P ;
the message disappears.
It is only possible to change from one
gear to another if the vehicle speed and
engine speed permit; otherwise, the
gearbox will operate temporarily in au-
tomatic mode.
Invalid value during manual
operation
This symbol is displayed if a gear
is not engaged correctly (selec-
tor between two positions).
Page 120 of 218
ii
i
124
Deactivation/Activation of the rear
parking sensors Operating fault
In bad weather or in winter, ensure
that the sensors are not covered
with mud, ice or snow. When re-
verse gear is engaged, an audible
signal (long bleep) indicates that
the sensors may be dirty.
When the vehicle is moving at a
speed below 6 mph (10 km/h), cer-
tain sound sources (motorcycle,
lorry, pneumatic drill, etc.) may trig-
ger the audible signals of the parking
sensor system. If an operating fault occurs,
when reverse gear is engaged
this warning lamp is displayed
on the instrument panel and/or
a message appears on the screen, ac-
companied by an audible signal (short
bleep).
Consult a PEUGEOT dealer.
The status of the function is stored
when the ignition is switched off.
For further details about the access
to the parking sensors menu, refer
t o t h e v e h i c l e c o n fi g u r a t i o n s e c t i o n
corresponding to your multifunction
screen.
The function will be deactivated au-
tomatically if a trailer is being towed
o r a b i c y c l e c a r r i e r i s fi t t e d ( v e h i c l e
fi t t e d w i t h a t o w b a r o r b i c y c l e c a r -
rier recommended by PEUGEOT. The function is deactivated
or activated via the multi-
f u n c t i o n s c r e e n c o n fi g u r a -
tion menu.
Page 125 of 218
!
i
130
Avoid any prolonged contact of
u s e d o i l o r fl u i d s w i t h t h e s k i n .
M o s t o f t h e s e fl u i d s a r e h a r m f u l t o
health or indeed very corrosive.
D o n o t d i s c a r d u s e d o i l o r fl u i d s
into sewers or onto the ground.
Take used oil to an authorised
waste disposal site or a PEUGEOT
dealer.
Diesel additive level (Diesel with
particle emission filter)
The minimum level of this additive is in-
dicated by lighting of the service warning
lamp, accompanied by an audible sig-
nal and a message on the multifunction
screen.
Used products
Unless otherwise indicated, check
these components in accordance with
the Warranty and Maintenance Record
and in relation to your engine.
Otherwise, have them checked by a
PEUGEOT dealer.
Battery The battery does not require
any maintenance.
H o w e v e r , c h e c k t h a t t h e t e r -
minals are clean and correctly
tightened, particularly in summer
and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter and passenger
compartment filter
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
vals for these components.
Depending on the environ-
ment (dusty atmosphere...) and the use
of the vehicle (city driving...), replace
them twice as often if necessary .
A c l o g g e d p a s s e n g e r c o m p a r t m e n t fi l t e r
may have an adverse effect on the per-
formance of the air conditioning system
and generate undesirable odours. Particle emission filter (Diesel)
It is imperative that the maintenance of
t h e p a r t i c l e e m i s s i o n fi l t e r i s c a r r i e d o u t
by a PEUGEOT dealer.
Oil filter
R e p l a c e t h e o i l fi l t e r e a c h t i m e
the engine oil is changed.
Refer to the Warranty and
Maintenance Record for details
of the replacement interval for
this component.
Following prolonged operation of
the vehicle at very low speed or at
idle, you may, exceptionally, notice
the emission of water vapour at the
exhaust on acceleration. This does
not have any adverse effect on the
performance of the vehicle or on
the environment.
Topping up
This additive must be topped up by a
PEUGEOT dealer without delay.
Page 126 of 218
!
i
130
Avoid any prolonged contact of
u s e d o i l o r fl u i d s w i t h t h e s k i n .
M o s t o f t h e s e fl u i d s a r e h a r m f u l t o
health or indeed very corrosive.
D o n o t d i s c a r d u s e d o i l o r fl u i d s
into sewers or onto the ground.
Take used oil to an authorised
waste disposal site or a PEUGEOT
dealer.
Diesel additive level (Diesel with
particle emission filter)
The minimum level of this additive is in-
dicated by lighting of the service warning
lamp, accompanied by an audible sig-
nal and a message on the multifunction
screen.
Used products
Unless otherwise indicated, check
these components in accordance with
the Warranty and Maintenance Record
and in relation to your engine.
Otherwise, have them checked by a
PEUGEOT dealer.
Battery The battery does not require
any maintenance.
H o w e v e r , c h e c k t h a t t h e t e r -
minals are clean and correctly
tightened, particularly in summer
and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter and passenger
compartment filter
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
vals for these components.
Depending on the environ-
ment (dusty atmosphere...) and the use
of the vehicle (city driving...), replace
them twice as often if necessary .
A c l o g g e d p a s s e n g e r c o m p a r t m e n t fi l t e r
may have an adverse effect on the per-
formance of the air conditioning system
and generate undesirable odours. Particle emission filter (Diesel)
It is imperative that the maintenance of
t h e p a r t i c l e e m i s s i o n fi l t e r i s c a r r i e d o u t
by a PEUGEOT dealer.
Oil filter
R e p l a c e t h e o i l fi l t e r e a c h t i m e
the engine oil is changed.
Refer to the Warranty and
Maintenance Record for details
of the replacement interval for
this component.
Following prolonged operation of
the vehicle at very low speed or at
idle, you may, exceptionally, notice
the emission of water vapour at the
exhaust on acceleration. This does
not have any adverse effect on the
performance of the vehicle or on
the environment.
Topping up
This additive must be topped up by a
PEUGEOT dealer without delay.
Page 144 of 218
148
Fuse N° Rating Functions
F8 20 A Audio equipment, audio/telephone, multifunction
screen, clock, steering mounted controls, tyre
u n d e r - i n fl a t i o n d e t e c t i o n , t r a i l e r f u s e b o x .
F9 30 A F r o n t 1 2 V s o c k e t , r e a r 1 2 V s o c k e t ( S W ) .
F10 15 A Alarm siren, alarm control unit, directional
headlamps.
F11 15 A Diagnostic socket, low current ignition switch,
a u t o m a t i c g e a r b o x c o n t r o l u n i t .
F12 15 A R a i n / s u n s h i n e s e n s o r , a m p l i fi e r , t r a i l e r f u s e b o x ,
driving school module.
F13 5 A E n g i n e f u s e b o x , A B S r e l a y , d u a l - f u n c t i o n b r a k e
s w i t c h , " 2 T r o n i c " g e a r b o x g e a r l e v e r .
F14 15 A Instrument panel, seat belt warning lamps panel,
headlamp adjustment, air conditioning, Bluetooth
system, rear parking sensors control unit, airbags.
F15 30 A Locking and deadlocking.
F17 40 A Rear screen and door mirrors demist/defrost.
SH - PARC shunt.
Page 150 of 218
!i
154

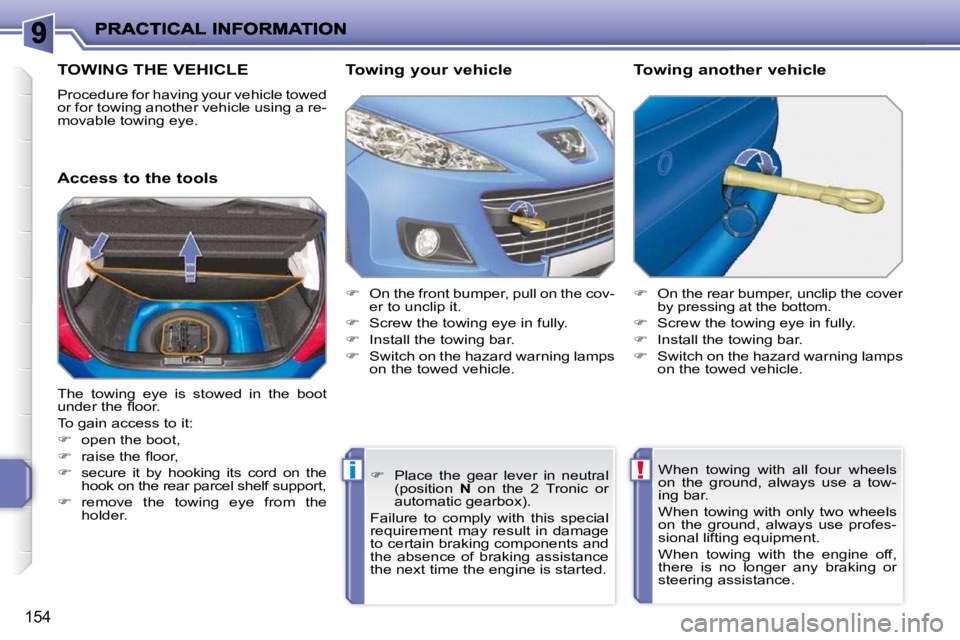

TOWING THE VEHICLE
Procedure for having your vehicle towed
or for towing another vehicle using a re-
movable towing eye.
Access to the tools Towing your vehicle
On the front bumper, pull on the cov-
er to unclip it.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on the towed vehicle.
On the rear bumper, unclip the cover
by pressing at the bottom.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on the towed vehicle.
Towing another vehicle
The towing eye is stowed in the boot
u n d e r t h e fl o o r .
T o g a i n a c c e s s t o i t :
open the boot,
r a i s e t h e fl o o r ,
secure it by hooking its cord on the
hook on the rear parcel shelf support,
remove the towing eye from the
holder. When towing with all four wheels
on the ground, always use a tow-
ing bar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When towing with the engine off,
there is no longer any braking or
steering assistance.
Place the gear lever in neutral
(position N on the 2 Tronic or
a u t o m a t i c g e a r b o x ) .
Failure to comply with this special
requirement may result in damage
to certain braking components and
the absence of braking assistance
t h e n e x t t i m e t h e e n g i n e i s s t a r t e d .
