ii
140
T h e h e a d l a m p s a r e fi t t e d w i t h p o l y c a r -
b o n a t e g l a s s w i t h a p r o t e c t i v e c o a t i n g :
do not clean them using a dry or
abrasive cloth, nor with a deter-
gent or solvent product,
use a sponge and soapy water,
when using a high pressure washer
on persistent marks, do not direct
at the lamps or their outlines for too
long, so as not to damage their pro-
tective coating and seals.
Front lamps
CHANGING A BULB
Procedure for replacing a faulty bulb
with a new bulb without the use of tools.
Changing the direction indicator
bulbs
Amber coloured bulbs, such as the
direction indicators, must be re-
placed with bulbs of identical speci-
fi c a t i o n a n d c o l o u r .
Turn the bulb holder one quarter of
a turn and remove it.
Pull the bulb then change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Model with conventi
onal lamps
1. Direction indicators
(PY21W amber).
2. Sidelamps (W5W).
3. Dipped beam headlamps
(H7-55W).
4. Main beam headlamps (H1-55W).
5. Directional headlamps (H7-55W).
6. Foglamps (H11-55W).
Do not touch the bulb directly
w i t h y o u r fi n g e r s , u s e l i n t - f r e e
cloths.
Changing a halogen bulb should
only be done after the headlamp
has been switched off for a few
m i n u t e s ( r i s k o f s e r i o u s b u r n s ) .
It is imperative to use only anti-ul-
t r a v i o l e t ( U V ) t y p e b u l b s i n o r d e r
not to damage the headlamp. Model with elliptical module dipped
beam headlamps and directional
headlamps
Page 137 of 218
141
Changing the sidelamp bulbs
Disconnect the main headlamp con-
nector.
Remove the plastic protective cover
by pulling on the tab.
Turn the bulb holder one quarter of
a turn and remove it.
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Changing the dipped, main beam or
directional headlamp bulbs
Disconnect the main headlamp con-
nector.
Remove the corresponding plastic
protective cover by pulling on the
tab.
Disconnect the connector of the cor-
responding lamp.
Move aside the spring to release the
bulb and remove the bulb.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order. Changing the foglamp bulbs
For replacement of these bulbs, contact
a PEUGEOT dealer.
Changing the integrated direction
indicator side repeaters
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.
T i l t t h e s c r e w d r i v e r t o e x t r a c t t h e r e -
peater and remove the repeater.
Disconnect the repeater connector.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
To obtain a replacement repeater, con-
tact a PEUGEOT dealer.
Page 139 of 218
!
143
Changing the third brake lamp bulbs
(4 bulbs W 5 W)
P r e s s o n t h e fi x i n g p i n s o n e a c h s i d e
of the lamp.
Remove the lamp from the outside.
Turn the bulb holder which corre-
sponds to the faulty bulb one quar-
ter of a turn and remove it.
Pull the bulb and change it. Changing the number plate lamp
bulbs (W 5 W)
Insert a thin screwdriver in one of
t h e e x t e r i o r h o l e s o f t h e l e n s .
Push it towards the outside to unclip
it.
Remove the lens.
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
High pressure washing
When using this type of washing
on stubborn dirt, do not persist
on the headlamps, the lamps and
their surrounds, to avoid damaging
their protective coating and seals.
Page 141 of 218
!
145
Changing the third brake lamp bulbs
(4 bulbs W 5 W)
R e m o v e t h e t w o l a m p fi x i n g n u t s .
Remove the lamp from the outside.
Press on the two tabs and remove
the bulb holder
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
T i g h t e n t h e fi x i n g b o l t s u f fi c i e n t l y b y
hand to guarantee the sealing of the
lamp. Changing the number plate bulbs
(W 5 W)
Insert a thin screwdriver into one of
t h e e x t e r i o r h o l e s o f t h e l e n s .
Push it towards the outside to unclip
it
Remove the lens.
Pull the bulb and change it.
High pressure washing
When using this type of washing
on stubborn dirt, do not persist
on the headlamps, the lamps and
their surrounds, to avoid damag-
ing their protective coating and
seals.
Page 144 of 218
148
Fuse N° Rating Functions
F8 20 A Audio equipment, audio/telephone, multifunction
screen, clock, steering wheel controls, tyre
u n d e r - i n fl a t i o n d e t e c t i o n , t r a i l e r f u s e b o x .
F9 30 A F r o n t 1 2 V s o c k e t , r e a r 1 2 V s o c k e t ( S W ) .
F10 15 A Alarm siren, alarm control unit, directional
headlamps.
F11 15 A Diagnostic socket, low current ignition switch,
a u t o m a t i c g e a r b o x c o n t r o l u n i t .
F12 15 A R a i n / s u n s h i n e s e n s o r , a m p l i fi e r , t r a i l e r f u s e b o x ,
driving school module.
F13 5 A E n g i n e f u s e b o x , A B S r e l a y , d u a l - f u n c t i o n b r a k e
s w i t c h , " 2 T r o n i c " g e a r b o x g e a r l e v e r .
F14 15 A Instrument panel, seat belt warning lamps panel,
headlamp adjustment, air conditioning, Bluetooth
system, rear parking sensors control unit, airbags.
F15 30 A Locking and deadlocking.
F17 40 A Heated rear screen and door mirrors.
SH - PARC shunt.
Page 145 of 218
149
Engine compartment fuses
T h e f u s e b o x i s p l a c e d i n t h e e n g i n e
compartment, near the battery (left-
h a n d s i d e ) .
Access to the fuses
Unclip the cover.
Replace the fuse (refer to the cor-
r e s p o n d i n g p a r a g r a p h ) .
W h e n y o u h a v e fi n i s h e d , c a r e f u l l y
close the cover carefully to ensure
c o r r e c t s e a l i n g o f t h e f u s e b o x . Fuse table
Fuse N° Rating Functions
F1 20 A Engine control unit and fan assembly control relay
supply, timing and canister electrovalves (1.6 l
1 6 V T H P ) , a i r fl o w s e n s o r ( D i e s e l ) , i n j e c t i o n p u m p
( D i e s e l ) , w a t e r i n d i e s e l s e n s o r ( D i e s e l ) , E G R
e l e c t r o v a l v e s , a i r h e a t i n g ( D i e s e l ) .
F2 15 A Horn.
F3 10 A Front and rear screenwash.
F4 20 A Headlamp wash.
F5 15 A
F u e l p u m p ( p e t r o l ) , T u r b o e l e c t r o v a l v e s ( 1 . 6 l 1 6 V T H P ) .
F6 10 A V e h i c l e s p e e d s e n s o r , a u t o m a t i c g e a r b o x .
F7 10 A Electric power steering, directional headlamps,
directional headlamps control relay, switching and
p r o t e c t i o n u n i t ( D i e s e l ) .
F8 25 A Starter motor control.
F9 10 A ABS/ESP control unit, brake pedal switch.
F10 30 A E n g i n e c o n t r o l u n i t a c t u a t o r s ( p e t r o l : i g n i t i o n c o i l s ,
e l e c t r o v a l v e s , o x y g e n s e n s o r s , i n j e c t o r s , h e a t e r s ,
e l e c t r o n i c t h e r m o s t a t ) ( D i e s e l : e l e c t r o v a l v e s ,
h e a t e r s ) .
F11 40 A Air conditioning blower.
F12 30 A Windscreen wipers Low/High speed.
Page 146 of 218
150
Fuse N° Rating Functions
F13 40 A B u i l t - i n s y s t e m s i n t e r f a c e s u p p l y ( i g n i t i o n p o s i t i v e ) .
F14 30 A D i e s e l h e a t e r ( D i e s e l ) .
F15 10 A Left main beam headlamp.
F16 10 A Right main beam headlamp.
F17 15 A Left dipped beam headlamp.
F18 15 A Right dipped beam headlamp.
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l p r o - tection for the electrical systems. All
w o r k o n t h e m a x i - f u s e s m u s t b e c a r -
ried out by a PEUGEOT dealer. Maxi-fuse table
Fuse N° Rating Functions
Box 1
MF1 * 70 A Fan assembly.
MF2 * 20 A/30 A ABS/ESP pump.
MF3 * 20 A/30 A ABS/ESP electrovalves.
MF4 * 60 A Built-in systems interface supply.
MF5 * 60 A Built-in systems interface supply.
MF6 * 30 A A d d i t i o n a l f a n a s s e m b l y ( 1 . 6 l 1 6 V T H P ) .
MF7 * 80 A D a s h b o a r d f u s e b o x .
MF8 * 30 A " 2 T r o n i c " g e a r b o x c o n t r o l u n i t .
Box 2
MF9 * 80 A H e a t i n g u n i t ( D i e s e l ) .
MF10 * 80 A Electric power steering.
MF11 * 40 A V a l v e t r o n i c e l e c t r i c m o t o r ( 1 . 6 l 1 6 V T H P ) .
Page 149 of 218
!
i
153

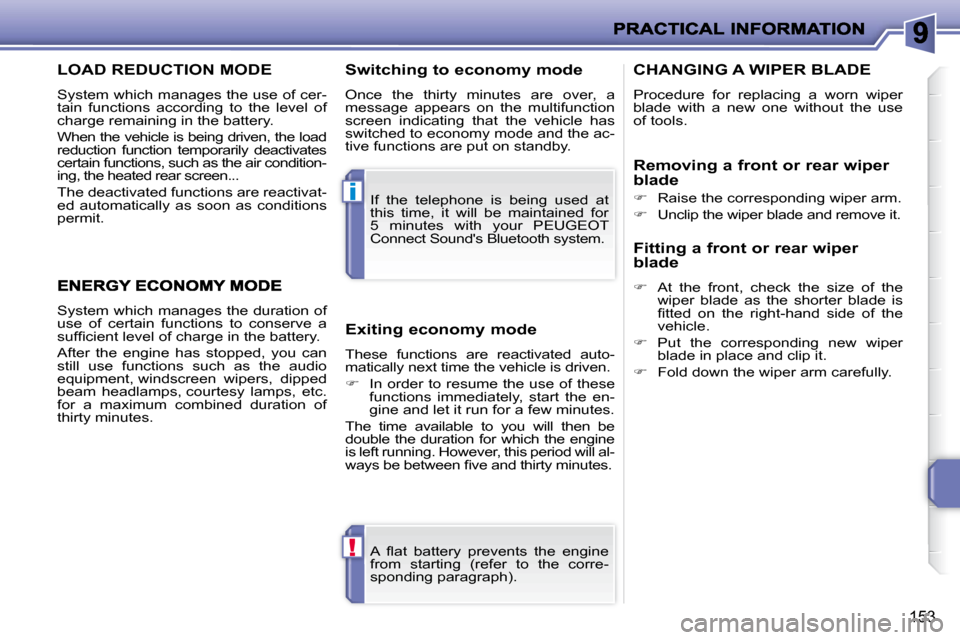

LOAD REDUCTION MODE
System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air condition-
ing, the heated rear screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit. A fl a t b a t t e r y p r e v e n t s t h e e n g i n e
from starting (refer to the corre-
s p o n d i n g p a r a g r a p h ) .
If the telephone is being used at
this time, it will be maintained for
5 minutes with your PEUGEOT
Connect Sound's Bluetooth system.
System which manages the duration of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
After the engine has stopped, you can
still use functions such as the audio
equipment, windscreen wipers, dipped
beam headlamps, courtesy lamps, etc.
f o r a m a x i m u m c o m b i n e d d u r a t i o n o f
thirty minutes.
Exiting economy mode
These functions are reactivated auto-
m a t i c a l l y n e x t t i m e t h e v e h i c l e i s d r i v e n .
In order to resume the use of these
functions immediately, start the en-
gine and let it run for a few minutes.
The time available to you will then be
double the duration for which the engine
is left running. However, this period will al-
w a y s b e b e t w e e n fi v e a n d t h i r t y m i n u t e s .
Switching to economy mode
Once the thirty minutes are over, a
message appears on the multifunction
screen indicating that the vehicle has
switched to economy mode and the ac-
tive functions are put on standby.
CHANGING A WIPER BLADE
Procedure for replacing a worn wiper
blade with a new one without the use
of tools.
Removing a front or rear wiper
blade
Raise the corresponding wiper arm.
Unclip the wiper blade and remove it.
Fitting a front or rear wiper
blade
At the front, check the size of the
wiper blade as the shorter blade is
fi t t e d o n t h e r i g h t - h a n d s i d e o f t h e
vehicle.
Put the corresponding new wiper
blade in place and clip it.
Fold down the wiper arm carefully.
