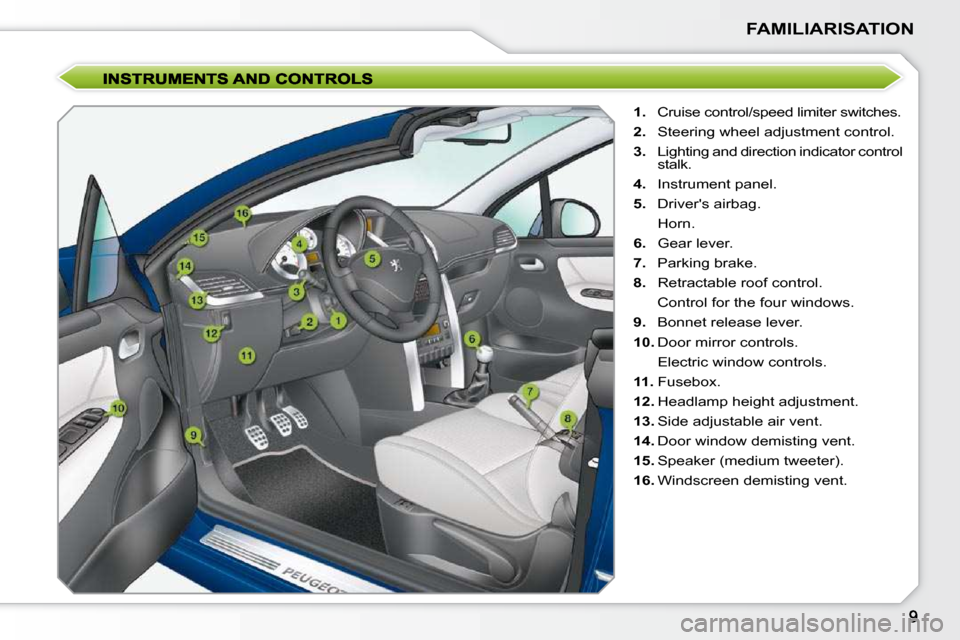

FAMILIARISATION
1. C r u i s e c o n t r o l / s p e e d l i m i t e r s w i t c h e s .
2. S t e e r i n g w h e e l a d j u s t m e n t c o n t r o l .
3. L i g h t i n g a n d d i r e c t i o n i n d i c a t o r c o n t r o l
stalk.
4. Instrument panel.
5. D r i v e r ' s a i r b a g .
Horn.
6. Gear lever.
7. Parking brake.
8. Retractable roof control.
C o n t r o l f o r t h e f o u r w i n d o w s .
9. B o n n e t r e l e a s e l e v e r .
10. Door mirror controls.
E l e c t r i c w i n d o w c o n t r o l s .
11. F u s e b o x .
12. H e a d l a m p h e i g h t a d j u s t m e n t .
13. S i d e a d j u s t a b l e a i r v e n t .
14. D o o r w i n d o w d e m i s t i n g v e n t .
15. S p e a k e r ( m e d i u m t w e e t e r ) .
16. W i n d s c r e e n d e m i s t i n g v e n t .
i
SAFETY
91

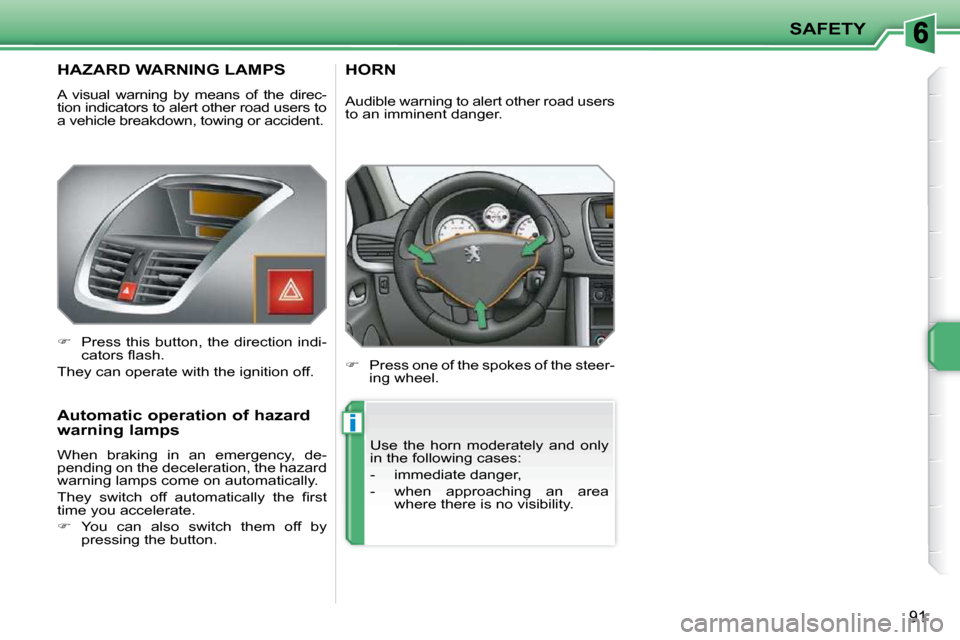

HAZARD WARNING LAMPS
A visual warning by means of the direc-
tion indicators to alert other road users to
a vehicle breakdown, towing or accident.
Press this button, the direction indi-
c a t o r s fl a s h .
They can operate with the ignition off.
Automatic operation of hazard
warning lamps
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lamps come on automatically.
T h e y s w i t c h o f f a u t o m a t i c a l l y t h e fi r s t
time you accelerate.
You can also switch them off by
pressing the button.
HORN
Press one of the spokes of the steer-
ing wheel.
Use the horn moderately and only
in the following cases:
- immediate danger,
- when approaching an area where there is no visibility.
Audible warning to alert other road users
to an imminent danger.
PRACTICAL INFORMATION
134
Engine compartment fuses
T h e f u s e b o x i s p l a c e d i n t h e e n g i n e
compartment, near the battery (left-
h a n d s i d e ) .
Access to the fuses
Unclip the cover.
Replace the fuse (refer to the cor-
r e s p o n d i n g p a r a g r a p h ) .
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover carefully to ensure correct
s e a l i n g o f t h e f u s e b o x . Fuse table
Fuse N° Rating Functions
F1 20 A Engine control unit and fan assembly control relay
supply, timing and canister electrovalves
( 1 . 6 l 1 6 V T H P ) , a i r fl o w s e n s o r ( D i e s e l ) , i n j e c t i o n
p u m p ( D i e s e l ) , w a t e r i n D i e s e l s e n s o r ( D i e s e l ) ,
E G R e l e c t r o v a l v e s , a i r h e a t i n g ( D i e s e l ) .
F2 15 A Horn.
F3 10 A Front wash-wipe.
F4 20 A Headlamp wash.
F5 15 A F u e l p u m p ( p e t r o l ) , T u r b o e l e c t r o v a l v e s
( 1 . 6 l 1 6 V T H P ) .
F6 10 A V e h i c l e s p e e d s e n s o r , a u t o m a t i c g e a r b o x .
F7 10 A Electric power steering, directional headlamps,
directional headlamps control relay, switching and
p r o t e c t i o n u n i t ( D i e s e l ) .
F8 20 A Starter motor control.
F9 10 A ABS/ESP control unit, brake pedal switch.
F10 30 A E n g i n e c o n t r o l u n i t a c t u a t o r s ( p e t r o l : i g n i t i o n c o i l s ,
e l e c t r o v a l v e s , o x y g e n s e n s o r s , i n j e c t o r s , h e a t e r s ,
e l e c t r o n i c t h e r m o s t a t ) ( D i e s e l : e l e c t r o v a l v e s ,
h e a t e r s ) .
F11 40 A Air conditioning blower.
F12 30 A Windscreen wipers Low/High speed.
F13 40 A B u i l t - i n s y s t e m s i n t e r f a c e s u p p l y ( i g n i t i o n p o s i t i v e ) .
