FAMILIARISATION Temperature adjustment

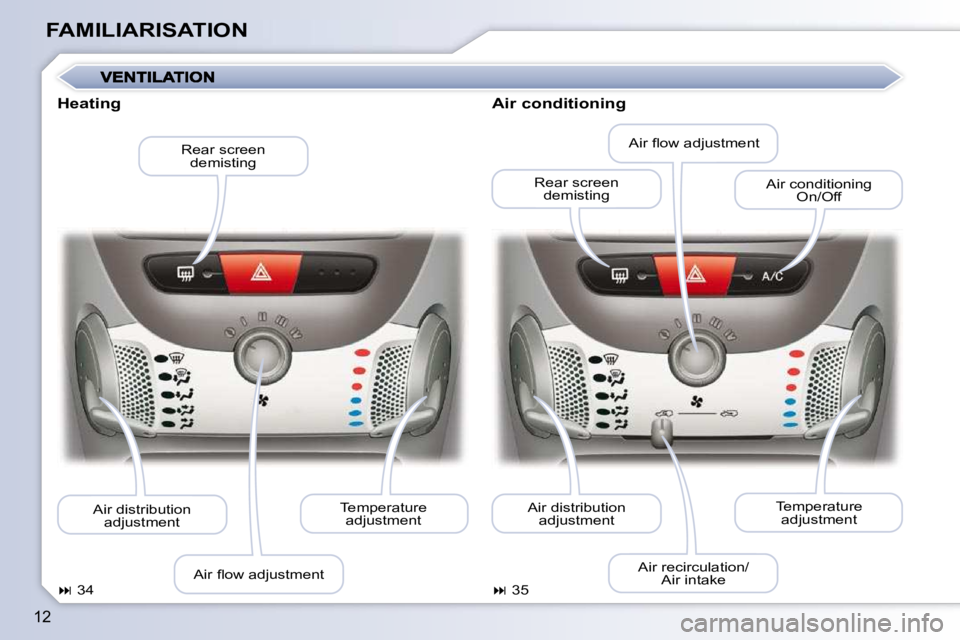

A i r fl o w a d j u s t m e n t
Air distribution
adjustment Rear screen
demisting
34 Air conditioning
Temperature adjustment
Air recirculation/ Air intake
Air distribution
adjustment Air conditioning
On/Off
35 A i r fl o w a d j u s t m e n t
Rear screen demisting
Heating
Page 10 of 97
13
I require...
Heating or Manual air conditioning
Air distribution A i r fl o w
Air recirculation/
Intake of exterior air
Temperature Manual AC
HOT
COLD
DEMISTING
DEFROSTING

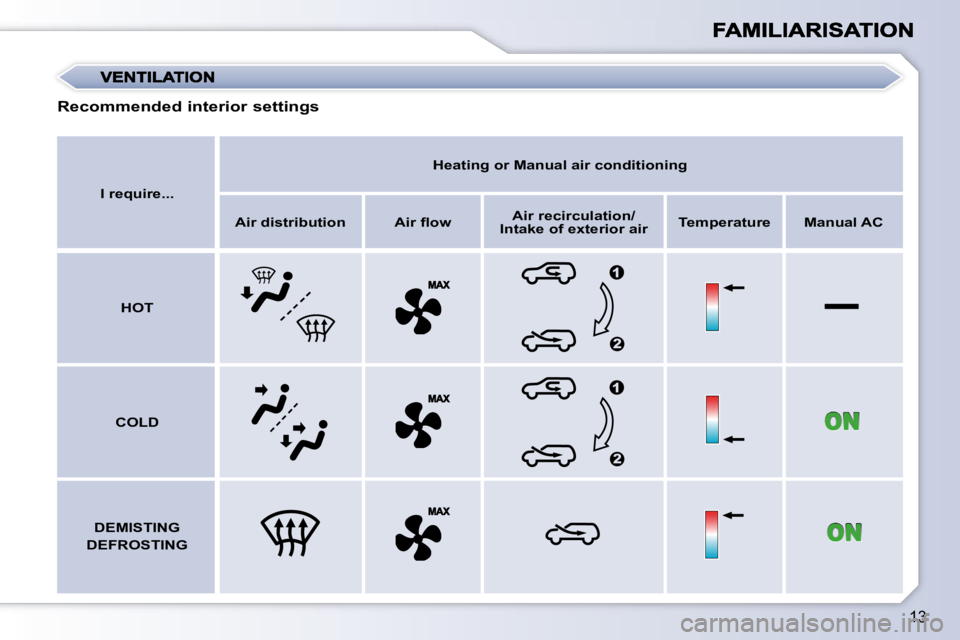

Recommended interior settings
Page 11 of 97
14

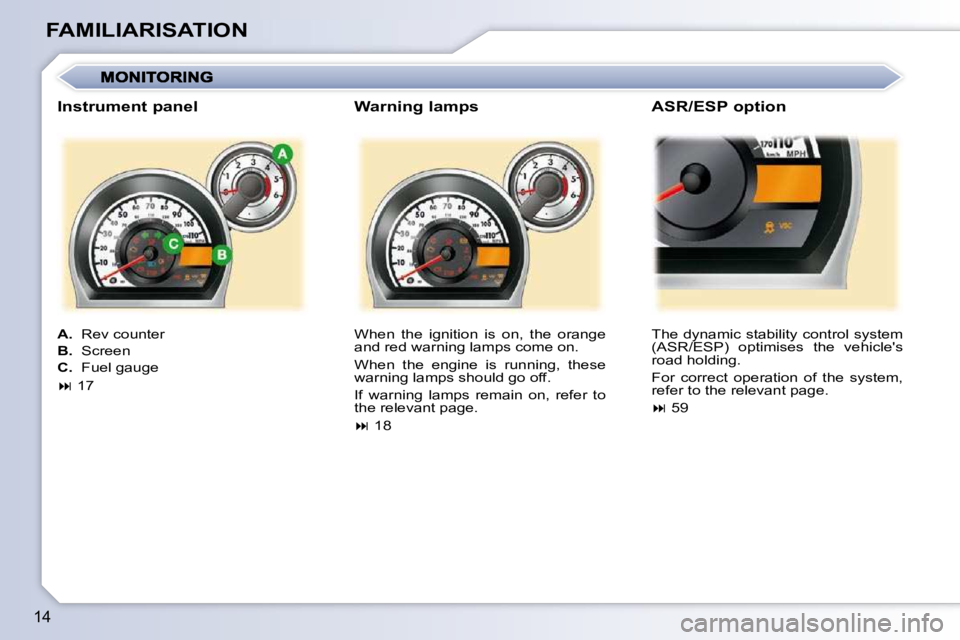

FAMILIARISATION W h e n t h e i g n i t i o n i s o n , t h e o r a n g e
and red warning lamps come on.
W h e n t h e e n g i n e i s r u n n i n g , t h e s e
warning lamps should go off.
I f w a r n i n g l a m p s r e m a i n o n , r e f e r t o
the relevant page.
18
A. Rev counter
B. Screen
C. Fuel gauge
17 The dynamic stability control system
(ASR/ESP) optimises the vehicle's
road holding.
F o r c o r r e c t o p e r a t i o n o f t h e s y s t e m ,
refer to the relevant page.
59
Instrument panel Warning lamps ASR/ESP option
Page 12 of 97
15

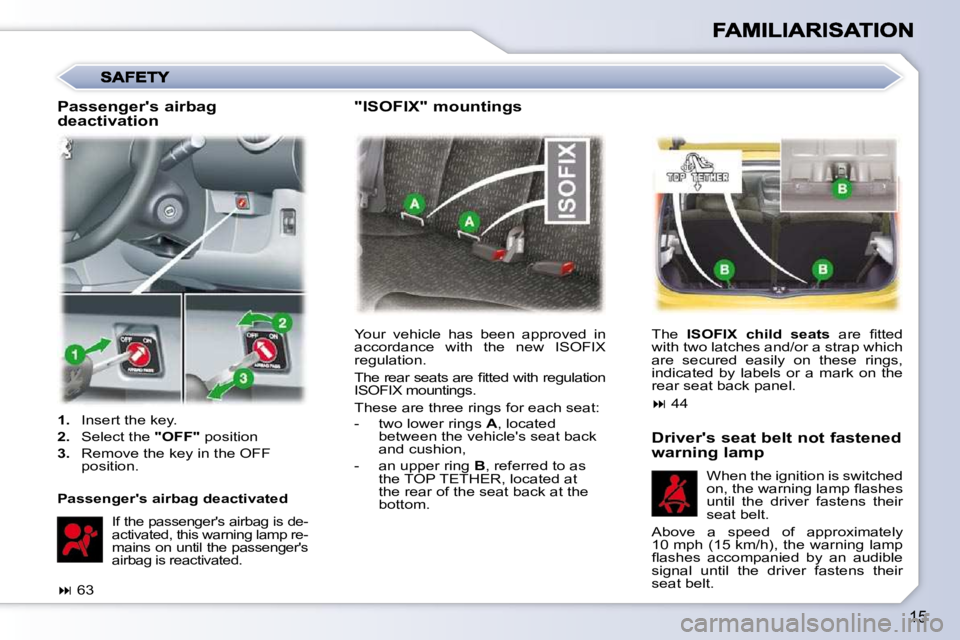

Your vehicle has been approved in
accordance with the new ISOFIX
regulation.
T h e r e a r s e a t s a r e fi t t e d w i t h r e g u l a t i o n
ISOFIX mountings.
These are three rings for each seat:
- t w o l o w e r r i n g s A , l o c a t e d
between the vehicle's seat back
a n d c u s h i o n ,
- a n u p p e r r i n g B , r e f e r r e d t o a s
t h e T O P T E T H E R , l o c a t e d a t
the rear of the seat back at the
bottom. The
ISOFIX child seats a r e fi t t e d
with two latches and/or a strap which
a r e s e c u r e d e a s i l y o n t h e s e r i n g s ,
indicated by labels or a mark on the
rear seat back panel.
44
Passenger's airbag deactivated
63
I f t h e p a s s e n g e r ' s a i r b a g i s d e -
a c t i v a t e d , t h i s w a r n i n g l a m p r e -
mains on until the passenger's
airbag is reactivated.
Driver's seat belt not fastened
warning lamp
1. Insert the key.
2. Select the "OFF" position
3. Remove the key in the OFF
position. When the ignition is switched
o n , t h e w a r n i n g l a m p fl a s h e s
until the driver fastens their
seat belt.
Above a speed of approximately
1 0 m p h ( 1 5 k m / h ) , t h e w a r n i n g l a m p
fl a s h e s a c c o m p a n i e d b y a n a u d i b l e
signal until the driver fastens their
seat belt.
Passenger's airbag
deactivation "ISOFIX" mountings
Page 13 of 97
16

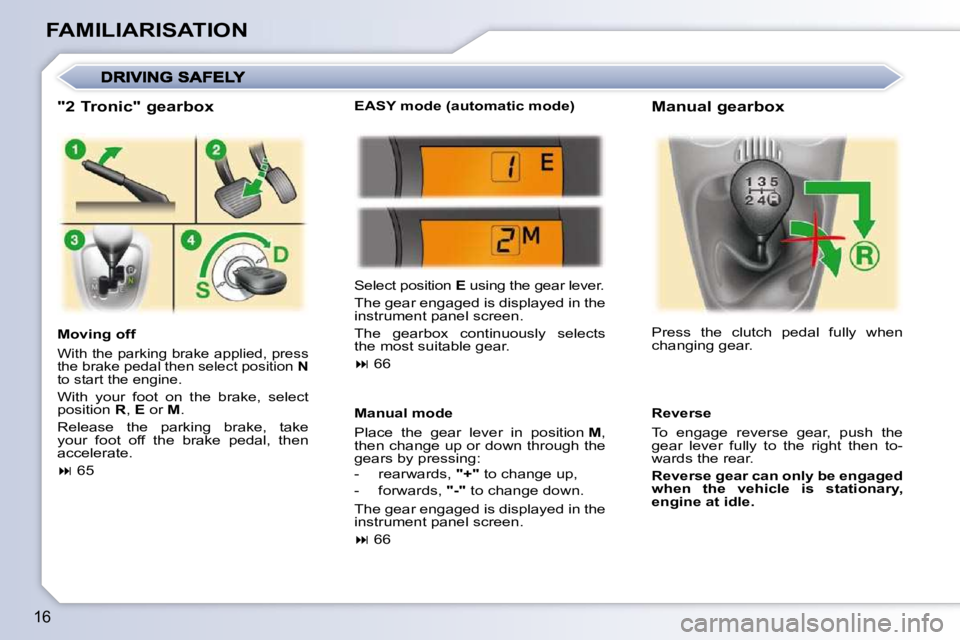

FAMILIARISATION "2 Tronic" gearbox
Moving off
W i t h t h e p a r k i n g b r a k e a p p l i e d , p r e s s
the brake pedal then select position N
to start the engine.
W i t h y o u r f o o t o n t h e b r a k e , s e l e c t
position R , E or M .
R e l e a s e t h e p a r k i n g b r a k e , t a k e
y o u r f o o t o f f t h e b r a k e p e d a l , t h e n
accelerate.
65 Select position
E using the gear lever.
The gear engaged is displayed in the
instrument panel screen.
The gearbox continuously selects
the most suitable gear.
66
Manual mode
Place the gear lever in position M ,
then change up or down through the
gears by pressing:
- r e a r w a r d s , "+" t o c h a n g e u p ,
- f o r w a r d s , "-" to change down.
The gear engaged is displayed in the
instrument panel screen.
66 Press the clutch pedal fully when
changing gear.
Reverse
T o e n g a g e r e v e r s e g e a r , p u s h t h e
g e a r l e v e r f u l l y t o t h e r i g h t t h e n t o -
wards the rear.
Reverse gear can only be engaged
when the vehicle is stationary,
engine at idle.
EASY mode (automatic mode)
Manual gearbox
Page 14 of 97
1
17

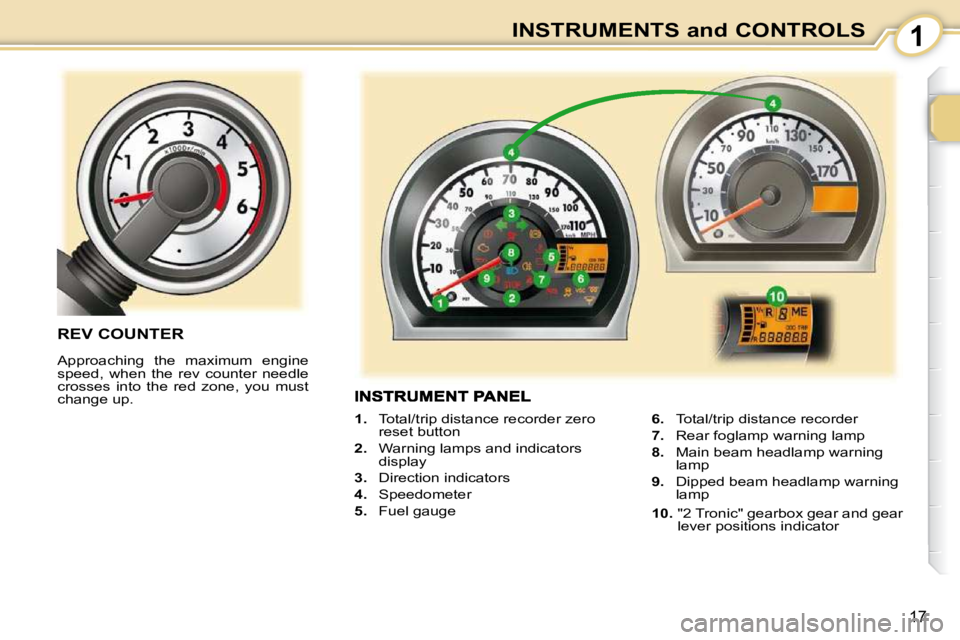

INSTRUMENTS and CONTROLS
1. Total/trip distance recorder zero
reset button
2. Warning lamps and indicators
display
3. Direction indicators
4. Speedometer
5. Fuel gauge
6. Total/trip distance recorder
7. Rear foglamp warning lamp
8. Main beam headlamp warning
lamp
9. Dipped beam headlamp warning
lamp
REV COUNTER
Approaching the maximum engine
speed, when the rev counter needle
crosses into the red zone, you must
change up.
10. "2 Tronic" gearbox gear and gear
lever positions indicator
Page 15 of 97
1
18
INSTRUMENTS and CONTROLS

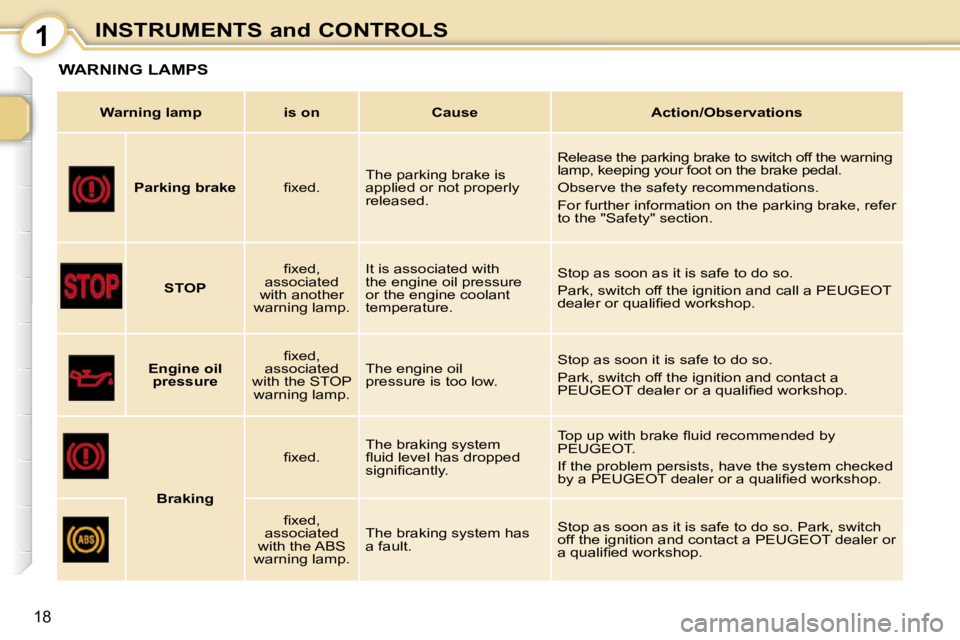

WARNING LAMPS
Warning lamp is on Cause Action/Observations
Parking brake fi x e d . The parking brake is
applied or not properly
released. Release the parking brake to switch off the warnin
g
lamp, keeping your foot on the brake pedal.
Observe the safety recommendations.
For further information on the parking brake, refer
to the "Safety" section.
STOP fi x e d ,
associated
with another
warning lamp. It is associated with
the engine oil pressure
or the engine coolant
temperature.
Stop as soon as it is safe to do so.
Park, switch off the ignition and call a PEUGEOT
d e a l e r o r q u a l i fi e d w o r k s h o p .
Engine oil
pressure fi x e d ,
associated
with the STOP warning lamp. The engine oil
pressure is too low.
Stop as soon it is safe to do so.
Park, switch off the ignition and contact a
P E U G E O T d e a l e r o r a q u a l i fi e d w o r k s h o p .
Braking fi x e d .
The braking system
fl u i d l e v e l h a s d r o p p e d
s i g n i fi c a n t l y . T o p u p w i t h b r a k e fl u i d r e c o m m e n d e d b y
PEUGEOT.
If the problem persists, have the system checked
b y a P E U G E O T d e a l e r o r a q u a l i fi e d w o r k s h o p .
fi x e d ,
associated
with the ABS
warning lamp. The braking system has
a fault.
Stop as soon as it is safe to do so. Park, switch
off the ignition and contact a PEUGEOT dealer or
a q u a l i fi e d w o r k s h o p .
Page 16 of 97
1
19
INSTRUMENTS and CONTROLS

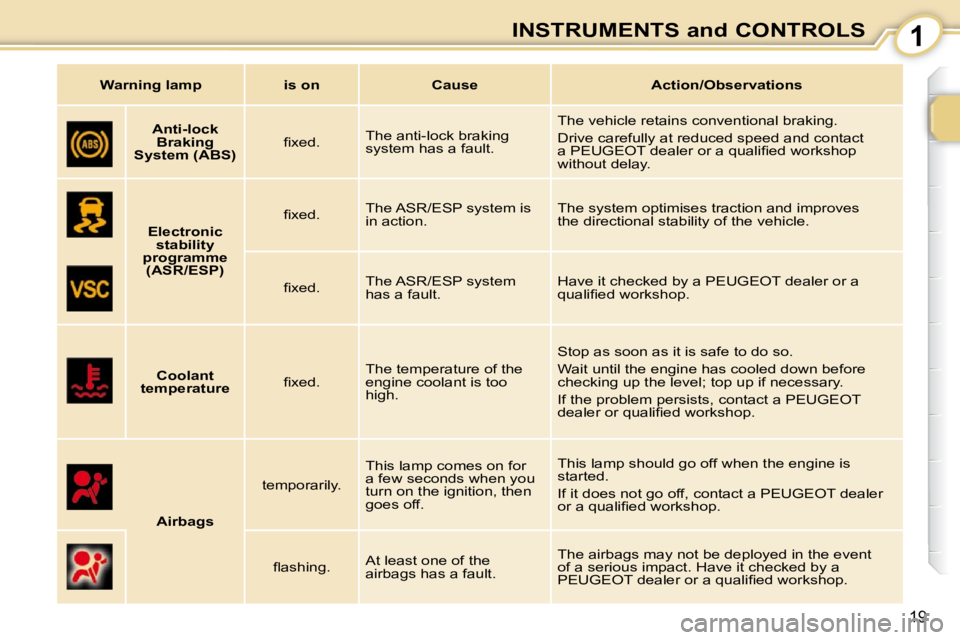

Anti-lock
Braking
System (ABS) fi x e d .
The anti-lock braking
system has a fault. The vehicle retains conventional braking.
Drive carefully at reduced speed and contact
a P E U G E O T d e a l e r o r a q u a l i fi e d w o r k s h o p
without delay.
Electronic
stability
programme (
ASR
/
ESP
) fi x e d .
The ASR/ESP system is
in action. The system optimises traction and improves
the directional stability of the vehicle.
fi x e d .
The ASR/ESP system
has a fault. Have it checked by a PEUGEOT dealer or a
q u a l i fi e d w o r k s h o p .
Coolant
temperature fi x e d . The temperature of the
engine coolant is too
high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before
checking up the level; top up if necessary.
If the problem persists, contact a PEUGEOT
d e a l e r o r q u a l i fi e d w o r k s h o p .
Airbags temporarily.
This lamp comes on for
a few seconds when you
turn on the ignition, then
goes off. This lamp should go off when the engine is
started.
If it does not go off, contact a PEUGEOT dealer
o r a q u a l i fi e d w o r k s h o p .
fl a s h i n g . At least one of the
airbags has a fault. The airbags may not be deployed in the event
of a serious impact. Have it checked by a
P E U G E O T d e a l e r o r a q u a l i fi e d w o r k s h o p .
Warning lamp is on Cause Action/Observations
