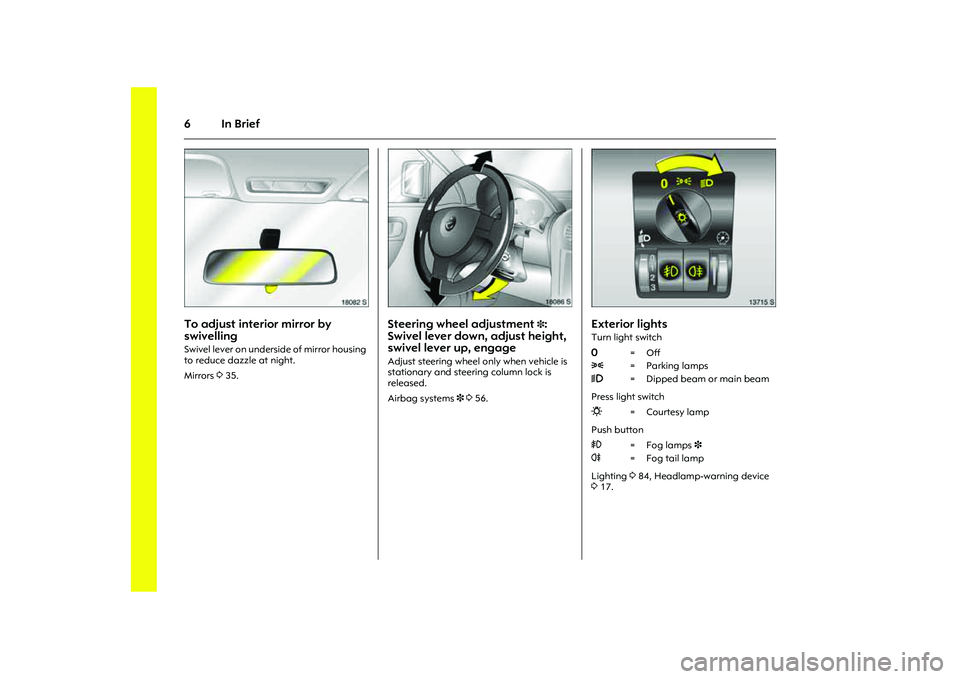

6In Brief
Picture no: 18082s.tif
To adjust interior mirror by
swivelling Swivel lever on underside of mirror housing
to reduce dazzle at night.
Mirrors 335.
Picture no: 18086s.tif
Steering wheel adjustment
3:
Swivel lever down, adjust height,
swivel lever up, engage
Adjust steering wheel only when vehicle is
stationary and steering column lock is
released.
Airbag systems 3 356.
Picture no: 13715s.tif
Exterior lights Turn light switch
Press light switch
Push button
Lighting 384, Headlamp-warning device
317. 7=Off
8= Parking lamps
9= Dipped beam or main beam
0=Courtesy lamp
>=Fog lamps 3
r= Fog tail lamp

7
In Brief
Picture no: 18475s.tif
Headlamp flash, main beam and
dipped beam Main beam, headlamp flash 385.
Picture no: 14054h.tif
Switch turn signal onTurn signals 385.
Picture no: 15865s.tif
Hazard warning lamps Operated with the ¨ button.
Hazard warning flashers 386. Headlamp flash = Pull stalk towards
steering wheel
Main beam = Push stalk forwards
Dipped beam = Push stalk forwards
again
Right = Lever upwards
Left = Lever downwards

9
In Brief
Page
1Light switch .......................... 36, 384
2Side air vents ................................ 393
3Turn signals, headlamp flash,
dipped beam, main beam .. 36, 384
4Horn ...............................................313
5 Steering wheel remote control 3 .390
6Instruments ................................... 366
7 Windscreen wipers,
windscreen washer system,
rear window washer system 3 .....382
8Centre air vents .............................393
9Display 3 for time, date,
outside temperature,
infotainment system 3 ................ 377Page
10Hazard warning lamps ................. 37
LED for anti-theft alarm system 3332
11 Infotainment system 3 ................ 390
12 Front passenger airbag 3 ........... 356
13Glove compartment ..................... 363
14Heating and ventilation system . 392
15 Air conditioning system 3 ........... 396
Heated rear window 3 .......314, 337
Air recirculation system 3............ 397
16
Ashtray 3...................................... 362
17Accessory socket or
cigarette lighter ........................... 361
18 Seat heating 3 ............................. 340
Fuel selection switch
(natural gas/petrol) 3................ 3113
19Accelerator pedal .......... 3106, 3108Page
20Brake pedal .................... 3106, 3118
21Ignition switch with
steering wheel lock ...................... 316
22 Steering wheel adjustment 3 ....... 36
23 Clutch pedal 3 ........................... 3106
24Bonnet release lever ................... 3128
25 Headlamp range adjustment 3.. 387
Fog tail lamp ................................ 386
Fog lamps 3 ................................. 386
Instrument illumination ............... 387

11
In Brief
Page
1Side air vents ................................ 393
2 Front passenger airbag 3 ........... 356
3 Infotainment system 3 ................ 390
4Hazard warning lamps .................. 37
LED for anti-theft
alarm system 3 .............................332
5Display 3 for time, date,
outside temperature,
infotainment system 3 ................ 377
6Centre air vents .............................393
7Turn signals, headlamp flash,
dipped beam, main beam .. 36, 384
8Horn ...............................................313
9 Steering wheel remote control 3 .390
10Instruments ................................... 366Page
11 Windscreen wipers,
windscreen washer system,
rear window washer system 3 .....382
12Light switch ...........................36, 384
13 Headlamp range adjustment 3.. 387
Fog tail lamp ................................ 386
Fog lamps 3 ................................. 386
Instrument illumination ............... 387
14Bonnet release lever ................... 3128
15Ignition switch with
steering wheel lock ...................... 316
16 Steering wheel adjustment 3 ........ 36
17Accelerator pedal .......... 3106, 3108
18Brake pedal .................... 3106, 3118
19 Clutch pedal 3 ........................... 3106Page
20 Seat heating 3 ............................. 340
Fuel selection switch
(natural gas/petrol) 3................ 3113
21Accessory socket or
cigarette lighter ........................... 361
22 Ashtray 3...................................... 362
23 Air conditioning system 3 ........... 396
Heated rear window 3 .......314, 337
Air recirculation system 3............ 397
24Heating and ventilation system . 392
25Glove compartment .................... 363

68 InstrumentsO

Turn signal lamps
Control indicator flashes green.
The control indicator flashes if a turn signal
or the hazard warning flashers are
activated.
Rapid flashing: lamp or associated fuse
has failed.
Replacing bulbs 3151. Fuses 3145.
C

Main beam
Control indicator lights up blue.
It is illuminated when main beam is on and
during headlamp flash 385.
Picture no: 18529s.tif
!

Preheating3, diesel particle filter 3
Control indicator lights up and/or flashes
yellow
Illuminated
Preheating activated. Only activates when
outside temperatures are low.
Flashes

(in vehicles with diesel particle filter)
Control indicator ! flashes if the filter
requires cleaning and previous driving
conditions did not permit automatic
cleaning. Continue driving and if possible
do not allow engine speed to drop below
2000 rpm.
Picture no:
The control indicator ! goes off as soon
as the self-cleaning operation is complete.
Diesel particle filter 3116.T
Winter programme of the manual
transmission automated3
Symbol is lit in the transmission display if
the Winter programme is activated 3103.

84 LightingLighting
Picture no: 13718s.tif
Exterior lightsTurn light switch:
In positions 8 and 9, the tail lamps and
number plate lamps are also on.
If the ignition is switched off when main
beam or dipped beam is on, the parking
lamps 3 come on. Versions with daytime running lights 3
If the light switch is set to 7, dipped beam
is activated without instrument illumination
when the ignition is switched on.
The daytime running lights switched off
when the ignition is switched off.
Follow the regulations of the country in
which you are driving when using daytime
running lights and fog lamps 3.
Driving abroad 3 89. Exterior lights ....................................... 84
Main beam, headlamp flash .............. 85
Turn signal lamps ................................ 85
Reversing lamps................................... 85
Fog lamps > 3.................................... 86
Fog tail lamp r................................... 86
Hazard warning lamps ....................... 86
Headlamp range adjustment ? 3..... 87
Instrument illumination k................... 87
Information display illumination 3..... 87
Courtesy lamp 0................................ 88
Battery discharge protection 3.......... 89
Misted light covers............................... 89
Headlamps when driving abroad ...... 89 7=Off
8= Parking lamps
9= Dipped beam or main beam

85
Lighting
Picture no: 18475s.tif
Main beam, headlamp flash Push stalk forward to switch from dipped
beam to main beam.
To switch to dipped beam, push lever down
again.
To operate the headlamp flash, pull stalk
towards steering wheel. The main beam is
switched on for as long as the the stalk is
held in this position.
Picture no: 14054h.tif
Turn signal lamps If the stalk is moved past the resistance
point, the turn signal lamp remains on.
When the steering wheel moves back
toward the straight-ahead position, the
turn signal lamp is automatically
deactivated.
Touch turn signal operation: press lever
until resistance can be felt and release
again.
The turn signal lamps are switched off
manually by moving the lever back to the
middle position.
Reversing lamps The reversing lamps come on when the
ignition is on and reverse gear is engaged.
Lever upwards = Right turn signal
Lever downwards = Left turn signal

87
Lighting
Picture no: 13719s.tif
Headlamp range adjustment
? 3

Rotate the adjuster wheel to the required
position to adjust the dipped beam range
to vehicle loading and prevent dazzling. Combo
Combo van
Picture no: 13722s.tif
Instrument illumination
k
Illumination comes on with the exterior
lights. Brightness can be adjusted using the
adjuster wheel.
Information display illumination
3
Information display illumination comes on
when the ignition or infotainment system is
switched on. Brightness can be adjusted
using the adjuster wheel.
0 = Front seats occupied
1 = All seats occupied
2 = All seats occupied and luggage
compartment load
3 = Driver’s seat occupied and
luggage compartment load
0 = Seats occupied
1 = Seats occupied and half load in
load compartment
2 = Seats occupied and full load in
load compartment
3 = Driver’s seat occupied and full
load in load compartment
