2010 OPEL COMBO check engine

169 Opel Service, maintenance
⊕Additional work.
o Intervals are shorter under extreme operating conditions and when such is necessary due to conditions specific to the country.
Service work after year
1)
km (x 1000)
1)
1)Whichever occurs first.
1
152
303
454
605
75
⊕
Replace toothed belt and tension roller
Z 16 YNGevery 6 years/90,000 km
Z 17 DTHevery 10 years/90,000 km
Z 16 XEPevery 10 years/150,000 km
Change engine oil and oil filter x x x x x
⊕o
Drain water from diesel fuel filter
(with high humidity and/or low fuel grade)xxxxx
Empty oil separator, Z 16 YNG every 4 years/60,000 km
Replace and drain water from fuel filter,
Z 13 DTJ, Z 17 DTHevery 2 years/60,000 km
Replace fuel filter, Z 16 YNG every 4 years/60,000 km
Check and adjust parking brake (wheels unladen); visually inspect wheel suspension
and spring suspension front and back, brake pipes, brake pressure hoses, fuel pipes,
gas lines on natural-gas powered vehicles and exhaust systemxx
Check external bodywork/underbody corrosion protection; note damage in the
Service and Warranty Bookletxxxxx
⊕o
Visually inspect front and rear wheel brakes
2)
2)If loss is great/leaks are present, carry out follow-up work with customer consent.
xx
Annual service check when the annual mileage is more than 20,000 km
Visually inspect engine, transmission (AT, MT), air conditioning compressor for leaks
2)
xxxxx
⊕o
Remove, clean and visually inspect brake drum every 4 years/60,000 km

170 Opel Service, maintenance⊕Additional work.
o Intervals are shorter under extreme operating conditions and when such is necessary due to conditions specific to the country.
Service work after year
1)
km (x 1000)
1)
1)Whichever occurs first.
1
152
303
454
605
75
Visually inspect steering bellows, track rods and axle drive x x x x x
Check track-rod ends and suspension ball joints x x x x x
⊕
Change brake and clutch fluid (manual transmission automated) every 2 years
Undo wheel mounting and tighten to 110 Nm torque
xx During assembly, lightly lubricate wheel bolt tapers with grease or oil
Check tyre condition; check and correct tyre pressures (including the spare wheel)
With tyre inflation system, check the set to make sure that it is complete and not
out of date. Replace sealant bottle every 4 years
⊕
Annual service check when the annual mileage is more than 20,000 km
Visually inspect the first-aid kit (present and stowed in the right place, intact and
not out of date), lashing eyes and warning triangleevery 2 years
Check and correct headlamp aiming (including auxiliary headlamps) x x
⊕o
Lubricate door hinges, door brakes, lock cylinders, strikers, bonnet closure and
tailgate hinges.xx
Road test, final inspection (check steering column lock, ignition switch, instruments
and control indicators, entire brake system, steering, air conditioning system, engine,
body and chassis), reset service interval display using TECH 2xxxxx
⊕
Carry out gas system test (GAP) and note it in the Service and Warranty Booklet First after 3 years and then every
2 years thereafter
With commercial passenger transport, taxis, ambulances, hired vehicles, etc. annually

172 Opel Service, maintenanceEngine oil
Engine oil is identified by its grade and
viscosity. When choosing which engine oil
to use, grade is more important than
viscosity.
The new GM-Dexos 2 engine oil grade is
currently the highest grade. If it is not
available, the other engine oil grades that
are listed must be used.
Engine oil grade for the European
service plan
Engine oil grade for the International
service planTopping up engine oil
Oil from different manufacturers and of
different brands can be mixed providing
they meet the specified engine oil criteria
(grade and viscosity).
Not every engine oil available on the
market satisfies the quality requirements,
so always check whether the required
specifications and classifications are
written on the container.
If an engine oil of the required grade is not
available, a maximum of 1 litre of
ACEA A3/B4 or A3/B3 oil may be used (just
once between oil changes). The viscosity
must comply with the requirements.
Using category ACEA A1/B1 and A5/B5
engine oil is expressly forbidden because it
can cause long-term damage to the engine
under certain operating conditions.Engine oil additives
The use of engine oil additives can cause
damage and void the warranty.
Engine oil viscosity
Only use engine oils of viscosity 0W-30,
0W-40, 5W-30 or 5W-40.
The SAE viscosity classification defines the
fluidity of the oil: the oil is more viscous
when cold than when hot.
Multigrade oil is indicated by two numbers.
The first number followed by a W gives the
viscosity at low temperature and the
second number gives the viscosity at high
temperature. GM-Dexos 2 = Petrol and
diesel engines
GM-LL-A-025 = Petrol engines
GM-LL-B-025 = Diesel engines
GM-Dexos 2 = Petrol and
diesel engines
GM-LL-A-025 = Petrol engines
GM-LL-B-025 = Diesel engines
ACEA-A3 = Petrol engines
ACEA-B4 = Diesel engines
without diesel
particle filter (DPF)
ACEA-C3 = Diesel engines with
DPF

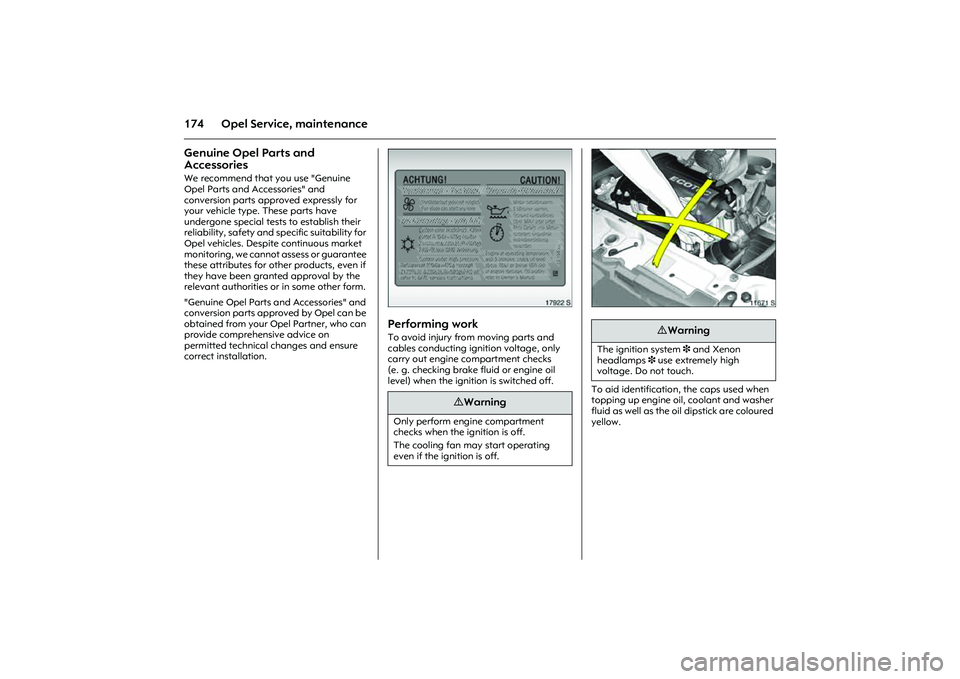

174 Opel Service, maintenanceGenuine Opel Parts and
Accessories We recommend that you use "Genuine
Opel Parts and Accessories" and
conversion parts approved expressly for
your vehicle type. These parts have
undergone special tests to establish their
reliability, safety and specific suitability for
Opel vehicles. Despite continuous market
monitoring, we cannot assess or guarantee
these attributes for other products, even if
they have been granted approval by the
relevant authorities or in some other form.
"Genuine Opel Parts and Accessories" and
conversion parts approved by Opel can be
obtained from your Opel Partner, who can
provide comprehensive advice on
permitted technical changes and ensure
correct installation.
Picture no: 17922s.tif
Performing work To avoid injury from moving parts and
cables conducting ignition voltage, only
carry out engine compartment checks
(e. g. checking brake fluid or engine oil
level) when the ignition is switched off.
Picture no: 11671s.tif
To aid identification, the caps used when
topping up engine oil, coolant and washer
fluid as well as the oil dipstick are coloured
yellow.
9 Warning
Only perform engine compartment
checks when the ignition is off.
The cooling fan may start operating
even if the ignition is off.
9 Warning
The ignition system 3 and Xenon
headlamps 3 use extremely high
voltage. Do not touch.

175
Opel Service, maintenance
Picture no: 18113s.tif
Engine oil On vehicles with engine oil level check 3,
the engine oil level is monitored
automatically 370. We recommend that
you check the engine oil level before
starting a long journey.
Picture no: 13212s.tif
Check with the vehicle on a level surface.
The engine must be at operating
temperature and switched off for at least
5minutes.
Picture no: 16495s.tif
Pull out the dipstick, wipe it clean, insert it
to the stop on the handle, pull out and read
the engine oil level.
Push in the oil dipstick up to the stop on the
handle and give it half a turn.
Different dipsticks are used depending on
engine variant.
When the engine oil level has dropped to
the MIN mark, top up engine oil.

177
Opel Service, maintenance
Diesel fuel filter On the event of engine oil change, have
fuel filter checked for possible water
residue by a workshop.
Illumination of A indicates water in the
fuel filter 3.
Have fuel filter checked at shorter intervals
if the vehicle is subjected to extreme
operating conditions such as high humidity
(primarily in coastal areas), extremely high
or low outside temperatures and
substantially varying daytime and
night-time temperatures.
Coolant The coolant provides anti-freeze
protection down to approx. -28 C. .
Picture no: 11676s.tif
Antifreeze and corrosion protection
Have the concentration of the radiator
contents tested by a workshop before
winter starts. The amount of antifreeze
must provide protection down to approx.
-28 C. A lower antifreeze concentration
will reduce the amount of protection from
frost and corrosion. Add antifreeze if
necessary.
If coolant loss is topped up with water,
have concentration checked and add
antifreeze if necessary. Caution
Only use approved anti-freeze.
Coolant additives for additional
corrosion protection and sealing small
leaks can cause operation problems. No
liability is accepted for damage caused
by using coolant additives.
9 Warning
Antifreeze is a danger to health; it must
therefore be kept in the original
container and out of the reach of
children.

178 Opel Service, maintenance
Picture no: 13213s.tif
Coolant level
In a closed cooling system, there is hardly
any loss.
When the cooling system is cold, the level of
coolant should lie above the KALT/COLD
mark. Top up if the level is low. Top up with anti-freeze. If no anti-freeze is
available, fill with clean tap water or
distilled water. Have the anti-freeze
concentration checked.
Have the cause of coolant loss rectified by
a workshop.
Fit the cap on straight and tighten it.
Brakes A screeching noise indicates that the brake
lining is at its minimum thickness.
Continued driving is possible. Have the
brake lining replace as soon as possible.
Once new brake lining is fitted, do not
brake unnecessarily hard for the first
200 km.
9 Warning
Allow the engine to cool before opening
the cap. Carefully open the cap,
relieving the overpressure slowly.
Caution
Too low a coolant level can cause
engine damage.

181
Opel Service, maintenance
Laying the vehicle up for a long
period of time If the vehicle is to be laid up for several
months, the following work should be
undertaken to prevent damage.
zWash and wax the vehicle 3161.
zHave the wax in the engine
compartment and underbody checked.
zClean and preserve rubber seals.
zChange engine oil.
zCheck anti-freeze and corrosion
protection 3177.
zCheck the coolant level; top up
anti-freeze if necessary 3178.
zDrain the windscreen washer system.
zIncrease tyre pressure to the value
specified for full load 3121, 3191. zPark the vehicle in dry and
well-ventilated place. With manual
transmission select first or reverse gear;
with manual transmission automated 3
move the selector lever to the centre
position before switching the ignition off.
Use chocks or the like to prevent the
vehicle from rolling.
zDo not apply hand brake.
zDisconnect the clamp from the negative
terminal of the vehicle battery.
Putting the vehicle back into
servicePerform the following work before
recommissioning the vehicle:
zConnect the clamp to the negative
terminal of the vehicle battery.
zCheck tyre pressure 3121, 3191.
zTop up the windscreen washer system
3180.
zCheck engine oil level 3175.
zCheck coolant level 3178.
zFit the number plate if necessary.
