Replacing wheels and tires
When replacing a tire, use the same size, tread
design, speed rating and load carrying capacity
as originally equipped. Recommended types and
sizes are shown in “Wheels and tires” in the
“Technical and consumer information” section of
this manual.
WARNING
●The use of tires other than those recom-
mended or the mixed use of tires of
different brands, construction (bias,
bias-belted or radial) , or tread patterns
can adversely affect the ride, braking,
handling, VDC system, ground clear-
ance, body-to-tire clearance, tire chain
clearance, speedometer calibration,
headlight aim and bumper height.
Some of these effects may lead to acci-
dents and could result in serious per-
sonal injury.
● If your vehicle was originally equipped
with 4 tires that were the same size and
you are only replacing 2 of the 4 tires,
install the new tires on the rear axle.
Placing new tires on the front axle may
cause loss of vehicle control in some
driving conditions and cause an acci-
dent and personal injury. ●
If the wheels are changed for any rea-
son, always replace with wheels which
have the same off-set dimension.
Wheels of a different off-set could
cause premature tire wear, degrade ve-
hicle handling characteristics, affect
the VDC system and/or interference
with the brake discs/drums. Such inter-
ference can lead to decreased braking
efficiency and/or early brake pad/shoe
wear. Refer to “Wheels and tires” in the
“Technical and consumer information”
section of this manual for wheel off-set
dimensions.
● When a spare tire is mounted or a wheel
is replaced, tire pressure will not be
indicated, the TPMS will not function
and the low tire pressure warning light
will flash for approximately 1 minute.
The light will remain on after 1 minute.
Contact your NISSAN dealer as soon as
possible for tire replacement and/or
system resetting.
● Replacing tires with those not originally
specified by NISSAN could affect the
proper operation of the TPMS. ●
Do not install a damaged or deformed
wheel or tire even if it has been re-
paired. Such wheels or tires could have
structural damage and could fail with-
out warning.
● The use of retread tires is not
recommended.
● For additional information regarding
tires, refer to “Important Tire Safety In-
formation” (US) or “Tire Safety Informa-
tion” (Canada) in the Warranty Informa-
tion Booklet.
Wheel balance
Unbalanced wheels may affect vehicle handling
and tire life. Even with regular use, wheels can get
out of balance. Therefore, they should be bal-
anced as required.
Wheel balance service should be per-
formed with the wheels off the vehicle.
Spin balancing the wheels on the vehicle
could lead to mechanical damage.
● For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety Infor-
mation” (Canada) in the Warranty In-
formation Booklet.
Maintenance and do-it-yourself8-43
9 Technical and consumer information
Capacities and recommended fuel/lubricants.........9-2
Fuel recommendation . . .........................9-4
Engine oil and oil filter recommendations ..........9-6
Air conditioner system refrigerant and oil
recommendations ..............................9-7
Specifications .....................................9-8
Engine ........................................9-8
Wheels and tires ...............................9-9
Dimensions and weights ........................9-9
When traveling or registering your vehicle in
another country .................................. 9-10
Vehicle identification .............................. 9-10
Vehicle identification number (VIN) plate .........9-10
Vehicle identification number
(chassis number) .............................. 9-10
Engine serial number ........................... 9-11
F.M.V.S.S./C.M.V.S.S. certification label ..........9-11
Emission control information label ...............9-12Tire and loading information label
................9-12
Air conditioner specification label ................9-12
Installing front license plate (if so equipped) .........9-13
Vehicle loading information ........................9-13
Terms ........................................ 9-13
Determining vehicle load capacity . . . ............9-14
Loading tips .................................. 9-16
Measurement of weights .......................9-16
Towing a trailer ................................... 9-17
Flat towing .................................... 9-17
Uniform tire quality grading ........................9-17
Emission control system warranty ..................9-18
Reporting safety defects (US only) .................9-19
Readiness for inspection/maintenance (I/M) test .....9-19
Event Data Recorders (EDR) .......................9-20
Owner’s Manual/Service Manual order information . . . 9-21 In the event of a collision .......................9-21
WHEELS AND TIRES
Wheel typeSizeOffset in (mm)
Aluminum and steel 14 x 5.0JJ 15 x 5.5JJ
16 x 5.5JJ1.57 (40)
1.57 (40)
1.57 (40)
Tire size P185/65R14
P185/65R15
P195/55R16
Spare tire T125/70D15
DIMENSIONS AND WEIGHTS
Unit: in (mm)
Body Type HatchbackSedan
Overall length 169.2 (4,297)176.1 (4,473)
Overall width 66.7 (1,695)66.7 (1,695)
Overall height 60.5 (1,538)60.5 (1,538)
Front Track 58.3 (1,480)58.3 (1,480)
Rear Track 58.5 (1,485)58.5 (1,485)
Wheelbase 102.4 (2,600)102.4 (2,600)
Gross vehicle weight
rating lb (kg)
See the “F.M.V.S.S./C.M.V.S.S. certification label”
on the center pillar between the driver’s side front
and rear doors.
Gross axle weight rat-
ing
Front
lb (kg)
Rear lb (kg)
Technical and consumer information9-9
Child safety rear door lock............3-7
Chimes, audible reminders ...........2-14
Cleaning exterior and interior ...........7-2
Clock ...................4-26, 4-29
Clutch Clutch fluid ..................8-15
C.M.V.S.S. certification label ..........9-11
Cold weather driving ..............5-32
Compact disc (CD) player . . . .4-27, 4-31, 4-36
Console box ...................2-28
Continuously Variable Transmission (CVT). . .5-17 Continuously Variable Transmission (CVT)
fluid ......................8-13
Driving with Continuously Variable
Transmission (CVT) .............5-17
Control panel buttons ...............4-2
Brightness/contrast button ..........4-8
Enter button ..................4-2
Setting button .................4-5
Controls Audio controls (steering wheel) .......4-45
Heater and air conditioner controls .....4-9
Coolant Capacities and recommended
fuel/lubricants .................9-2
Changing engine coolant ...........8-9
Checking engine coolant level ........8-8
Corrosion protection ...............7-5
Cruise control ..................5-24
Cup holders ...................2-27
Curtain side-impact air bag system
(See supplemental side air bag and curtain
side-impact air bag system) ...........1-52 D
Daytime running light system (Canada only) . .2-21
Defroster switch Rear window and outside mirror defroster
switch .....................2-20
Dimensions and weights .............9-9
Dimmer switch for instrument panel ......2-22
Display controls (see control panel buttons) . .4-2
Door locks ..................3-4, 3-5
Door open warning light .............2-8
Drive belt .....................8-18
Driving Cold weather driving ............5-32
Driving with automatic transmission . . . .5-13
Driving withContinuously
Variable
Transmission (CVT) .............5-17
Driving with manual transmission ......5-21
Precautions when starting and driving . . . .5-2
E
Economy - fuel ..................5-26
Emission control information label .......9-12
Emission control system warranty .......9-18
Engine Before starting the engine ..........5-12
Block heater .................5-33
Capacities and recommended
fuel/lubricants .................9-2
Changing engine coolant ...........8-9
Changing engine oil .............8-10
Changing engine oil filter ..........8-12
Checking engine coolant level ........8-8Checking engine oil level
...........8-9
Engine compartment check locations . . . .8-6
Engine cooling system ............8-8
Engine oil ...................8-9
Engine oil and oil filter recommendation . . .9-6
Engine oil pressure warning light .......2-8
Engine oil viscosity ..............9-6
Engine serial number ............9-11
Engine specifications .............9-8
Starting the engine .............5-12
Enter button ....................4-2
Event data recorders ..............9-20
Exhaust gas (Carbon monoxide) .........5-2
Eyeglass case ..................2-26
F
Flashers
(See hazard warning flasher switch) ......2-23
Flat tire .......................6-2
Floor mat positioning aid .............7-5
Fluid Automatic transmission fluid (ATF) .....8-13
Brake fluid ..................8-15
Capacities and recommended
fuel/lubricants .................9-2
Clutch fluid ..................8-15
Continuously Variable
Transmission (CVT)
fluid ......................8-13
Engine coolant .................8-8
Engine oil ...................8-9
F.M.V.S.S. certification label ...........9-11
Fog light switch .................2-22
Front air bag system
(See supplemental restraint system) ......1-48
10-2

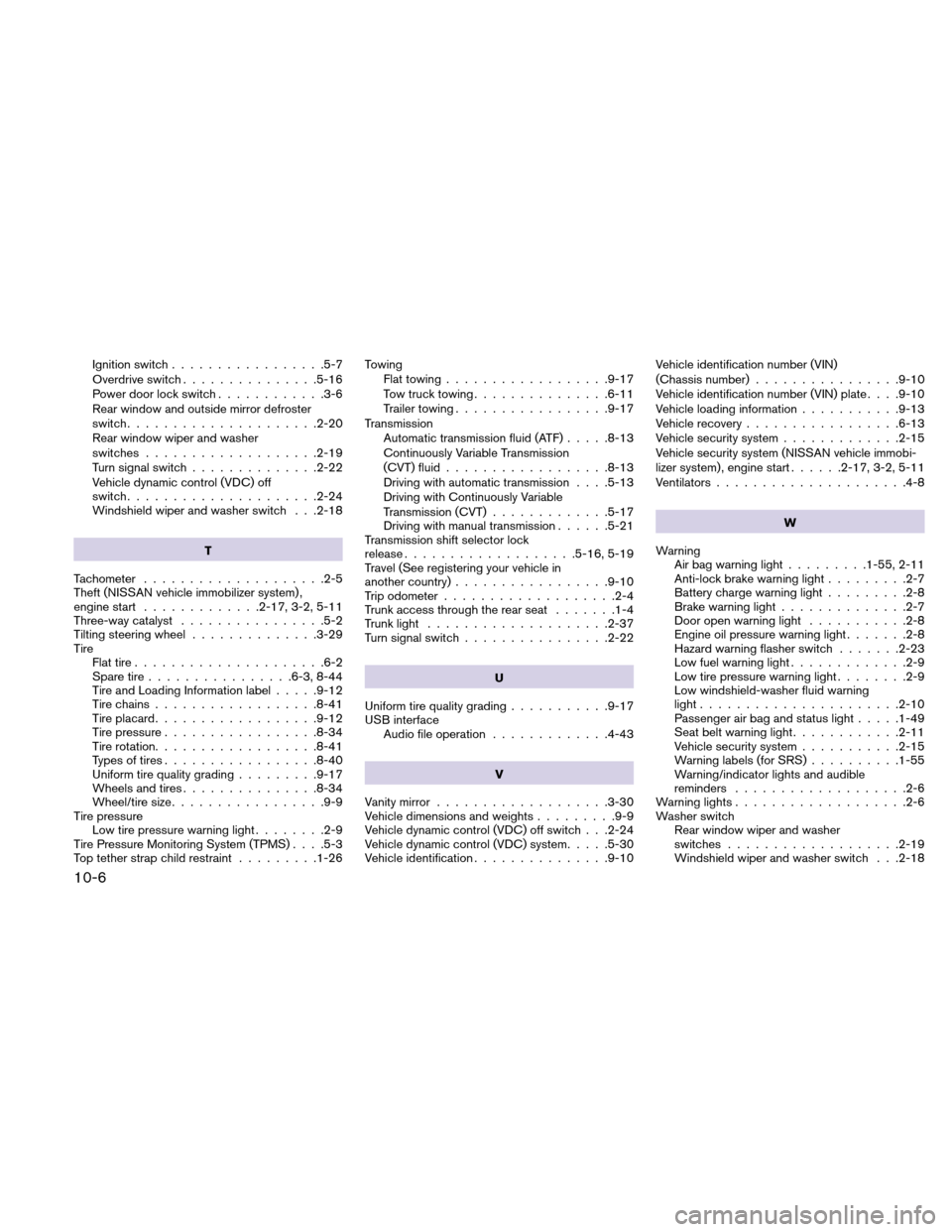

Ignition switch.................5-7
Overdrive switch ...............5-16
Power door lock switch ............3-6
Rear window and outside mirror defroster
switch .....................2-20
Rear window wiper and washer
switches ...................2-19
Turn signal switch ..............2-22
Vehicle dynamic control (VDC) off
switch .....................2-24
Windshield wiper and washer switch . . .2-18
T
Tachometer ....................2-5
Theft (NISSAN vehicle immobilizer system) ,
engine start .............2-17, 3-2, 5-11
Three-way catalyst ................5-2
Tilting steering wheel ..............3-29
Tire Flat tire .....................6-2
Spare tire ................6-3, 8-44
Tire and Loading Information label .....9-12
Tire chains ..................8-41
Tire placard ..................9-12
Tire pressure .................8-34
Tire rotation ..................8-41
Types of tires .................8-40
Uniform tire quality grading .........9-17
Wheels and tires ...............8-34
Wheel/tire size .................9-9
Tire pressure Low tire pressure warning light ........2-9
Tire Pressure Monitoring System (TPMS) . . . .5-3
Top tether strap child restraint .........1-26Towing
Flat towing ..................9-17
Tow truck towing ...............6-11
Trailer towing .................9-17
Transmission Automatic transmission fluid (ATF) .....8-13
Continuously Variable Transmission
(CVT) fluid ..................8-13
Driving with automatic transmission . . . .5-13
Driving with Continuously Variable
Transmission (CVT) .............5-17
Driving with manual transmission ......5-21
T ransmission shift
selector lock
release ...................5-16, 5-19
Travel (See registering your vehicle in
another country) .................9-10
Trip odometer ...................2-4
Trunk access through the rear seat .......1-4
Trunk light ....................2-37
Turn signal switch ................2-22
U
Uniform tire quality grading ...........9-17
USB interface Audio file operation .............4-43
V
Vanity mirror ...................3-30
Vehicle dimensions and weights .........9-9
Vehicle dynamic control (VDC) off switch . . .2-24
Vehicle dynamic control (VDC) system .....5-30
Vehicle identification ...............9-10 Vehicle identification number (VIN)
(Chassis number)
................9-10
Vehicle identification number (VIN) plate . . . .9-10
Vehicle loading information ...........9-13
Vehicle recovery .................6-13
Vehicle security system .............2-15
Vehicle security system (NISSAN vehicle immobi-
lizer system) , engine start ......2-17, 3-2, 5-11
Ventilators .....................4-8
W
Warning Air bag warning light .........1-55, 2-11
Anti-lock brake warning light .........2-7
Battery charge warning light .........2-8
Brake warning light ..............2-7
Door open warning light ...........2-8
Engine oil pressure warning light .......2-8
Hazard warning flasher switch .......2-23
Low fuel warning light .............2-9
Low tire pressure warning light ........2-9
Low windshield-washer fluid warning
light ......................2-10
Passenger air bag and status light .....1-49
Seat belt warning light ............2-11
Vehicle security system ...........2-15
W arning labels
(for SRS)..........1-55
Warning/indicator lights and audible
reminders ...................2-6
Warning lights ...................2-6
Washer switch Rear window wiper and washer
switches ...................2-19
Windshield wiper and washer switch . . .2-18
10-6

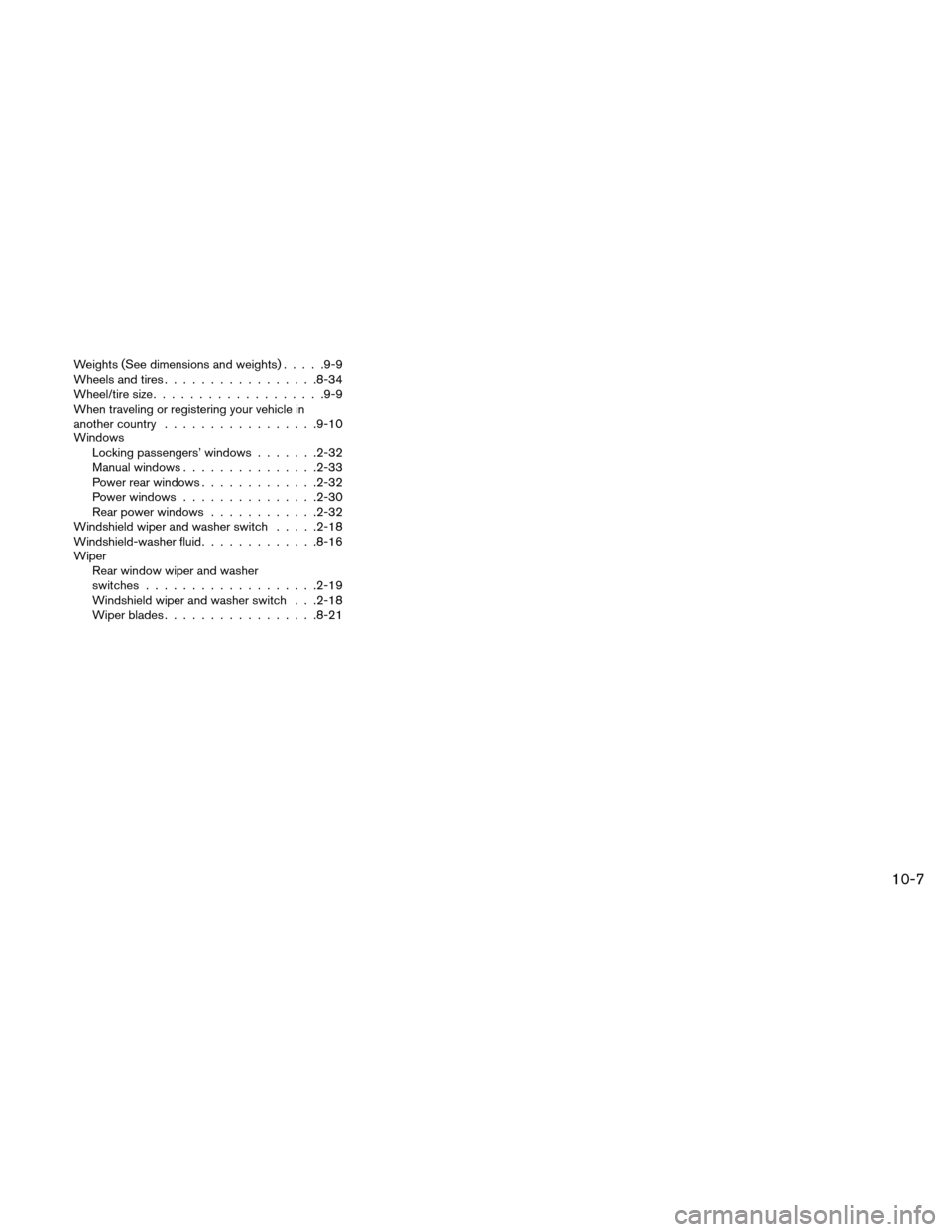

Weights (See dimensions and weights).....9-9
Wheels and tires .................8-34
Wheel/tire size ...................9-9
When traveling or registering your vehicle in
another country .................9-10
Windows Locking passengers’ windows .......2-32
Manual windows ...............2-33
Power rear windows .............2-32
Power windows ...............2-30
Rear power windows ............2-32
Windshield wiper and washer switch .....2-18
Windshield-washer fluid .............8-16
Wiper Rear window wiper and washer
switches ...................2-19
Windshield wiper and washer switch . . .2-18
Wiper blades .................8-21
10-7
