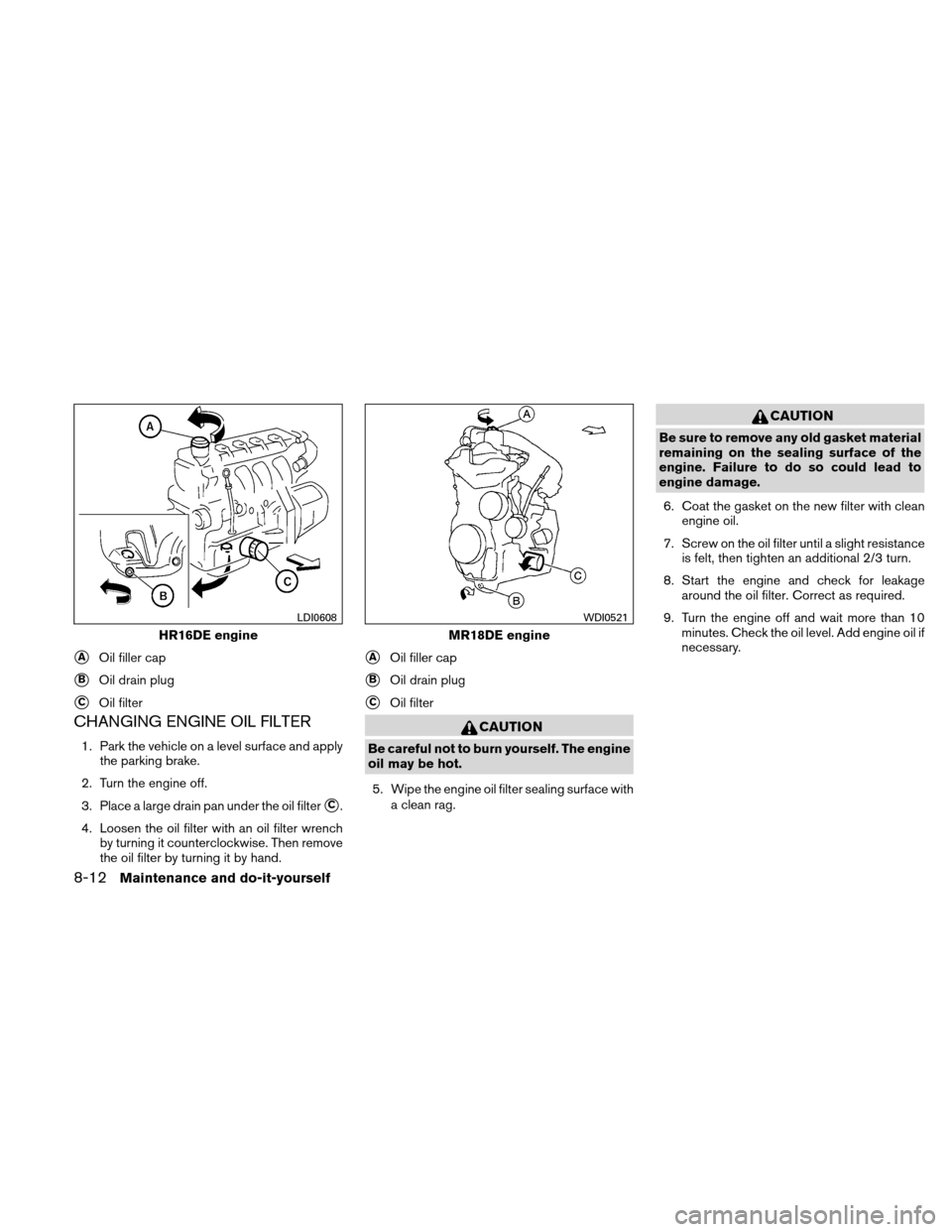

CHANGING ENGINE OIL FILTER
1. Park the vehicle on a level surface and applythe parking brake.
2. Turn the engine off.
3. Place a large drain pan under the oil filter
C.
4. Loosen the oil filter with an oil filter wrench by turning it counterclockwise. Then remove
the oil filter by turning it by hand.
CAUTION
Be careful not to burn yourself. The engine
oil may be hot.
5. Wipe the engine oil filter sealing surface with a clean rag.
CAUTION
Be sure to remove any old gasket material
remaining on the sealing surface of the
engine. Failure to do so could lead to
engine damage.
6. Coat the gasket on the new filter with clean engine oil.
7. Screw on the oil filter until a slight resistance is felt, then tighten an additional 2/3 turn.
8. Start the engine and check for leakage around the oil filter. Correct as required.
9. Turn the engine off and wait more than 10 minutes. Check the oil level. Add engine oil if
necessary.
HR16DE engine
AOil filler cap
BOil drain plug
COil filter
LDI0608
MR18DE engine
AOil filler cap
BOil drain plug
COil filter
WDI0521
8-12Maintenance and do-it-yourself

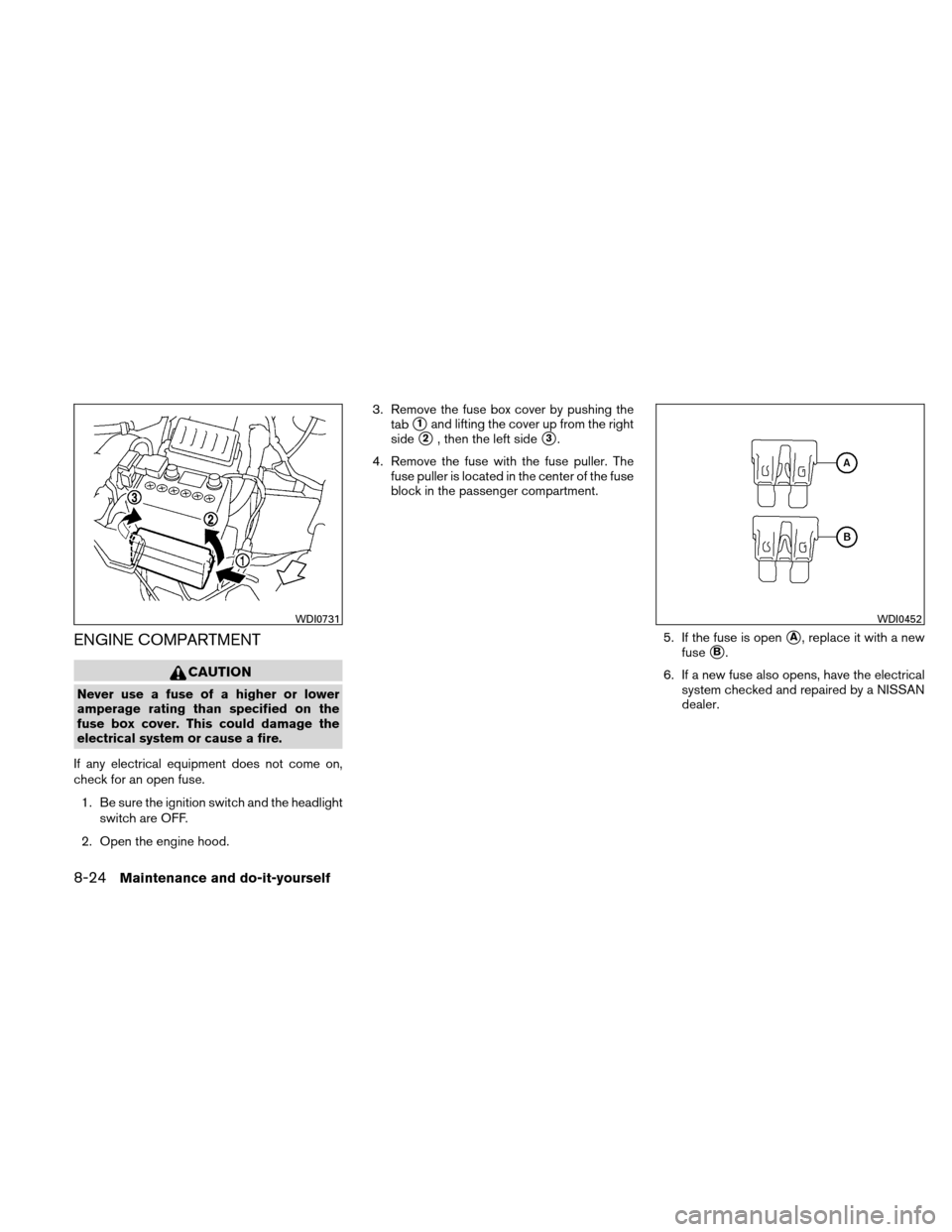

ENGINE COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than specified on the
fuse box cover. This could damage the
electrical system or cause a fire.
If any electrical equipment does not come on,
check for an open fuse. 1. Be sure the ignition switch and the headlight switch are OFF.
2. Open the engine hood. 3. Remove the fuse box cover by pushing the
tab
1and lifting the cover up from the right
side
2, then the left side3.
4. Remove the fuse with the fuse puller. The fuse puller is located in the center of the fuse
block in the passenger compartment.
5. If the fuse is open
A, replace it with a new
fuse
B.
6. If a new fuse also opens, have the electrical system checked and repaired by a NISSAN
dealer.
WDI0731WDI0452
8-24Maintenance and do-it-yourself

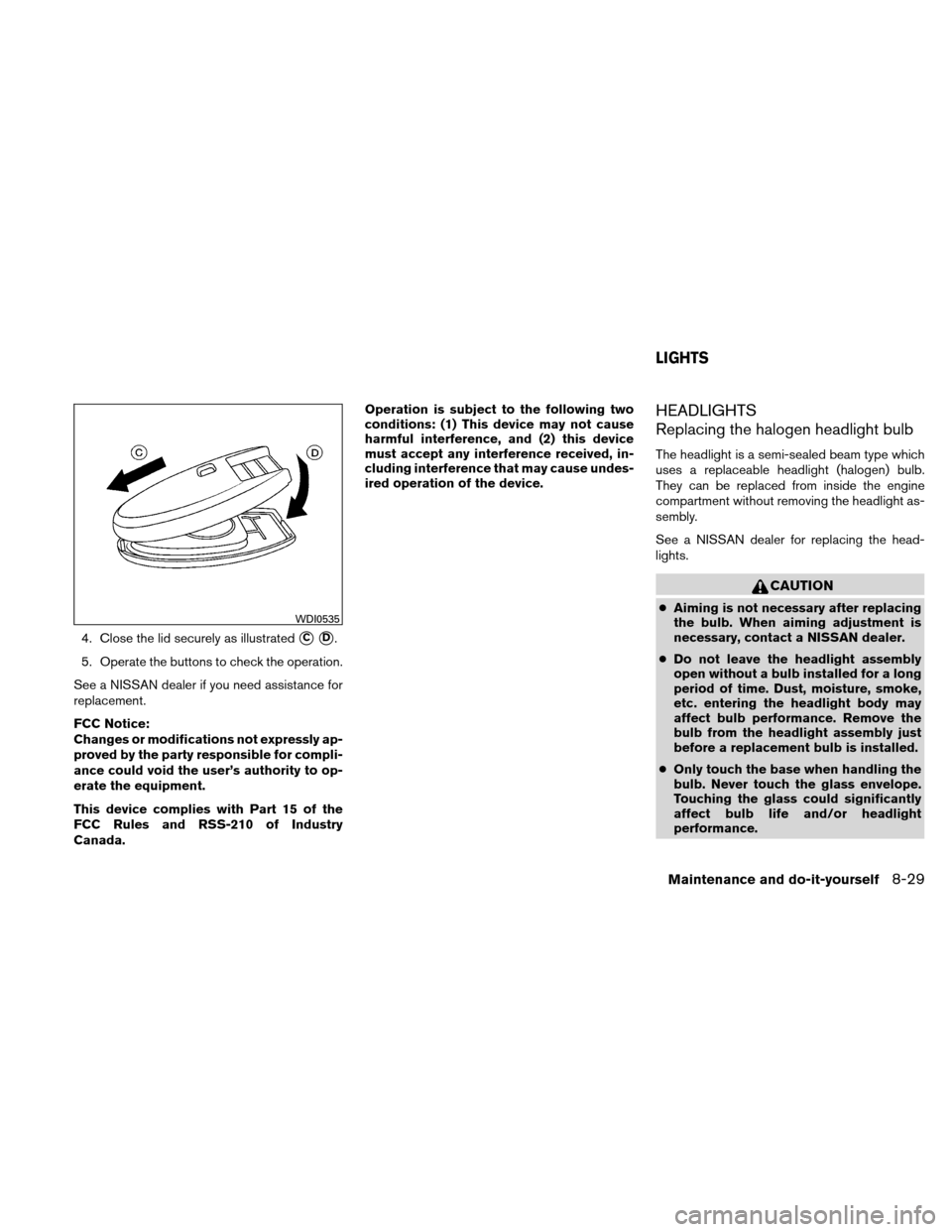

4. Close the lid securely as illustratedCD.
5. Operate the buttons to check the operation.
See a NISSAN dealer if you need assistance for
replacement.
FCC Notice:
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment.
This device complies with Part 15 of the
FCC Rules and RSS-210 of Industry
Canada. Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device
must accept any interference received, in-
cluding interference that may cause undes-
ired operation of the device.
HEADLIGHTS
Replacing the halogen headlight bulb
The headlight is a semi-sealed beam type which
uses a replaceable headlight (halogen) bulb.
They can be replaced from inside the engine
compartment without removing the headlight as-
sembly.
See a NISSAN dealer for replacing the head-
lights.
CAUTION
●
Aiming is not necessary after replacing
the bulb. When aiming adjustment is
necessary, contact a NISSAN dealer.
● Do not leave the headlight assembly
open without a bulb installed for a long
period of time. Dust, moisture, smoke,
etc. entering the headlight body may
affect bulb performance. Remove the
bulb from the headlight assembly just
before a replacement bulb is installed.
● Only touch the base when handling the
bulb. Never touch the glass envelope.
Touching the glass could significantly
affect bulb life and/or headlight
performance.WDI0535
LIGHTS
Maintenance and do-it-yourself8-29

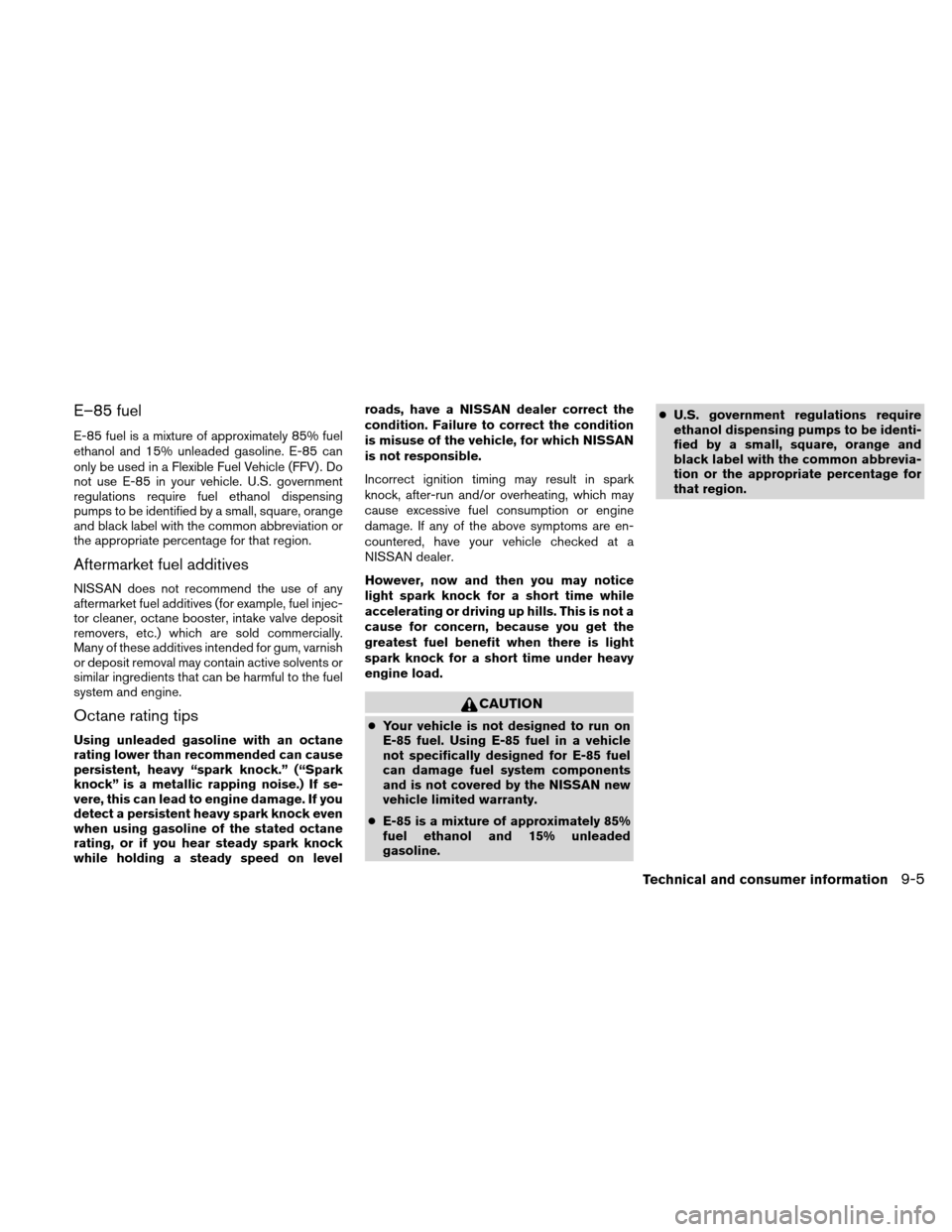

E–85 fuel
E-85 fuel is a mixture of approximately 85% fuel
ethanol and 15% unleaded gasoline. E-85 can
only be used in a Flexible Fuel Vehicle (FFV) . Do
not use E-85 in your vehicle. U.S. government
regulations require fuel ethanol dispensing
pumps to be identified by a small, square, orange
and black label with the common abbreviation or
the appropriate percentage for that region.
Aftermarket fuel additives
NISSAN does not recommend the use of any
aftermarket fuel additives (for example, fuel injec-
tor cleaner, octane booster, intake valve deposit
removers, etc.) which are sold commercially.
Many of these additives intended for gum, varnish
or deposit removal may contain active solvents or
similar ingredients that can be harmful to the fuel
system and engine.
Octane rating tips
Using unleaded gasoline with an octane
rating lower than recommended can cause
persistent, heavy “spark knock.” (“Spark
knock” is a metallic rapping noise.) If se-
vere, this can lead to engine damage. If you
detect a persistent heavy spark knock even
when using gasoline of the stated octane
rating, or if you hear steady spark knock
while holding a steady speed on levelroads, have a NISSAN dealer correct the
condition. Failure to correct the condition
is misuse of the vehicle, for which NISSAN
is not responsible.
Incorrect ignition timing may result in spark
knock, after-run and/or overheating, which may
cause excessive fuel consumption or engine
damage. If any of the above symptoms are en-
countered, have your vehicle checked at a
NISSAN dealer.
However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is not a
cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time under heavy
engine load.
CAUTION
●
Your vehicle is not designed to run on
E-85 fuel. Using E-85 fuel in a vehicle
not specifically designed for E-85 fuel
can damage fuel system components
and is not covered by the NISSAN new
vehicle limited warranty.
● E-85 is a mixture of approximately 85%
fuel ethanol and 15% unleaded
gasoline. ●
U.S. government regulations require
ethanol dispensing pumps to be identi-
fied by a small, square, orange and
black label with the common abbrevia-
tion or the appropriate percentage for
that region.
Technical and consumer information9-5

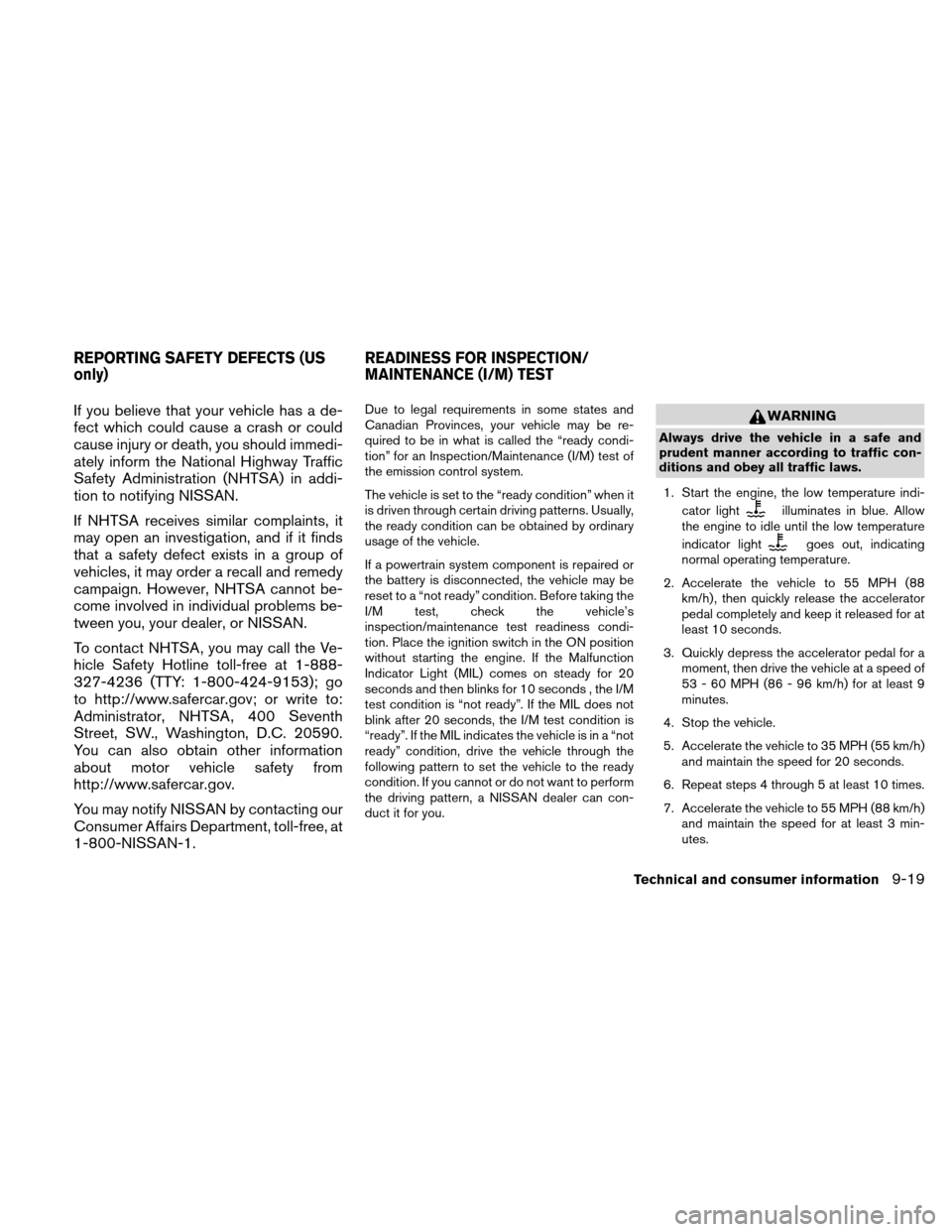

If you believe that your vehicle has a de-
fect which could cause a crash or could
cause injury or death, you should immedi-
ately inform the National Highway Traffic
Safety Administration (NHTSA) in addi-
tion to notifying NISSAN.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot be-
come involved in individual problems be-
tween you, your dealer, or NISSAN.
To contact NHTSA, you may call the Ve-
hicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153); go
to http://www.safercar.gov; or write to:
Administrator, NHTSA, 400 Seventh
Street, SW., Washington, D.C. 20590.
You can also obtain other information
about motor vehicle safety from
http://www.safercar.gov.
You may notify NISSAN by contacting our
Consumer Affairs Department, toll-free, at
1-800-NISSAN-1.Due to legal requirements in some states and
Canadian Provinces, your vehicle may be re-
quired to be in what is called the “ready condi-
tion” for an Inspection/Maintenance (I/M) test of
the emission control system.
The vehicle is set to the “ready condition” when it
is driven through certain driving patterns. Usually,
the ready condition can be obtained by ordinary
usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready” condition. Before taking the
I/M test, check the vehicle’s
inspection/maintenance test readiness condi-
tion. Place the ignition switch in the ON position
without starting the engine. If the Malfunction
Indicator Light (MIL) comes on steady for 20
seconds and then blinks for 10 seconds , the I/M
test condition is “not ready”. If the MIL does not
blink after 20 seconds, the I/M test condition is
“ready”. If the MIL indicates the vehicle is in a “not
ready” condition, drive the vehicle through the
following pattern to set the vehicle to the ready
condition. If you cannot or do not want to perform
the driving pattern, a NISSAN dealer can con-
duct it for you.WARNING
Always drive the vehicle in a safe and
prudent manner according to traffic con-
ditions and obey all traffic laws.1. Start the engine, the low temperature indi- cator light
illuminates in blue. Allow
the engine to idle until the low temperature
indicator light
goes out, indicating
normal operating temperature.
2. Accelerate the vehicle to 55 MPH (88 km/h) , then quickly release the accelerator
pedal completely and keep it released for at
least 10 seconds.
3. Quickly depress the accelerator pedal for a moment, then drive the vehicle at a speed of
53 - 60 MPH (86 - 96 km/h) for at least 9
minutes.
4. Stop the vehicle.
5. Accelerate the vehicle to 35 MPH (55 km/h) and maintain the speed for 20 seconds.
6. Repeat steps 4 through 5 at least 10 times.
7. Accelerate the vehicle to 55 MPH (88 km/h) and maintain the speed for at least 3 min-
utes.
REPORTING SAFETY DEFECTS (US
only) READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST
Technical and consumer information9-19

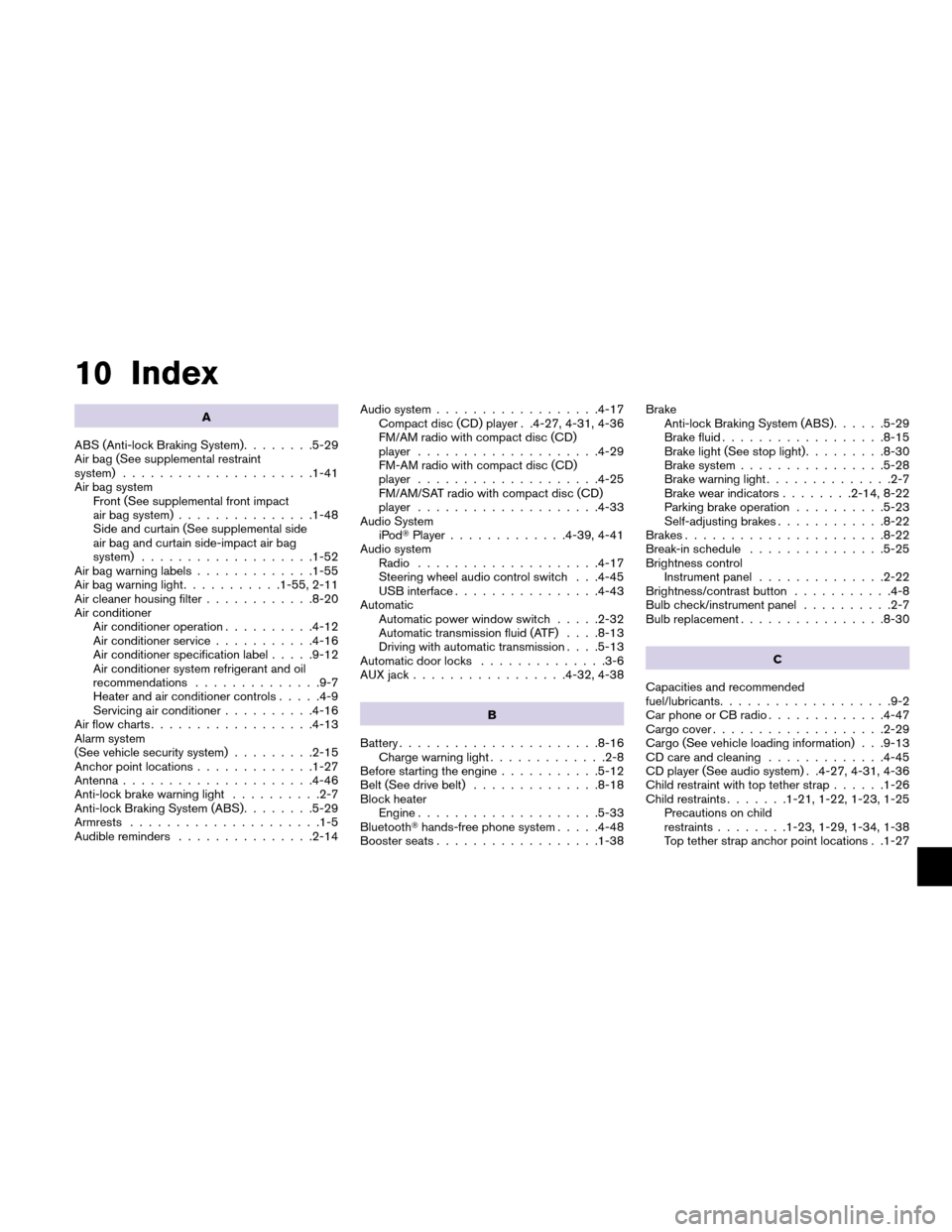

10 Index
A
ABS (Anti-lock Braking System) ........5-29
Air bag (See supplemental restraint
system) .....................1-41
Air bag system Front (See supplemental front impact
air bag system) ...............1-48
Side and curtain (See supplemental side
air bag and curtain side-impact air bag
system) ...................1-52
Air bag warning labels .............1-55
Air bag warning light ...........1-55, 2-11
Air cleaner housing filter ............8-20
Air conditioner Air conditioner operation ..........4-12
Air conditioner service ...........4-16
Air conditioner specification label .....9-12
Air conditioner system refrigerant and oil
recommendations ..............9-7
Heater and air conditioner controls .....4-9
Servicing air conditioner ..........4-16
Air flow charts ..................4-13
Alarm system
(See vehicle security system) .........2-15
Anchor point locations .............1-27
Antenna .....................4-46
Anti-lock brake warning light ..........2-7
Anti-lock Braking System (ABS) ........5-29
Armrests .....................1-5
Audible reminders ...............2-14 Audio system
..................4-17
Compact disc (CD) player . .4-27, 4-31, 4-36
FM/AM radio with compact disc (CD)
player ....................4-29
FM-AM radio with compact disc (CD)
player ....................4-25
FM/AM/SAT radio with compact disc (CD)
player ....................4-33
Audio System iPod Player .............4-39, 4-41
Audio system Radio ....................4-17
Steering wheel audio control switch . . .4-45
USB interface ................4-43
Automatic Automatic power window switch .....2-32
Automatic transmission fluid (ATF) . . . .8-13
Driving with automatic transmission . . . .5-13
Automatic door locks ..............3-6
AUX jack ................ .4-32,

4-38
B
Battery ......................8-16
Charge warning light .............2-8
Before starting the engine ...........5-12
Belt (See drive belt) ..............8-18
Block heater Engine ....................5-33
Bluetooth hands-free phone system .....4-48
Booster seats ..................1-38 Brake
Anti-lock Braking System (ABS) ......5-29
Brake fluid ..................8-15
Brake light (See stop light) .........8-30
Brake system ................5-28
Brake warning light ..............2-7
Brake wear indicators ........2-14, 8-22
Parking brake operation ..........5-23
Self-adjusting brakes ............8-22
Brakes ......................8-22
Break-in schedule ...............5-25
Brightness control Instrument panel ..............2-22
Brightness/contrast button ...........4-8
Bulb check/instrument panel ..........2-7
Bulb replacement ................8-30
C
Capacities and recommended
fuel/lubricants ...................9-2
Car phone or CB radio .............4-47
Cargo cover ...................2-29
Cargo (See vehicle loading information) . . .9-13
CD care and cleaning .............4-45
CD player (See audio system) . .4-27, 4-31, 4-36
Child restraint with top tether strap ......1-26
Child restraints .......1-21, 1-22, 1-23, 1-25
Precautions on child
restraints ........1-23, 1-29, 1-34, 1-38
Top tether strap anchor point locations . .1-27

Child safety rear door lock............3-7
Chimes, audible reminders ...........2-14
Cleaning exterior and interior ...........7-2
Clock ...................4-26, 4-29
Clutch Clutch fluid ..................8-15
C.M.V.S.S. certification label ..........9-11
Cold weather driving ..............5-32
Compact disc (CD) player . . . .4-27, 4-31, 4-36
Console box ...................2-28
Continuously Variable Transmission (CVT). . .5-17 Continuously Variable Transmission (CVT)
fluid ......................8-13
Driving with Continuously Variable
Transmission (CVT) .............5-17
Control panel buttons ...............4-2
Brightness/contrast button ..........4-8
Enter button ..................4-2
Setting button .................4-5
Controls Audio controls (steering wheel) .......4-45
Heater and air conditioner controls .....4-9
Coolant Capacities and recommended
fuel/lubricants .................9-2
Changing engine coolant ...........8-9
Checking engine coolant level ........8-8
Corrosion protection ...............7-5
Cruise control ..................5-24
Cup holders ...................2-27
Curtain side-impact air bag system
(See supplemental side air bag and curtain
side-impact air bag system) ...........1-52 D
Daytime running light system (Canada only) . .2-21
Defroster switch Rear window and outside mirror defroster
switch .....................2-20
Dimensions and weights .............9-9
Dimmer switch for instrument panel ......2-22
Display controls (see control panel buttons) . .4-2
Door locks ..................3-4, 3-5
Door open warning light .............2-8
Drive belt .....................8-18
Driving Cold weather driving ............5-32
Driving with automatic transmission . . . .5-13
Driving withContinuously

Variable
Transmission (CVT) .............5-17
Driving with manual transmission ......5-21
Precautions when starting and driving . . . .5-2
E
Economy - fuel ..................5-26
Emission control information label .......9-12
Emission control system warranty .......9-18
Engine Before starting the engine ..........5-12
Block heater .................5-33
Capacities and recommended
fuel/lubricants .................9-2
Changing engine coolant ...........8-9
Changing engine oil .............8-10
Changing engine oil filter ..........8-12
Checking engine coolant level ........8-8Checking engine oil level
...........8-9
Engine compartment check locations . . . .8-6
Engine cooling system ............8-8
Engine oil ...................8-9
Engine oil and oil filter recommendation . . .9-6
Engine oil pressure warning light .......2-8
Engine oil viscosity ..............9-6
Engine serial number ............9-11
Engine specifications .............9-8
Starting the engine .............5-12
Enter button ....................4-2
Event data recorders ..............9-20
Exhaust gas (Carbon monoxide) .........5-2
Eyeglass case ..................2-26
F
Flashers
(See hazard warning flasher switch) ......2-23
Flat tire .......................6-2
Floor mat positioning aid .............7-5
Fluid Automatic transmission fluid (ATF) .....8-13
Brake fluid ..................8-15
Capacities and recommended
fuel/lubricants .................9-2
Clutch fluid ..................8-15
Continuously Variable

Transmission (CVT)
fluid ......................8-13
Engine coolant .................8-8
Engine oil ...................8-9
F.M.V.S.S. certification label ...........9-11
Fog light switch .................2-22
Front air bag system
(See supplemental restraint system) ......1-48
10-2

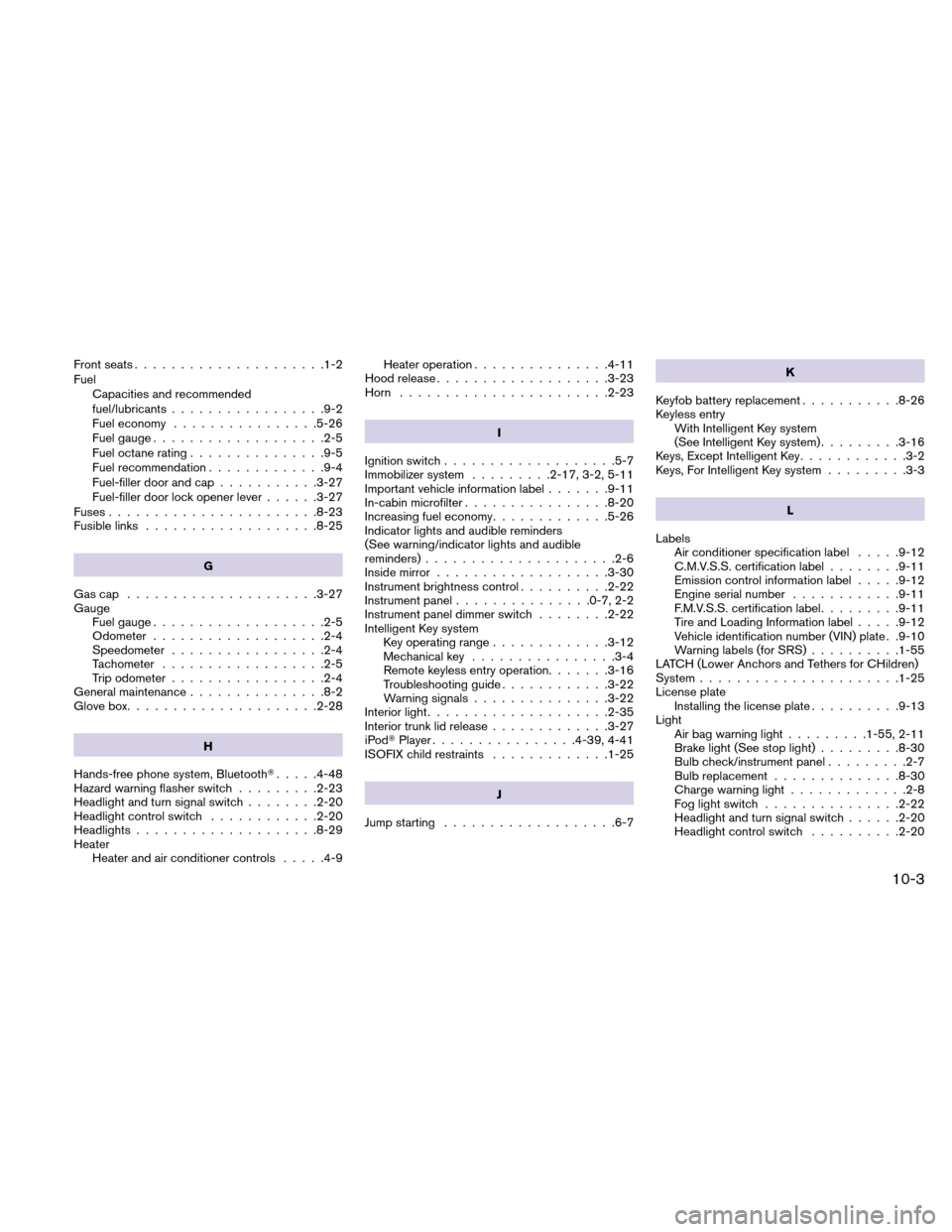

Front seats.....................1-2
Fuel Capacities and recommended
fuel/lubricants .................9-2
Fuel economy ................5-26
Fuel gauge ...................2-5
Fuel octane rating ...............9-5
Fuel recommendation .............9-4
Fuel-filler door and cap ...........3-27
Fuel-filler door lock opener lever ......3-27
Fuses .......................8-23
Fusible links ...................8-25
G
Gascap .....................3-27
Gauge Fuel gauge ...................2-5
Odometer ...................2-4
Speedometer .................2-4
Tachometer ..................2-5
Trip odometer .................2-4
General maintenance ...............8-2
Glove box .....................2-28
H
Hands-free phone system, Bluetooth .....4-48
Hazard warning flasher switch .........2-23
Headlight and turn signal switch ........2-20
Headlight control switch ............2-20
Headlights ....................8-29
Heater Heater and air conditioner controls .....4-9Heater operation
...............4-11
Hood release ...................3-23
Horn .......................2-23
I
Ignition switch ...................5-7
Immobilizer system .........2-17, 3-2, 5-11
Important vehicle information label .......9-11
In-cabin microfilter ................8-20
Increasing fuel economy .............5-26
Indicator lightsand

audible reminders
(See warning/indicator lights and audible
reminders) .....................2-6
Inside mirror ...................3-30
Instrument brightness control ..........2-22
Instrument panel ...............0-7, 2-2
Instrument panel dimmer switch ........2-22
Intelligent Key system Key operating range .............3-12
Mechanical key ................3-4
Remote keyless entry operation .......3-16
Troubleshooting guide ............3-22
Warning signals ...............3-22
Interior light ....................2-35
Interior trunk lid release .............3-27
iPod Player................4-39, 4-41
ISOFIX child restraints .............1-25
J
Jump starting ...................6-7 K
Keyfob battery replacement ...........8-26
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-16
Keys, Except Intelligent Key ............3-2
Keys, For Intelligent Key system .........3-3
L
Labels Air conditioner specification label .....9-12
C.M.V.S.S. certification label ........9-11
Emission control information label .....9-12
Engine serial number ............9-11
F.M.V.S.S. certification label .........9-11
Tire and Loading Information label .....9-12
Vehicle identification number (VIN) plate . .9-10
Warning labels (for SRS) ..........1-55
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-25
License plate Installing the license plate ..........9-13
Light Air bag warning light .........1-55, 2-11
Brake light (See stop light) .........8-30
Bulb check/instrument panel .........2-7
Bulb replacement ............. .8-30
Charge

warning light .............2-8
Fog light switch ...............2-22
Headlight and turn signal switch ......2-20
Headlight control switch ..........2-20
10-3
