2010 NISSAN MAXIMA engine

Due to legal requirements in some states and
Canadian Provinces, your vehicle may be re-
quired to be in what is called the “ready condi-
tion” for an Inspection/Maintenance (I/M) test of
the emission control system.
The vehicle is set to the “ready condition” when it
is driven through certain driving patterns. Usually,
the ready condition can be obtained by ordinary
usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready” condition. Before taking the
I/M test, check the vehicle’s
inspection/maintenance test readiness condi-
tion. Turn the ignition switch ON without starting
the engine. If the Malfunction Indicator Light
(MIL) comes on steady for 20 seconds and then
blinks for 10 seconds , the I/M test condition is
“not ready”. If the MIL does not blink after 20
seconds, the I/M test condition is “ready”. If the
MIL indicates the vehicle is in a “not ready” con-
dition, drive the vehicle through the following
pattern to set the vehicle to the ready condition. If
you cannot or do not want to perform the driving
pattern, a NISSAN dealer can conduct it for you.WARNING
Always drive the vehicle in a safe and
prudent manner according to traffic con-
ditions and obey all traffic laws.
1. Start the engine when the engine coolant
temperature gauge needle points to C. Al-
low the engine to idle until the gauge needle
points between the C and H (normal oper-
ating temperature) .
2. Accelerate the vehicle to 55 MPH (88
km/h) , then quickly release the accelerator
pedal completely and keep it released for at
least 10 seconds.
3. Quickly depress the accelerator pedal for a
moment, then drive the vehicle at a speed of
53 - 60 MPH (86 - 96 km/h) for at least 9
minutes.
4. Stop the vehicle.
5. Accelerate the vehicle to 35 MPH (55 km/h)
and maintain the speed for 20 seconds.
6. Repeat steps 4 through 5 at least 10 times.
7. Accelerate the vehicle to 55 MPH (88 km/h)
and maintain the speed for at least 3 min-
utes.8. Stop the vehicle. Place the shift selector in
the P (Park) or N (Neutral) position.
9. Turn the engine off.
10. Repeat steps1-8atleast one more time.
If steps 1 through 7 are interrupted, repeat the
preceding step. Any safe driving mode is accept-
able between steps. Do not stop the engine until
step 7 is completed.
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST
9-26Technical and consumer information

10 Index
A
Air bag
(See supplemental restraint system).....1-39
Air bag system
Front (See supplemental front impact
air bag system)...............1-46
Air bag warning light...........1-53, 2-14
Air cleaner housing filter............8-17
Air conditioner
Air conditioner service...........4-48
Air conditioner specification label.....9-11
Air conditioner system refrigerant and
oil recommendations.............9-6
Heater and air conditioner
controls................4-41, 4-44
Rear seat air conditioner..........4-47
Servicing air conditioner..........4-48
Alarm system
(See vehicle security system).........2-24
Anchor point locations.............1-25
Antenna....................4-116
Anti-lock brake warning light......2-10, 2-11
Anti-lock Braking System (ABS)........5-23
Armrests.....................1-7
Audible reminders...............2-16
Audio system..................4-48
BluetoothTaudio.............4-109
Compact Disc (CD) changer.......4-66
Compact disc (CD) player.....4-72, 4-79
FM-AM radio with compact disc (CD)
changer...................4-64FM/AM/SAT radio with CD/DVD player . .4-75
FM/AM/SAT radio with compact disc
(CD) player.................4-69
Audio System
iPodTPlayer.............4-92, 4-93
Music Box hard-disk drive audio
system...............4-96, 4-102
Audio system
Radio....................4-48
Rear audio controls............4-115
Audio System
Settings...............4-70, 4-76
Audio system
Steering wheel audio control switch . . .4-113
USB interface............4-87, 4-88
Autolight switch.................2-30
Automatic
Automatic drive positioner.........3-29
Automatic power window switch.....2-43
Automatic transmission position indicator
light.....................2-14
Transmission selector lever lock
release....................5-16
Automatic anti-glare inside mirror.......3-25
Automatic door locks..............3-6
AUX jack....................4-68
B
Battery......................8-13
Charge warning light............2-11
Before starting the engine...........5-10Belt (See drive belt)..............8-15
Block heater
Engine....................5-27
BluetoothTaudio...............4-109
BluetoothThands-free phone
system.................4-117, 4-132
Booster seats..................1-36
Brake
Anti-lock Braking System (ABS)......5-23
Brake fluid..................8-12
Brake light (See stop light).........8-26
Brake system................5-22
Brake warning light.............2-11
Brake wear indicators........2-16, 8-19
Parking brake operation..........5-17
Self-adjusting brakes............8-19
Brakes......................8-19
Break-in schedule...............5-19
Brightness control
Instrument panel..............2-32
Brightness/contrast button.......4-15, 4-31
Bulb check/instrument panel..........2-10
Bulb replacement................8-26
C
Capacities and recommended
fuel/lubricants...................9-2
Car phone or CB radio............4-117
Cargo net....................2-41
Cargo (See vehicle loading information) . . .9-12
CD care and cleaning.............4-112

CD changer (See audio system)........4-66
CD player (See audio system)......4-72, 4-79
Child restraint with top tether strap.......1-25
Child restraints.......1-20, 1-20, 1-21, 1-23
Precautions on child
restraints.........1-21, 1-28, 1-32, 1-36
Top tether strap anchor point locations . .1-25
Child safety rear door lock............3-6
Chimes, audible reminders...........2-16
Cleaning exterior and interior...........7-2
Clock
(models with navigation system) . . .4-12, 4-26
Clock set.................4-12, 4-26
C.M.V.S.S. certification label..........9-10
Cold weather driving..............5-25
Compact disc (CD) player........4-72, 4-79
Console box...................2-40
Continuously Variable Transmission (CVT). . .5-11
Continuously Variable Transmission (CVT)
fluid......................8-11
Driving with Continuously Variable
Transmission (CVT).............5-11
Transmission selector lever lock release . .5-16
Control panel buttons..............4-16
Brightness/contrast button......4-15, 4-31
Enter button...............4-4, 4-16
Setting button.............4-9, 4-24
Without navigation system..........4-4
Controls
Audio controls (steering wheel)......4-113
Heater and air conditioner
controls................4-41, 4-44
Rear audio controls............4-115
Rear seat air conditioner..........4-47Coolant
Capacities and recommended
fuel/lubricants.................9-2
Changing engine coolant...........8-8
Checking engine coolant level........8-7
Engine coolant temperature gauge.....2-5
Corrosion protection...............7-6
Cruise control..................5-18
Cup holders...................2-38
D
Daytime running light system (Canada only) . .2-31
Defroster switch
Rear window and outside mirror defroster
switch.....................2-27
Digital Versatile Disc (DVD) player.......4-84
Dimensions and weights.............9-8
Dimmer switch for instrument panel......2-32
Display controls
(see control panel buttons)........4-4, 4-16
Distance to empty.............4-7, 4-21
Door locks.....................3-4
Drive belt.....................8-15
Drive positioner, Automatic...........3-29
Driving
Cold weather driving............5-25
Driving with Continuously Variable
Transmission (CVT).............5-11
Precautions when starting and driving. . . .5-2
E
Economy - fuel..................5-20Emission control information label.......9-10
Emission control system warranty.......9-25
Engine
Before starting the engine..........5-10
Block heater.................5-27
Capacities and recommended
fuel/lubricants.................9-2
Changing engine coolant...........8-8
Changing engine oil..............8-9
Changing engine oil filter..........8-10
Checking engine coolant level........8-7
Checking engine oil level...........8-8
Engine compartment check locations. . . .8-6
Engine coolant temperature gauge.....2-5
Engine cooling system............8-7
Engine oil...................8-8
Engine oil and oil filter recommendation . . .9-5
Engine oil pressure warning light......2-12
Engine oil viscosity..............9-5
Engine serial number............9-10
Engine specifications.............9-7
Starting the engine.............5-10
Enter button.................4-4, 4-16
Event data recorders..............9-27
Exhaust gas (Carbon monoxide).........5-2
F
Flashers
(See hazard warning flasher switch)......2-33
Flat tire.......................6-2
Floor mat positioning aid.............7-5
Fluid
Brake fluid..................8-12
10-2

Capacities and recommended
fuel/lubricants.................9-2
Continuously Variable Transmission
(CVT) fluid..................8-11
Engine coolant.................8-7
Engine oil...................8-8
Power steering fluid.............8-11
Window washer fluid............8-12
F.M.V.S.S. certification label...........9-10
Fog light switch.................2-32
Folding rear seat..................1-5
Front air bag system
(See supplemental restraint system)......1-46
Front seats.....................1-2
Fuel
Capacities and recommended
fuel/lubricants.................9-2
Fuel economy................5-20
Fuel gauge...................2-6
Fuel octane rating...............9-4
Fuel recommendation.............9-3
Fuel-filler door and cap...........3-21
Fuses.......................8-20
Fusible links...................8-21
G
Garage door opener, HomeLinkTUniversal
Transceiver....................2-52
Gascap .....................3-21
Gauge
Engine coolant temperature gauge.....2-5
Fuel gauge...................2-6
Odometer...................2-4
Speedometer.................2-4Tachometer..................2-5
Trip odometer.................2-4
General maintenance...............8-2
Glove box.....................2-39
Glove box lock..................2-39
Grocery hooks..................2-40
H
Hands-free phone system,
BluetoothT...............4-117, 4-132
Hazard warning flasher switch.........2-33
Headlight and turn signal switch........2-28
Headlight control switch............2-29
Headlights....................8-25
Heated seats...................2-35
Heated steering wheel.............2-35
Heater
Heater and air conditioner
controls................4-41, 4-44
Heater operation...........4-42, 4-45
Rear seat air conditioner..........4-47
HomeLinkTUniversal Transceiver........2-52
Hood release...................3-18
Horn.......................2-33
I
Ignition Switch
Push-Button Ignition Switch.........5-7
Image viewer...................4-31
Immobilizer system..........2-25, 3-3, 5-9
Important vehicle information label.......9-10
In-cabin microfilter................8-17Increasing fuel economy.............5-20
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders)....................2-10
Inside automatic anti-glare mirror........3-25
Instrument brightness control..........2-32
Instrument panel...............0-6, 2-2
Instrument panel dimmer switch........2-32
Intelligent Key system
Key operating range..............3-9
Key operation................3-10
Mechanical key................3-3
Remote keyless entry operation.......3-13
Troubleshooting guide............3-16
Warning signals...............3-16
Interior light....................2-49
Interior trunk lid release.............3-20
iPodTPlayer................4-92, 4-93
ISOFIX child restraints.............1-23
J
Jump starting...................6-8
K
Keyfob battery replacement...........8-23
Keyless entry
With Intelligent Key system
(See Intelligent Key system).........3-13
Keys, For Intelligent Key system.........3-2
10-3

L
Labels
Air conditioner specification label.....9-11
C.M.V.S.S. certification label........9-10
Emission control information label.....9-10
Engine serial number............9-10
F.M.V.S.S. certification label.........9-10
Tire and Loading Information label.....9-11
Vehicle identification number (VIN) plate . .9-9
Warning labels (for SRS)..........1-53
LATCH (Lower Anchors and Tethers for CHildren)
System......................1-23
License plate
Installing the license plate..........9-11
Light
Air bag warning light.........1-53, 2-14
Brake light (See stop light).........8-26
Bulb check/instrument panel........2-10
Bulb replacement..............8-26
Charge warning light............2-11
Fog light switch...............2-32
Headlight and turn signal switch......2-28
Headlight control switch..........2-29
Headlights..................8-25
Interior light..................2-49
Light bulbs..................8-25
Low tire pressure warning light.......2-12
Low washer fluid warning light.......2-23
Passenger air bag and status light.....1-48
Personal lights................2-50
Security indicator light............2-16
Trunk light..................2-52
Warning/indicator lights and audible
reminders...................2-10Lock
Child safety rear door lock..........3-6
Door locks...................3-4
Glove box lock................2-39
Power door locks...............3-5
Trunk lid lock opener lever..........3-19
Low fuel warning light..........2-13, 2-23
Low tire pressure warning light.........2-12
Low washer fluid warning light.........2-23
Luggage (See vehicle loading information) . .9-12
M
Maintenance
Changing the maintenance interval . .4-8, 4-22
Displaying the maintenance notice
reminder.................4-9, 4-23
General maintenance.............8-2
Inside the vehicle...............8-3
Maintenance precautions...........8-5
Outside the vehicle..............8-2
Resetting the maintenance interval . .4-8, 4-22
Seat belt maintenance............1-19
Setting.................4-8, 4-22
Under the hood and vehicle.........8-4
Malfunction indicator light............2-15
Map pocket....................2-37
Meters and gauges................2-3
Instrument brightness control........2-32
Mirror
Automatic anti-glare inside mirror......3-25
Outside mirror control............3-27
Outside mirrors...............3-27
Vanity mirror.................3-25
Moonroof.....................2-44Music Box hard-disk drive audio
system..................4-96, 4-102
N
NISSAN Intelligent Key™.............3-7
NISSAN vehicle immobilizer
system.................2-25, 3-3, 5-9
NISSAN voice recognition system......4-144
O
Octane rating (See fuel octane rating)......9-4
Odometer.....................2-4
Oil
Capacities and recommended
fuel/lubricants.................9-2
Changing engine oil..............8-9
Changing engine oil filter..........8-10
Checking engine oil level...........8-8
Engine oil...................8-8
Engine oil and oil filter recommendation . . .9-5
Engine oil viscosity..............9-5
Outside mirror control..............3-27
Outside mirrors.................3-27
Overheat
If your vehicle overheats...........6-10
Owner’s manual order form...........9-27
Owner’s manual/service manual order
information....................9-27
10-4

P
Parking
Parking brake operation...........5-17
Parking/parking on hills...........5-21
Personal lights..................2-50
Phone, BluetoothThands-free
system.................4-117, 4-132
Power
Power door locks...............3-5
Power outlet.................2-36
Power rear windows.............2-43
Power steering fluid.............8-11
Power steering system...........5-22
Power windows...............2-42
Rear power windows............2-43
Precautions
Maintenance precautions...........8-5
Precautions on child
restraints.........1-21, 1-28, 1-32, 1-36
Precautions on seat belt usage.......1-13
Precautions on supplemental restraint
system....................1-39
Precautions when starting and driving. . . .5-2
Programmable features..........4-9, 4-24
Push starting...................6-10
R
Radio
Car phone or CB radio..........4-117
Compact Disc (CD) changer........4-66
FM-AM radio with compact disc (CD)
changer....................4-64FM/AM/SAT radio with CD/DVD player . .4-75
FM/AM/SAT radio with compact disc (CD)
player.....................4-69
Rear audio controls............4-115
Steering wheel audio control switch . . .4-113
Readiness for inspection maintenance
(I/M) test.....................9-26
Rear audio controls..............4-115
Rear power windows..............2-43
Rear seat......................1-5
Rear seat air conditioner............4-47
Rear sun shade.................2-48
Rear window and outside mirror defroster
switch.......................2-27
RearView Monitor................4-34
Recorders
Event data..................9-27
Refrigerant recommendation...........9-6
Registering your vehicle in another country . . .9-9
Reporting safety defects (US only).......9-25
Resetting the fuel economy........4-7, 4-21
S
Safety
Child safety rear door lock..........3-6
Child seat belts.....1-21, 1-28, 1-32, 1-36
Reporting safety defects (US only).....9-25
Seat adjustment
Front power seat adjustment.........1-3
Seat belt
Child safety..................1-20
Infants and small children..........1-20
Injured Person................1-16
Larger children................1-21Precautions on seat belt usage.......1-13
Pregnant women...............1-16
Seat belt extenders.............1-19
Seat belt maintenance............1-19
Seat belts...................1-13
Shoulder belt height adjustment......1-18
Three-point type with retractor.......1-16
Seat belt warning light..............2-13
Seatback pockets................2-37
Seats
Adjustment...................1-2
Automatic drive positioner..........3-29
Front seats...................1-2
Heated seats.................2-35
Rear seat....................1-5
Security indicator light..............2-16
Security system (NISSAN vehicle immobilizer
system) , engine start.........2-25, 3-3, 5-9
Self-adjusting brakes..............8-19
Service manual order form...........9-27
Servicing air conditioner.............4-48
Setting button...............4-9, 4-24
Shift lock release.................5-16
Shifting
Continuously Variable Transmission
(CVT).....................5-13
Shoulder belt height adjustment........1-18
Spark plug replacement.............8-16
Speedometer...................2-4
SRS warning label................1-53
Starting
Before starting the engine..........5-10
Jump starting.................6-8
Precautions when starting and driving. . . .5-2
Push starting.................6-10
Starting the engine.............5-10
10-5

Steering
Heated steering wheel...........2-35
Power steering fluid.............8-11
Power steering system...........5-22
Steering wheel audio control switch.....4-113
Stop light.....................8-26
Storage......................2-37
Sun visors....................3-24
Sunglasses case.................2-38
Sunroof (see Moonroof).............2-44
Supplemental air bag warning light . . .1-53, 2-14
Supplemental front impact air bag system . . .1-46
Supplemental restraint system
Information and warning labels.......1-53
Precautions on supplemental restraint
system....................1-39
Supplemental restraint system
(Supplemental air bag system).........1-39
Switch
Autolight switch...............2-30
Automatic power window switch......2-43
Fog light switch...............2-32
Hazard warning flasher switch.......2-33
Headlight and turn signal switch......2-28
Headlight control switch..........2-29
Power door lock switch............3-5
Rear window and outside mirror defroster
switch.....................2-27
Turn signal switch..............2-32
Vehicle dynamic control (VDC) off
switch.....................2-36
Windshield wiper and washer switch . . .2-26T
Tachometer....................2-5
Temperature gauge
Engine coolant temperature gauge.....2-5
Theft (NISSAN vehicle immobilizer system) ,
engine start..............2-25, 3-3, 5-9
Three-way catalyst................5-2
Tire
Flat tire.....................6-2
Spare tire................6-3, 8-41
Tire and Loading Information label.....9-11
Tire chains..................8-38
Tire placard..................9-11
Tire pressure.................8-30
Tire rotation..................8-38
Types of tires.................8-37
Uniform tire quality grading.........9-24
Wheels and tires...............8-30
Wheel/tire size.................9-8
Tire pressure
Low tire pressure warning light.......2-12
Tire Pressure Monitoring System (TPMS). . . .5-3
Top tether strap child restraint.........1-25
Towing
Flat towing..................9-23
Tow truck towing...............6-11
Towing load/specification..........9-19
Trailer towing.................9-16
Transceiver
HomeLinkTUniversal Transceiver......2-52
Transmission
Continuously Variable Transmission
(CVT) fluid..................8-11Driving with Continuously Variable
Transmission (CVT).............5-11
Selector lever lock release.........5-16
Travel (See registering your vehicle in another
country)......................9-9
Trip odometer...................2-4
Trunk access through the rear seat.....1-5, 1-6
Trunk lid lock opener lever............3-19
Trunk light....................2-52
Turn signal switch................2-32
U
Uniform tire quality grading...........9-24
USB interface
Audio file operation..........4-87, 4-88
Video file operation.............4-90
V
Vanity mirror...................3-25
Variable voltage control system.........8-15
Vehicle dimensions and weights.........9-8
Vehicle dynamic control (VDC) off switch . . .2-36
Vehicle dynamic control (VDC) system.....5-24
Vehicle identification...............9-9
Vehicle identification number (VIN)
(Chassis number).................9-9
Vehicle identification number (VIN) plate. . . .9-9
Vehicle loading information...........9-12
Vehicle recovery.................6-13
Vehicle security system.............2-24
Vehicle security system (NISSAN vehicle immobi-
lizer system) , engine start......2-25, 3-3, 5-9
10-6

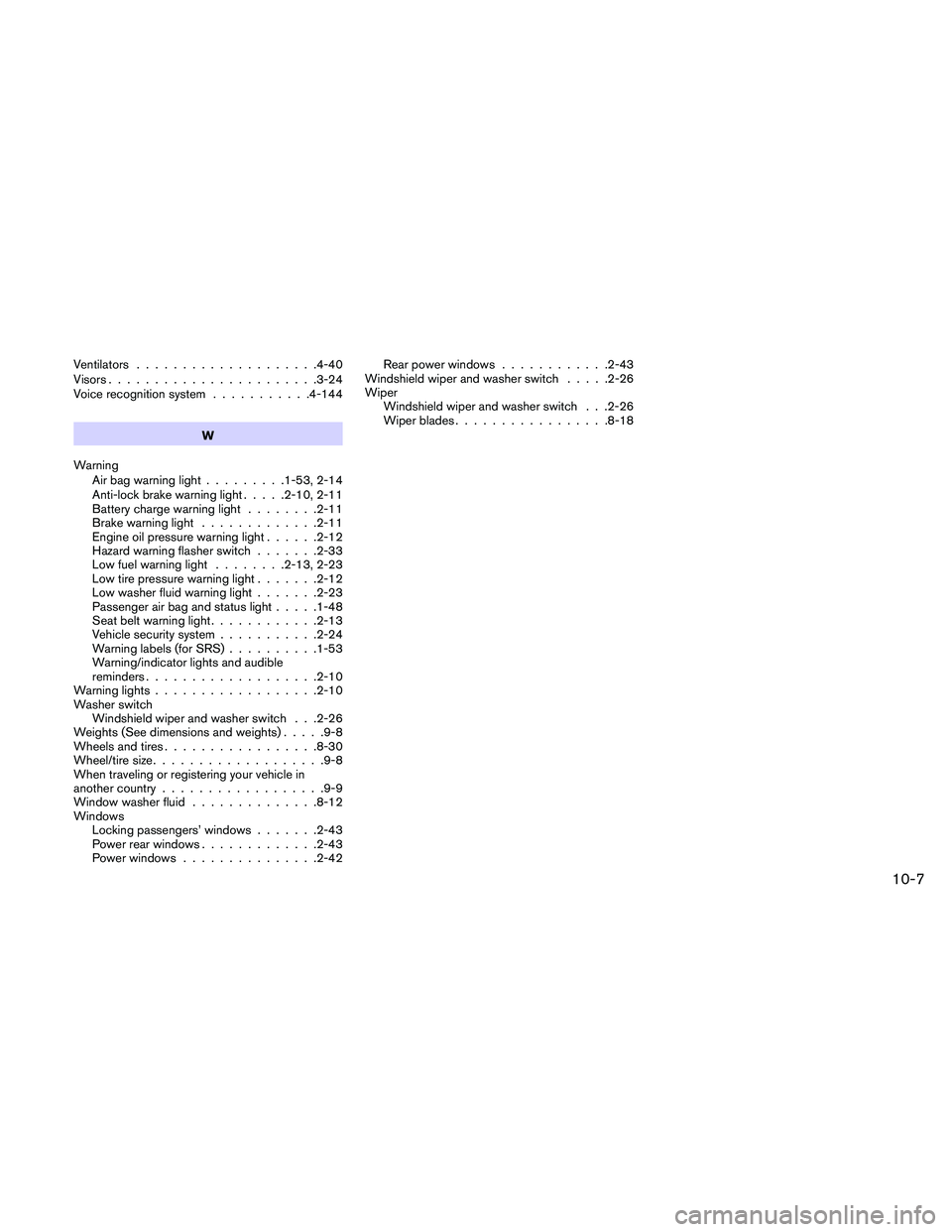

Ventilators....................4-40
Visors.......................3-24
Voice recognition system...........4-144
W
Warning
Air bag warning light.........1-53, 2-14
Anti-lock brake warning light.....2-10, 2-11
Battery charge warning light........2-11
Brake warning light.............2-11
Engine oil pressure warning light......2-12
Hazard warning flasher switch.......2-33
Low fuel warning light........2-13, 2-23
Low tire pressure warning light.......2-12
Low washer fluid warning light.......2-23
Passenger air bag and status light.....1-48
Seat belt warning light............2-13
Vehicle security system...........2-24
Warning labels (for SRS)..........1-53
Warning/indicator lights and audible
reminders...................2-10
Warning lights..................2-10
Washer switch
Windshield wiper and washer switch . . .2-26
Weights (See dimensions and weights).....9-8
Wheels and tires.................8-30
Wheel/tire size...................9-8
When traveling or registering your vehicle in
another country..................9-9
Window washer fluid..............8-12
Windows
Locking passengers’ windows.......2-43
Power rear windows.............2-43
Power windows...............2-42Rear power windows............2-43
Windshield wiper and washer switch.....2-26
Wiper
Windshield wiper and washer switch . . .2-26
Wiper blades.................8-18
10-7
