P0746 PRESSURE CONTROL SOLENOID ACVT-97
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3.CHECK SECONDARY SPEED SENSOR SYSTEM AND PRIMARY SPEED SENSOR SYSTEM
Check secondary speed sensor system and primary speed sensor system. Refer to CVT-76
, CVT-72.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4.DETECT MALFUNCTIONING ITEM
Check the following:
• Power supply and ground circuit for TCM. Refer to CVT-114, "
Wiring Diagram - CVT - POWER".
• The TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5.CHECK DTC
Perform CVT-96, "
DTC Confirmation Procedure".
OK or NG
OK >> INSPECTION END
NG >> Replace the transaxle assembly or TCM. Refer to CVT-173, "
Removal and Installation".
Revision: January 20102010 Versa

CVT-98
< SERVICE INFORMATION >[RE0F08B]
P0776 PRESSURE CONTROL SOLENOID B
P0776 PRESSURE CONTROL SOLENOID B
DescriptionINFOID:0000000005397886
• The secondary pressure solenoid valve is included in the control valve assembly.
• The secondary pressure solenoid valve regulates the secondary pressure to suit the driving condition in
response to a signal sent from the TCM.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000005397887
Remarks: Specification data are reference values.
On Board Diagn osis LogicINFOID:0000000005397888
• This is an OBD-II self-diagnostic item.
• Diagnostic trouble code “P0776” with CONSULT-III is det ected when secondary pressure is too high or too
low compared with the commanded value while driving.
Possible CauseINFOID:0000000005397889
• Harness or connectors (Solenoid circuit is open or shorted.)
• Secondary pressure solenoid valve system
• Secondary pressure sensor
• Line pressure control system
DTC Confirmation ProcedureINFOID:0000000005397890
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, alw ays turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following proc edure to confirm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON and select “DATA MONI TOR” mode for “TRANSMISSION” with CONSULT-III.
2. Start engine and maintain the following conditions for at least 30 consecutive seconds.
ATF TEMP SEN: 1.0 - 2.0 V
ACC PEDAL OPEN: More than 1.0/8
RANGE: “D” position
VEHICLE SPEED: 10 km/h (6 MPH) More than
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
3. If DTC is detected, go to CVT-98, "
Diagnosis Procedure".
WITH GST
Follow the procedure “WITH CONSULT-III”.
Diagnosis ProcedureINFOID:0000000005397891
1.CHECK INPUT SIGNAL
With CONSULT-III
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITO R” mode for “TRANSMISSION” with CONSULT-III.
3. Start vehicle and read out the value of “SEC PRESS”.
Item name Condition Display value (Approx.)
SEC PRESS “N” position idle 0.8 MPa
Item nameConditionDisplay value (Approx.)
SEC PRESS “N” position idle 0.8 MPa
Revision: January 20102010 Versa

P0776 PRESSURE CONTROL SOLENOID BCVT-99
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2.CHECK LINE PRESSURE
Perform line pressure test. Refer to CVT-37, "
Inspections before Trouble Diagnosis".
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts. Refer to CVT-37, "
Inspections before Trouble Diagnosis".
3.DETECT MALFUNCTIONING ITEM
Check the following:
• Secondary pressure solenoid valve. Refer to CVT-103, "
Component Inspection".
• Line pressure solenoid valve. Refer to CVT-94, "
Component Inspection".
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4.CHECK SECONDARY PRES SURE SENSOR SYSTEM
Check secondary pressure sensor system. Refer to CVT-105
.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5.DETECT MALFUNCTIONING ITEM
Check the following:
• Power supply and ground circuit for TCM. Refer to CVT-114, "
Wiring Diagram - CVT - POWER".
• The TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6.CHECK DTC
Perform CVT-98, "
DTC Confirmation Procedure".
OK or NG
OK >> INSPECTION END
NG >> Replace the transaxle assembly. Refer to CVT-173, "
Removal and Installation".
Revision: January 20102010 Versa

P0840 TRANSMISSION FLUID PRESSURE SEN/SW ACVT-105
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
P0840 TRANSMISSION FLUI D PRESSURE SEN/SW A
DescriptionINFOID:0000000005397900
• The secondary pressure sensor is included in the control valve assembly.
• The secondary pressure sensor detects secondar y pressure of CVT and sends TCM the signal.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000005397901
Remarks: Specification data are reference values.
On Board Diagnosis LogicINFOID:0000000005397902
• This is an OBD-II self-diagnostic item.
• Diagnostic trouble code “P0840” with CONSULT-III is detected when TCM detects an improper voltage drop
when it receives the sensor signal.
Possible CauseINFOID:0000000005397903
• Secondary pressure sensor
• Harness or connectors
(Switch circuit is open or shorted.)
DTC Confirmation ProcedureINFOID:0000000005397904
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON and select “DATA MO NITOR” mode for “TRANSMISSION” with CONSULT-III.
2. Make sure that output voltage of line temperature sensor is within the range below. ATF TEMP SEN: 1.0 - 2.0 V
If out of range, drive the vehicle to decrease the voltage (warm up the fluid) or stop engine to
increase the voltage (c ool down the fluid)
3. Start engine and wait for at least 5 consecutive seconds.
4. If DTC is detected, go to CVT-107, "
Diagnosis Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-III”.
Item name Condition Display value (Approx.)
SEC HYDR SEN “N” position idle 1.0 V
SEC PRESS 0.8 MPa
Revision: January 20102010 Versa

P0840 TRANSMISSION FLUID PRESSURE SEN/SW ACVT-107
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P

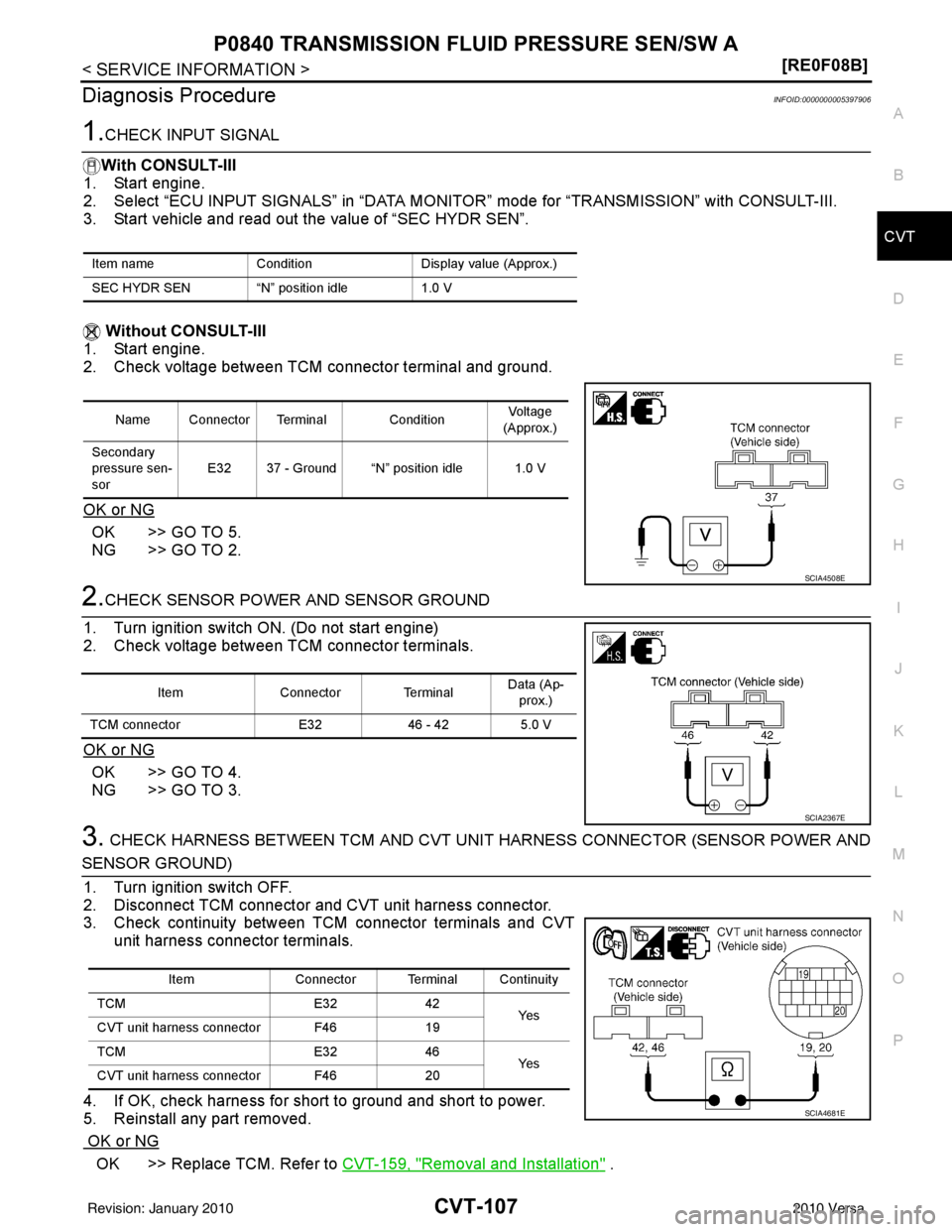

Diagnosis ProcedureINFOID:0000000005397906
1.CHECK INPUT SIGNAL
With CONSULT-III
1. Start engine.
2. Select “ECU INPUT SIGNALS” in “DATA MONITO R” mode for “TRANSMISSION” with CONSULT-III.
3. Start vehicle and read out the value of “SEC HYDR SEN”.
Without CONSULT-III
1. Start engine.
2. Check voltage between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2.CHECK SENSOR POWER AND SENSOR GROUND
1. Turn ignition switch ON. (Do not start engine)
2. Check voltage between TCM connector terminals.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. CHECK HARNESS BETWEEN TCM AND CVT UNIT HARNESS CONNECTOR (SENSOR POWER AND
SENSOR GROUND) 1. Turn ignition switch OFF.
2. Disconnect TCM connector and CVT unit harness connector.
3. Check continuity between TCM connector terminals and CVT unit harness connector terminals.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> Replace TCM. Refer to CVT-159, "Removal and Installation" .
Item nameConditionDisplay value (Approx.)
SEC HYDR SEN “N” position idle1.0 V
Name Connector Terminal Condition Voltage
(Approx.)
Secondary
pressure sen-
sor E32 37 - Ground “N” position idle 1.0 V
SCIA4508E
Item
Connector Terminal Data (Ap-
prox.)
TCM connector E3246 - 42 5.0 V
SCIA2367E
Item Connector Terminal Continuity
TCM E3242
Ye s
CVT unit harness connector F46 19
TCM E3246
Ye s
CVT unit harness connector F46 20
SCIA4681E
Revision: January 20102010 Versa

CVT-108
< SERVICE INFORMATION >[RE0F08B]
P0840 TRANSMISSION FLUID PRESSURE SEN/SW A
NG >> Repair open circuit or short to ground or short to power in harness or connectors.

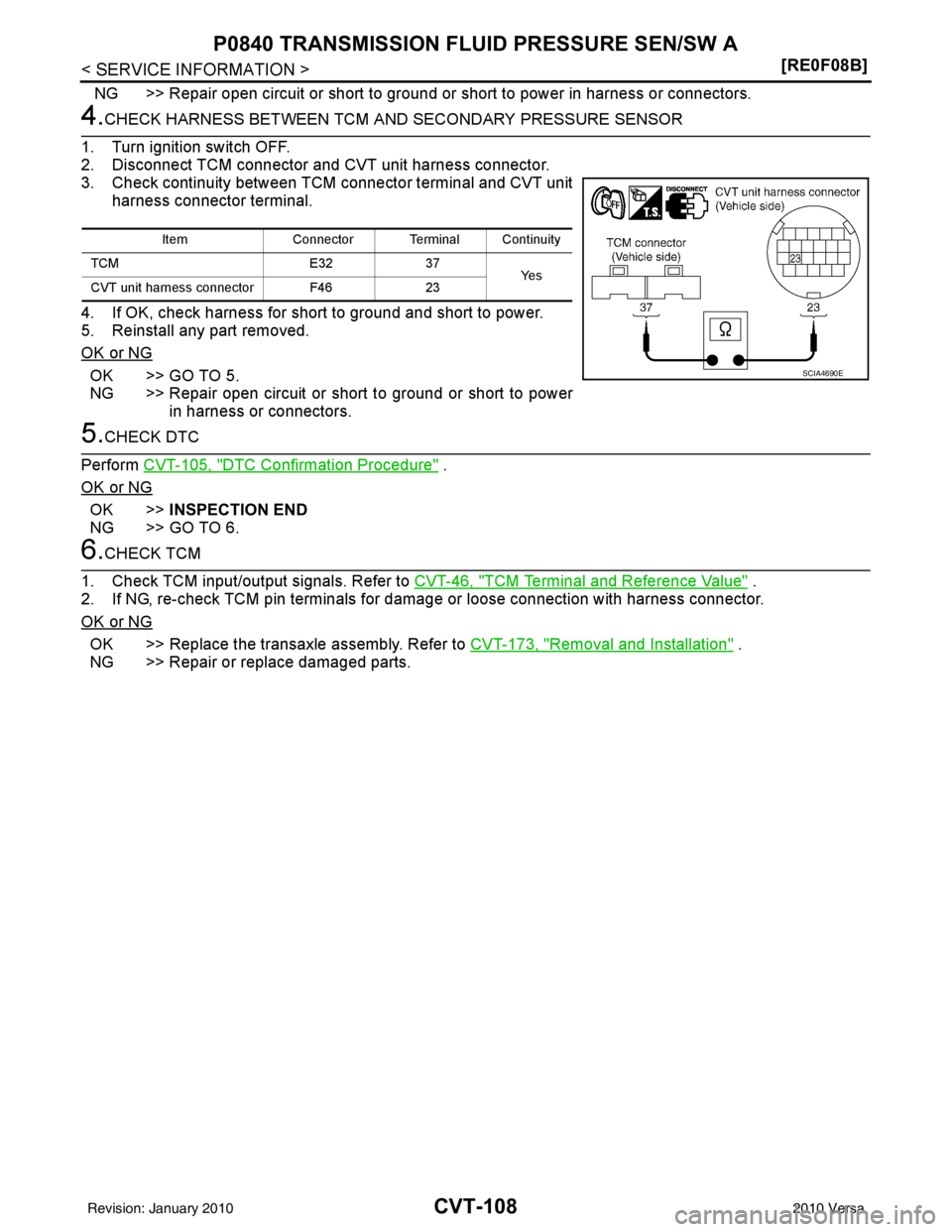

4.CHECK HARNESS BETWEEN TCM A
ND SECONDARY PRESSURE SENSOR
1. Turn ignition switch OFF.
2. Disconnect TCM connector and CVT unit harness connector.
3. Check continuity between TCM connector terminal and CVT unit harness connector terminal.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK DTC
Perform CVT-105, "
DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 6.
6.CHECK TCM
1. Check TCM input/output signals. Refer to CVT-46, "
TCM Terminal and Reference Value" .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> Replace the transaxle assembly. Refer to CVT-173, "Removal and Installation" .
NG >> Repair or replace damaged parts.
Item Connector Terminal Continuity
TCM E3237
Ye s
CVT unit harness connector F46 23
SCIA4690E
Revision: January 20102010 Versa

P0841 TRANSMISSION FLUID PRESSURE SEN/SW ACVT-109
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
P0841 TRANSMISSION FLUI D PRESSURE SEN/SW A
DescriptionINFOID:0000000005397907
Using the engine load (throttle position), the primary pulley revolution speed, and the secondary pulley revolu-
tion speed as input signal, TCM changes the operating pr essure of the primary pulley and the secondary pul-
ley and changes the groove width of the pulley to control the gear ratio.
CONSULT-III Reference Val ue in Data Monitor ModeINFOID:0000000005397908
Remarks: Specification data are reference values.
On Board Diagnosis LogicINFOID:0000000005397909
• This is not an OBD-II self-diagnostic item.
• Diagnostic trouble code “P0841” with CONSULT-III is detected when secondary fluid pressure is too high
compared with the commanded value while driving.
Possible CauseINFOID:0000000005397910
• Secondary pressure sensor
• Harness or connectors (Sensor circuit is open or shorted.)
DTC Confirmation ProcedureINFOID:0000000005397911
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON and select “DATA MO NITOR” mode for “TRANSMISSION” with CONSULT-III.
2. Start engine and maintain the following conditions for at least 12 consecutive seconds. VEHICLE SPEED: 40 km/h (25 MPH) More than
RANGE: “D” position
3. If DTC is detected, go to CVT-109, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000005397912
1.CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis. Refer to CVT-48, "
CONSULT-III Function (TRANSMISSION)".
Is any malfunction of the
“U1000” indicated?
YES >> Check CAN communication line. Refer to CVT-56.
NO >> GO TO 2.
2.CHECK INPUT SIGNALS
With CONSULT-III
1. Start engine.
2. Select “ECU INPUT SIGNALS” in “DATA MONITO R” mode for “TRANSMISSION” with CONSULT-III.
3. Start vehicle and read out the value of “SEC HYDR SEN” and “PRI HYDR SEN”.
Item nameCondition Display value (Approx.)
PRI HYDR SEN “N” position idle 0.7 V
SEC HYDR SEN 1.0 V
Revision: January 20102010 Versa

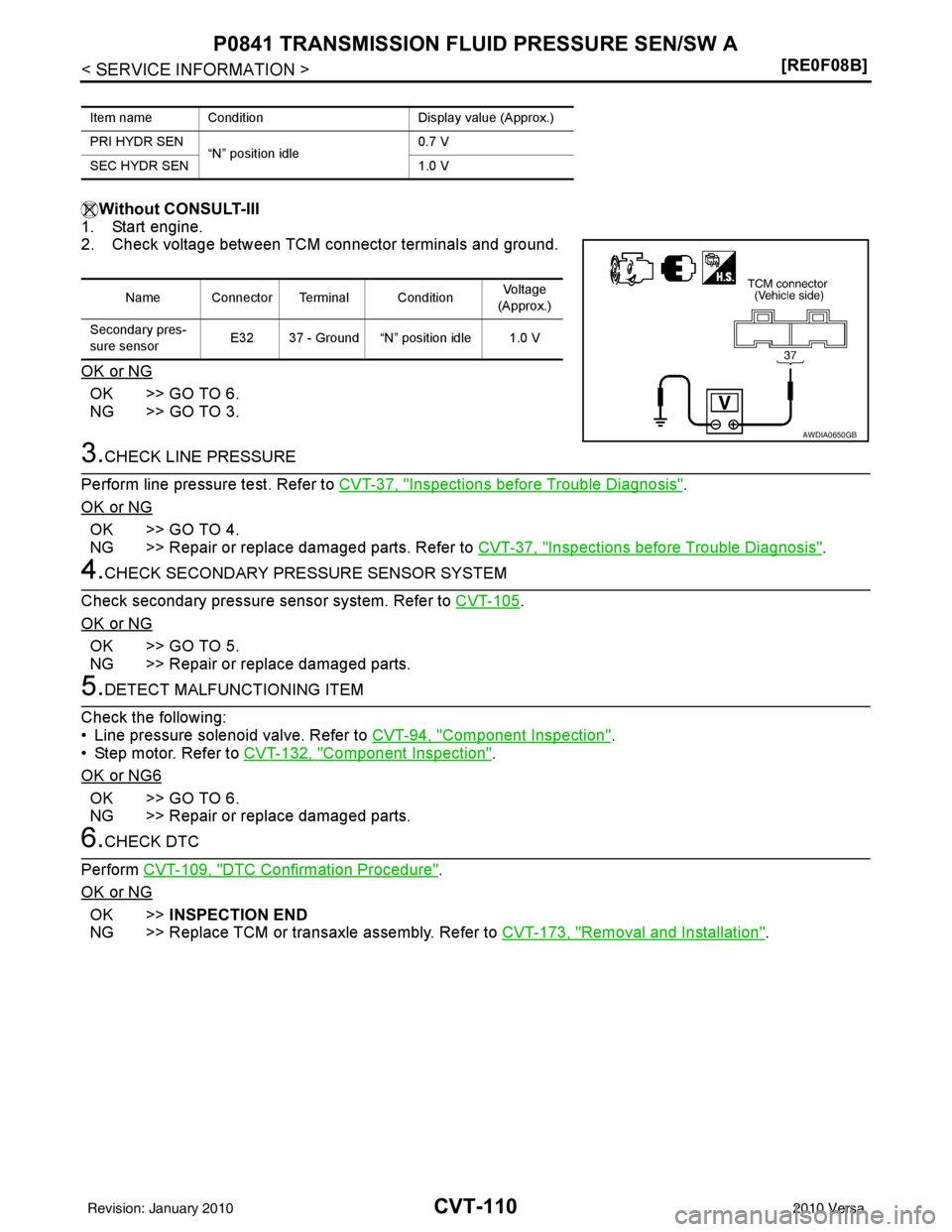

CVT-110
< SERVICE INFORMATION >[RE0F08B]
P0841 TRANSMISSION FLUID PRESSURE SEN/SW A
Without CONSULT-III
1. Start engine.
2. Check voltage between TCM connector terminals and ground.
OK or NG
OK >> GO TO 6.
NG >> GO TO 3.
3.CHECK LINE PRESSURE
Perform line pressure test. Refer to CVT-37, "
Inspections before Trouble Diagnosis".
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts. Refer to CVT-37, "
Inspections before Trouble Diagnosis".
4.CHECK SECONDARY PRESSURE SENSOR SYSTEM
Check secondary pressure sensor system. Refer to CVT-105
.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5.DETECT MALFUNCTIONING ITEM
Check the following:
• Line pressure solenoid valve. Refer to CVT-94, "
Component Inspection".
• Step motor. Refer to CVT-132, "
Component Inspection".
OK or NG6
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6.CHECK DTC
Perform CVT-109, "
DTC Confirmation Procedure".
OK or NG
OK >> INSPECTION END
NG >> Replace TCM or transaxle assembly. Refer to CVT-173, "
Removal and Installation".
Item name ConditionDisplay value (Approx.)
PRI HYDR SEN “N” position idle 0.7 V
SEC HYDR SEN 1.0 V
Name Connector Terminal Condition Voltage
(Approx.)
Secondary pres-
sure sensor E32 37 - Ground “N” position idle 1.0 V
AWDIA0650GB
Revision: January 20102010 Versa
