2010 NISSAN ARMADA Owners Manual

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................1-2
Front manual seat adjustment
(if so equipped for passenger’s seat) .............1-2
Front power seat adjustment (for driver’s
seat and if so equipped for passenger’s
seat) ..........................................1-4
2nd row captain’s chair adjustment
(if so equipped) ................................1-5
2nd row bench seat adjustment
(if so equipped) ................................1-6
Armrests ......................................1-8
Head restraints .................................1-8
Adjustable headrest (if so equipped) .............1-12
Flexible seating ................................ 1-15
3rd row power folding seats (if so equipped) .....1-20
Seat belts ....................................... 1-21
Precautions on seat belt usage ..................1-21
Pregnant women .............................. 1-24
Injured persons ................................ 1-24
Three-point type seat belt with retractor ..........1-24
Seat belt extenders ............................ 1-30
Seat belt maintenance ......................... 1-30Child safety
...................................... 1-31
Infants ........................................ 1-31
Small children ................................. 1-31
Larger children ................................ 1-32
Child restraints ................................... 1-32
Precautions on child restraints ..................1-32
LATCH (Lower Anchors and Tethers for
CHildren) System ............................. 1-34
Rear-facing child restraint installation using
LATCH....................................... 1-38
Rear-facing child restraint installation using
the seat belts ................................. 1-40
Forward-facing child restraint installation
using LATCH .................................. 1-43
Forward-facing child restraint installation
using the seat belts ............................ 1-45
Installing top tether strap
(2nd row captain’s chairs or 2nd row bench
seat [if so equipped] ) .......................... 1-48
Installing top tether strap
(3rd row bench seat) ........................... 1-49
Booster seats ................................. 1-50
REVIEW COPY—2010 Armada(wzw)
Owners Manual (owners)—USA_English (nna)
02/17/09—debbie


WARNING
●Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries. ●
For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the
seat with both feet on the floor and
adjust the seat properly. See “Precau-
tions on seat belt usage” later in this
section.
● After adjustment, gently rock in the seat
to make sure it is securely locked.
● Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls. Unattended
children could become involved in seri-
ous accidents. ●
The seatback should not be reclined
any more than needed for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and
being injured is increased.

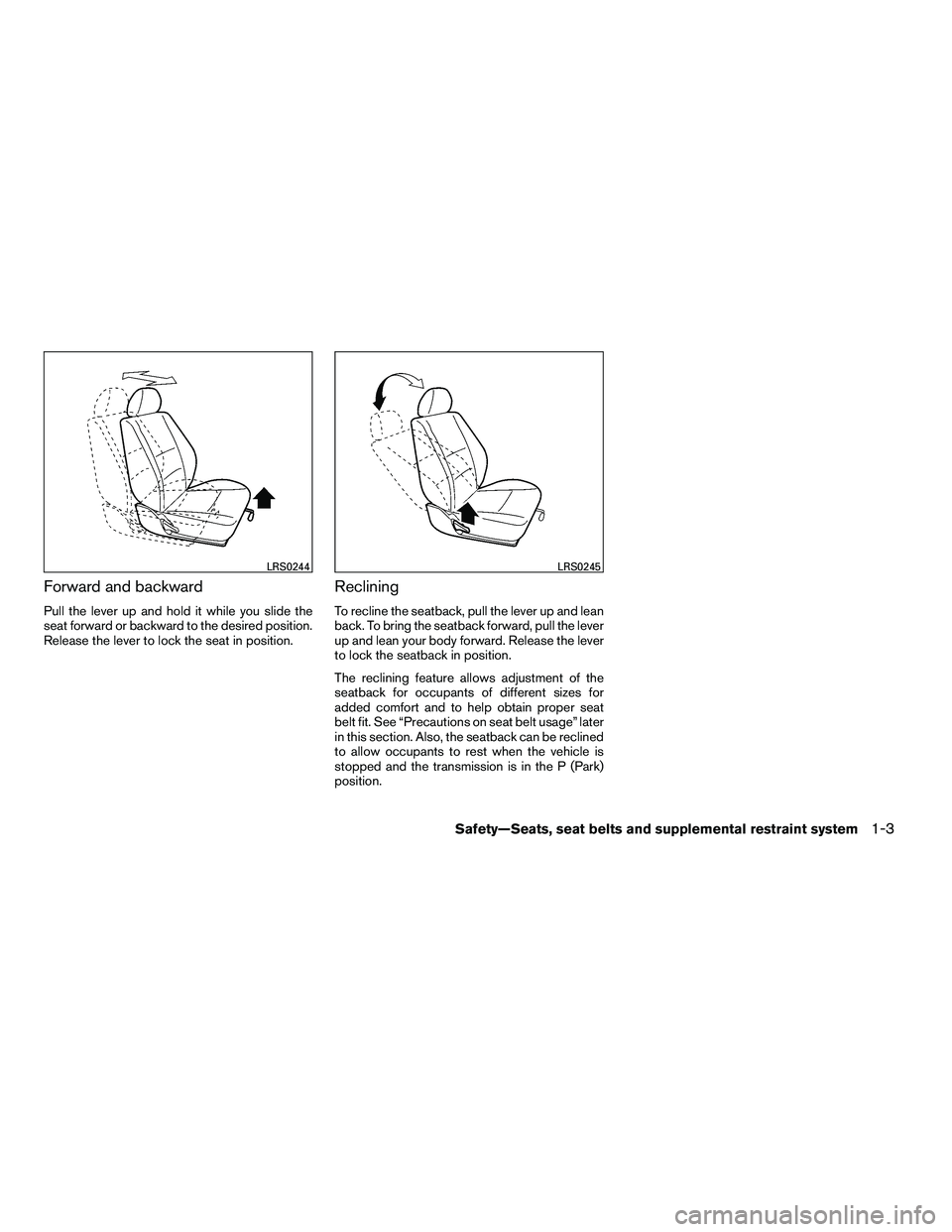

Forward and backward
Pull the lever up and hold it while you slide the
seat forward or backward to the desired position.
Release the lever to lock the seat in position.
Reclining
To recline the seatback, pull the lever up and lean
back. To bring the seatback forward, pull the lever
up and lean your body forward. Release the lever
to lock the seatback in position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See “Precautions on seat belt usage” later
in this section. Also, the seatback can be reclined
to allow occupants to rest when the vehicle is
stopped and the transmission is in the P (Park)
position.

FRONT POWER SEAT
ADJUSTMENT (for driver’s seat and if
so equipped for passenger’s seat)
Operating tips
●The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
● Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery. See “Automatic drive positioner (if so equipped)”
in “Pre-driving checks and adjustments” for auto-
matic drive positioner operation.
Forward and backward
Moving the switch forward or backward will slide
the seat forward or backward to the desired
position.
Reclining
Move the recline switch backward until the de-
sired angle is obtained. To bring the seatback
forward again, move the switch forward and
move your body forward. The seatback will move
forward. The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit (see “Precautions on seat belt usage” later
in this section) . Also, the seatback can be re-
clined to allow occupants to rest when the ve-
hicle is stopped and the shift selector is in P
(Park) .

Seat lifter (driver’s seat)
Push the front or rear end of the switch up or
down to adjust the angle and height of the seat
cushion.
Lumbar support (driver’s seat)
The lumbar support feature provides lower back
support to the driver. Move the lever up or down
to adjust the seat lumbar area.
2ND ROW CAPTAIN’S CHAIR
ADJUSTMENT (if so equipped)
Reclining
To recline the seatback, pull up on the lever and
lean back.
The recline feature allows adjustment of the seat-
back for occupants of different sizes for added
comfort and to help obtain proper seat belt fit
(see “Precautions on seat belt usage” later in this
section) . Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the shift selector is in P (Park) .

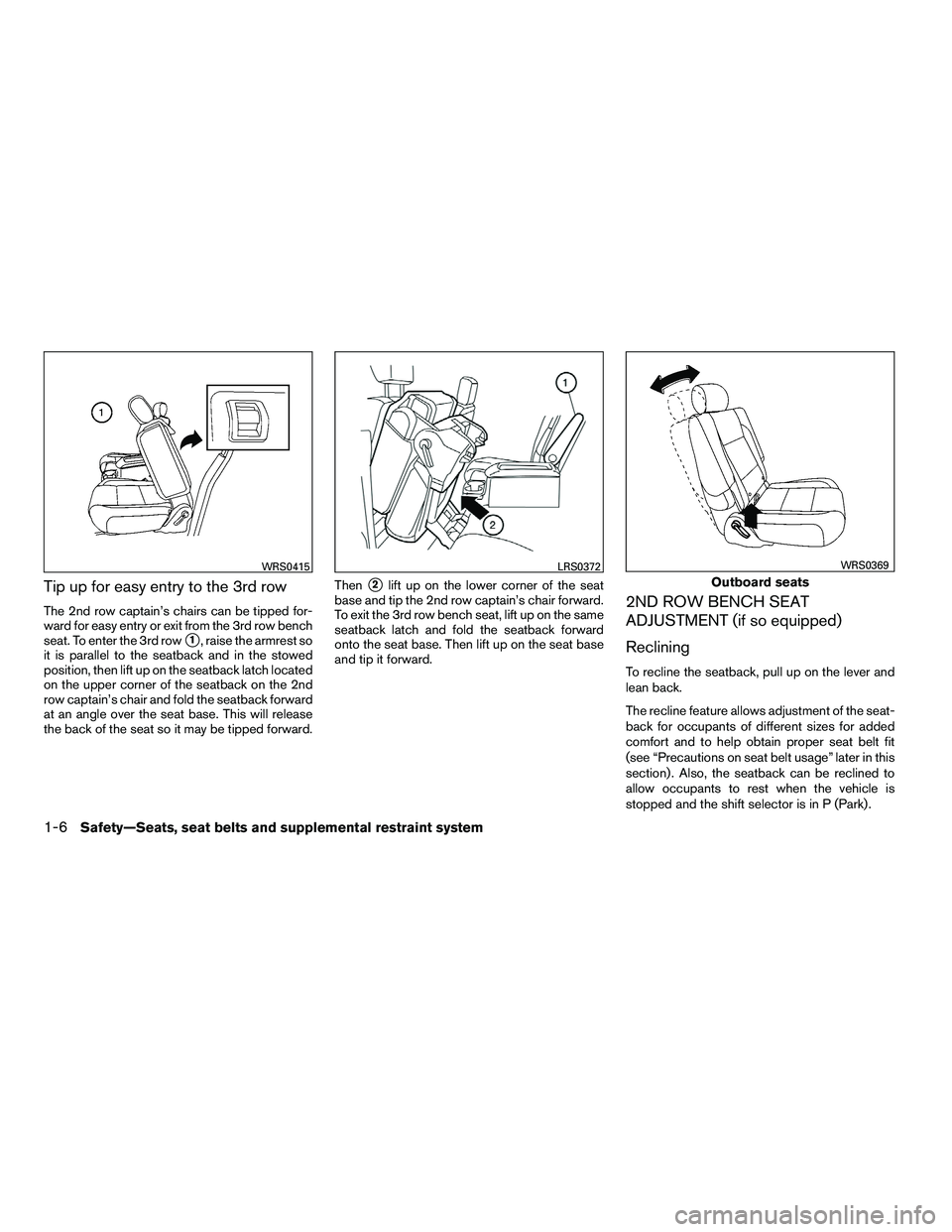

Tip up for easy entry to the 3rd row
The 2nd row captain’s chairs can be tipped for-
ward for easy entry or exit from the 3rd row bench
seat. To enter the 3rd row
1, raise the armrest so
it is parallel to the seatback and in the stowed
position, then lift up on the seatback latch located
on the upper corner of the seatback on the 2nd
row captain’s chair and fold the seatback forward
at an angle over the seat base. This will release
the back of the seat so it may be tipped forward. Then
2lift up on the lower corner of the seat
base and tip the 2nd row captain’s chair forward.
To exit the 3rd row bench seat, lift up on the same
seatback latch and fold the seatback forward
onto the seat base. Then lift up on the seat base
and tip it forward.
2ND ROW BENCH SEAT
ADJUSTMENT (if so equipped)
Reclining
To recline the seatback, pull up on the lever and
lean back.
The recline feature allows adjustment of the seat-
back for occupants of different sizes for added
comfort and to help obtain proper seat belt fit
(see “Precautions on seat belt usage” later in this
section) . Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the shift selector is in P (Park) .

WARNING
●After adjustment, gently rock in the seat
to make sure it is securely locked.
● Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries.
● For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the
seat and adjust the seat belt properly.
See “Precautions on seat belt usage”
later in this section.
Tip up for easy entry to the 3rd row
The outboard seating positions on the 2nd row
bench seat can be tipped forward for easy entry
or exit from the 3rd row bench seat. To enter the
3rd row
1, lift up on the seatback latch located
on the upper corner of the seatback on the 2nd
row bench seat and fold the seatback forward at
an angle over the seat base. This will release the
back of the seat so it may be tipped forward. Then
2lift up on the lower corner of the seat
base and tip the outboard seating position of the
2nd row bench seat forward. To exit the 3rd row
bench seat, lift up on the same seatback latch
and fold the seatback forward onto the seat base.
Then lift up on the seat base and tip it forward.
