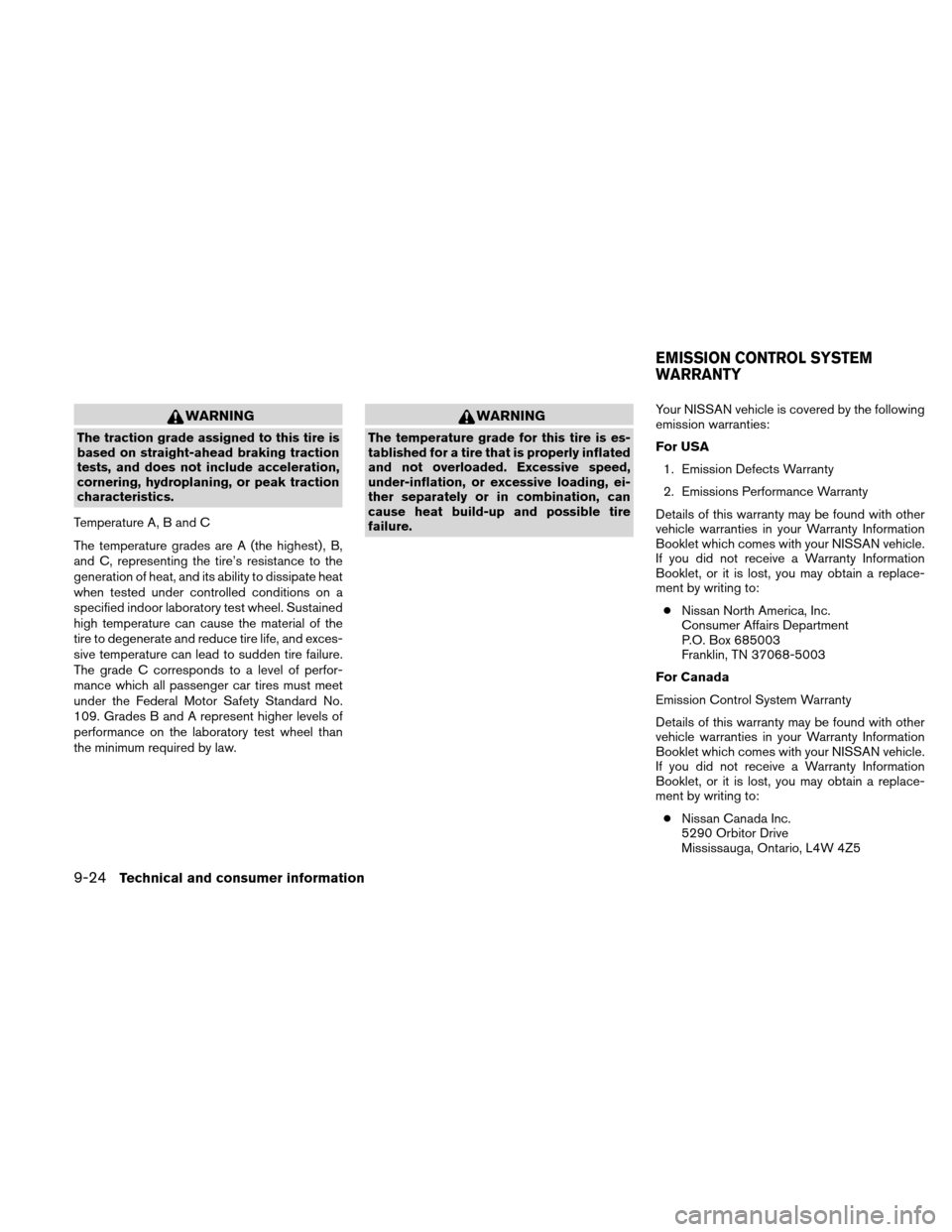

WARNING
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.
Temperature A, B and C
The temperature grades are A (the highest) , B,
and C, representing the tire’s resistance to the
generation of heat, and its ability to dissipate heat
when tested under controlled conditions on a
specified indoor laboratory test wheel. Sustained
high temperature can cause the material of the
tire to degenerate and reduce tire life, and exces-
sive temperature can lead to sudden tire failure.
The grade C corresponds to a level of perfor-
mance which all passenger car tires must meet
under the Federal Motor Safety Standard No.
109. Grades B and A represent higher levels of
performance on the laboratory test wheel than
the minimum required by law.
WARNING
The temperature grade for this tire is es-
tablished for a tire that is properly inflated
and not overloaded. Excessive speed,
under-inflation, or excessive loading, ei-
ther separately or in combination, can
cause heat build-up and possible tire
failure. Your NISSAN vehicle is covered by the following
emission warranties:
For USA
1. Emission Defects Warranty
2. Emissions Performance Warranty
Details of this warranty may be found with other
vehicle warranties in your Warranty Information
Booklet which comes with your NISSAN vehicle.
If you did not receive a Warranty Information
Booklet, or it is lost, you may obtain a replace-
ment by writing to: ● Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
For Canada
Emission Control System Warranty
Details of this warranty may be found with other
vehicle warranties in your Warranty Information
Booklet which comes with your NISSAN vehicle.
If you did not receive a Warranty Information
Booklet, or it is lost, you may obtain a replace-
ment by writing to: ● Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario, L4W 4Z5
EMISSION CONTROL SYSTEM
WARRANTY
9-24Technical and consumer information

If you believe that your vehicle has a de-
fect which could cause a crash or could
cause injury or death, you should immedi-
ately inform the National Highway Traffic
Safety Administration (NHTSA) in addi-
tion to notifying NISSAN.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot be-
come involved in individual problems be-
tween you, your dealer, or NISSAN.
To contact NHTSA, you may call the Ve-
hicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153); go
to http://www.safercar.gov; or write to:
Administrator, NHTSA, 400 Seventh
Street, SW., Washington, D.C. 20590.
You can also obtain other information
about motor vehicle safety from
http://www.safercar.gov.
You may notify NISSAN by contacting our
Consumer Affairs Department, toll-free, at
1-800-NISSAN-1.Always check with local I/M testing requirements
for Hybrid vehicles before taking your vehicle for
testing.
The vehicle is set to the “ready condition” when it
is driven through certain driving patterns. Usually,
the ready condition can be obtained by ordinary
usage of the vehicle.
If a powertrain system component is repaired or
the 12-volt battery is disconnected, the vehicle
may be reset to a “not ready” condition. Before
taking the I/M test, check the vehicle’s
inspection/maintenance test readiness condi-
tion. Turn the ignition switch ON without starting
the engine. If the Malfunction Indicator Light
(MIL) comes on steady for 20 seconds and then
blinks for 10 seconds , the I/M test condition is
“not ready”. If the MIL does not blink after 20
seconds, the I/M test condition is “ready.” If your
vehicle does not pass an I/M test the Malfunction
Indicator Light (MIL) may not come on. Contact a
NISSAN dealer to prepare the vehicle for re-
testing.This vehicle is equipped with an Event Data Re-
corder (EDR) . The main purpose of an EDR is to
record, in certain crash or near crash-like situa-
tions, such as an air bag deployment or hitting a
road obstacle, data that will assist in understand-
ing how a vehicle’s systems performed. The EDR
is designed to record data related to vehicle
dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this
vehicle is designed to record such data as:
● How various systems in your vehicle were
operating;
● Whether or not the driver and passenger
safety belts were buckled/fastened;
● How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
● How fast the vehicle was traveling.
● Sounds are not recorded.
These data can help provide a better understand-
ing of the circumstances in which crashes and
injuries occur. NOTE: EDR data are recorded by
your vehicle only if a nontrivial crash situation
occurs; no data are recorded by the EDR under
normal driving conditions and no personal data
(e.g. name, gender, age and crash location) are
recorded. However, other parties, such as law
enforcement, could combine the EDR data with
REPORTING SAFETY DEFECTS (US
only) READINESS FOR INSPECTION/
MAINTENANCE (I/M) TESTEVENT DATA RECORDERS (EDR)
Technical and consumer information9-25

the type of personally identifying data routinely
acquired during a crash investigation.
To read data recorded by an EDR, special equip-
ment is required and access to the vehicle or the
EDR is needed. In addition to the vehicle manu-
facturer and NISSAN dealer, other parties, such
as law enforcement, that have the special equip-
ment, can read the information if they have ac-
cess to the vehicle or the EDR. EDR data will only
be accessed with the consent of the vehicle
owner or lessee or as otherwise required or per-
mitted by law.A genuine NISSAN Service Manual is the best
source of service and repair information for your
vehicle. Filled with wiring diagrams, illustrations
and step-by-step diagnostic and adjustment pro-
cedures, this manual is the same one used by the
factory-trained technicians working at NISSAN
dealerships. Also available are genuine NISSAN
Owner’s Manuals, and genuine NISSAN Service
and Owner’s Manuals for older NISSAN models.
For USA
For current pricing and availability of genuine
NISSAN Service Manuals
for the 2000 model
year and later contact:
1-800-450-9491
www.nissan-techinfo.com
For current pricing and availability of genuine
NISSAN Service Manuals for the 1999 model
year and prior, see a NISSAN dealer, or contact:
1-800-247-5321
For current pricing and availability of genuine
NISSAN Owner’s Manuals for this model year
and prior, see a NISSAN dealer, or contact:
1-800-247-5321 For Canada
To purchase a copy of a genuine NISSAN Ser-
vice Manual or Owner’s Manual please contact
your nearest NISSAN dealer. For the phone num-
ber and location of a NISSAN dealer in your area
call the NISSAN Information Center at 1-800-
387-0122 and a bilingual NISSAN representa-
tive will assist you.
Also available are genuine NISSAN Service and
Owner’s Manuals for older NISSAN models.
IN THE EVENT OF A COLLISION
Unfortunately, accidents do occur. In this unlikely
event, there is some important information you
should know.
Many insurance companies routinely authorize
the use of non-genuine collision parts in order to
cut costs, among other reasons.
OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION
9-26Technical and consumer information

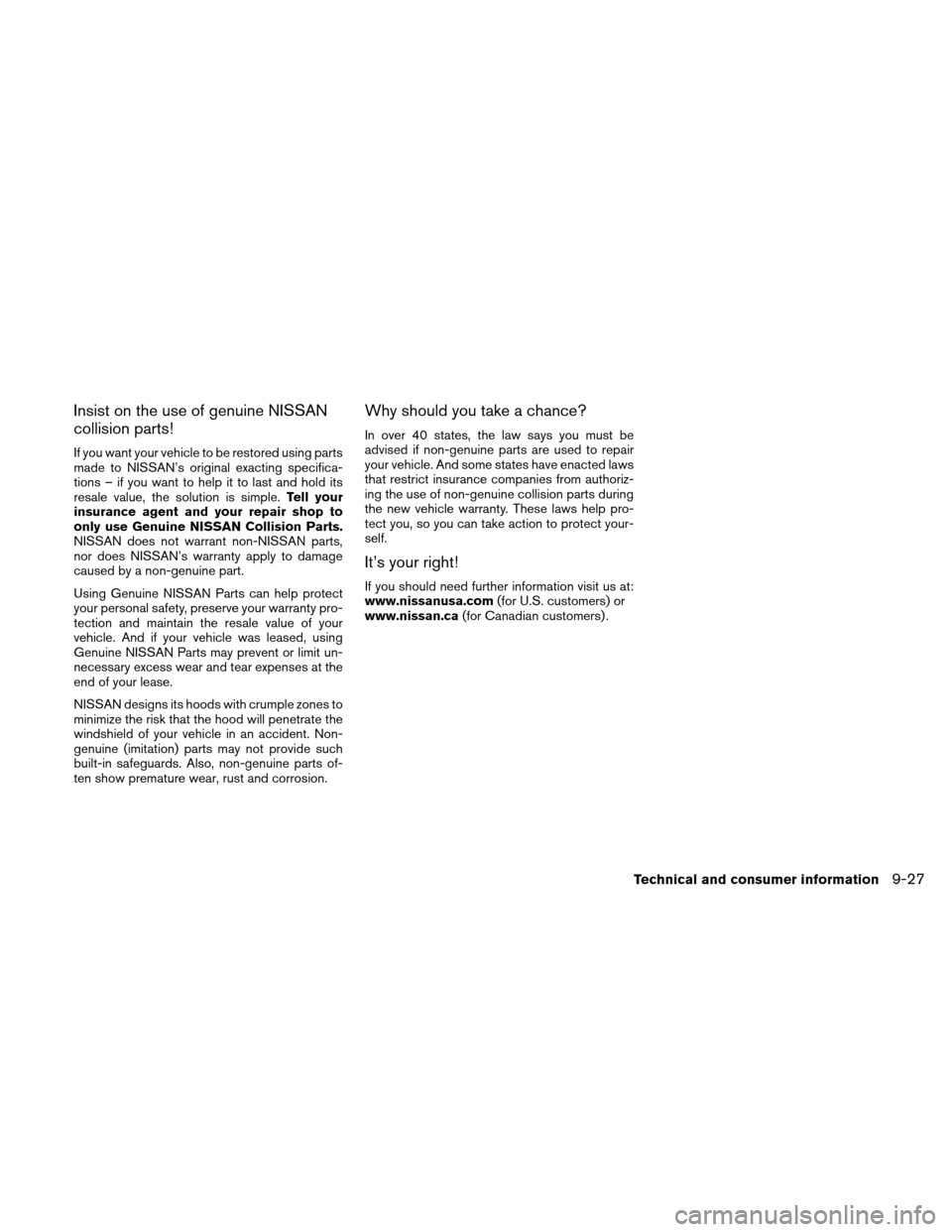

Insist on the use of genuine NISSAN
collision parts!
If you want your vehicle to be restored using parts
made to NISSAN’s original exacting specifica-
tions – if you want to help it to last and hold its
resale value, the solution is simple.Tell your
insurance agent and your repair shop to
only use Genuine NISSAN Collision Parts.
NISSAN does not warrant non-NISSAN parts,
nor does NISSAN’s warranty apply to damage
caused by a non-genuine part.
Using Genuine NISSAN Parts can help protect
your personal safety, preserve your warranty pro-
tection and maintain the resale value of your
vehicle. And if your vehicle was leased, using
Genuine NISSAN Parts may prevent or limit un-
necessary excess wear and tear expenses at the
end of your lease.
NISSAN designs its hoods with crumple zones to
minimize the risk that the hood will penetrate the
windshield of your vehicle in an accident. Non-
genuine (imitation) parts may not provide such
built-in safeguards. Also, non-genuine parts of-
ten show premature wear, rust and corrosion.
Why should you take a chance?
In over 40 states, the law says you must be
advised if non-genuine parts are used to repair
your vehicle. And some states have enacted laws
that restrict insurance companies from authoriz-
ing the use of non-genuine collision parts during
the new vehicle warranty. These laws help pro-
tect you, so you can take action to protect your-
self.
It’s your right!
If you should need further information visit us at:
www.nissanusa.com (for U.S. customers) or
www.nissan.ca (for Canadian customers) .
Technical and consumer information9-27

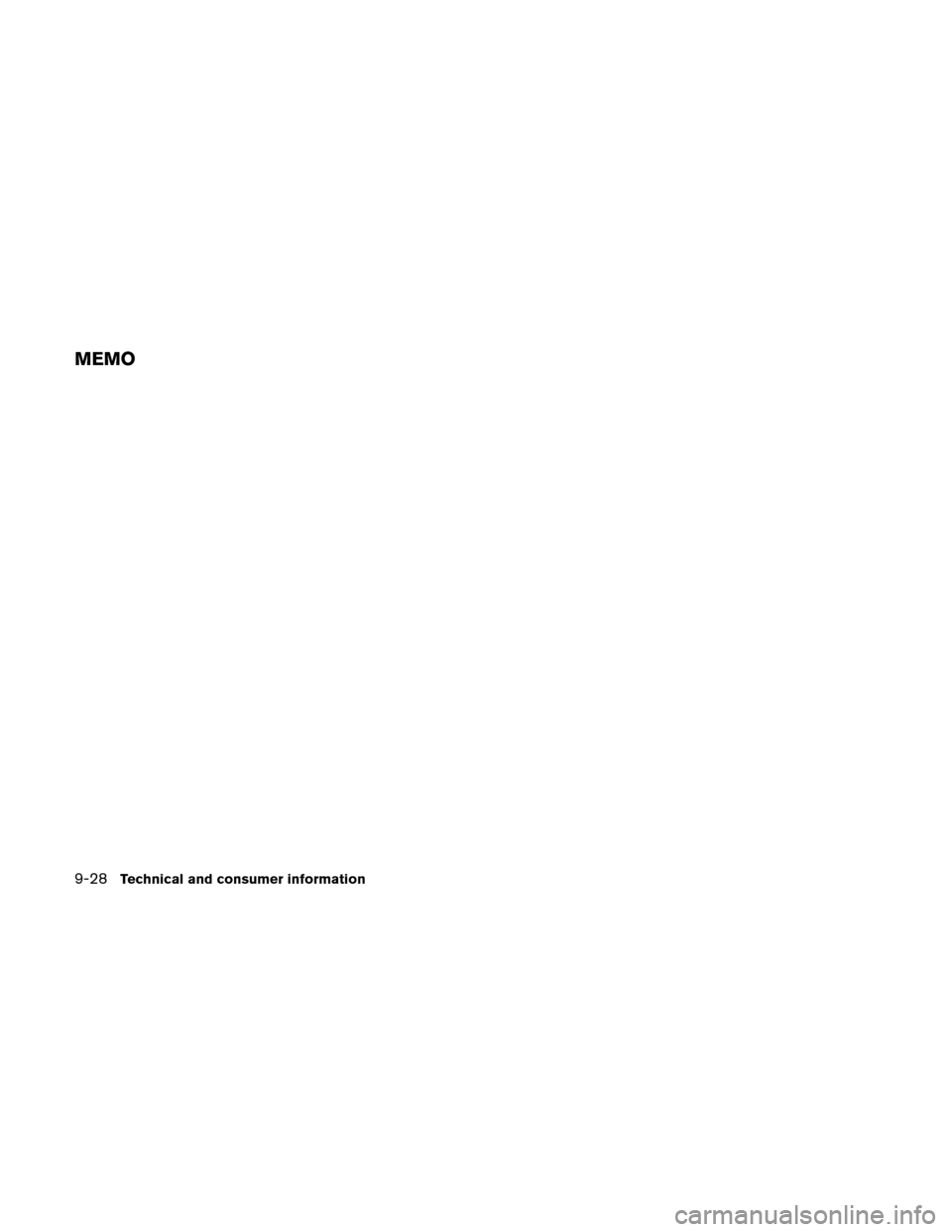

MEMO
9-28Technical and consumer information

10 Index
12-volt battery.................8-15
A
Air bag
(See supplemental restraint system) .....1-34
Air bag system Front (See supplemental front impact
air bag system) ...............1-42
Air bag warning light ...........1-49, 2-15
Air cleaner housing filter ............8-17
Air conditioner Air conditioner service ...........4-22
Air conditioner specification label .....9-11
Air conditioner system refrigerant and
oil recommendations .............9-6
Heater and air conditioner controls . . . .4-20
Servicing air conditioner ..........4-22
Alarm system
(See vehicle security system) .........2-25
Anchor point locations .............1-21
Antenna .....................4-85
Anti-lock brake warning light ..........2-10
Anti-lock Braking System (ABS) ........5-21
Armrests .....................1-5
Audible reminders ...............2-17
Audio system ..................4-22
Bluetooth audio..............4-78
Compact disc (CD)
player ..........4-40, 4-46, 4-52, 4-58 FM-AM radio with compact disc (CD)
player
....................4-38
FM/AM/SAT radio with CD/DVD player . .4-48
FM/AM/SAT radio with compact disc
(CD) player .................4-42
Audio System iPod Player .............4-66, 4-68
Music Box hard-disk drive audio
system ....................4-71
Audio system Radio ....................4-22
Audio System Settings ...................4-49
Audio system USB interface ............4-60, 4-62
Autolight switch .................2-30
Automatic Automatic power window switch .....2-42
Transmission selector lever lock
release ....................5-13
Automatic
anti-glare inside mirror .......3-24
Automatic door locks ..............3-6
AUX jack .................4-41, 4-47
B
Battery Charge warning light ........2-11, 2-13
Before starting the vehicle ...........5-10
Belt (See drive belt) ..............8-15
Block heater Engine ....................5-25 Bluetooth
audio................4-78
Bluetooth hands-free phone
system .................4-86, 4-101
Booster seats ..................1-31
Brake Anti-lock Braking System (ABS) ......5-21
Brake fluid ..................8-13
Brake light (See stop light) .........8-25
Brake system ................5-19
Brake warning light .........2-10, 2-12
Brake wear indicators ........2-17, 8-19
Parking brake operation ..........5-14
Self-adjusting brakes ............8-19
Brakes ......................8-19
Break-in schedule ...............5-17
Brightness control Instrument panel ..............2-32
Brightness/contrast button ...........4-12
Bulb check/instrument panel ..........2-9
Bulb replacement ................8-25
C
Capacities and recommended
fuel/lubricants ...................9-2
Car phone or CB radio .............4-85
Cargo (See vehicle loading information) . . .9-12
CD care and cleaning .............4-81
CD player
(See audio system) . . . .4-40, 4-46, 4-52, 4-58
Child restraint with top tether strap ......1-21
Child restraints .......1-16,
1-16, 1-17, 1-19

Precautions on child
restraints.........1-17, 1-23, 1-28, 1-31
Top tether strap anchor point locations . .1-21
Child safety rear door lock ............3-6
Chimes, audible reminders ...........2-17
Cleaning exterior and interior ...........7-2
Clock ...................4-39, 4-44
(models with navigation system) .......4-8
(models without navigation system) . . . .4-39
Clock set ..................4-8, 4-39
C.M.V.S.S. certification label ..........9-10
Cold weather driving ..............5-24
Compact disc (CD)
player ............4-40, 4-46, 4-52, 4-58
Compass display .................2-6
Console box ...................2-38
Console light ...................2-45
Continuously Variable Transmission (CVT) Transmission selector lever lock release . .5-13
Control panel buttons ...............4-2
Brightness/contrast button .........4-12
Enter button ..................4-2
Setting button .................4-6
Controls Heater and air conditioner controls .....4-20
Coolant Capacities and recommended
fuel/lubricants .................9-2
Changing engine coolant ...........8-9
Checking engine coolant level ........8-8
Checking inverter coolant level .......8-10
Corrosion protection ...............7-6
Cruise control ..................5-15
Cup holders ...................2-37 D
Daytime running light system (Canada only) . .2-31
Defroster switch Rear window and outside mirror defroster
switch .....................2-29
Digital Versatile Disc (DVD) player .......4-57
Dimensions and weights .............9-8
Dimmer switch for instrument panel ......2-32
Display controls (see control panel buttons) . .4-2
Door locks .....................3-4
Drive belt .....................8-15
Driving Cold

weather driving ............5-24
Driving with Electronically controlled
Continuously Variable Transmission
(eCVT) ....................5-11
Precautions when starting and driving . . . .5-2
E
Economy - fuel ..................5-17
Electronically controlled Continuously Variable
Transmission (eCVT) Driving with Electronically controlled
Continuously Variable Transmission
(eCVT) ....................5-11
Electronically controlled Continuously
Variable Transmission (eCVT) fluid .....8-13
Emission control information label .......9-10
Emission control system warranty .......9-24
Energy flow ...................HEV-4
Energy/fuel history ...............HEV-5 Engine
Block heater .................5-25
Capacities and recommended
fuel/lubricants .................9-2
Changing engine coolant ...........8-9
Changing engine oil .............8-11
Changing engine oil filter ..........8-12
Checking engine coolant level ........8-8
Checking engine oil level ..........8-10
Engine compartment check locations . . . .8-7
Engine cooling system ............8-8
Engine oil ...................8-10
Engine oil and oil filter recommendation . . .9-5
Engine oil pressure warning light ......2-12
Engine oil viscosity ..............9-5
Engine serial number ............9-10
Engine specifications .............9-7
Enter button ....................4-2
Event data recorders ..............9-25
Exhaust gas (Carbon monoxide) .........5-2
Eyeglass case ..................2-36
F
Flashers
(See hazard warning flasher switch) ......2-33
Flat tire .......................6-2
Floor mat positioning aid .............7-6
Fluid Brake fluid ..................8-13
Capacities
and recommended
fuel/lubricants .................9-2
Electronically controlled Continuously
Variable Transmission (eCVT) fluid .....8-13
Engine coolant .................8-8
10-2

Engine oil...................8-10
Inverter coolant ................8-9
F.M.V.S.S. certification label ...........9-10
Front air bag system
(See supplemental restraint system) ......1-42
Front seats .....................1-2
Fuel Capacities and recommended
fuel/lubricants .................9-2
Fuel economy ................5-17
Fuel gauge ...................2-5
Fuel octane rating ...............9-4
Fuel recommendation .............9-3
Fuel-filler door and cap ...........3-21
Fuel-filler door lock opener lever ......3-21
Fuses .......................8-19
Fusible links ...................8-21
G
Garage door opener, HomeLink Universal
Transceiver ....................2-47
Gascap .....................3-21
Gauge Fuel gauge ...................2-5
High voltage battery status meter . .2-5, HEV-4
Odometer ...................2-4
Power meter .............2-4, HEV-4
Speedometer .................2-4
Trip odometer .................2-4
General maintenance ...............8-2
Glove box .....................2-38
Glove box lock ..................2-38
Grocery hooks ..................2-39 H
Hands-free phone system,
Bluetooth ................4-86, 4-101
Hazard warning flasher switch .........2-33
Headlight and turn signal switch ........2-29
Headlight control switch ............2-29
Headlights ....................8-24
Heated seats ...................2-34
Heater Heater
and air conditioner controls .....4-20
Heater operation ...............4-20
High voltage battery status meter . . . .2-5, HEV-4
High voltage components ...........HEV-8
HomeLink Universal Transceiver ........2-47
Hood release ...................3-18
Horn .......................2-33
Hybrid System Energy flow .................HEV-4
Energy/fuel history .............HEV-5
Stops operating while driving .........6-6
Vehicle does not start .............6-7
Hybrid vehicle characteristics .........HEV-9
I
Ignition Switch Push-Button Ignition Switch .........5-7
Immobilizer system ..........2-26, 3-3, 5-9
Important vehicle information label .......9-10
In-cabin microfilter ................8-17
Increasing fuel economy .............5-17 Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders)
.....................2-9
Inside automatic anti-glare mirror ........3-24
Inside mirror ...................3-24
Instrument brightness control ..........2-32
Instrument panel dimmer switch ........2-32
Intelligent Key system Key operating range ..............3-9
Key operation ................3-10
Mechanical key ................3-3
Remote keyless entry operation .......3-13
Troubleshooting guide ............3-17
Warning signals ...............3-17
Interior light ....................2-45
Interior trunk lid release .............3-20
Inverter Checking inverter coolant level .......8-10
Inverter cooling system ............8-9
iP

od Player ................4-66, 4-68
ISOFIX child restraints .............1-19
J
Jump starting ...................6-7
K
Keyfob battery replacement ...........8-23
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-13
Keys, For Intelligent Key system .........3-2
10-3
