2010 NISSAN ALTIMA HYBRID navigation system

4 Monitor, climate, audio, phone and voice
recognition systems
Control panel buttons — color screen with
Navigation System (if so equipped)..................4-2
How to use the touch screen ....................4-3
How to select menus on the screen ..............4-5
How to use the INFO button .....................4-5
How to use the SETTING button .................4-6
button.................................. 4-12
RearView Monitor (if so equipped) ..................4-13
How to read the displayed lines .................4-13
Difference between predicted and actual
distances ..................................... 4-14
Adjusting the screen ........................... 4-17
Operating tips ................................. 4-17
Vents ........................................... 4-18
Heater and air conditioner (automatic) ..............4-19
Automatic operation ........................... 4-20
Manual operation .............................. 4-20
Operating tips ................................. 4-21
Servicing air conditioner ........................... 4-22
Audio system .................................... 4-22
Radio ........................................ 4-22
FM radio reception ............................ 4-22
AM radio reception ............................ 4-23Satellite radio reception (if so equipped)
.........4-23
Audio operation precautions ....................4-23
FM/AM radio with compact disc (CD) player
(if so equipped) ............................... 4-38
FM/AM/SAT radio with compact disc (CD)
player (if so equipped) ......................... 4-42
FM/AM/SAT radio with CD/DVD player
(if so equipped) ............................... 4-48
Digital Versatile Disc (DVD) Player
Operation (models with Navigation System) ......4-57
USB interface (models without Navigation
System) (if so equipped) .......................4-60
USB interface (models with Navigation
System) ...................................... 4-62
iPod* Player Operation without Navigation
System (if so equipped) ........................ 4-66
iPod* Player Operation with Navigation
System (if so equipped) ........................ 4-68
Music Box™ Hard Drive audio system
(if so equipped) ............................... 4-71
Bluetooth streaming audio (if so equipped) ......4-78
CD care and cleaning .......................... 4-81
Steering

wheel switch for audio control
(if so equipped) ............................... 4-82

Antenna...................................... 4-85
Car phone or CB radio ............................ 4-85
Bluetooth Hands-Free Phone System without
Navigation System (if so equipped) .................4-86
Regulatory Information . ........................ 4-88
Using the system .............................. 4-88
Control buttons ............................... 4-90
Getting started ................................ 4-91
List of voice commands ........................ 4-93
Speaker adaptation (SA) mode.................. 4-97
Manual Control ................................ 4-99
Troubleshooting guide . ....................... 4-100
Bluetooth Hands-Free Phone System with
Navigation System (if so equipped) ................4-101
Regulatory Information . ....................... 4-103
Voice commands ............................. 4-103
Connecting procedure . ....................... 4-103
Vehicle Phonebook ........................... 4-105
Handset Phonebook .......................... 4-107Making a call
................................. 4-108
Receiving a call .............................. 4-108
During a call ................................. 4-109
Ending a call ................................. 4-110
Phone settings ............................... 4-110
Bluetooth settings ............................ 4-111
Call volume .................................. 4-112
NISSAN Voice Recognition System
(if so equipped) ................................. 4-112
NISSAN Voice Recognition Standard Mode .....4-113
Using the system ............................. 4-116
Before starting ............................... 4-116
Giving voice commands ....................... 4-116
NISSAN Voice Recognition Alternate
Command Mode ............................. 4-124
Using the system ............................. 4-130
Speaker Adaptation function ...................4-133
T
roubleshooting guide . . . .....................4-135

WARNING
●Do not disassemble or modify this sys-
tem. If you do, it may result in accidents,
fire, or electrical shock.
● Do not use this system if you notice any
abnormality, such as a frozen screen or
lack of sound. Continued use of the
system may result in accident, fire or
electric shock.
● In case you notice any foreign object in
the system hardware, spill liquid on it,
or notice smoke or smell coming from
it, stop using the system immediately
and contact your nearest NISSAN
dealer. Ignoring such conditions may
lead to accidents, fire or electrical
shock.
1. Display screen
2. MAP button*
3. DEST button*
4. ROUTE button* 5. INFO button (P. 4-5)
6. SETTING button (P. 4-6)
7. Volume control knob
8.
(brightness control) button
LHA1400
CONTROL PANEL BUTTONS —
COLOR SCREEN WITH NAVIGATION
SYSTEM (if so equipped)
4-2Monitor, climate, audio, phone and voice recognition systems

*For Navigation system control buttons, refer to
the separate Navigation System Owner’s
Manual.
When you use this system, make sure the engine
is running.
If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery, and the
engine will not start.
Reference symbols:
“Example” — Words marked in quotes refer to a
key shown only on the display. These keys can be
selected by touching the screen.
HOW TO USE THE TOUCH
SCREEN
CAUTION
●The glass screen on the liquid crystal
display may break if it is hit with a hard
or sharp object. If the glass breaks, do
not touch the liquid crystalline material,
which contains a small amount of mer-
cury. In case of contact with skin, wash
immediately with soap and water. ●
To clean the display, never use a rough
cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.
● Do not splash any liquid such as water
or car fragrance on the display. Contact
with liquid will cause the system to
malfunction.
To help ensure safe driving, some functions can-
not be operated while driving.
The on-screen functions that are not available
while driving will be “grayed out” or muted.
Park the vehicle in a safe location and then oper-
ate the navigation system.
WARNING
● ALWAYS give your full attention to
driving.
● Avoid using vehicle features that could
distract you. If distracted, you could
lose control of your vehicle and cause
an accident.
Touch screen operation
Selecting the item:
Touch an item to select. To select the “Naviga-
tion” key, touch the “Navigation” key
1on the
screen. Touch the “BACK” key
2to return to the
previous screen.
LHA1227
Monitor, climate, audio, phone and voice recognition systems4-3

HOW TO SELECT MENUS ON THE
SCREEN
Vehicle functions are viewed on the center dis-
play screen in menus. Whenever a menu selec-
tion is made or menu item is highlighted, different
areas on the screen provide you with important
information. See the following for details.1. Header: Shows the path used to get to the current
screen (for example, press the SETTING
button > then select the “Comfort” key) . 2. Menu Selections:
Shows the options to choose within that
menu screen (for example, Auto Interior Illu-
mination, etc.) .
3. Up/Down Movement Indicator: Shows that the arrows on the touch screen
may be used to move up or down on the
screen and select more options.
4. Screen Count: Shows the number of menu selections avail-
able for the current menu, even if they are on
multiple pages (for example, 1/7) .
5. Footer/Information Line: Provides more information (if available)
about the menu selection currently high-
lighted (for example, Cabin lighting when
unlocking doors) .
HOW TO USE THE INFO BUTTON
Press the INFO button; the display screen shows
vehicle and navigation information for your con-
venience.
Energy Flow
For information about Energy Flow, refer to “En-
ergy flow” in the “HEV Overview” section.
Fuel Economy History
For information about Fuel Economy History, re-
fer to “Fuel Economy History” in the “HEV Over-
view” section.
WHA1401LHA1416
Monitor, climate, audio, phone and voice recognition systems4-5

Where am I?
Refer to the separate Navigation System Own-
er’s Manual for information regarding this item.
Traffic Info
Refer to the separate Navigation System Own-
er’s Manual for information regarding this item.
Weather Info
Refer to the separate Navigation System Own-
er’s Manual for information regarding this item.
Map Update
Refer to the separate Navigation System Own-
er’s Manual for information regarding this item.
Navigation Version
Refer to the separate Navigation System Own-
er’s Manual for information regarding this item.
Other options
For Voice Recognition settings, refer to “NISSAN
Voice Recognition system” in this section.
For GPS position, refer to the separate Naviga-
tion System Owner’s Manual.
HOW TO USE THE SETTING
BUTTON
When the SETTING button is pressed, the Set-
tings screen will appear on the display. You can
select and/or adjust several functions, features
and modes that are available for your vehicle.
LHA1236LHA1237
4-6Monitor, climate, audio, phone and voice recognition systems

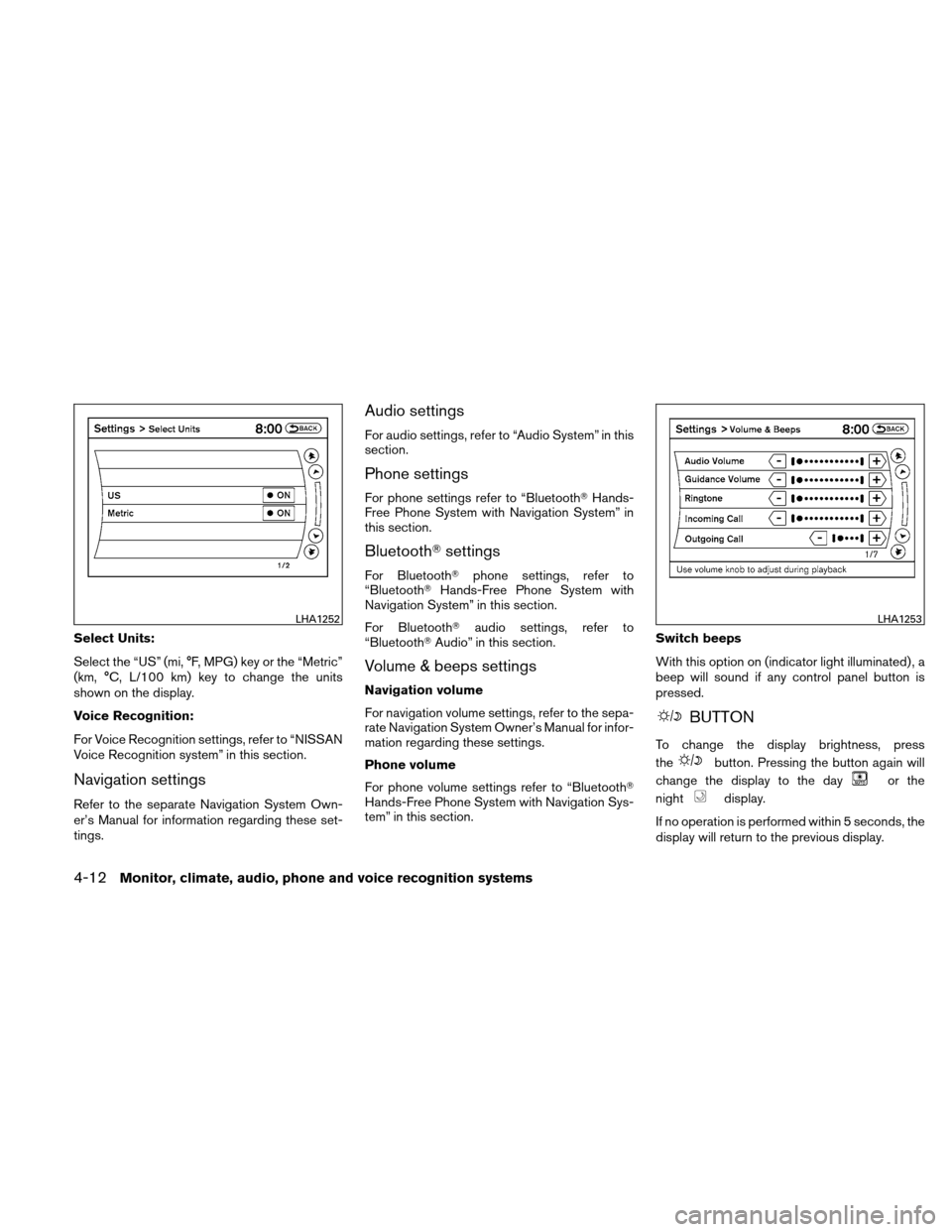

Select Units:
Select the “US” (mi, °F, MPG) key or the “Metric”
(km, °C, L/100 km) key to change the units
shown on the display.
Voice Recognition:
For Voice Recognition settings, refer to “NISSAN
Voice Recognition system” in this section.
Navigation settings
Refer to the separate Navigation System Own-
er’s Manual for information regarding these set-
tings.
Audio settings
For audio settings, refer to “Audio System” in this
section.
Phone settings
For phone settings refer to “BluetoothHands-
Free Phone System with Navigation System” in
this section.
Bluetooth settings
For Bluetooth phone settings, refer to
“Bluetooth Hands-Free Phone System with
Navigation System” in this section.
For Bluetooth audio settings, refer to
“Bluetooth Audio” in this section.
Volume & beeps settings
Navigation volume
For navigation volume settings, refer to the sepa-
rate Navigation System Owner’s Manual for infor-
mation regarding these settings.
Phone volume
For phone volume settings refer to “Bluetooth
Hands-Free Phone System with Navigation Sys-
tem” in this section. Switch beeps
With this option on (indicator light illuminated) , a
beep will sound if any control panel button is
pressed.
BUTTON
To change the display brightness, press
the
button. Pressing the button again will
change the display to the day
or the
night
display.
If no operation is performed within 5 seconds, the
display will return to the previous display.
LHA1252LHA1253
4-12Monitor, climate, audio, phone and voice recognition systems

Compact disc (CD) player (models
without Navigation System)
CAUTION
●Do not force a compact disc into the CD
insert slot. This could damage the CD
and/or CD player.
● Only one CD can be loaded into the CD
player at a time.
● Only use high quality 4.7 in (12 cm)
round discs that have the “COMPACT
disc DIGITAL AUDIO” logo on the disc
or packaging.
● During cold weather or rainy days, the
player may malfunction due to the hu-
midity. If this occurs, remove the CD
and dehumidify or ventilate the player
completely.
● The player may skip while driving on
rough roads.
● The CD player sometimes cannot func-
tion when the compartment tempera-
ture is extremely high or low.
Decrease/increase the temperature
before use.
● Do not expose the CD to direct sun-
light. ●
CDs that are in poor condition or are
dirty, scratched or covered with finger-
prints may not work properly.
● The following CDs may not work prop-
erly:
● Copy control compact discs (CCCD)
● Recordable compact discs (CD-R)
● Rewritable compact discs (CD-RW)
● Do not use the following CDs as they
may cause the CD player to malfunc-
tion:
● 3.1 in (8 cm) discs with an adapter
● CDs that are not round
● CDs with a paper label
● CDs that are warped, scratched, or
have abnormal edges
● This audio system can only play pre-
recorded CDs. It has no capability to
record or burn CDs.
● If the CD cannot be played, one of the
following messages will be displayed. CHECK DISC:
●
Confirm that the CD is inserted cor-
rectly (the label side is facing up,
etc.) .
● Confirm that the CD is not bent or
warped and it is free of scratches.
PRESS EJECT:
This is an error due to excessive tem-
perature inside the player. Remove the
CD by pressing the EJECT button. After
a short time, reinsert the CD. The CD
can be played when the temperature of
the player returns to normal.
UNPLAYABLE:
The file is unplayable in this audio sys-
tem (only MP3 or WMA (if so equipped)
CD) .
CD/DVD combination player (models
with Navigation System)
● Do not force a disc into the CD/DVD
insert slot. This could damage the
CD/DVD player.
4-24Monitor, climate, audio, phone and voice recognition systems
