2010 NISSAN ALTIMA COUPE navigation system

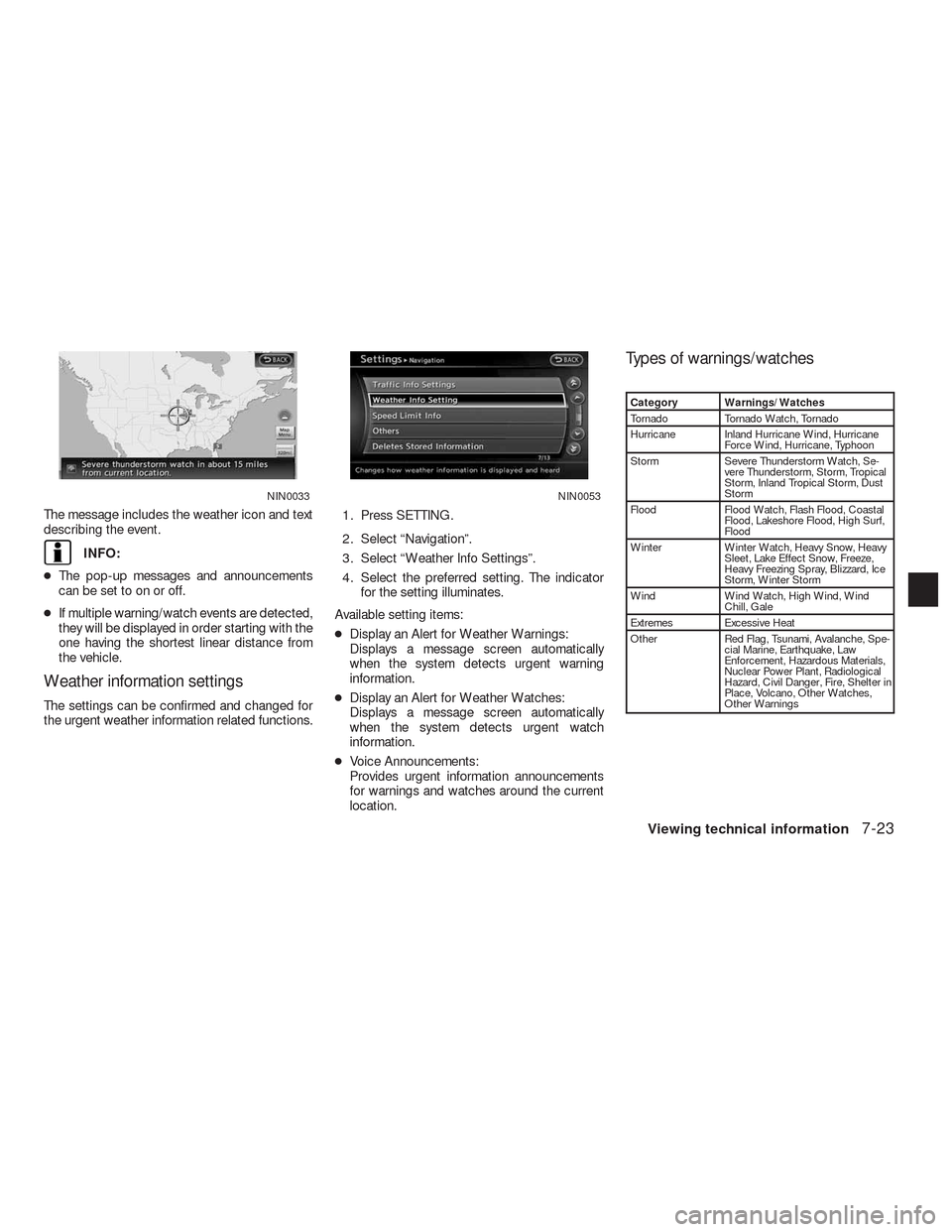

The message includes the weather icon and text
describing the event.
INFO:
●The pop-up messages and announcements
can be set to on or off.
●If multiple warning/watch events are detected,
they will be displayed in order starting with the
one having the shortest linear distance from
the vehicle.
Weather information settings
The settings can be confirmed and changed for
the urgent weather information related functions.1. Press SETTING.
2. Select “Navigation”.
3. Select “Weather Info Settings”.
4. Select the preferred setting. The indicator
for the setting illuminates.
Available setting items:
●Display an Alert for Weather Warnings:
Displays a message screen automatically
when the system detects urgent warning
information.
●Display an Alert for Weather Watches:
Displays a message screen automatically
when the system detects urgent watch
information.
●Voice Announcements:
Provides urgent information announcements
for warnings and watches around the current
location.
Types of warnings/watches
Category Warnings/Watches
Tornado Tornado Watch, Tornado
Hurricane Inland Hurricane Wind, Hurricane
Force Wind, Hurricane, Typhoon
Storm Severe Thunderstorm Watch, Se-
vere Thunderstorm, Storm, Tropical
Storm, Inland Tropical Storm, Dust
Storm
Flood Flood Watch, Flash Flood, Coastal
Flood, Lakeshore Flood, High Surf,
Flood
Winter Winter Watch, Heavy Snow, Heavy
Sleet, Lake Effect Snow, Freeze,
Heavy Freezing Spray, Blizzard, Ice
Storm, Winter Storm
Wind Wind Watch, High Wind, Wind
Chill, Gale
Extremes Excessive Heat
Other Red Flag, Tsunami, Avalanche, Spe-
cial Marine, Earthquake, Law
Enforcement, Hazardous Materials,
Nuclear Power Plant, Radiological
Hazard, Civil Danger, Fire, Shelter in
Place, Volcano, Other Watches,
Other Warnings
NIN0033NIN0053
Viewing technical information7-23

●Do not put on any sticker or write anything on
either surface.
●If you need to clean it, do so with a soft cloth
by wiping from the centre outward.
●Do not use a DVD Laser Lens Cleaners as
they may cause the DVD player to
malfunction.
This displays the map version information.
BASIC OPERATION
1. Press INFO.
2. Select “Navigation Version”.
3. Press BACK to return to the previous
screen. Press MAP to return to the current
location map screen.This displays GPS information, such as the posi-
tioning status, latitude/longitude, altitude and
satellite locations.
NIN0034
VIEWING NAVIGATION SYSTEM VER-
SION INFORMATIONVIEWING GPS CURRENT LOCATION
INFORMATION
Viewing technical information7-25

The navigation system can be customized to
make it easier for you to use.
BASIC OPERATION
1. Press SETTING.
2. Select the preferred setting item.
Available setting items
●“Navigation”:
Adjust various settings of the navigation
system.
“Navigation setting” (page 8-7)
●“Audio”:
Refer to the vehicle Owner’s Manual.
●“Phone”:
Refer to the vehicle Owner’s Manual.
●“Bluetooth”:
Set BluetoothAudio and Phone. Refer to the
vehicle Owner’s Manual.●“Volume and Beeps”:
”Volume adjustment” (page 8-17)
●“Display”:
“Display settings” (page 8-3)
●“Clock”:
“Clock settings” (page 8-18)
●“Others”:
– “Comfort”:
This item is displayed when the ignition
switch is in the ON position.
Refer to the vehicle Owner’s Manual.
– “Language & Units”:
“Language & unit settings”
(page 8-19)
– “Voice Recognition”:
“System feedback announce-
ment modes” (page 9-27)
INFO:
The displayed items vary depending on the
equipped options.
NSE0001
SETTINGS SCREEN
8-2Other settings

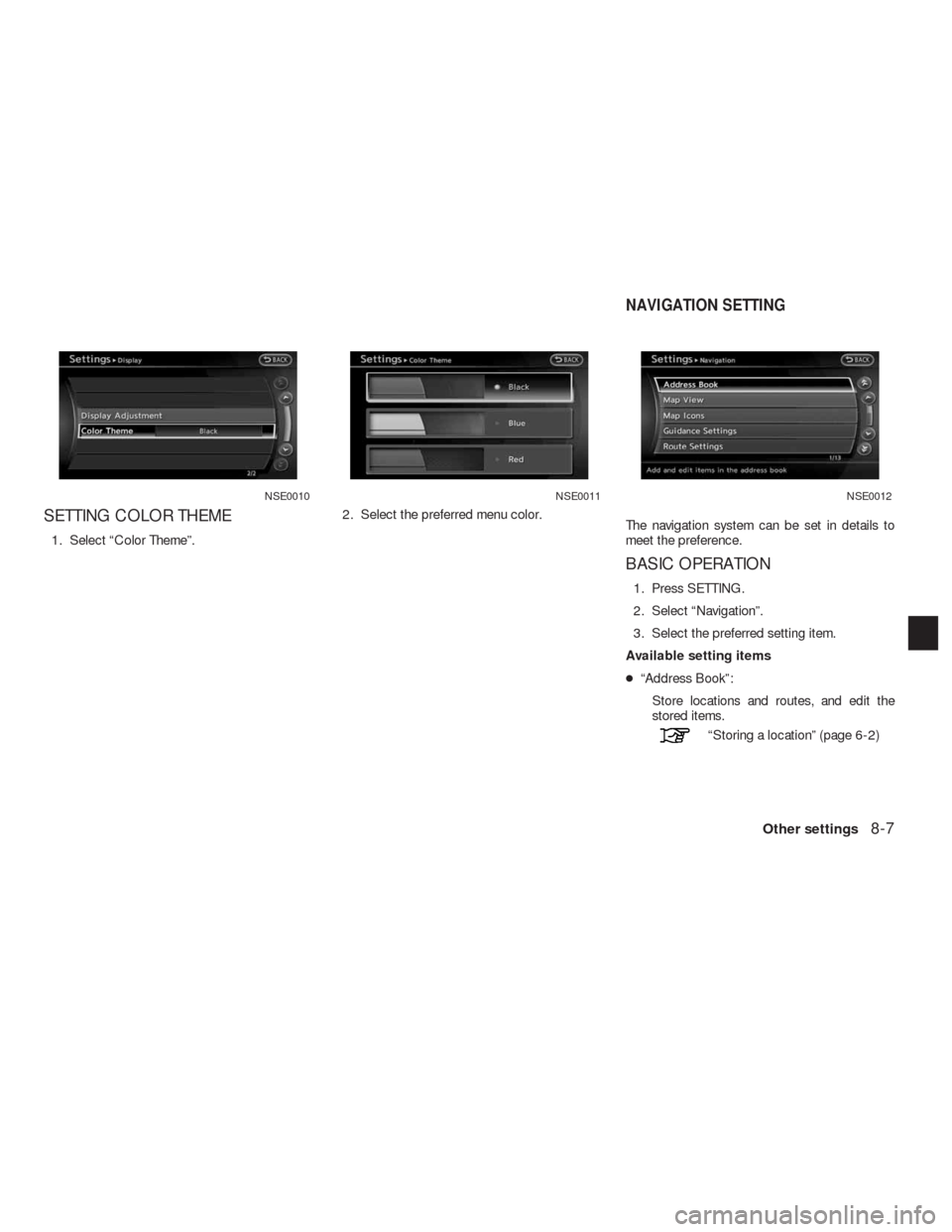

SETTING COLOR THEME
1. Select “Color Theme”.2. Select the preferred menu color.
The navigation system can be set in details to
meet the preference.
BASIC OPERATION
1. Press SETTING.
2. Select “Navigation”.
3. Select the preferred setting item.
Available setting items
●“Address Book”:
Store locations and routes, and edit the
stored items.
“Storing a location” (page 6-2)
NSE0010NSE0011NSE0012
NAVIGATION SETTING
Other settings8-7

●“Map View”:
Set the display method and the direction of
the map.
“Changing the map view”
(page 3-11)
●“Map Icons”:
Set the map icons to display on the map.
“Displaying map icons”
(page 3-21)
●“Guidance settings”:
Set the various functions for the route
guidance.
“Guidance settings” (page 5-28)
●“Route Settings”:
Change the routing preferences.
“Detailed route settings”
(page 5-34)
●“Traffic Info Setting”:
Set the various functions of the XM Nav-
Trafficinformation system.
“Traffic information settings”
(page 7-10)●“Weather Info Setting”:
Set the functions of the XM NavWeather™
information system.
●“Speed Limit Info”:
Display speed limit information.
●“Others”:
Display other setting items.
“Other navigation settings”
(page 8-9)
●“Deletes stored information”:
Delete stored locations and the home set-
ting in the Address Book.
“Delete stored items”
(page 8-15)
●“Delete All Previous Destinations”:
Delete all previous destinations.
“Delete stored items”
(page 8-15)
●“Delete Previous Starting Point”:
Delete all previous starting points.
“Delete stored items”
(page 8-15)●“Reset all Navigation Settings to Default”:
Reset all of the settings to default.
“Reset all navigation settings to
default” (page 8-16)
SPEED LIMIT INDICATION ON MAP
Turn the “Speed Limit Information” display on or
off. The indicator light illuminates when the
speed limit display function is set to on.
8-8Other settings

NISSAN Voice Recognition allows hands-free
operation of the navigation system and other
systems equipped on this vehicle, in one of two
modes, Standard Mode or Alternate Command
Mode. Standard Mode allows the operation of
Navigation, Phone, Audio, Information and Help.
The commands that are available are always
shown on the display and announced by the
system. To perform operations, simply follow the
prompts given by the system. In Standard Mode,
hands-free operation of Change map view,
Route selection and Bluetooth Audio, etc. is not
available through Voice Recognition.
Alternate Command Mode allows advanced
operations. When this mode is active, an ex-
panded list of commands can be spoken after
pressing
, and the voice command menu
prompts are turned off. Note that in this mode
the recognition success rate may be affected
because the number of available commands and
ways of speaking each command are increased.
Otherwise, it is recommended that Alternate
Command Mode be turned OFF and Standard
Mode be used for the best recognition
performance.
Alternate Command Mode”
(page 9-16)
INFO:
●To improve recognition success when Alter-
nate Command Mode is active, try using the
Speaker Adaptation function available in that
mode.
“Speaker adaptation” (page 9-28)
Otherwise, it is recommended that Alter-
nate Command Mode be turned OFF and
Standard Mode be used for the best recog-
nition performance.
●For the voice commands for the audio, phone
and other systems, refer to the vehicle Own-
er’s Manual. The following sections refer only
to the navigation, phone and information
systems.
MANUAL CONTROL
While using the voice recognition system for
certain Phone and Navigation features, you can
switch to using manual controls (touch screen,
steering wheel controls) and the information you
have already entered by voice control will be
retained. To switch to manual controls, touch the
“Manual Controls” key on the display when it
appears. The system will respond by speaking
“Changing to manual operation. Please use
manual controls to continue.”
CONFIRMING HOW TO USE VOICE
COMMANDS
When operating the voice recognition system for
the first time or if help is preferred to use the
system, the User Guide can be displayed.
It is possible to confirm how to use voice com-
mands by accessing a simplified User Guide,
which contains basic instructions and tutorials
for several voice commands.
NISSAN VOICE RECOGNITION STANDARD MODE
9-2Voice recognition

BEFORE STARTING
To get the best recognition performance from
Voice Recognition, observe the following items.
●The interior of the vehicle should be as quiet
as possible. Close the windows to eliminate
the surrounding noises (traffic noise and vi-
bration sounds, etc.) , which may prevent the
system from correctly recognizing the voice
commands.
●Wait until the tone sounds before speaking a
command.
●Speak in a natural conversational voice with-
out pausing between words.
GIVING VOICE COMMANDS
1. Presslocated on the steering wheel
switch.2. A list of commands appears on the screen,
and the system provides the voice menu
prompt “Would you like to access Phone,
Navigation, Information, Audio or Help?”.
3. After the tone sounds and the icon on the
screen changes fromto,
speak a command.
4. Continue to follow the voice menu prompts
and speak after the tone sounds until the
preferred operation is completed.
Operating tips
●Speak a command after the tone.
●Commands that are available are always
shown on the display and spoken through
voice menu prompts. Commands other than
those that are displayed are not accepted.
Follow the prompts given by the system.●If the command is not accepted, the system
announces, “Please say again”. Repeat the
command in a clear voice.
●Press “Back” once to return to the previous
screen.
●To cancel the command, press and
hold
. The message, “Voice cancelled”
will be announced.
●Press
to stop the voice prompt and
give the command at once. Remember to wait
for the tone before speaking.
●To adjust the volume of the system feedback,
push the volume control buttons “+” or “”on
the steering wheel switch or use the audio
system volume knob while the system is mak-
ing an announcement.
How to speak numbers
NISSAN Voice Recognition requires a certain
way to speak numbers when giving voice
commands. Refer to the following examples.
General rule:
Only single digits 0 (zero) to 9 can be used. For
example, if speaking 500, “five zero zero” can be
used, but “five hundred” cannot.
NVR0006
Voice recognition9-5

Command list
Category Command:
COMMAND ACTION
Navigation Operates Navigation function.
Phone Operates Phone function.
Information Displays Vehicle Information function.
Audio Operates Audio function.
Help Displays User Guide.
Navigation Command:
COMMAND ACTION
Home Sets a route to the home location that is stored in the Address book.
Address Searches for a location by the street address specified, and sets a route (for continental US only) .
Places Sets a route to a facility near the current vehicle location.
Address Book Searches for information stored in the Address Book.
Previous Destinations Sets a route to a previous destination.
Information Command:
COMMAND ACTION
Fuel Economy Displays fuel economy information.
Trip Computer Displays trip information.
Maintenance Displays maintenance information.
Traffic Information Turns the traffic information system on and off.
Where am I? Displays current vehicle location.
Voice recognition9-7
