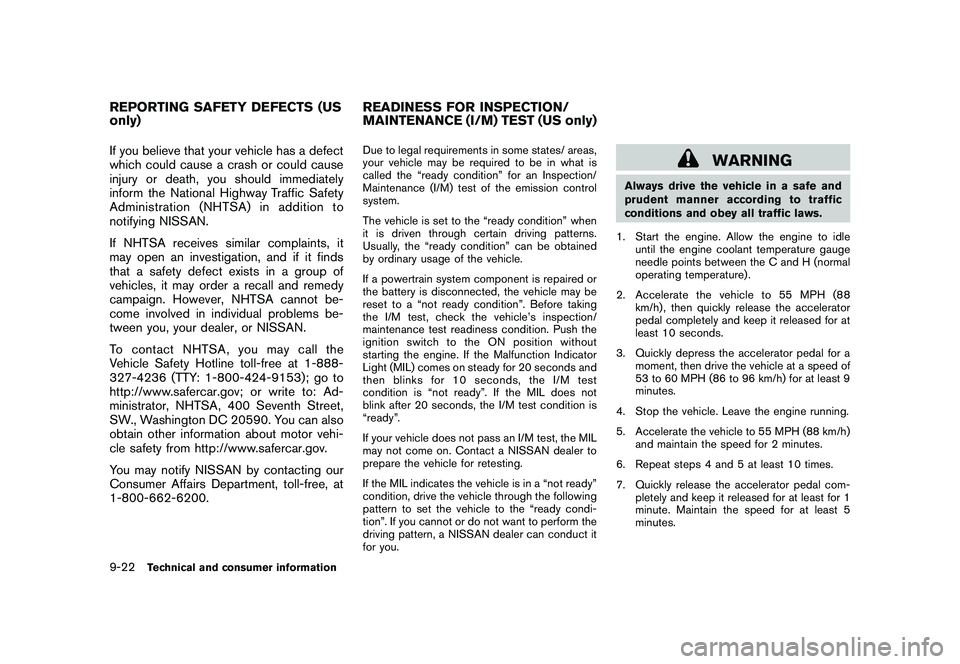

If you believe that your vehicle has a defect
which could cause a crash or could cause
injury or death, you should immediately
inform the National Highway Traffic Safety
Administration (NHTSA) in addition to
notifying NISSAN.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot be-
come involved in individual problems be-
tween you, your dealer, or NISSAN.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov; or write to: Ad-
ministrator, NHTSA, 400 Seventh Street,
SW., Washington DC 20590. You can also
obtain other information about motor vehi-
cle safety from http://www.safercar.gov.
You may notify NISSAN by contacting our
Consumer Affairs Department, toll-free, at
1-800-662-6200.
Due to legal requirements in some states/ areas,
your vehicle may be required to be in what is
called the “ready condition” for an Inspection/
Maintenance (I/M) test of the emission control
system.
The vehicle is set to the “ready condition” when
it is driven through certain driving patterns.
Usually, the “ready condition” can be obtained
by ordinary usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready condition”. Before taking
the I/M test, check the vehicle’s inspection/
maintenance test readiness condition. Push the
ignition switch to the ON position without
starting the engine. If the Malfunction Indicator
Light (MIL) comes on steady for 20 seconds and
then blinks for 10 seconds, the I/M test
condition is “not ready”. If the MIL does not
blink after 20 seconds, the I/M test condition is
“ready”.
If your vehicle does not pass an I/M test, the MIL
may not come on. Contact a NISSAN dealer to
prepare the vehicle for retesting.
If the MIL indicates the vehicle is in a “not ready”
condition, drive the vehicle through the following
pattern to set the vehicle to the “ready condi-
tion”. If you cannot or do not want to perform the
driving pattern, a NISSAN dealer can conduct it
for you.
WARNING
Always drive the vehicle in a safe and
prudent manner according to traffic
conditions and obey all traffic laws.
1. Start the engine. Allow the engine to idle until the engine coolant temperature gauge
needle points between the C and H (normal
operating temperature) .
2. Accelerate the vehicle to 55 MPH (88 km/h) , then quickly release the accelerator
pedal completely and keep it released for at
least 10 seconds.
3. Quickly depress the accelerator pedal for a moment, then drive the vehicle at a speed of
53 to 60 MPH (86 to 96 km/h) for at least 9
minutes.
4. Stop the vehicle. Leave the engine running.
5. Accelerate the vehicle to 55 MPH (88 km/h) and maintain the speed for 2 minutes.
6. Repeat steps 4 and 5 at least 10 times.
7. Quickly release the accelerator pedal com- pletely and keep it released for at least for 1
minute. Maintain the speed for at least 5
minutes.
REPORTING SAFETY DEFECTS (US
only) READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST (US only)9-22
Technical and consumer information

Black plate (1,1)
10 Index
A
ABS (Anti-lock Braking System) .................. 5-26
Advanced air bag system ......................... 1-32
Air bag system Advanced air bag system ..................... 1-32
Front passenger air bag and status light .... 1-33
Front-seat mounted side-impact
supplemental air bag system .................. 1-36
Roof-mounted curtain side-impact
supplemental air bag system .................. 1-36
Air bag warning labels ............................. 1-39
Air bag warning light ....................... 1-39, 2-12
Air cleaner housing filter .......................... 8-18
Air conditioner Air conditioner operation ...................... 4-17
Air conditioner service ......................... 4-24
Air conditioner specification label ............ 9-12
Air conditioning system refrigerant and
lubricant recommendations .............. 4-24, 9-6
In-cabin microfilter ............................. 4-23
Air deflectors ....................................... 9-16
Alarm, How to stop alarm
(see vehicle security system) ..................... 2-26
Alcohol, drugs and driving .......................... 5-7
Antenna ............................................. 4-73
Anti-lock Braking System (ABS) .................. 5-26
Anti-lock braking system (ABS) warning light ..... 2-9
Appearance care Exterior appearance care ........................ 7-2
Interior appearance care ........................ 7-5
Audible reminders ................................. 2-15
Audio operation precautions ...................... 4-24 Audio system
....................................... 4-24
Steering wheel audio controls ................ 4-71
Autochanger Compact Disc (CD) ........................... 4-42
Autolight system ................................... 2-30
Automatic Air conditioner (Type A) ....................... 4-18
Automatic adjusting function
(front windows) ................................ 2-43
Automatic transmission fluid (ATF) ........... 8-11
Door locks ........................................ 3-5
Driving with automatic transmission .......... 5-12
Auxiliary input jacks ................................ 4-69
Avoiding collision and rollover ...................... 5-5
B
Battery .............................................. 8-14
Battery saver system .......................... 2-31
Intelligent Key .................................. 8-22
Variable voltage control system ............... 8-16
Before starting the engine ........................ 5-10
Belts (See drive belts) ............................. 8-16
Bluetooth
®hands-free phone system
(models with navigation system) .................. 4-74
Bluetooth®hands-free phone system
(models without navigation system) .............. 4-85
Booster seats ...................................... 1-23
Brake Anti-lock Braking System (ABS) .............. 5-26
Brake and clutch fluid ......................... 8-12
Brake fluid ...................................... 8-13
Brake system ................................... 5-25 Parking brake operation
....................... 5-20
Warning light ..................................... 2-9
Break-in schedule .................................. 5-22
Brightness control Display ON/OFF button ......................... 4-6
Instrument panel ............................... 2-32
Bulb check/instrument panel ........................ 2-8
Bulb replacement .................................. 8-24
C
Cabin air filter ...................................... 4-23
Capacities and recommended fuel/lubricants ..... 9-2
Car phone or CB radio ............................ 4-74
Cargo cover ........................................ 2-41
Catalytic converter, Three way catalyst ............ 5-2
Center multi-function control panel
(models with navigation system) .................... 4-2
Child restraint, Installation using the seat
belts ................................................. 1-19
Child restraints ..................................... 1-17
Booster seats .................................. 1-23
Precautions on child restraints ................ 1-17
Top tether strap ................................ 1-19
Child safety ......................................... 1-11
Chimes Audible reminders ............................. 2-15
Seat belt warning light and chime ............ 2-11
Circuit breaker, Fusible link ....................... 8-21
Cleaning exterior and interior ................. 7-2, 7-5
Clock .......................................... 2-7, 2-23
Clutch fluid ......................................... 8-12
Cockpit ............................................... 2-2
Model "Z34-D" EDITED: 2009/ 9/ 10

Black plate (3,1)
FuelCapacities and recommended fuel/
lubricants ......................................... 9-2
Fuel economy .................................. 5-23
Fuel economy information (display) ............. 4-8
Fuel octane rating ................................ 9-3
Fuel recommendation ............................ 9-3
Fuel-filler cap ................................... 3-34
Fuel-filler door .................................. 3-34
Gauge ............................................ 2-6
Fuses ............................................... 8-20
Fusible links ........................................ 8-21
G
Garage door opener, HomeLink
®Universal
Transceiver ......................................... 2-47
Gas cap ............................................ 3-34
Gauge ................................................ 2-4
Engine coolant temperature gauge ............. 2-6
Fuel gauge ....................................... 2-6
Odometer ......................................... 2-5
Speedometer ..................................... 2-5
Tachometer ....................................... 2-5
Trip computer .................................. 2-20
General maintenance ................................ 8-2
Glove box. .......................................... 2-39
H
Hands-free phone system, Bluetooth®
(models with navigation system) .................. 4-74
Hands-free phone system, Bluetooth
®
(models without navigation system) .............. 4-85
Hatch, Rear hatch ................................. 3-17
Hazard warning flasher switch .................... 2-33Head restraints
....................................... 1-5
Headlights Bulb replacement .............................. 8-26
Headlight switch ............................... 2-30
Xenon headlights .............................. 2-29
Heated seats ....................................... 2-34
Heater Engine block heater ........................... 5-31
Heater and air conditioner operation ......... 4-17
HomeLink
®Universal Transceiver ................. 2-47
Hood release ....................................... 3-16
Horn ................................................ 2-34
I
Ignition switch (Push-button) .................................... 5-7
Automatic transmission models ............... 5-12
Manual transmission models .................. 5-16
Immobilizer system ................................. 2-26
In-cabin microfilter ................................. 4-23
Indicator lights ..................................... 2-12
INFO button .......................................... 4-6
Inside mirror ........................................ 3-36
Inspection/maintenance (I/M) test ................ 9-22
Instrument brightness control ..................... 2-32
Instrument panel ..................................... 2-3
Instrument pocket .................................. 2-38
Intelligent Key ........................................ 3-2
Intelligent Key battery discharge indicator ....... 2-17
Intelligent Key removal indicator .................. 2-17
Intelligent Key system ............................... 3-6
Battery replacement ........................... 8-22
Intelligent Key system warning light .......... 2-10
Key operating range ............................. 3-8 Key operation
.................................... 3-9
Warning signals ................................ 3-11
Interior light control switch ........................ 2-44
Interior light replacement .......................... 8-26
Interior lights ....................................... 2-44
Interior trunk lid release ........................... 3-20
iPod
®player operation ............................. 4-61
J
Jump starting ....................................... 6-15
K
Keyless entry
(See remote keyless entry system) ............... 3-13
Keys................................................... 3-2 For Intelligent Key system ....................... 3-6
L
Labels Air bag warning labels ......................... 1-39
Air conditioner specification label ............ 9-12
Emission control information label ............ 9-11
Engine serial number .......................... 9-11
F.M.V.S.S./C.M.V.S.S. certification label. ..... 9-11
Tire and Loading information label .... 8-29, 9-12
Vehicle identification number (VIN) ........... 9-10
License plate, Installing front license plate. ...... 9-13
Light Air bag warning light .......................... 1-39
Bulb replacement .............................. 8-24
Cargo area courtesy light ..................... 2-46
Cargo light ..................................... 2-46
Fog light switch ................................ 2-33
10-3
Model "Z34-D" EDITED: 2009/ 9/ 10

Black plate (4,1)
10-4
Headlight switch............................... 2-30
Headlights bulb replacement ................. 8-26
Indicator lights ................................. 2-12
Interior light control switch .................... 2-44
Interior lights ................................... 2-44
Map lights ...................................... 2-44
Replacement ................................... 8-24
Trunk light ...................................... 2-46
Vanity mirror lights ............................. 2-45
Warning/indicator lights and audible
reminders ......................................... 2-9
Xenon headlights .............................. 2-29
Lights, Exterior and interior light replacement . . . 8-26
Loading information (See vehicle loading
information) ......................................... 9-17
Lock Automatic door locks ............................ 3-5
Door locks ........................................ 3-4
Power door lock ................................. 3-4
Rear hatch lock ................................ 3-17
Trunk lid ........................................ 3-19
Locking with mechanical key ........................ 3-4
Low tire pressure warning light ................... 2-10
Low tire pressure warning system (See tire
pressure monitoring system (TPMS)) .............. 5-3
M
Maintenance Battery .......................................... 8-14
General maintenance ............................ 8-2
Indicators for maintenance (dot matrix) ...... 2-19
Inside the vehicle ................................ 8-3
Maintenance information (display) .............. 4-8
Maintenance precautions ........................ 8-5 Maintenance requirements
...................... 8-2
Outside the vehicle .............................. 8-2
Seat belt maintenance ......................... 1-16
Malfunction indicator light (MIL) .................. 2-13
Manual front seat adjustment ....................... 1-4
Map lights .......................................... 2-44
Master warning light ............................... 2-11
Mechanical key (Intelligent Key system) ............ 3-3
Meter, Trip computer .............................. 2-20
Meters and gauges .................................. 2-4
Instrument brightness control ................. 2-32
Mirror Inside mirror .................................... 3-36
Outside mirrors ................................ 3-38
Vanity mirror .................................... 3-39
Multi-function controller ............................. 4-3
Music box hard-disk drive ......................... 4-63
N
New vehicle break-in .............................. 5-22
NISSAN Vehicle Immobilizer System ............. 2-26
NISSAN voice recognition system ................ 4-98
No key warning .................................... 2-17
O
Odometer ............................................. 2-5
Off-road recovery .................................... 5-6
Oil Capacities and recommended fuel/
lubricants ......................................... 9-2
Changing engine oil and filter ................... 8-9
Checking engine oil level ........................ 8-9
Engine oil ......................................... 8-9 Engine oil viscosity
.............................. 9-5
Oil filter replacement indicator ................ 2-19
Opening the soft top .............................. 3-21
Operation, Indicators for operation
(dot matrix) ......................................... 2-16
Outside mirrors .................................... 3-38
Overheat, If your vehicle overheats ............... 6-18
Owner’s Manual/Service Manual order
information .......................................... 9-24
P
Panic alarm ......................................... 3-14
Parking Brake break-in .................................. 5-25
Parking brake operation ....................... 5-20
Parking on hills ................................. 5-23
Performance dampers ............................. 5-29
Phone Bluetooth
®hands-free phone system
(models with navigation system) .............. 4-74
Car phone or CB radio ........................ 4-74
Power Front seat adjustment ........................... 1-3
Power door lock ................................. 3-4
Power outlet .................................... 2-37
Power steering fluid ........................... 8-12
Power steering system ........................ 5-24
Power windows ................................ 2-42
Precautions Audio operation ................................ 4-24
Braking precautions ........................... 5-25
Child restraints ................................. 1-17
Cruise control .................................. 5-20
Cruise control operations ..................... 5-16
Model "Z34-D" EDITED: 2009/ 9/ 10
