2010 MITSUBISHI LANCER SPORTBACK headlight bulb

7-68 Vehicle care and maintenance
7
4. Turn the bulb counterclockwise while pressing it and pull
it out of the socket.
5. To install a bulb, perform the removal steps in reverse.
Headlights (low/high beam, for vehicles equipped
with high intensity discharge lights)
N00902000029
Do not attempt to disassemble or repair headlights, and do not
attempt to replace their bulbs.Adjustment of headlight aim
N00943200121
The alignment of the headlights should be checked by an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.
WA R N I N G
!

A high voltage is present in the power circuit and in
the bulbs and bulb terminals. To avoid the risk of an
electric shock, contact an authorized Mitsubishi
dealer whenever repair or replacement is necessary.
BK0103001US.book 68 ページ ２００９年８月２０日　木曜日　午前１０時４５分

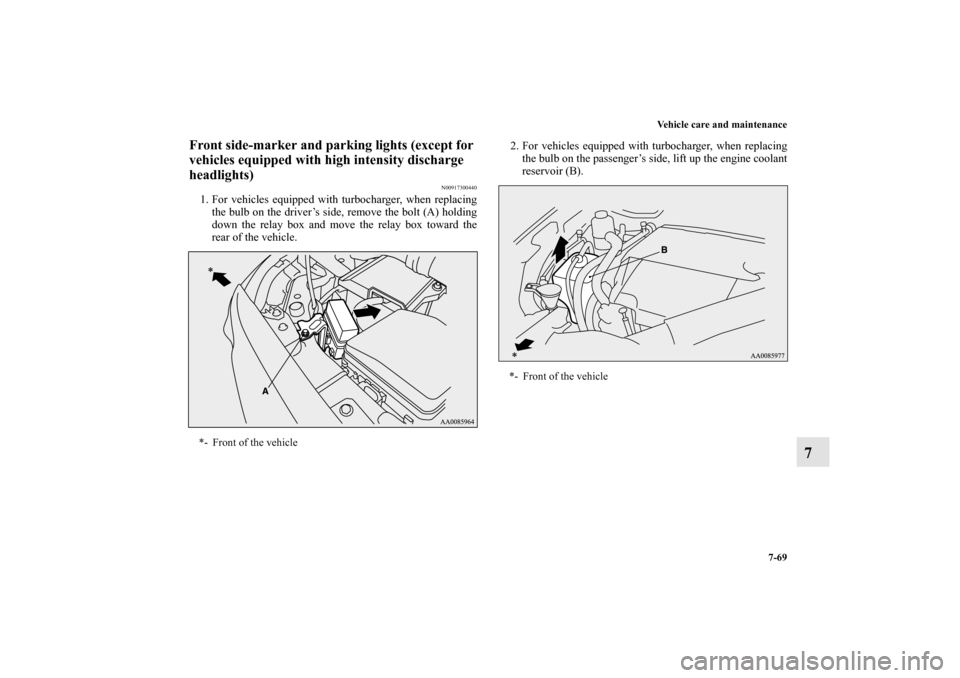

Vehicle care and maintenance
7-69
7
Front side-marker and parking lights (except for
vehicles equipped with high intensity discharge
headlights)
N00917300440
1. For vehicles equipped with turbocharger, when replacing
the bulb on the driver’s side, remove the bolt (A) holding
down the relay box and move the relay box toward the
rear of the vehicle.2. For vehicles equipped with turbocharger, when replacing
the bulb on the passenger’s side, lift up the engine coolant
reservoir (B).*- Front of the vehicle
*- Front of the vehicle
BK0103001US.book 69 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Alphabetical index
2Card holder 3-274
Cargo floor boxes 3-288
Cargo loads 4-12
Cargo room light
Bulb capacity 7-61
Replacement 7-91
Switch 3-283
Catalytic converter 7-3
Certification label 9-5
Charging system warning light 3-216
Chassis number 9-3
Child restraint 2-25
Child safety locks for rear door 3-58
Cigarette lighter 3-276
Cleaning
Inside of your vehicle 7-93
Outside of your vehicle 7-94
Clutch
Fluid 7-21
,9-10
Pedal free play 7-39
Coat hooks 3-293
Combination headlights and dimmer switch 3-220
Consumer information 8-2
Continuously variable transmission (CVT) 3-93
Fluid 7-17,9-10
Selector lever operation 3-94
Sports mode 3-100
Coolant (engine) 7-11
,9-10
Cruise control 3-144Cup holder 3-288
D
Daytime running lights
Bulb capacity 7-58
Replacement 7-66
Defogger (rear window) 3-240
Defrosting or defogging (windshield, door windows) 5-14
,5-
24
Digital clock 5-99
Dimensions 9-6
Dimmer (high/low beam change) 3-224
Disc brake pads 7-44
Dome light (rear)
Bulb capacity 7-61
Replacement 7-90
Switch 3-281
Dome light/Reading lights
Bulb capacity 7-61
Replacement 7-88
Switch 3-279
Doors
Lock 3-53
Power door locks 3-56
Drive belt 7-45
Driving during cold weather 4-5
Driving, alcohol and drugs 4-2
Dual height adjustable cargo floor board 3-291
BK0103001US.book 2 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Alphabetical index
4
H
Handling of compact discs 5-94
Hands-free Bluetooth® cellular phone interface system with
voice recognition 3-242
Hazard warning flasher switch 3-229
Hazard warning lights 3-214
Head restraints 2-9
Headlight leveling switch 3-227
Headlights
Bulb capacity 7-58
Dimmer 3-224
Headlight flasher 3-225
Leveling switch 3-227
Replacement 7-61
,7-64
Switch 3-220
High beam indicator 3-214
High-mounted stop light 7-58
Hill start assist 3-132
Hood lock release mechanism and safety catch 7-46
Horn switch 3-241
I
If the vehicle breaks down 6-2
Ignition cables 7-43
Ignition switch 3-24
,3-81
Important facts to know in case of an accident 8-5
Indicators 3-214
Information screen display 3-217Inside day/night rearview mirror 3-77
Instrument cluster 3-160
Interior lights 3-279
J
Jack 6-8
Storage 6-7
Jump-starting the engine 6-2
K
Key reminder buzzer 3-55
Keyless entry system 3-8
Keys 3-2
L
Labeling 9-2
License plate light
Bulb capacity 7-58
Replacement 7-86
Limited-slip differential 3-130
Loading information 4-7
Lubricants 9-10
M
Malfunction indicator 3-215
Manual transaxle 3-90
Oil 7-17
,9-10
Shift points (recommended speed) 3-91
Mirror
BK0103001US.book 4 ページ ２００９年８月２０日　木曜日　午前１０時４５分
