2010 MITSUBISHI LANCER EVOLUTION park assist

Quick index
1
If this warning light comes on or flashes while you’re driving...
N00200700995
NOTE

For information regarding warning displays in the multi-information display, refer to “Multi-information display indicators”
on page 3-151.


These warning lights will come on for a few seconds for a bulb check when the ignition switch is first turned to “ON”.
Warning light
Do this
Ref. page
Charging system warning light
Park your vehicle in a safe place and stop the engine.
Contact an authorized Mitsubishi Motors dealer or a repair facility of
your choice for assistance.P.3-197
or
Brake warning light
If this light comes on while driving, check to see that the parking
brake is fully released.

If this light stays on after releasing the parking brake, stop and check
the brake fluid level.

If the brake fluid level is correct, there may be a system malfunction.
Avoid hard braking and high speeds, and contact an authorized Mit-
subishi Motors dealer or a repair facility of your choice for assistance.P.3-195
or
Engine malfunction indicator
(“SERVICE ENGINE SOON” or “Check
engine light”)
Although your vehicle will usually be drivable and not need towing,
have the engine system checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as possible. If the
vehicle is not drivable, contact emergency roadside assistance at 1-
888-648-7820 (for vehicles sold in U.S.A.) or 1-888-576-4878 (for
vehicles sold in Canada), an authorized Mitsubishi Motors dealer, or
local towing company for assistance.P.3-196
BK0105501US.book 1 ページ ２００９年８月１０日　月曜日　午前１０時３２分

3
Features and controls
Break-in period . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Electronic immobilizer (Anti-theft starting system) . . . . . . . . . . . . .3- 4
Keyless entry system (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . .3- 9
Free-hand Advanced Security Transmitter
(F.A.S.T.-key) (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 16
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 53
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 56
“Child safety locks” for rear door . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 58
Trunk lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 59
Inside emergency trunk lid release . . . . . . . . . . . . . . . . . . . . . . . . . .3- 62
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 63
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 67
Sunroof (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 71
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 74
Steering wheel tilt lock lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 76
Inside day/night rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 77
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 79
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 81
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 84
Starting and stopping the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 85
Turbocharger operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 89
Clutch pedal operation (if so equipped) . . . . . . . . . . . . . . . . . . . . . .3- 90
Manual transaxle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 91
Twin Clutch SST (Sportronic Shift Transmission)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 93
All-wheel drive system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 114
Cautions on handling of all-wheel drive vehicles . . . . . . . . . . . . . . .3- 115
S-AWC (Super-All Wheel Control). . . . . . . . . . . . . . . . . . . . . . . . . .3- 117
Anti-lock braking system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 123
Active stability control (ASC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 127
Limited-slip differential. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 131Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 131
Power steering system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 133
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 133
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 141
Low-slung suspension system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 147
Instrument cluster. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 148
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 151
Indicator light, warning light, and information
screen display list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 183
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 195
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 195
Information screen display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 198
Combination headlights and dimmer switch . . . . . . . . . . . . . . . . . . 3- 200
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 208
Hazard warning flasher switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 209
Front fog light switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 210
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 211
Electric rear window defogger switch . . . . . . . . . . . . . . . . . . . . . . . 3- 219
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 220
Hands-free Bluetooth® cellular phone
interface system with voice recognition (if so equipped) . . . . . . 3- 220
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 252
Ashtray (if so equipped). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 254
Cigarette lighter (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 256
12 V power outlet (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 3- 257
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 258
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 262
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 266
Bottle holder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 268
Assist grip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 268
Coat hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 269
BK0105501US.book 1 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Features and controls
3-33
3
Startability of Twin Clutch SST vehicle with an ambient
temperature of -22 °F (-30 °C) or lower
When the ambient temperature is -22 °F (-30 °C) or lower, it
may not be possible to start from a standstill even with the
gearshift lever in the “D” (DRIVE) position.
This phenomenon occurs because the transmission has not
warmed up sufficiently; it does not indicate a problem. If it
occurs, place the gearshift lever in the “P” (PARK) position
and let the engine idle for at least 10 minutes.
The transmission will warm up, and you will be able to start
normally.
Do not leave the vehicle during warm-up operation.
Flooded engine
If the engine has flooded during starting, first run the starter for
5 to 6 seconds while holding down the accelerator pedal.
Return the ignition switch to the “LOCK (PUSH OFF)” posi-
tion and release the accelerator pedal. Wait a moment, then
without depressing the accelerator pedal, turn the ignition
switch to the “START” position for another 5 to 6 seconds.
Release the ignition switch if the engine starts. Repeat as nec-
essary. Contact your Mitsubishi Motors dealer or a repair facil-
ity of your choice for assistance.
To operate using the emergency key
N00514800020
Emergency key
N00515200092
The emergency key is built into the F.A.S.T.-key.
When the F.A.S.T.-key cannot be used, such as when the bat-
tery of the F.A.S.T.-key or the vehicle has run down, the emer-
gency key can be used to lock and unlock the doors and to start
the engine.
To use the emergency key (1), unlock the lock knob (2) and
remove it from the F.A.S.T.-key (3).
CAUTION
!

When starting the engine, make sure you depress
the brake pedal. If you start the engine with the
accelerator pedal depressed, move your foot to the
brake pedal as soon as the engine has started.
BK0105501US.book 33 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Features and controls
3-87
3
Startability of Twin Clutch SST vehicle with ambient
temperature of -22
°F (-30
°C) or lower
When the ambient temperature is -22 °F (-30 °C) or lower, it
may not be possible to start from a standstill even with the
gearshift lever in the “D” (DRIVE) position.
This phenomenon occurs because the transmission has not
warmed up sufficiently; it does not indicate a problem. If it
occurs, place the gearshift lever in the “P” (PARK) position
and let the engine idle for at least 10 minutes.
The transmission will warm up, and you will be able to start
normally.
Do not leave the vehicle during warm-up operation.Flooded engineIf the engine has flooded during starting, first run the starter for
5 to 6 seconds while holding down the accelerator pedal.
Release the ignition switch to the “LOCK” position and the
accelerator pedal. Wait a moment, then without depressing the
accelerator pedal, turn the ignition switch to the “START”
position for another 5 to 6 seconds. Release the ignition key if
the engine starts. Repeat as necessary if the engine fails to start,
or contact your local Mitsubishi Motors dealer or a repair facil-
ity of your choice for assistance.
Stopping the engine
N00542300075
1. Bring the vehicle to a complete stop.
2. Fully engage the parking brake while depressing the brake
pedal.
3. For vehicles with a manual transaxle, turn the ignition
switch to the “LOCK” position to stop the engine, and
then move the gearshift lever to the 1st (on a uphill) or
“R” (Reverse) (on a downhill) position.
For vehicles with Twin Clutch SST, place the gearshift
lever in the “P” (PARK) position, and then turn the igni-
tion switch to the “LOCK” position to stop the engine.
BK0105501US.book 87 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Features and controls
3-189
3

Immobilizer is registered. Refer to “Immobilizer” on page 3-7, 3-42.

The brake fluid level is low.

There is a fault in the brake system.
Park the vehicle in a safe place and
inspect it.

If the light still illuminates after the
inspection, contact an authorized Mit-
subishi Motors dealer or a repair facil-
ity of your choice for assistance.
Refer to “Brake warning display” on
page 3-198.

There is a fault in the Anti-lock brak-
ing system.
Avoid sudden braking and high-speed
driving, park the vehicle in a safe
place, and take corrective measures.
Refer to “Anti-lock braking system
warning light / display” on page 3-124.

The tire pressure in one of the tires
(except spare tire) is low.Refer to “Tire pressure monitoring system
warning light / display” on page 3-142.

There is a fault in the Tire pressure
monitoring system.Refer to “Tire pressure monitoring system
warning light / display” on page 3-142.
Screen
Cause
Do this (Reference)
BK0105501US.book 189 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Vehicle care and maintenance
7-33
7
Evaporative emission control system (except
evaporative emission canister)
N00941400116
If the fuel-vapor vent line is clogged or damaged, the fuel-
vapor mixture will escape, polluting the air.
Have the system checked at an authorized Mitsubishi Motors
dealer at the mileage specified in the “WARRANTY AND
MAINTENANCE MANUAL”.
WA R N I N G
!

If you see a fuel leak or if you smell fuel, do not run
the engine. Any spark (including from the ignition),
flame or smoking material could cause an explosion
or fire. Call an authorized Mitsubishi Motors dealer
or a repair facility of your choice for assistance.
BK0105501US.book 33 ページ ２００９年８月１０日　月曜日　午前１０時３２分

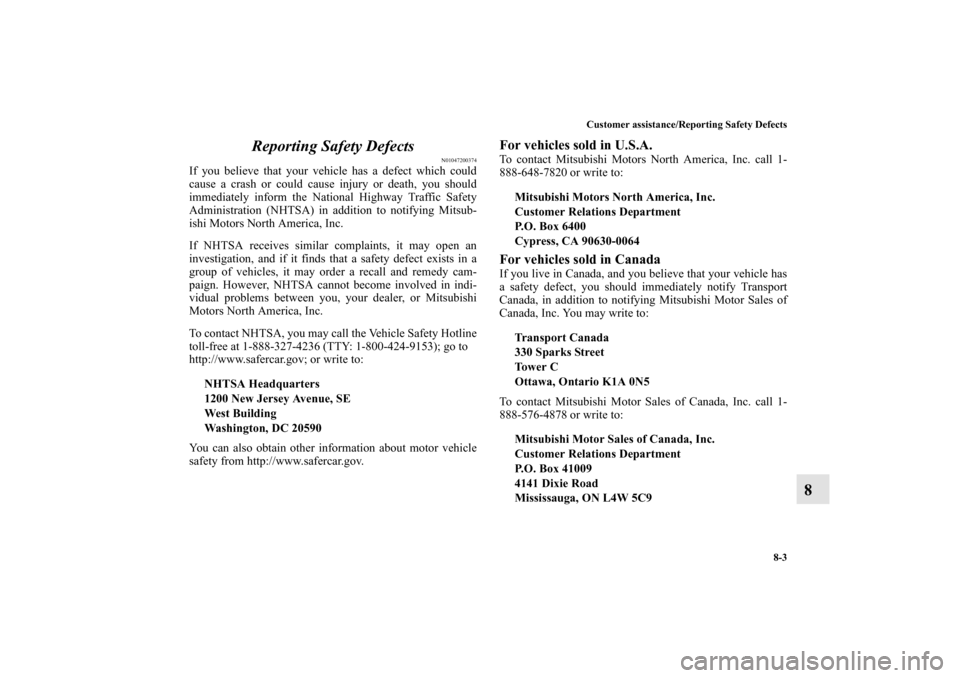

Customer assistance/Reporting Safety Defects
8-3
8 Reporting Safety Defects
N01047200374
If you believe that your vehicle has a defect which could
cause a crash or could cause injury or death, you should
immediately inform the National Highway Traffic Safety
Administration (NHTSA) in addition to notifying Mitsub-
ishi Motors North America, Inc.
If NHTSA receives similar complaints, it may open an
investigation, and if it finds that a safety defect exists in a
group of vehicles, it may order a recall and remedy cam-
paign. However, NHTSA cannot become involved in indi-
vidual problems between you, your dealer, or Mitsubishi
Motors North America, Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline
toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov; or write to:
You can also obtain other information about motor vehicle
safety from http://www.safercar.gov.
For vehicles sold in U.S.A.To contact Mitsubishi Motors North America, Inc. call 1-
888-648-7820 or write to:For vehicles sold in CanadaIf you live in Canada, and you believe that your vehicle has
a safety defect, you should immediately notify Transport
Canada, in addition to notifying Mitsubishi Motor Sales of
Canada, Inc. You may write to:
To contact Mitsubishi Motor Sales of Canada, Inc. call 1-
888-576-4878 or write to: NHTSA Headquarters
1200 New Jersey Avenue, SE
West Building
Washington, DC 20590Mitsubishi Motors North America, Inc.
Customer Relations Department
P.O. Box 6400
Cypress, CA 90630-0064
Transport Canada
330 Sparks Street
Tower C
Ottawa, Ontario K1A 0N5
Mitsubishi Motor Sales of Canada, Inc.
Customer Relations Department
P.O. Box 41009
4141 Dixie Road
Mississauga, ON L4W 5C9
BK0105501US.book 3 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Alphabetical index
1
A
Accessory (installation) 1-7
ACD (Active center differential system) 3-117
Active stability control (ASC) 3-127
ASC OFF indicator 3-129
ASC operation display 3-129
ASC warning display 3-130
Air cleaner filter 7-12
Air conditioning
Automatic air conditioning 5-12
,5-22
Important air conditioning operating tips 5-32
Air purifier 5-33
All-wheel drive system 3-114
Aluminum wheels 7-77
Antenna
Roof antenna 5-94
,5-95
Anti-lock braking system 3-123
Warning light / display 3-124
,3-125
Arm rest 2-7
ASC 3-127
Ashtray 3-254
Assist grip 3-268
Audio
AM/FM electronically tuned radio with CD player 5-33
AM/FM electronically tuned radio with 6 CD autochanger 5-
52
Error codes 5-87
,5-89
Audio systemHandling of compact discs 5-91
Auxiliary audio connector (RCA) 5-82
Auxiliary video connector (RCA) 5-82
AWC Control fluid
Fluid 9-9
AWC control fluid 7-15
AYC fluid
Fluid 9-9
AYC (Active yaw control system) 3-118
B
Back-up lights
Bulb capacity 7-47
Replacement 7-65
Ball joint, steering linkage seals and drive shaft boots 7-34
Battery 7-18
Charging system warning light 3-197
Disconection and connection 7-18
During cold weather 7-18
Specification 9-8
Bottle holder 3-268
Brake
Anti-lock braking system 3-123
Braking 4-6
Fluid 7-16
,9-9
Hose 7-34
Parking brake 3-74
Parking brake lever stroke 7-29
Pedal 3-131
BK0105501US.book 1 ページ ２００９年８月１０日　月曜日　午前１０時３２分
