2010 MITSUBISHI LANCER EVOLUTION ECO mode

Comfort controls
5-69
5
To unlock locked channelsThere are two ways to unlock a locked channel. One way is to
unlock a single locked channel of your choice. The other way
is to unlock all locked channels.
To unlock a locked channel, you must enter the lock cancella-
tion code.
1. To unlock a single locked channel of your choice, select
the locked channel that you want to unlock. (If you want
to unlock all locked channels, it doesn’t matter which
locked channel you have selected.)
2. Press the TUNE/SOUND switch (7) for about 2 seconds
or longer to enter the MENU mode. Then select the
LOCK setting mode.
3. In the LOCK setting mode, turn the TUNE/SOUND
switch (7) and select “UNLOCK CH” when you want to
unlock one locked channel of your choice or “UNLOCK
ALL” when you want to unlock all locked channels.
4. When you press the TUNE/SOUND switch (7), the code
entry window will be shown in the display.5. Use the Memory select buttons (10) to enter the code
(1111 to 6666) and then press the TUNE/SOUND switch
(7).
6. If the entered code is correct, “UNLOCKED” will be
shown and the locked channel(s) will be unlocked. The
satellite radio will then return to the LOCK setting mode.
If the entered code is incorrect, a warning sound will be
emitted and “CODE ERROR” will be displayed. The code
entry window will then be shown again.
You can try to enter the code again, no matter how many
times an incorrect code has been entered.
BK0105501US.book 69 ページ ２００９年８月１０日　月曜日　午前１０時３２分

5-70 Comfort controls
5
NOTE

The default factory setting for the code is “1111”.


You can change the code to any number you want with the
“CODE EDIT” function.


To cancel a code entry, turn the TUNE/SOUND switch (7)
while the code entry window is displayed.
The code entry will be cancelled and then the setting
menu will be switched.
To change the lock cancellation codeYou can change the code for unlocking channel(s) to any num-
ber you want.
1. Press the TUNE/SOUND switch (7) for about 2 seconds
or longer to enter the MENU mode. Then select the
LOCK setting mode.
2. In the LOCK setting mode, turn the TUNE/SOUND
switch (7) and select “CODE EDIT”.
3. When you press the TUNE/SOUND switch (7), the code
entry window will be shown in the display.
4. Use the memory select buttons (10) to enter the current
code and then press the TUNE/SOUND switch (7).
5. If the correct code is entered, the code entry window will
be shown again. Enter your desired code.
If the entered code is incorrect, a warning sound will be
emitted and “CODE ERROR” will be displayed. The code
entry window will then be shown again.
You can try to enter the code again, no matter how many
times an incorrect code has been entered.
6. After you enter the new code, press the TUNE/SOUND
switch (7). The code entry window will be shown again
for confirmation. Enter the new code again and press the
TUNE/SOUND switch (7).
BK0105501US.book 70 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Comfort controls
5-71
5
7. “STORED” will be displayed for 2 seconds, the code will
be changed and the satellite radio will return to the LOCK
setting mode.NOTE

The SKIP settings, LOCK settings and lock cancellation
code are stored in memory. Disconnecting the battery
cable will erase these settings.
(The lock cancellation code will reset to the default fac-
tory setting: “1111”).
To reset the lock cancellation codeIn case you forget the code, it is possible to reset the code to the
factory setting (1111).
1. With the audio power OFF, press the PWR switch (2) and
the TUNE/SOUND switch (7) at the same time.
The display will show “CODE INITIAL”.
2. Press the TUNE/SOUND switch (7). “YES” will be dis-
played. To reset the code, press the TUNE/SOUND
switch (7) again. “STORED” will be displayed for 2 sec-
onds and the code will be reset.
If you do not want to reset the code, turn the
TUNE/SOUND switch (7) to display “CANCEL” and
then press the TUNE/SOUND switch (7) again.
Text messageYou can change what is shown on the display when the satellite
radio tunes into a channel.
Press the DISP button (4) repeatedly to change to your desired
display mode. The order is: Channel Number + Channel Name
→ Category Name → Artist Name → Song Title → Composer
NameNOTE

Category name can also displayed by pressing the PTY
button (8).


The display can show up to 12 characters. If there are
more than 12 characters, press the PAGE button (3) to
view the next 12 characters.
BK0105501US.book 71 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Comfort controls
5-73
5

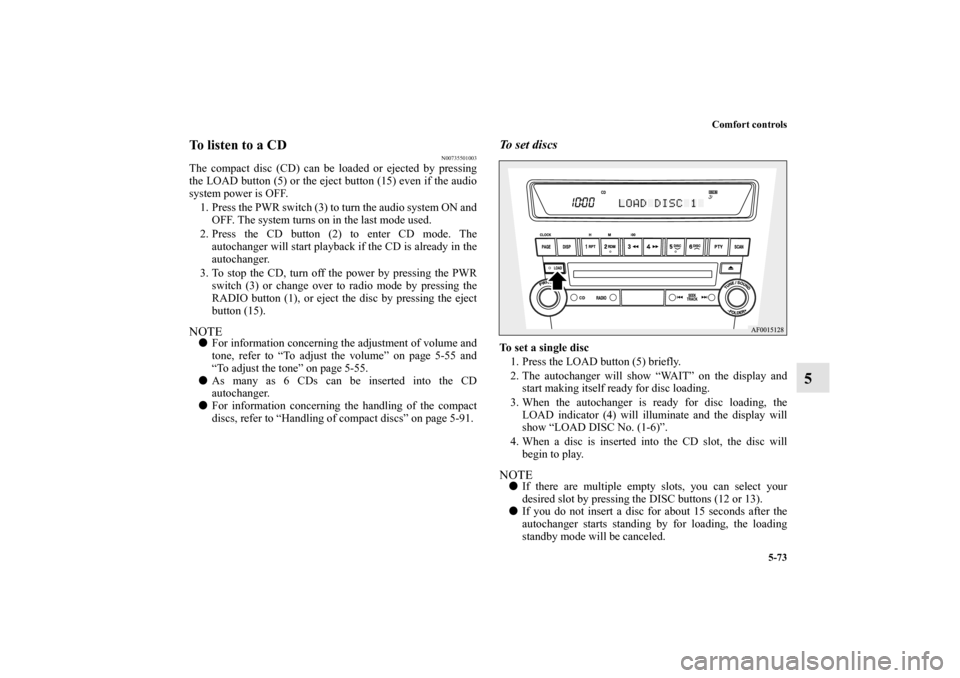

To listen to a CD
N00735501003
The compact disc (CD) can be loaded or ejected by pressing
the LOAD button (5) or the eject button (15) even if the audio
system power is OFF.
1. Press the PWR switch (3) to turn the audio system ON and
OFF. The system turns on in the last mode used.
2. Press the CD button (2) to enter CD mode. The
autochanger will start playback if the CD is already in the
autochanger.
3. To stop the CD, turn off the power by pressing the PWR
switch (3) or change over to radio mode by pressing the
RADIO button (1), or eject the disc by pressing the eject
button (15).NOTE

For information concerning the adjustment of volume and
tone, refer to “To adjust the volume” on page 5-55 and
“To adjust the tone” on page 5-55.


As many as 6 CDs can be inserted into the CD
autochanger.


For information concerning the handling of the compact
discs, refer to “Handling of compact discs” on page 5-91.
To set discsTo set a single disc
1. Press the LOAD button (5) briefly.
2. The autochanger will show “WAIT” on the display and
start making itself ready for disc loading.
3. When the autochanger is ready for disc loading, the
LOAD indicator (4) will illuminate and the display will
show “LOAD DISC No. (1-6)”.
4. When a disc is inserted into the CD slot, the disc will
begin to play.NOTE

If there are multiple empty slots, you can select your
desired slot by pressing the DISC buttons (12 or 13).


If you do not insert a disc for about 15 seconds after the
autochanger starts standing by for loading, the loading
standby mode will be canceled.
BK0105501US.book 73 ページ ２００９年８月１０日　月曜日　午前１０時３２分

5-74 Comfort controls
5
To set all the discs
1. Press the LOAD button (5) for 2 seconds or longer (until
you hear a beep).
2. The autochanger will select the lowest-numbered empty
slot and switch to loading standby mode.
3. When the display shows “LOAD DISC No.(1-6)”, insert a
disc. The autochanger will then automatically select the
next empty slot and enter loading standby mode.
4. Repeat the above-described steps until every slot contains
a disc. Playback will then begin with the disc that you
inserted last.NOTE

If you press the LOAD button (5) again while the
autochanger is in loading standby mode, the loading
standby mode will be canceled.
To eject discsTo eject a single disc
Press the eject button (15) briefly to eject the currently selected
disc.NOTE

If you press the eject button (15) while the display is
showing “LOAD DISC No.(1-6)”, the loading standby
mode will be canceled and the next disc will be ejected.


If you do not remove an ejected disc before 15 seconds
have elapsed, the disc will be reloaded and the eject mode
will be canceled. The reloaded disc will not be played.
BK0105501US.book 74 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Comfort controls
5-75
5
To eject all the discs
1. Press the eject button (15) for 2 seconds or longer (until
you hear a beep).
2. The currently selected disc will be ejected. When you
remove the ejected disc, the next disc will automatically
be ejected.
3. Repeat the above-described steps until all of the discs
have been ejected. The autochanger will then enter load-
ing standby mode.NOTE

If you do not remove an ejected disc before 15 seconds
have elapsed, the disc will be reloaded and the eject mode
will be canceled. The reloaded disc will not be played.
To select a desired discYou can select your desired disc by using the DISC button (12
or 13). The active disc will be indicated by “ ” on the display.
Disc up
Press the DISC button (13) repeatedly until the desired disc
number appears on the display.
Disc down
Press the DISC button (12) repeatedly until the desired disc
number appears on the display.
To listen to a music CDPush the CD button (2) if the discs are already in the
autochanger. The autochanger will enter CD mode and start
playback. The disc number, the track number, and the playing-
time will appear on the display. The discs in the unit will be
played consecutively and continuously.
BK0105501US.book 75 ページ ２００９年８月１０日　月曜日　午前１０時３２分

5-76 Comfort controls
5
To listen to an MP3 CDThis autochanger allows you to play MP3 (MPEG Audio
Layer-3) files recorded on CD-ROMs, CD-Rs (recordable
CDs), and CD-RWs (rewritable CDs) in ISO9660 Level
1/Level 2, Joliet, and Romeo formats. Each disc may have a
maximum of 16 trees, 100 folders and 255 files. During MP3
playback, the unit can display ID3 tag information. For infor-
mation concerning ID3 tag, refer to “CD text and MP3 title dis-
play” on page 5-80.
Push the CD button (2) if the discs are already in the
autochanger.
The display shows “READING”, then playback begins. The
folder number, the track number, the playing-time, and “MP3”
indicator will appear on the display.
NOTE

While listening to a disc on which CD-DA (CD-Digital
Audio) and MP3 files have both been recorded, you can
switch between reading of the CD-DA, reading of the
MP3 files, and the external audio input mode by pressing
the CD button for 2 seconds or longer (until you hear a
beep).


With a disc that contains both CD-DA and MP3 files, the
CD-DA files are automatically played first.


The playback sound quality differs depending on the
encoding software and the bit rate. For details, refer to the
user manual of your encoding software.


Depending on file/folder configurations on a disc, it may
take some time before playback starts.


MP3 encode software and writing software are not sup-
plied with this unit.


You may encounter trouble in playing an MP3 or display-
ing the information of MP3 files recorded with certain
writing software or CD recorders (CD-R/RW drivers).


If you record too many folders or files other than MP3
onto a disc, it may take some time before playback starts.


This unit does not record MP3 files.


For information concerning CD-Rs/RWs, refer to “Notes
on CD-Rs/RWs” on page 5-93.
CAUTION
!

Attempting to play a file not in the MP3 format
which has the “.mp3” file name may produce noise
from the speakers and speaker damage, and can
damage your hearing.
BK0105501US.book 76 ページ ２００９年８月１０日　月曜日　午前１０時３２分

5-78 Comfort controls
5
To select a desired folder (MP3 CDs only)You can select your desired folder by turning the FOLDER
switch (17).
Folder up
Turn the FOLDER switch (17) clockwise until the desired
folder number appears on the display.
Folder down
Turn the FOLDER switch (17) counterclockwise until the
desired folder number appears on the display.
To select a desired trackYou can select your desired track by using the TRACK button
(18).
Track up
Press the side of the TRACK button (18) repeatedly until
the desired track number appears on the display.
When listening to a MP3 CD, keep pressing the button to con-
tinue to move up tracks.
Track down
Press the side of the TRACK button (18) repeatedly until
the desired track number appears on the display.
When listening to a MP3 CD, keep pressing the button to con-
tinue to move down tracks.NOTE

Pressing the side of the TRACK button (18) once dur-
ing the song will cause the player to restart playback from
the beginning of the song.
To repeat a trackTo repeat a track
Press the RPT button (8) briefly while the track is playing.
“RPT” will appear on the display. To exit the repeat mode,
press the RPT button again.
To repeat a disc (music CDs only)
While a song is playing, press the RPT button (8) for 2 second
or longer (until you hear a beep). “D-RPT” will appear on the
display. You can listen to the music CD repeatedly. To exit the
repeat mode, briefly press the RPT button again.
BK0105501US.book 78 ページ ２００９年８月１０日　月曜日　午前１０時３２分
