2010 MITSUBISHI ENDEAVOR Battery

6 Quick index
If this problem occurs...
N00200900795
Problem
Do this
Ref. Page
Cannot turn the key.
From “LOCK” to “ACC”
Turn the key while jogging the steering wheel in either direction.
From “ACC” to “LOCK”
Check the position of the selector lever.
The key cannot be removed unless the selector lever is set to the “P” (PARK) position.P.3-35,
3-36
Cannot shift the selector lever
from the “P” (PARK) position.Shift the selector lever while pressing the brake pedal.
Check that the ignition key is in the “ON” position.P.3-40
The windows are fogged up.
1. Set the mode selection dial to the “ ” or “ ” position.
2. Turn on the blower.P.5-12,
5-23
The engine does not start.
The lights do not come on.
The lights are dim.
The horn does not honk.
The horn sound is weak.Have the battery checked. Recharge or replace as needed.P. 6 - 2 ,
7-16BK0102600US.book 6 ページ ２００９年３月３０日　月曜日　午後２時２分

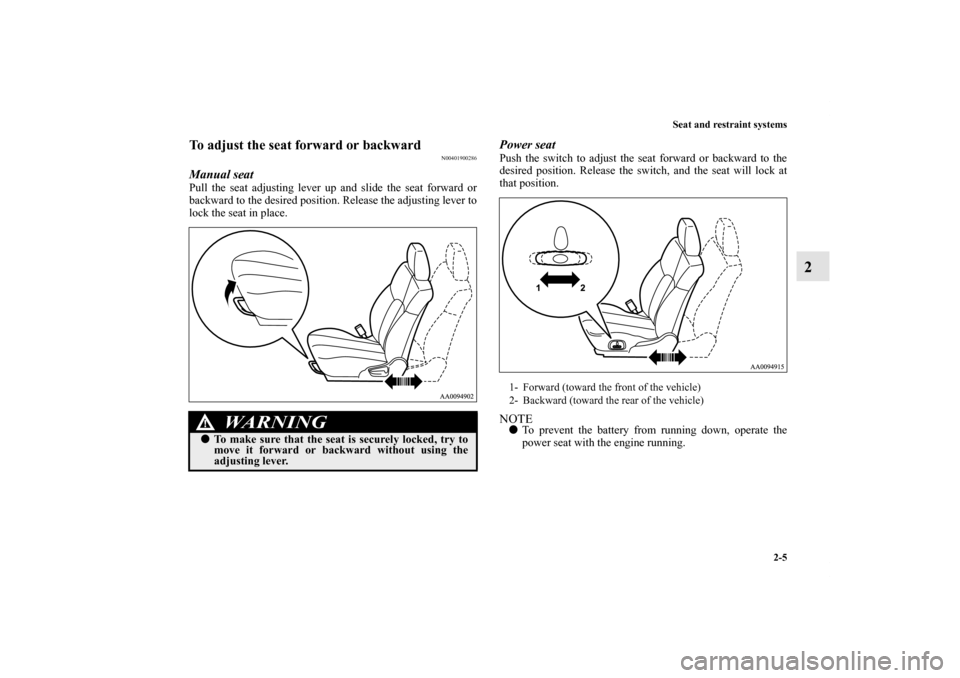

Seat and restraint systems
2-5
2
To adjust the seat forward or backward
N00401900286
Manual seatPull the seat adjusting lever up and slide the seat forward or
backward to the desired position. Release the adjusting lever to
lock the seat in place.
Power seatPush the switch to adjust the seat forward or backward to the
desired position. Release the switch, and the seat will lock at
that position.NOTE
To prevent the battery from running down, operate the
power seat with the engine running.
WA R N I N G
!
To make sure that the seat is securely locked, try to
move it forward or backward without using the
adjusting lever.
1- Forward (toward the front of the vehicle)
2- Backward (toward the rear of the vehicle)
BK0102600US.book 5 ページ ２００９年３月３０日　月曜日　午後２時２分

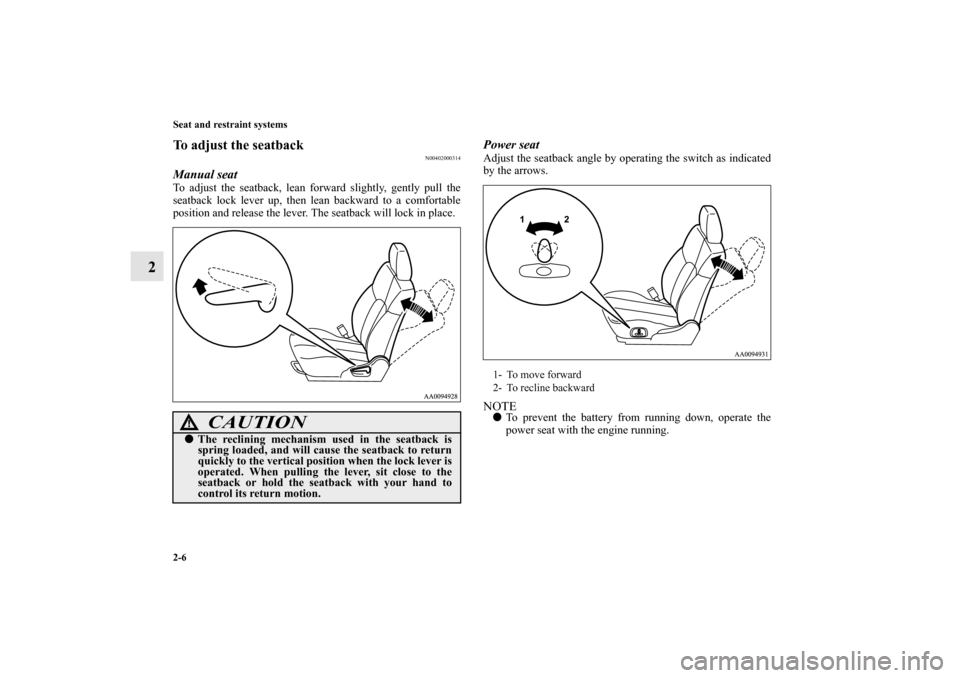

2-6 Seat and restraint systems
2
To adjust the seatback
N00402000314
Manual seatTo adjust the seatback, lean forward slightly, gently pull the
seatback lock lever up, then lean backward to a comfortable
position and release the lever. The seatback will lock in place.
Power seatAdjust the seatback angle by operating the switch as indicated
by the arrows.NOTE
To prevent the battery from running down, operate the
power seat with the engine running.
CAUTION
!
The reclining mechanism used in the seatback is
spring loaded, and will cause the seatback to return
quickly to the vertical position when the lock lever is
operated. When pulling the lever, sit close to the
seatback or hold the seatback with your hand to
control its return motion.
1- To move forward
2- To recline backward
BK0102600US.book 6 ページ ２００９年３月３０日　月曜日　午後２時２分

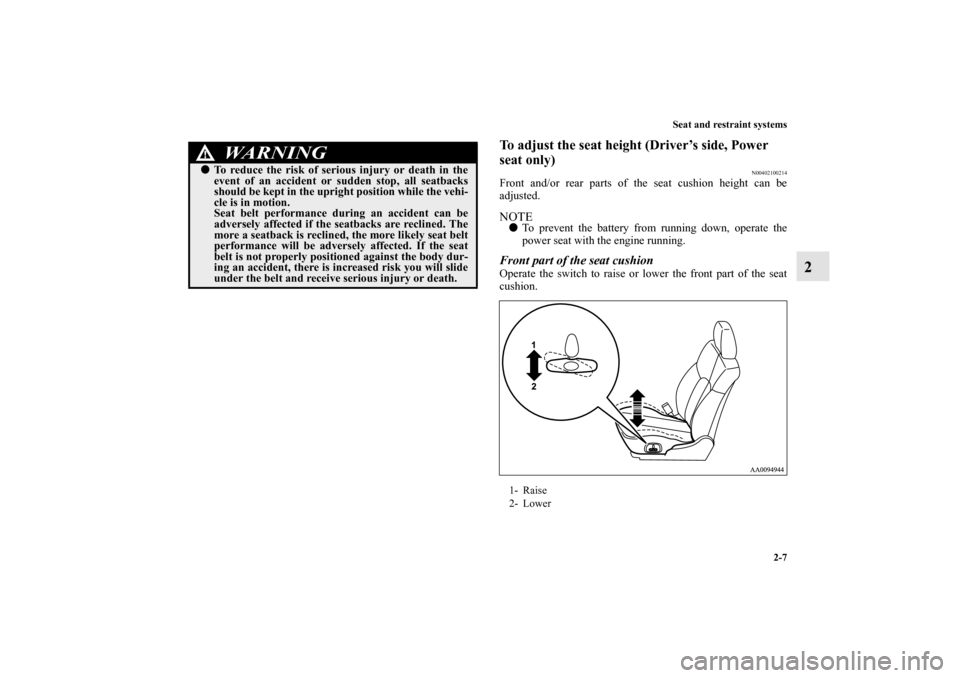

Seat and restraint systems
2-7
2
To adjust the seat height (Driver’s side, Power
seat only)
N00402100214
Front and/or rear parts of the seat cushion height can be
adjusted. NOTE
To prevent the battery from running down, operate the
power seat with the engine running.Front part of the seat cushion Operate the switch to raise or lower the front part of the seat
cushion.
WA R N I N G
!
To reduce the risk of serious injury or death in the
event of an accident or sudden stop, all seatbacks
should be kept in the upright position while the vehi-
cle is in motion.
Seat belt performance during an accident can be
adversely affected if the seatbacks are reclined. The
more a seatback is reclined, the more likely seat belt
performance will be adversely affected. If the seat
belt is not properly positioned against the body dur-
ing an accident, there is increased risk you will slide
under the belt and receive serious injury or death.
1- Raise
2- Lower
BK0102600US.book 7 ページ ２００９年３月３０日　月曜日　午後２時２分

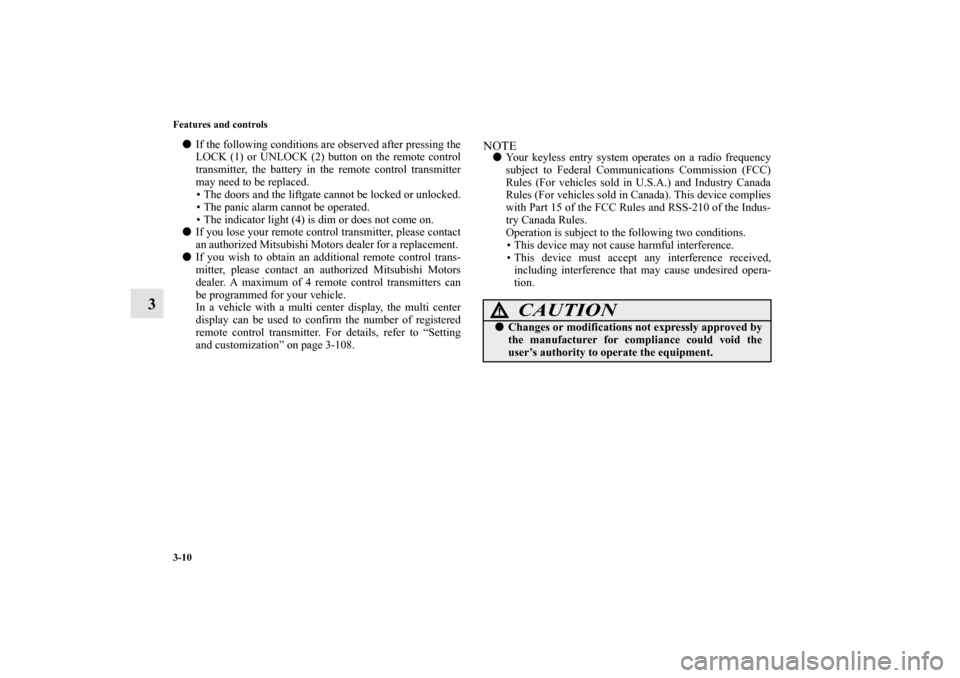

3-10 Features and controls
3

If the following conditions are observed after pressing the
LOCK (1) or UNLOCK (2) button on the remote control
transmitter, the battery in the remote control transmitter
may need to be replaced.
• The doors and the liftgate cannot be locked or unlocked.
• The panic alarm cannot be operated.
• The indicator light (4) is dim or does not come on.

If you lose your remote control transmitter, please contact
an authorized Mitsubishi Motors dealer for a replacement.

If you wish to obtain an additional remote control trans-
mitter, please contact an authorized Mitsubishi Motors
dealer. A maximum of 4 remote control transmitters can
be programmed for your vehicle.
In a vehicle with a multi center display, the multi center
display can be used to confirm the number of registered
remote control transmitter. For details, refer to “Setting
and customization” on page 3-108.
NOTE
Your keyless entry system operates on a radio frequency
subject to Federal Communications Commission (FCC)
Rules (For vehicles sold in U.S.A.) and Industry Canada
Rules (For vehicles sold in Canada). This device complies
with Part 15 of the FCC Rules and RSS-210 of the Indus-
try Canada Rules.
Operation is subject to the following two conditions.
• This device may not cause harmful interference.
• This device must accept any interference received,
including interference that may cause undesired opera-
tion.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0102600US.book 10 ページ ２００９年３月３０日　月曜日　午後２時２分

Features and controls
3-11
3
Procedure for replacing the remote control trans-
mitter battery1. With the Mitsubishi mark facing you, insert the cloth-cov-
ered tip of a flat blade screwdriver into the notch in the
remote control transmitter case and use it to open the case.NOTE
Be sure to perform the procedure with the Mitsubishi
mark facing you. If the Mitsubishi mark is not facing you
when you open the remote control transmitter case, the
buttons may come out.2. Remove the remote control transmitter from the remote
control transmitter case. Then, open the remote control
transmitter using the method described in step 1.
3. Remove the old battery.
BK0102600US.book 11 ページ ２００９年３月３０日　月曜日　午後２時２分

3-12 Features and controls
3
4. Install a new battery with the + side (A) down.
5. Close the remote control transmitter firmly.
6. Place the remote control transmitter in the remote control
transmitter case, then securely close the remote control
transmitter case.
7. Check the keyless entry system to see that it works. NOTE
You may purchase a replacement battery at an electric
appliance store.

Your authorized Mitsubishi Motors dealer can replace the
battery for you if you prefer.
+ side
- side
Coin type battery CR1620
CAUTION
!
When the remote control transmitter case is opened,
be careful to keep water, dust, etc. out. Also, do not
touch the internal components.
BK0102600US.book 12 ページ ２００９年３月３０日　月曜日　午後２時２分

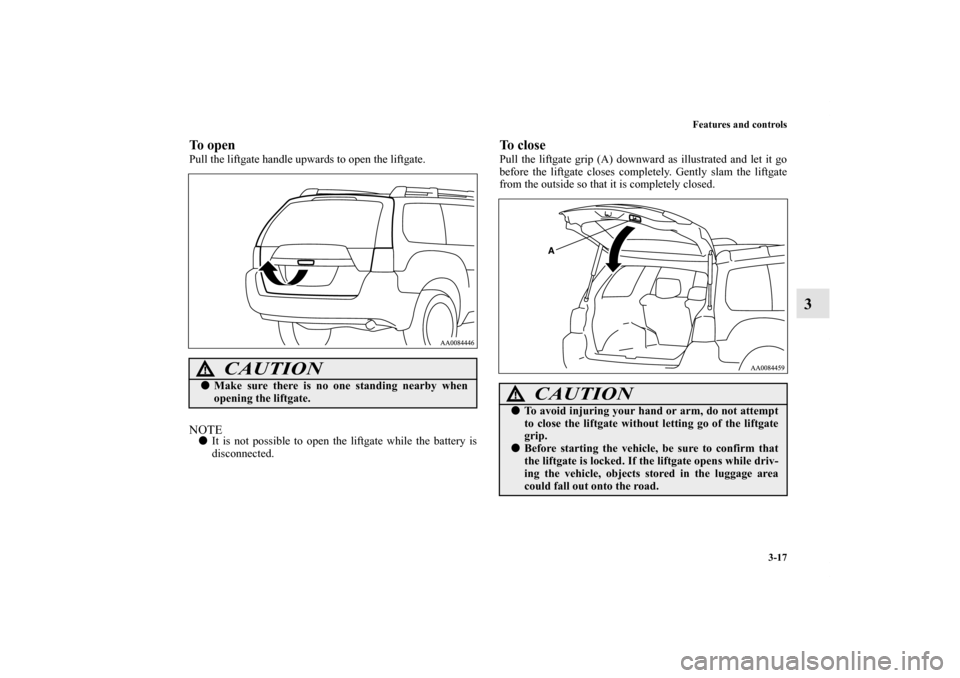

Features and controls
3-17
3
To openPull the liftgate handle upwards to open the liftgate.NOTE
It is not possible to open the liftgate while the battery is
disconnected.
To closePull the liftgate grip (A) downward as illustrated and let it go
before the liftgate closes completely. Gently slam the liftgate
from the outside so that it is completely closed.
CAUTION
!
Make sure there is no one standing nearby when
opening the liftgate.
CAUTION
!
To avoid injuring your hand or arm, do not attempt
to close the liftgate without letting go of the liftgate
grip.
Before starting the vehicle, be sure to confirm that
the liftgate is locked. If the liftgate opens while driv-
ing the vehicle, objects stored in the luggage area
could fall out onto the road.
BK0102600US.book 17 ページ ２００９年３月３０日　月曜日　午後２時２分
