2010 MITSUBISHI ENDEAVOR heater

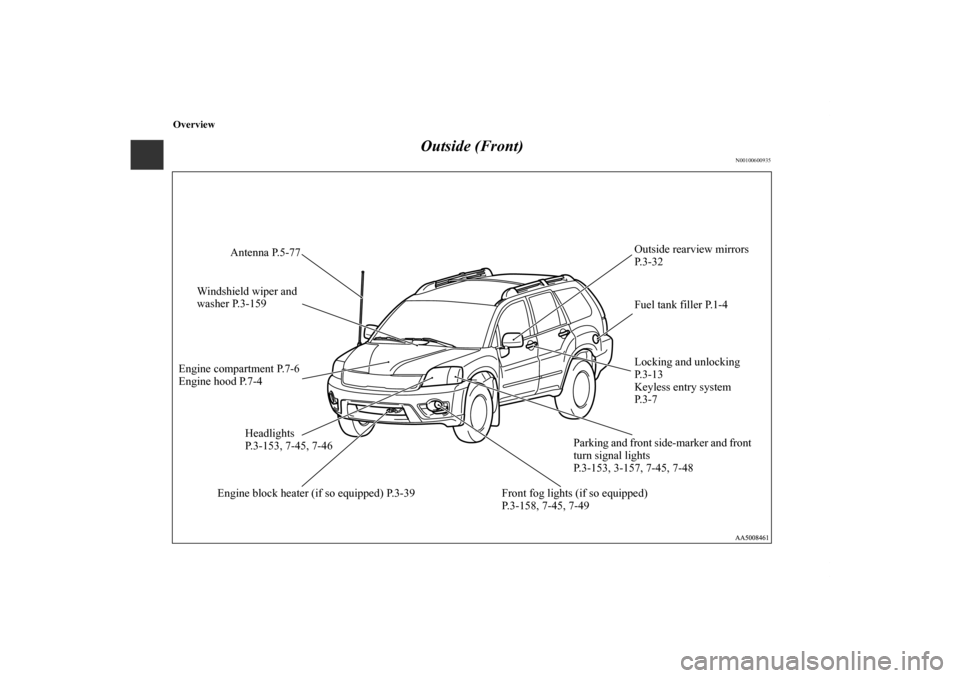

Overview
Outside (Front)
N00100600935
Antenna P.5-77
Windshield wiper and
washer P.3-159
Engine compartment P.7-6
Engine hood P.7-4
Front fog lights (if so equipped)
P.3-158, 7-45, 7-49Outside rearview mirrors
P. 3 - 3 2
Fuel tank filler P.1-4
Locking and unlocking
P. 3 - 1 3
Keyless entry system
P. 3 - 7
Parking and front side-marker and front
turn signal lights
P.3-153, 3-157, 7-45, 7-48 Headlights
P.3-153, 7-45, 7-46
Engine block heater (if so equipped) P.3-39
BK0102600US.book 7 ページ ２００９年３月３０日　月曜日　午後２時２分

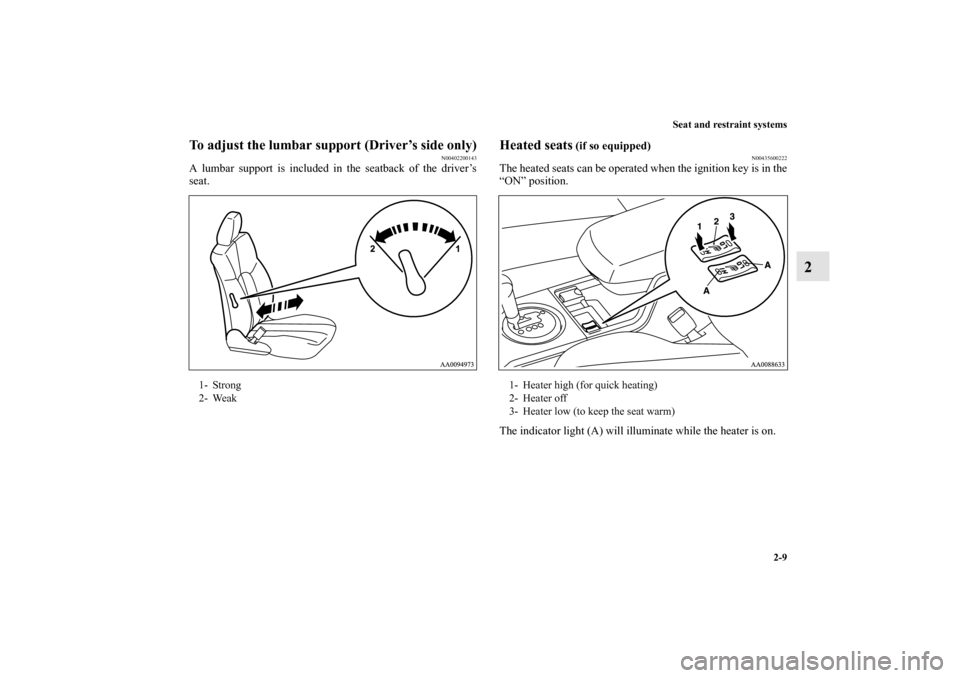

Seat and restraint systems
2-9
2
To adjust the lumbar support (Driver’s side only)
N00402200143
A lumbar support is included in the seatback of the driver’s
seat.
Heated seats
(if so equipped)
N00435600222
The heated seats can be operated when the ignition key is in the
“ON” position.
The indicator light (A) will illuminate while the heater is on.
1- Strong
2- Weak
1- Heater high (for quick heating)
2- Heater off
3- Heater low (to keep the seat warm)
BK0102600US.book 9 ページ ２００９年３月３０日　月曜日　午後２時２分

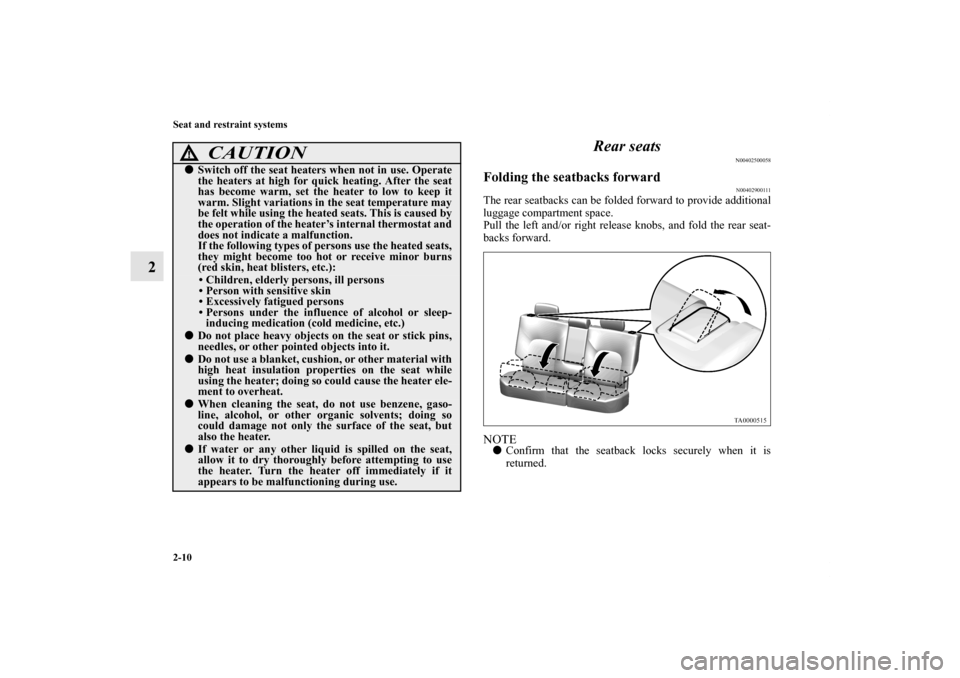

2-10 Seat and restraint systems
2Rear seats
N00402500058
Folding the seatbacks forward
N00402900111
The rear seatbacks can be folded forward to provide additional
luggage compartment space.
Pull the left and/or right release knobs, and fold the rear seat-
backs forward.NOTE
Confirm that the seatback locks securely when it is
returned.
CAUTION
!
Switch off the seat heaters when not in use. Operate
the heaters at high for quick heating. After the seat
has become warm, set the heater to low to keep it
warm. Slight variations in the seat temperature may
be felt while using the heated seats. This is caused by
the operation of the heater’s internal thermostat and
does not indicate a malfunction.
If the following types of persons use the heated seats,
they might become too hot or receive minor burns
(red skin, heat blisters, etc.):
• Children, elderly persons, ill persons
• Person with sensitive skin
• Excessively fatigued persons
• Persons under the influence of alcohol or sleep-
inducing medication (cold medicine, etc.)

Do not place heavy objects on the seat or stick pins,
needles, or other pointed objects into it.
Do not use a blanket, cushion, or other material with
high heat insulation properties on the seat while
using the heater; doing so could cause the heater ele-
ment to overheat.
When cleaning the seat, do not use benzene, gaso-
line, alcohol, or other organic solvents; doing so
could damage not only the surface of the seat, but
also the heater.
If water or any other liquid is spilled on the seat,
allow it to dry thoroughly before attempting to use
the heater. Turn the heater off immediately if it
appears to be malfunctioning during use.
BK0102600US.book 10 ページ ２００９年３月３０日　月曜日　午後２時２分

3
Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . .3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Electronic immobilizer (Anti-theft
starting system). . . . . . . . . . . . . . . . . . . . . . . . . .3- 3
Keyless entry system . . . . . . . . . . . . . . . . . . . . . . .3- 7
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 13
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . .3- 15
“Child safety locks” for rear door . . . . . . . . . . . . .3- 15
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 16
Inside liftgate release . . . . . . . . . . . . . . . . . . . . . . .3- 18
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . .3- 20
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 23
Sunroof (if so equipped) . . . . . . . . . . . . . . . . . . . .3- 26
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 28
Steering wheel tilt lock lever . . . . . . . . . . . . . . . . .3- 29
Inside day/night rearview mirror . . . . . . . . . . . . . .3- 30
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . .3- 32
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 34
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . .3- 36
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 37
Engine block heater (if so equipped) . . . . . . . . . . .3- 39
Automatic transaxle . . . . . . . . . . . . . . . . . . . . . . . .3- 39
Full-time all-wheel drive (if so equipped) . . . . . . .3- 47
All-wheel drive operation . . . . . . . . . . . . . . . . . . .3- 48
Inspection and maintenance following rough
road operation . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 50
Cautions on the handling of all-wheel drive
vehicles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 51
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 53
Anti-lock braking system . . . . . . . . . . . . . . . . . . . .3- 54
Power steering system . . . . . . . . . . . . . . . . . . . . . .3- 57
Active stability control (ASC) . . . . . . . . . . . . . . . .3- 58
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 63Tire pressure monitoring system . . . . . . . . . . . . . . 3- 69
Rear-view camera (if so equipped) . . . . . . . . . . . . 3- 75
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . 3- 77
Indicator and warning light package . . . . . . . . . . . 3- 82
Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 83
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 83
Multi center display (if so equipped) . . . . . . . . . . 3- 86
Combination headlights and dimmer switch . . . . . 3- 153
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 157
Hazard warning flasher switch . . . . . . . . . . . . . . . 3- 158
Front fog light switch (if so equipped) . . . . . . . . . 3- 158
Instrument panel light dimmer control . . . . . . . . . 3- 159
Wiper and washer switch . . . . . . . . . . . . . . . . . . . 3- 159
Electric rear window defogger switch. . . . . . . . . . 3- 163
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 164
Hands-free Bluetooth
® cellular phone
interface system with voice recognition
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 3- 164
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 194
Vanity mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 195
Power outlet (if so equipped) . . . . . . . . . . . . . . . . 3- 195
Digital clock (if so equipped) . . . . . . . . . . . . . . . . 3- 197
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 197
Accessory boxes . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 203
Glove compartment . . . . . . . . . . . . . . . . . . . . . . . . 3- 204
Floor console box/Tissue holder . . . . . . . . . . . . . . 3- 204
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 206
Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 207
Sunglasses holder (if so equipped) . . . . . . . . . . . . 3- 207
Tonneau cover (if so equipped) . . . . . . . . . . . . . . . 3- 208
Luggage hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 209
Coat hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 210
BK0102600US.book 1 ページ ２００９年３月３０日　月曜日　午後２時２分

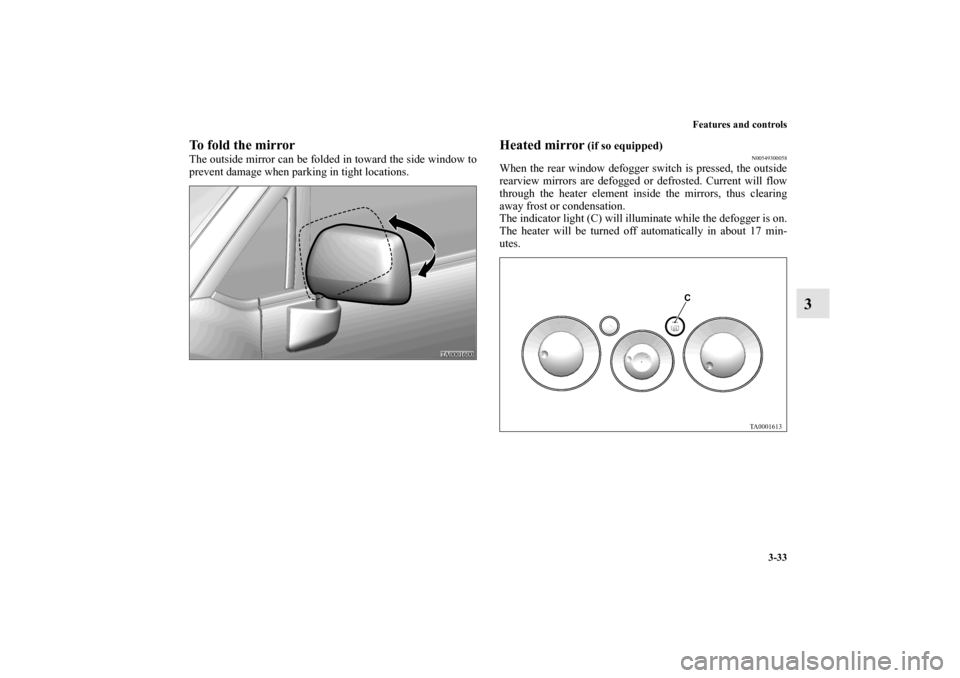

Features and controls
3-33
3
To fold the mirrorThe outside mirror can be folded in toward the side window to
prevent damage when parking in tight locations.
Heated mirror
(if so equipped)
N00549300058
When the rear window defogger switch is pressed, the outside
rearview mirrors are defogged or defrosted. Current will flow
through the heater element inside the mirrors, thus clearing
away frost or condensation.
The indicator light (C) will illuminate while the defogger is on.
The heater will be turned off automatically in about 17 min-
utes.
BK0102600US.book 33 ページ ２００９年３月３０日　月曜日　午後２時２分

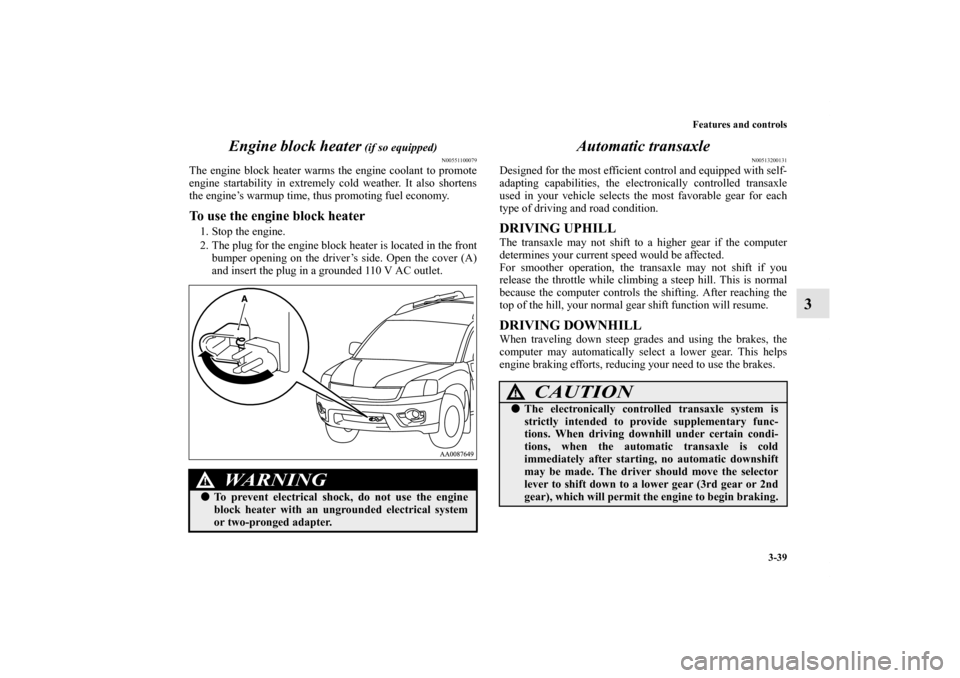

Features and controls
3-39
3 Engine block heater
(if so equipped)
N00551100079
The engine block heater warms the engine coolant to promote
engine startability in extremely cold weather. It also shortens
the engine’s warmup time, thus promoting fuel economy.To use the engine block heater1. Stop the engine.
2. The plug for the engine block heater is located in the front
bumper opening on the driver’s side. Open the cover (A)
and insert the plug in a grounded 110 V AC outlet.
Automatic transaxle
N00513200131
Designed for the most efficient control and equipped with self-
adapting capabilities, the electronically controlled transaxle
used in your vehicle selects the most favorable gear for each
type of driving and road condition.DRIVING UPHILLThe transaxle may not shift to a higher gear if the computer
determines your current speed would be affected.
For smoother operation, the transaxle may not shift if you
release the throttle while climbing a steep hill. This is normal
because the computer controls the shifting. After reaching the
top of the hill, your normal gear shift function will resume.DRIVING DOWNHILLWhen traveling down steep grades and using the brakes, the
computer may automatically select a lower gear. This helps
engine braking efforts, reducing your need to use the brakes.
WA R N I N G
!
To prevent electrical shock, do not use the engine
block heater with an ungrounded electrical system
or two-pronged adapter.
CAUTION
!
The electronically controlled transaxle system is
strictly intended to provide supplementary func-
tions. When driving downhill under certain condi-
tions, when the automatic transaxle is cold
immediately after starting, no automatic downshift
may be made. The driver should move the selector
lever to shift down to a lower gear (3rd gear or 2nd
gear), which will permit the engine to begin braking.
BK0102600US.book 39 ページ ２００９年３月３０日　月曜日　午後２時２分

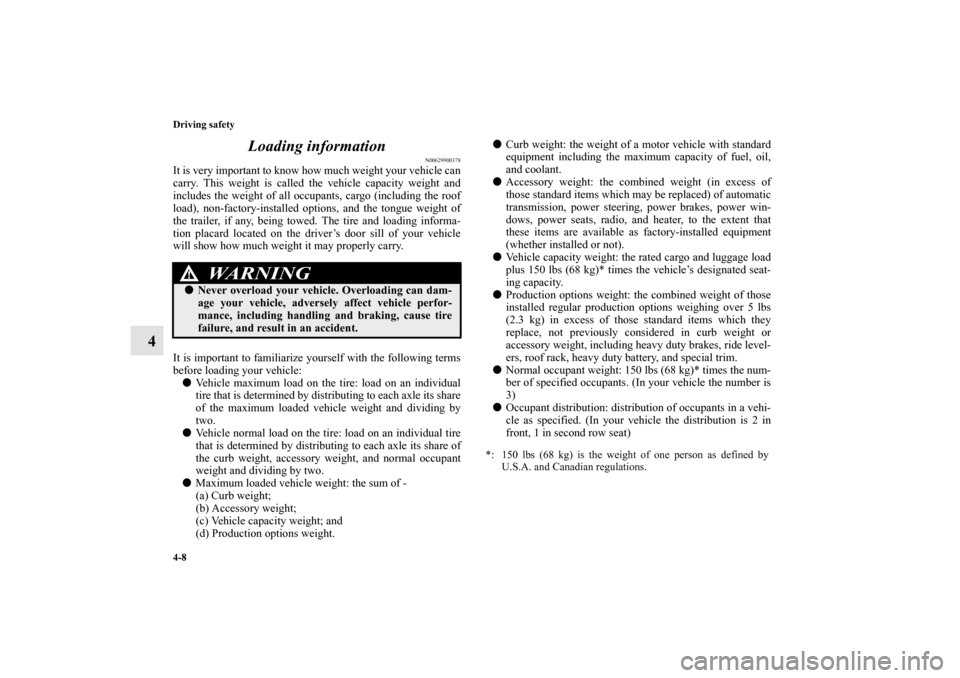

4-8 Driving safety
4Loading information
N00629900378
It is very important to know how much weight your vehicle can
carry. This weight is called the vehicle capacity weight and
includes the weight of all occupants, cargo (including the roof
load), non-factory-installed options, and the tongue weight of
the trailer, if any, being towed. The tire and loading informa-
tion placard located on the driver’s door sill of your vehicle
will show how much weight it may properly carry.
It is important to familiarize yourself with the following terms
before loading your vehicle:

Vehicle maximum load on the tire: load on an individual
tire that is determined by distributing to each axle its share
of the maximum loaded vehicle weight and dividing by
two.

Vehicle normal load on the tire: load on an individual tire
that is determined by distributing to each axle its share of
the curb weight, accessory weight, and normal occupant
weight and dividing by two.

Maximum loaded vehicle weight: the sum of -
(a) Curb weight;
(b) Accessory weight;
(c) Vehicle capacity weight; and
(d) Production options weight.
Curb weight: the weight of a motor vehicle with standard
equipment including the maximum capacity of fuel, oil,
and coolant.

Accessory weight: the combined weight (in excess of
those standard items which may be replaced) of automatic
transmission, power steering, power brakes, power win-
dows, power seats, radio, and heater, to the extent that
these items are available as factory-installed equipment
(whether installed or not).

Vehicle capacity weight: the rated cargo and luggage load
plus 150 lbs (68 kg)* times the vehicle’s designated seat-
ing capacity.

Production options weight: the combined weight of those
installed regular production options weighing over 5 lbs
(2.3 kg) in excess of those standard items which they
replace, not previously considered in curb weight or
accessory weight, including heavy duty brakes, ride level-
ers, roof rack, heavy duty battery, and special trim.

Normal occupant weight: 150 lbs (68 kg)* times the num-
ber of specified occupants. (In your vehicle the number is
3)

Occupant distribution: distribution of occupants in a vehi-
cle as specified. (In your vehicle the distribution is 2 in
front, 1 in second row seat)
WA R N I N G
!
Never overload your vehicle. Overloading can dam-
age your vehicle, adversely affect vehicle perfor-
mance, including handling and braking, cause tire
failure, and result in an accident.
*: 150 lbs (68 kg) is the weight of one person as defined by
U.S.A. and Canadian regulations.
BK0102600US.book 8 ページ ２００９年３月３０日　月曜日　午後２時２分

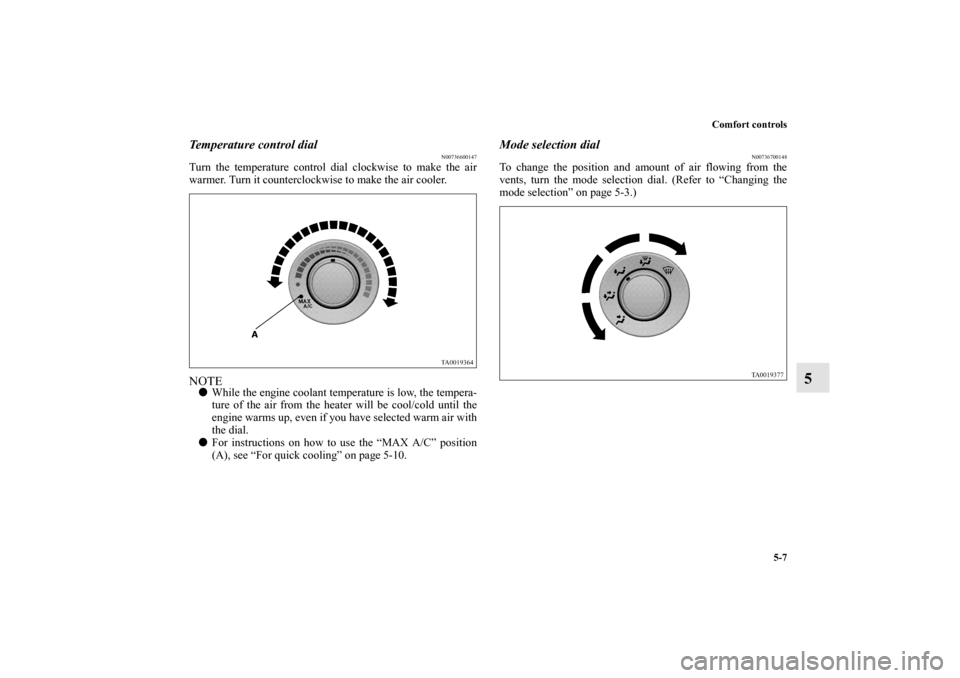

Comfort controls
5-7
5
Temperature control dial
N00736600147
Turn the temperature control dial clockwise to make the air
warmer. Turn it counterclockwise to make the air cooler. NOTE
While the engine coolant temperature is low, the tempera-
ture of the air from the heater will be cool/cold until the
engine warms up, even if you have selected warm air with
the dial.

For instructions on how to use the “MAX A/C” position
(A), see “For quick cooling” on page 5-10.
Mode selection dial
N00736700148
To change the position and amount of air flowing from the
vents, turn the mode selection dial. (Refer to “Changing the
mode selection” on page 5-3.)
BK0102600US.book 7 ページ ２００９年３月３０日　月曜日　午後２時２分
