2010 MITSUBISHI ECLIPSE Owners Manual

7-64 Vehicle care and maintenance
7

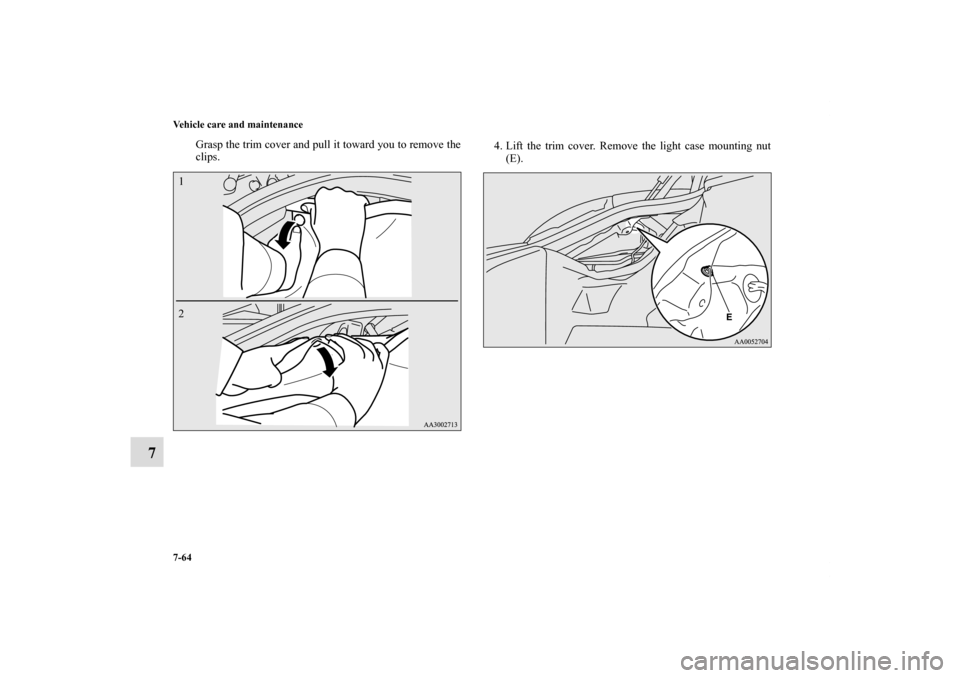

Grasp the trim cover and pull it toward you to remove the
clips.4. Lift the trim cover. Remove the light case mounting nut
(E).
1
2BK0098300US.book 64 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Vehicle care and maintenance
7-65
7
5. Insert the tip of the screwdriver at the edge of the light
unit, pry gently to remove the light unit.
Then move the light unit toward the rear of the vehicle
and remove the clip (F).NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.6. Remove the socket and bulb assemblies by turning them
counterclockwise.
Remove the bulb by pulling it out.
G- Back-up light
H- Rear turn signal light
I- Rear side-marker light
BK0098300US.book 65 ページ ２００８年１２月８日　月曜日　午前１１時３７分

7-66 Vehicle care and maintenance
7
7. To install the bulb, perform the removal steps in reverse.NOTE
When mounting the light unit, align the clip (F), pins and
bolts (J) on the light unit with the holes in the body.
License plate light
N00944000272
1. Remove the mounting screws (A) and remove the light
unit (B).
BK0098300US.book 66 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Vehicle care and maintenance
7-67
7
2. Remove the socket and bulb assembly together by turning
it counterclockwise.3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.
BK0098300US.book 67 ページ ２００８年１２月８日　月曜日　午前１１時３７分

7-68 Vehicle care and maintenance
7
Dome light (Rear) (ECLIPSE only)
N00944100303
1. Insert the tip of a screwdriver at the edge of the lens, pry
gently to remove the lens, and then remove the bulb from
the light holder.NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.
2. To install the bulb, perform the removal steps in reverse.
Dome light (Front)/Reading light
(if so equipped)
N00944500248
ECLIPSE (except for vehicles with sunroof)1. Insert the tip of a screwdriver at the edge of the lens, pry
gently to remove the lens, and then remove the bulb from
the light holder.NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.
2. To install the bulb, perform the removal steps in reverse.ECLIPSE (vehicles with sunroof)/ECLIPSE SPYDERHave the dome light (front)/reading light bulbs replaced at an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.
* - Front of the vehicle
*
BK0098300US.book 68 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Vehicle care and maintenance
7-69
7
Reading light on an inside rearview mirror
(ECLIPSE only)
N00944400175
1. Insert the tip of a screwdriver at the edge of the lens, pry
gently to remove the lens, and then remove the bulb from
the light holder.NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.
2. To install the bulb, perform the removal steps in reverse.
Cargo area light (ECLIPSE only)
N00950000062
1. Insert the tip of a screwdriver at the edge of the lens, pry
gently to remove the lens, and then remove the bulb from
the light holder.
2. To install the bulb, perform the removal steps in reverse.Glove compartment light
N00954200059
Have the glove compartment light bulbs replaced at an autho-
rized Mitsubishi Motors dealer or a repair facility of your
choice.
BK0098300US.book 69 ページ ２００８年１２月８日　月曜日　午前１１時３７分

7-70 Vehicle care and maintenance
7
Vanity mirror light
(if so equipped)
N00952800077
ECLIPSE1. Insert the tip of a screwdriver at the edge of the lens, pry
gently to remove the lens, and then remove the bulb from
the light holder.NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.
2. To install the bulb, perform the removal steps in reverse.
ECLIPSE SPYDER1. Insert the tip of a screwdriver into the notch of the lens,
pry gently to remove the lens, and then remove the bulb
from the light holder.NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.
BK0098300US.book 70 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Vehicle care and maintenance
7-71
7
2. To install the bulb, perform the removal steps in reverse.NOTE
When installing the lens, align the tab on the lens with the
holes on the sun visor side.
Vehicle care precautions
N00945100078
In order to maintain the value of your vehicle, perform regular
maintenance using the proper materials and procedures. Be
sure to use only those materials and procedures that meet your
local environmental pollution control regulations. Choose the
materials you will use carefully, to be sure that they do not con-
tain corrosives. If you are not sure, contact an authorized Mit-
subishi Motors dealer for help in choosing these materials.
These can all be dangerous, and they all can damage your vehi-
cle.
CAUTION
!
Cleaning products can be dangerous. Some are poi-
sonous. Others are highly flammable. Some are dan-
gerous if you breathe their fumes in a closed space.
When you use anything in a container to clean your
vehicle, be sure to follow the instructions. Always
open your vehicle doors or windows when you’re
cleaning the inside. Never use the following chemi-
cals to clean your vehicle:
• Gasoline
• Carbon Tetrachloride
• Benzine
• Naphtha
• Acetone
• Turpentine
• Paint Thinner
• Lacquer Thinner
• Nail Polish Remover
