•Make sure the gearshift is in P
(Park).
If starting a vehicle with a manual
transmission:
•Make sure the parking brake is
set.
•Push the clutch pedal to the
floor.
3. Turn the key to 3 (on) without
turning the key to 4 (start).
Some warning lights will briefly illuminate. SeeWarning lights and
chimesin theInstrument Clusterchapter for more information
regarding the warning lights.
Driving
198
2010 Milan(mln)
Owners Guide, 3rd Printing
USA(fus)

•Be sure that areas where the vehicle is parked are clean and clear of
all combustibles such as petroleum products, dust, rags, paper and
similar items.
•Be sure that the engine block heater, heater cord and extension cord
are solidly connected. A poor connection can cause the cord to
become very hot and may result in an electrical shock or fire. Be sure
to check for heat anywhere in the electrical hookup once the system
has been operating for approximately a half hour.
•Finally, have the engine block heater system checked during your fall
tune-up to be sure it’s in good working order.
How to use the engine block heater
Ensure the receptacle terminals are clean and dry prior to use. To clean
them, use a dry cloth.
Depending on the type of factory installed equipment, your engine block
heater will use .4 to 1.0 kilowatt-hours of energy per hour of use. Your
factory installed block heater system does not have a thermostat;
however, maximum temperature is attained after approximately three
hours of operation. Block heater operation longer than three hours will
not improve system performance and will unnecessarily use additional
electricity.
Make sure system is unplugged and properly stowed before driving the
vehicle. While not in use, make sure the protective cover seals the
prongs of the engine block heater cord plug.
BRAKES
Occasional brake noise is normal. If a metal-to-metal, continuous grinding
or continuous squeal sound is present, the brake linings may be worn-out
and should be inspected by an authorized dealer. If the vehicle has
continuous vibration or shudder in the steering wheel while braking, the
vehicle should be inspected by an authorized dealer.
Refer toWarning lights and
chimesin theInstrument Cluster
chapter for information on the brake
system warning light.
Four-wheel anti-lock brake system (ABS)
Your vehicle is equipped with an anti-lock braking system (ABS). This
system helps you maintain steering control during emergency stops by
keeping the brakes from locking. The ABS operates by detecting the
P!
BRAKE
Driving
201
2010 Milan(mln)
Owners Guide, 3rd Printing
USA(fus)

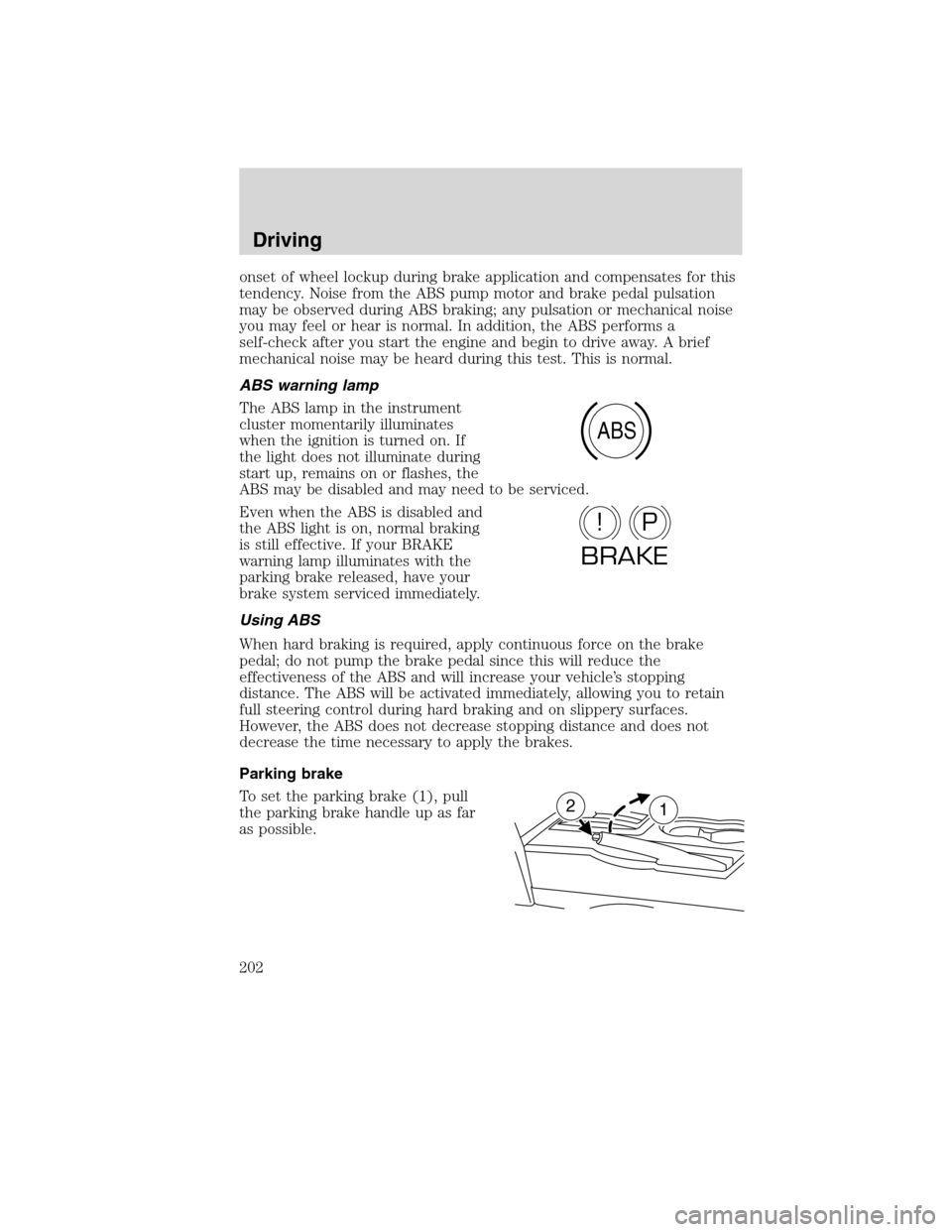

onset of wheel lockup during brake application and compensates for this
tendency. Noise from the ABS pump motor and brake pedal pulsation
may be observed during ABS braking; any pulsation or mechanical noise
you may feel or hear is normal. In addition, the ABS performs a
self-check after you start the engine and begin to drive away. A brief
mechanical noise may be heard during this test. This is normal.
ABS warning lamp
The ABS lamp in the instrument
cluster momentarily illuminates
when the ignition is turned on. If
the light does not illuminate during
start up, remains on or flashes, the
ABS may be disabled and may need to be serviced.
Even when the ABS is disabled and
the ABS light is on, normal braking
is still effective. If your BRAKE
warning lamp illuminates with the
parking brake released, have your
brake system serviced immediately.
Using ABS
When hard braking is required, apply continuous force on the brake
pedal; do not pump the brake pedal since this will reduce the
effectiveness of the ABS and will increase your vehicle’s stopping
distance. The ABS will be activated immediately, allowing you to retain
full steering control during hard braking and on slippery surfaces.
However, the ABS does not decrease stopping distance and does not
decrease the time necessary to apply the brakes.
Parking brake
To set the parking brake (1), pull
the parking brake handle up as far
as possible.
ABS
P!
BRAKE
12
Driving
202
2010 Milan(mln)
Owners Guide, 3rd Printing
USA(fus)

WARNING:Remember that even advanced technology cannot
defy the laws of physics. It’s always possible to lose control of a
vehicle due to inappropriate driver input for the conditions. Aggressive
driving on any road condition can cause you to lose control of your
vehicle increasing the risk of personal injury or property damage.
Activation of the AdvanceTracsystem is an indication that at least
some of the tires have exceeded their ability to grip the road; this
could reduce the operator’s ability to control the vehicle potentially
resulting in a loss of vehicle control, vehicle rollover, personal injury
and death. If your AdvanceTracsystem activates, SLOW DOWN.
WARNING:If a failure has been detected within the
AdvanceTracsystem, the “sliding car” icon
will illuminate
steadily, and you may hear a chime. If equipped with a message center,
the vehicle will also indicate a failure with the brake system, have the
system serviced by an authorized dealer immediately.
The AdvanceTracsystem automatically enables each time the engine is
started. All features of the AdvanceTracsystem (TCS and ESC) are
active and monitor the vehicle from start-up. However, the system will
only intervene if the driving situation requires it.
The AdvanceTracsystem includes
an AdvanceTraccontrol switch on
the instrument panel, a “sliding car”
icon
and a “sliding car off”
icon
in the instrument cluster.
Both the “sliding car” icon
and
the “sliding car off” icon
in the instrument cluster will illuminate
temporarily during start-up as part of a normal system self-check. The
“sliding car” icon
may illuminate (flash) during certain driving
situations which cause the AdvanceTracsystem to operate. If the
“sliding car” icon
illuminates steadily, have the system serviced by an
authorized dealer immediately. If equipped with a message center, the
vehicle will also indicate a failure with the AdvanceTracsystem.
When AdvanceTracperforms a normal system self-check, some drivers
may notice a slight movement of the brake, and/or a rumble, grunting, or
grinding noise after startup and when driving off.
Driving
204
2010 Milan(mln)
Owners Guide, 3rd Printing
USA(fus)

When an event occurs that activates AdvanceTracyou may experience
the following:
•A slight deceleration of the vehicle
•The “sliding car”
indicator light will flash.
•If your foot is on the brake pedal, a vibration in the pedal
•If the driving condition is severe and your foot is not on the brake, the
brake pedal may move as the systems applies higher brake forces. You
may also hear a whoosh of air from under the instrument panel during
this severe condition.
•The brake pedal may feel stiffer than usual.
Traction Control System (TCS)
Traction control is a driver aid feature that helps your vehicle maintain
traction of the wheels, typically when driving on slippery and/or hilly
road surfaces, by detecting and controlling wheel spin.
Excessive wheel spin is controlled in two ways, which may work
separately or in tandem; engine traction control and brake traction
control. Engine traction control works to limit drive-wheel spin by
momentarily reducing engine power. Brake traction control works to limit
wheel spin by momentarily applying the brakes to the wheel that is
slipping. Traction Control is most active at low speeds.
During TCS events the “sliding car” icon
in the instrument cluster
will flash.
If TCS is activated excessively in a short period of time, the braking
portion of the system may become temporarily disabled to allow the
brakes to cool down. In this situation, TCS will use only engine power
reduction or transfer to help control the wheels from over-spinning.
When the brakes have cooled down, the system will regain all features.
Anti-lock braking and Electronic Stability Control (ESC) will continue to
function during the cool-down period.
The engine traction control and brake traction control systems may be
deactivated in certain situations. See theSwitching Off AdvanceTrac
section below.
Electronic Stability Control (ESC)
Electronic Stability Control (ESC) may enhance your vehicle’s directional
stability during adverse maneuvers, for example when cornering severely
or avoiding objects in the roadway. ESC operates by applying brakes to
one or more of the wheels individually and, if necessary, reducing engine
power if the system detects that the vehicle is about to skid or slide
laterally.
Driving
205
2010 Milan(mln)
Owners Guide, 3rd Printing
USA(fus)

During ESC events the “sliding car” iconin the instrument cluster
will flash.
Certain adverse driving maneuvers may activate ESC, which include but
are not limited to:
•Taking a turn too fast
•Maneuvering quickly to avoid an accident, pedestrian or obstacle
•Driving over a patch of ice or other slippery surfaces
•Changing lanes on a snow-rutted road
•Entering a snow-free road from a snow-covered side street, or vice
versa
•Entering a paved road from a gravel road, or vice versa
•Cornering while towing a heavily loaded trailer (refer toTrailer
towingin theTires, Wheels and Loadingchapter).
Switching Off AdvanceTrac
If the vehicle is stuck in snow, mud or sand, and seems to lose engine
power, switching off certain features of the AdvanceTracsystem may be
beneficial because the wheels are allowed to spin. This will restore full
engine power and will enhance momentum through the obstacle.
To switch off the AdvanceTrac
system press the AdvanceTrac
control switch. Full features of the
AdvanceTracsystem can be
restored by pressing the
AdvanceTraccontrol switch again
or by turning off and restarting the engine.
When the AdvanceTracsystem is
off, the “sliding car off” icon
will
illuminate steadily. Pressing the
AdvanceTraccontrol switch again
will turn off the “sliding car off”
icon.
In R (Reverse), ABS and the engine and brake traction control features
will continue to function; however, ESC is disabled.
OFF
Driving
206
2010 Milan(mln)
Owners Guide, 3rd Printing
USA(fus)

WARNING:Always set the parking brake fully and make sure
the gearshift is latched in P (Park). Turn the ignition to the off
position and remove the key whenever you leave your vehicle.
R (Reverse)
With the gearshift lever in R (Reverse), the vehicle will move backward.
Always come to a complete stop before shifting into and out of R
(Reverse).
N (Neutral)
With the gearshift lever in N (Neutral), the vehicle can be started and is
free to roll. Hold the brake pedal down while in this position.
D (Drive) with Overdrive Cancel and Grade Assist (if equipped)
Press the transmission control on the side of the gearshift lever to
activate grade assist.
The grade assist lamp in the
instrument cluster is illuminated.
Grade assist:
•Improves driving experience in hilly terrain or mountainous areas by
providing additional grade (engine) braking and extends lower gear
operation on uphill climbs.
•Provides additional engine braking through the automatic transmission
shift strategy which reacts to vehicle inputs (vehicle acceleration,
accelerator pedal, brake pedal and vehicle speed).
•Allows the transmission to select gears that will provide the desired
engine braking based on the vehicle inputs mentioned above. This will
increase engine RPM during engine braking.
Grade assist is designed to provide optimal gear selection in hilly terrain
or mountainous areas. It is recommended that you return to grade assist
on flat terrain to provide the best fuel economy and transmission
function.
To return to grade assist, press the transmission control switch again.
•The grade assist lamp in the instrument cluster will not be illuminated.
•The transmission will operate in gears one through six.
Grade assist is automatically returned each time the key is turned off.
Driving
211
2010 Milan(mln)
Owners Guide, 3rd Printing
USA(fus)

R (Reverse)
With the gearshift lever in R (Reverse), the vehicle will move backward.
Always come to a complete stop before shifting into and out of R
(Reverse).
N (Neutral)
With the gearshift lever in N (Neutral), the vehicle can be started and is
free to roll. Hold the brake pedal down while in this position.
D (Drive) with Overdrive
The normal driving position for the best fuel economy. Transmission
operates in gears one through six.
Understanding your SelectShift Automatic™ transmission (SST)
gearshift lever
This vehicle is equipped with a
SelectShift Automatic™
transmission (SST) gearshift lever.
SST is an automatic transmission
with the ability for the driver to
change gears up or down (without a
clutch) as desired. By moving the
gearshift lever from drive position
(D) to the right into Manual (M)
you now have control of selecting
the gear you desire.
Initially when moving the lever to
the manual mode (M), the message
center display on the instrument
cluster will show D and the SST
light will illuminate. Only by moving
the lever in the forward (-) or
backward (+) position will the transmission utilize the manual mode for
select shifting.
Driving
213
2010 Milan(mln)
Owners Guide, 3rd Printing
USA(fus)
