Trunk light
1. Press both sides of the lens cap to
remove it.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of removal.
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the driver's side
If the electrical system does not work,
first inspect the fuses on the driver's side.
1. Turn off the ignition switch and other
switches.
2. Open the fuse panel cover.
8-36
Maintenance and Care
Owner Maintenance
RX-8_8AT5-EA-09E_Edition1 Page366
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (367,1)
3. Pull the fuse straight out with the fuse
puller provided on the inside of the
engine compartment fuse block cover.
4. Inspect the fuse and replace it if it's
blown.
NormalBlown
5. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If it
does not fit tightly, have an expert
install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or CIGAR circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Turn off the ignition switch and all
other switches.
2. Remove the fuse block cover.
Next to air filter
Engine cover
Battery cover
Near battery
NOTE
Remove the engine and battery covers before
removing the fuse block cover near the battery.
Maintenance and Care
Owner Maintenance
8-37
RX-8_8AT5-EA-09E_Edition1 Page367
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (368,1)
3. If any fuse but the MAIN fuse is
blown, replace it with a new oneof the
same amperage rating.
Normal
Blown
WARNING
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is
a high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
NOTE
Verify that the engine cover is securely
installed.
8-38
Maintenance and Care
Owner Maintenance
RX-8_8AT5-EA-09E_Edition1 Page368
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (369,1)
qFuse Panel Description
Fuse block (Engine compartment)
1
2
3
4
5
1013
14
15
16
17
18
19 11
12620
21
2229
30
31
32
33
34
35
3637
38
28
23
24
25
26
27
7
8
9
(Next to air filter)
(Next to battery)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 MAIN 120A For protection of all circuits
2 HEATER 40A Heater
3 AIR PUMP 60A Air pump
4 BTN 30A Power door locks, Illuminated entry system, Moonroof
í
5 DEFOG 50A Rear window defroster
6 FAN 1 30A Electric fan 1
7 ABS/DSC 40A ABS, DSC
í
8 ACC 30A Lighter, Power control mirror, Accessory socket, Audio system
9 FAN 2 30A Electric fan 2
10 HEAD 15A Headlight high beams
í, Headlight cleanerí
11 HEAD LOW R 15A Headlight low beam (RH)
12 HEAD LOW L 15A Headlight low beam (LH)
13 DRL 15A DRL
í(Headlight high beams)
14 DSC 30A DSCí
15 SEAT WARM 20A Seat warmerí
16 H/CLEAN 20A Headlight cleanerí
17 R.FOG――
Maintenance and Care
Owner Maintenance
8-39íSome models. RX-8_8AT5-EA-09E_Edition1 Page369
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (370,1)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
18 FOG 15A Fog lights
í
19 A/C 10A Air conditioner
20 IG 40A For protection of various circuits
21 P.WIND 1 30A Power window
22 IG KEY 15A For protection of various circuits
23 STOP 10A Brake lights
24 FUEL PUMP 20A Fuel pump
25 HORN 15A Horn
26 HAZARD 15A Hazard warning flashers, Turn signals
27 ETV 15A Electric throttle valve
28 ST 10A Starter
29 WIPER 20A Windshield wiper and washer
30 TCM 15A TCM
í
31 ENGINE 15AEngine control system, Supplemental restraint system, ABS,
Power steering
32 TAIL 10ATaillights, License plate light, Parking lights, Front side-maker
lights, Rear side-marker lights
33 ILLUMI 7.5A Illuminated entry system
34 EGI COMP1 15A Engine control system
35 EGI COMP2 10A Engine control system
36 EGI INJ 15A Fuel injector
37 P.WIND 2 20A Power window
38 EPS 60A Power steering
8-40
Maintenance and Care
íSome models.
Owner Maintenance
RX-8_8AT5-EA-09E_Edition1 Page370
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (371,1)

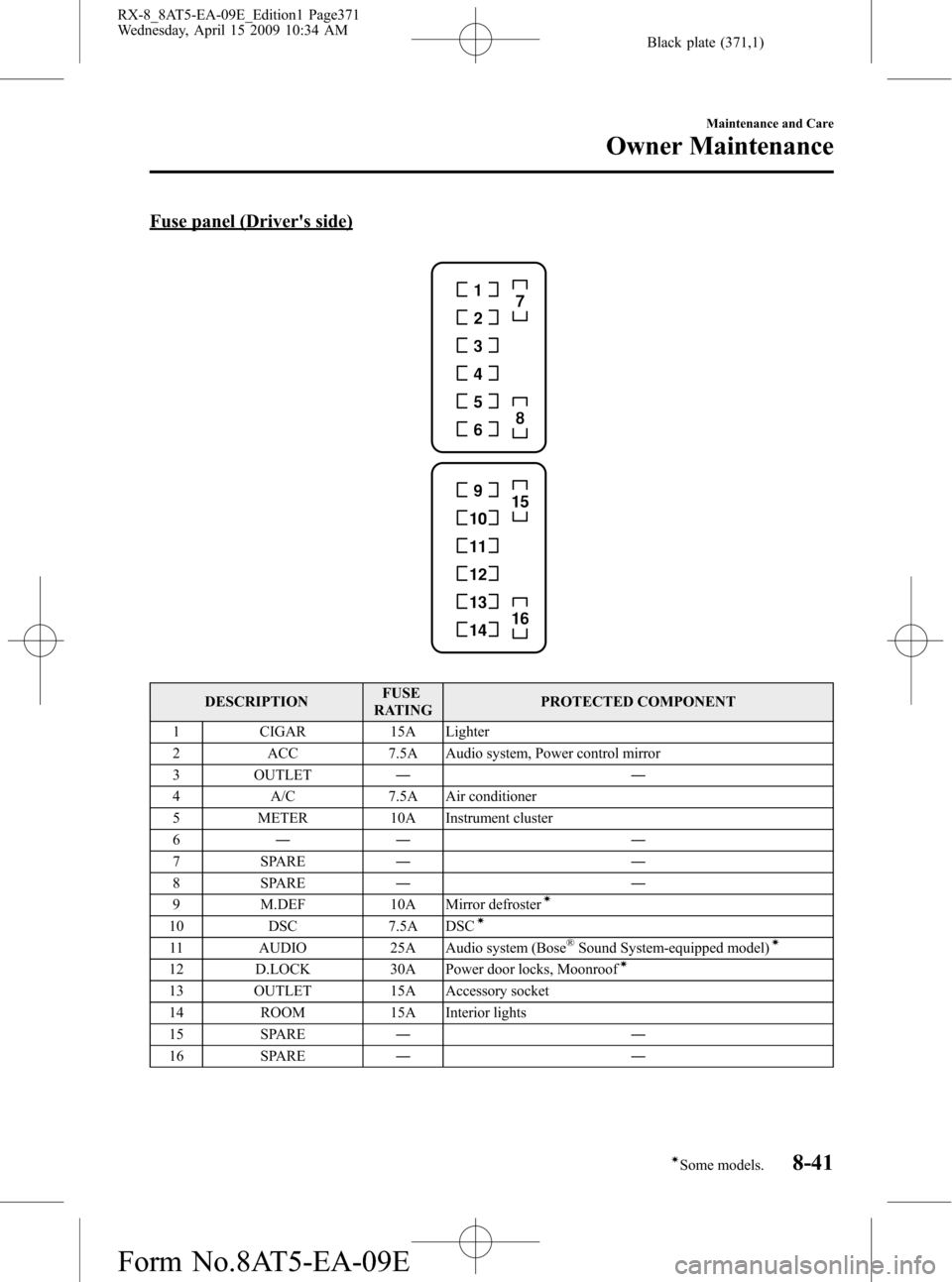

Fuse panel (Driver's side)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 CIGAR 15A Lighter
2 ACC 7.5A Audio system, Power control mirror
3 OUTLET――
4 A/C 7.5A Air conditioner
5 METER 10A Instrument cluster
6―― ―
7 SPARE――
8 SPARE――
9 M.DEF 10A Mirror defroster
í
10 DSC 7.5A DSCí
11 AUDIO 25A Audio system (Bose®Sound System-equipped model)í
12 D.LOCK 30A Power door locks, Moonroofí
13 OUTLET 15A Accessory socket
14 ROOM 15A Interior lights
15 SPARE――
16 SPARE――
Maintenance and Care
Owner Maintenance
8-41íSome models. RX-8_8AT5-EA-09E_Edition1 Page371
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (429,1)
qFuses
Refer to the fuse rating on page 8-36.
Specifications
10-7
RX-8_8AT5-EA-09E_Edition1 Page429
Wednesday, April 15 2009 10:34 AM
