2010 LINCOLN NAVIGATOR Navigation Manual

display of song title, album title, and album cover art. After saving music
to the hard drive, you can access and play your music by specific tracks,
artists, albums or genres. You can even choose to create and access your
own playlists.
*Note:1 GB equals one billion bytes (1,000,000,000B).
Recording (saving) music to your jukebox
To record (save) music to your jukebox:
1. Ensure that the system is on.
2. Insert a CD into the system. The CD tab will appear.
3. Select ‘Record’ on the
touchscreen.
4. Select either individual tracks or
press ‘Select All’ to record the entire
CD.Note:The system will default
to selecting all tracks if none are
selected.
5. Press ‘Start Recording’.
The progress will show at the
bottom of the screen.
When the recording process is finished, the system will save your
track(s) / CD to the Jukebox.
2009 Centerstack(ng1)
Supplement, 2nd Printing
USA(fus)
Audio features
56

Note:If you are not actively listening to the disc being recorded, the
record rate is much quicker (as fast as five minutes).
Accessing the music in your jukebox
Once you have saved music to your jukebox, you can then choose
several ways to play your favorite music. To access:
1. Press the MEDIA hard button on
the navigation system.
2. Select the ‘Jukebox’ tab on the
touchscreen. You can then select
from the following options:
Scan:Press for a brief sampling of the currently selected CD, playlist,
genre, etc. Press again to disengage.
Repeat:Press to repeat the current CD, playlist, etc. Press again to
disengage.
Shuffle:Press to shuffle all the tracks on the current CD, playlist, etc. in
random order. Press again to disengage.
Music library:Press to access all of your saved music. You can choose
to view/play the material in the following ways:
•Play all tracks:Select to play all
tracks saved in the jukebox.
•Playlist:Select to play your own
playlist.
•Play genre:Select to have the
system play only music from a
specific genre.
•Play artist:Select to have the
system play only music by a
specific artist.
•Play album:Select to have the system play only music from a specific
album.
2009 Centerstack(ng1)
Supplement, 2nd Printing
USA(fus)
Audio features
57

Options:Select to view your other
options:
•Edit Playlists:Select to edit your playlists.
•Edit Music Library Contents:Select to make changes to the
content in your music library.
•Update Album Information from CD Database:Select to update
the residing album information from the Gracenotedatabase if a
recent software update was performed.
•Hard Disk Drive Information:Select to access the system’s hard
drive disc information such as used/free space and total capacity.
•CD Database Information:Select to access the CD database
information.
Creating a playlist
1. Press the MEDIA hard button on
the navigation system.
2. Select the ‘Jukebox’ tab on the
touchscreen.
3. Select ‘Options’.
2009 Centerstack(ng1)
Supplement, 2nd Printing
USA(fus)
Audio features
58

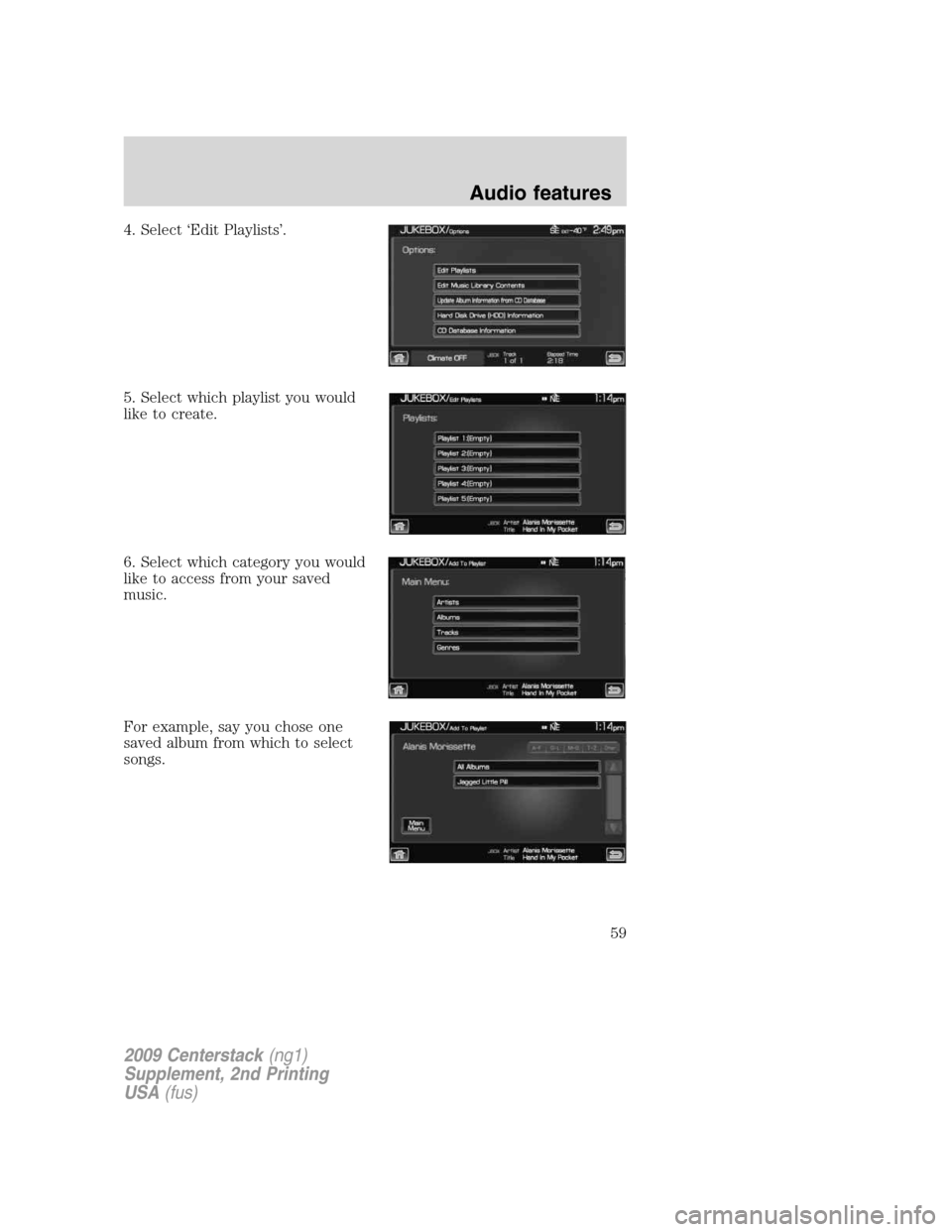

4. Select ‘Edit Playlists’.
5. Select which playlist you would
like to create.
6. Select which category you would
like to access from your saved
music.
For example, say you chose one
saved album from which to select
songs.
2009 Centerstack(ng1)
Supplement, 2nd Printing
USA(fus)
Audio features
59

7. Select the desired songs and then
press ‘Add’.
The system will show you your
currently selected songs. You can
choose to add more tracks to your
playlist, Sort the Playlist, Delete the
playlist or to edit the name of the
playlist.
8. When you are done making any
adjustment to the playlist, select
‘Edit Name’ to rename your playlist.
You can then access your playlist by
that name.
Jukebox voice commands (if equipped)
While listening to the music stored in the jukebox, press
or VOICE
on the steering wheel controls. When prompted, you may say any of the
following commands:
•Play•Pause
•Shuffle•Shuffle off
•Repeat•Repeat off
•Play next track•Play previous track
•Play genre •Play artist
2009 Centerstack(ng1)
Supplement, 2nd Printing
USA(fus)
Audio features
60

•Play album •Play track
•Play playlist •Play playlist <1–5>
•Help
Note:If you are not listening to the jukebox, press
or VOICE on the
steering wheel controls. When prompted, say, “Jukebox” and then any of
the above commands.
Search commands
Your jukebox has advanced search commands which allow you to have
the system search the stored music in your jukebox for a specific artist,
album or track. You can search for and play a specific type (genre) of
music, a specific album, a specific artist or a specific track.
To use the search commands
When listening to the jukebox, press
or VOICE on the steering wheel
controls. When prompted, you may say any of the following commands:
•Search genre •Search artist
•Search album •Search track
Once the system is done searching for the type of music, artist, album,
or track, you can say any of the following commands:
•Play•Play album
•Play track •Play artist
‘Refining’ your search
You can choose to ’refine’ your search even farther. For example, if you
told the system to search and play all music by a certain artist, you can
then tell the system to “Refine album” and choose a specific album when
prompted. If you then say “Play”, the system will only play music from
that specific album.
To refine your search, say any of the following commands after system
has finished searching for the type of music, artist, album, or track:
•Refine album •Refine artist
You can then select to:
•Play•Play track
2009 Centerstack(ng1)
Supplement, 2nd Printing
USA(fus)
Audio features
61

USER DEVICE
If your vehicle is equipped with
SYNC, there will be a ‘User Device’
tab in your media options. For more
information, please refer to the
SYNCmedia featureschapter
later in this supplement.
LINE IN (AUXILIARY INPUT JACK)
Your vehicle is equipped with an audio input jack which will allow a
portable audio device to be listened to through your vehicle’s audio
system. To activate this feature:
1. Press the MEDIA hard button on the navigation system.
2. Select the ‘Line In’ tab.
Once a 3.5 mm input jack is plugged into the Line in jack, ensure that
the playing device is turned on with the volume set at the maximum
level. Press the play button and sound from the device will be emitted
through the vehicle speakers. Adjust the volume using the volume
control on the navigation system.
For information on the auxiliary input jack location, please refer to the
Auxiliary input jack (Line in)in theEntertainmentchapter of your
Owner’s Guide.
2009 Centerstack(ng1)
Supplement, 2nd Printing
USA(fus)
Audio features
62

REAR DVD
(REAR OVERHEAD MOUNTED DVD SYSTEM, IF EQUIPPED)
Your navigation system allows you to access the Family Entertainment
DVD System (if equipped) as well as perform basic functions. To access:
1. Press the MEDIA hard button on
the navigation system.
2. Select the ‘Rear DVD’ tab on the
touchscreen. You may now select
from the following options:
: Press to access the previous track. Press and hold to reverse in
the current track.
: Press to access the next track. Press and hold to advance within
the current track.
/(Play/Pause): Press to play or pause the current track.
Rear DVD voice commands (if equipped)
If the rear DVD is the only audio source playing, press
or VOICE on
the steering wheel controls. When prompted, you may say any of the
following commands:
•Play•Pause
•Play previous chapter•Play next chapter
•Play previous track•Play next track
•Play previous folder•Play next folder
•Folder mode•Folder mode off
•Shuffle•Shuffle off
•Headphones•Headphones off
•Help
Note:If the Rear DVD is not the only audio source (i.e., the radio is on
also), then press
on the steering wheel controls. When prompted,
say, “Rear DVD” and then any of the above commands.
2009 Centerstack(ng1)
Supplement, 2nd Printing
USA(fus)
Audio features
63
