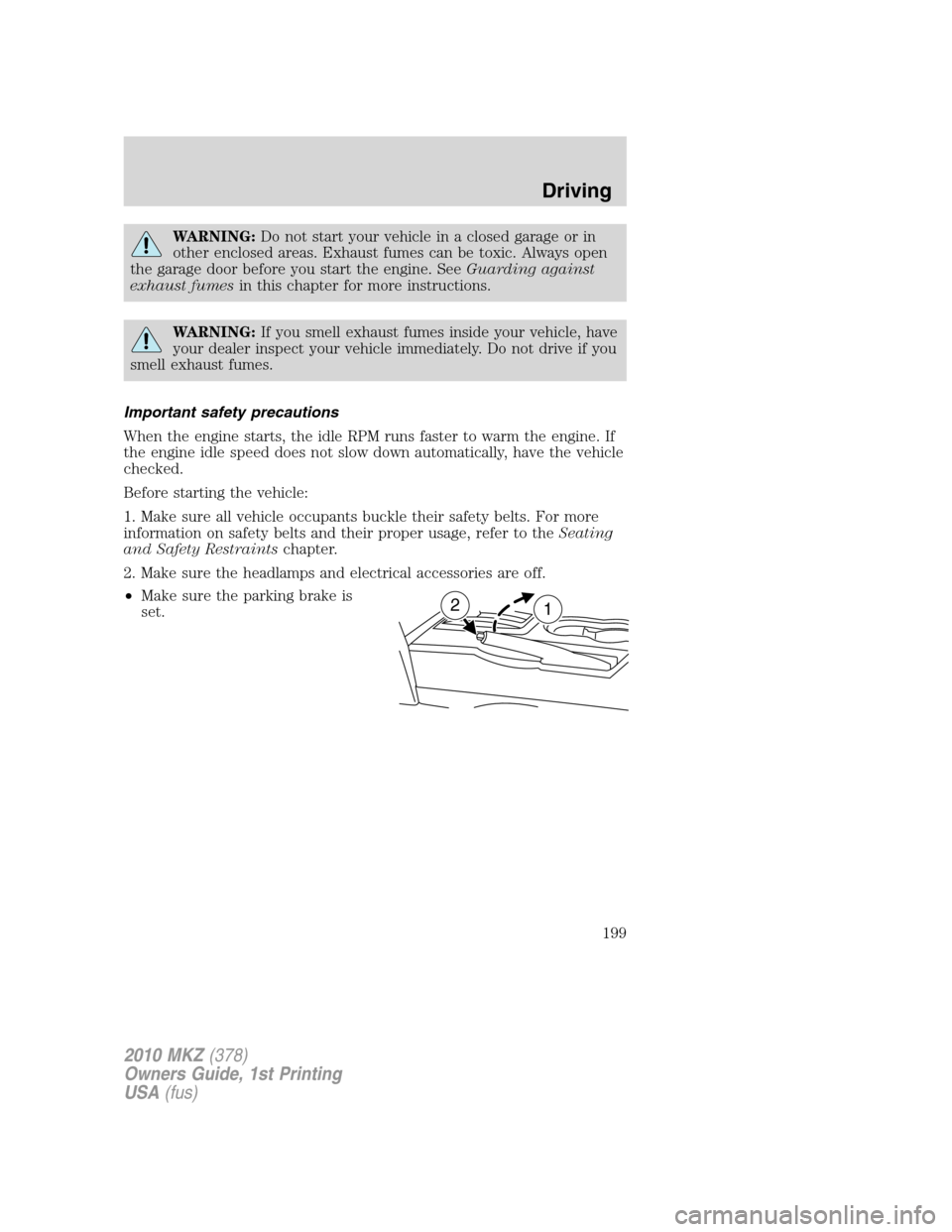

WARNING:Do not start your vehicle in a closed garage or in
other enclosed areas. Exhaust fumes can be toxic. Always open
the garage door before you start the engine. SeeGuarding against
exhaust fumesin this chapter for more instructions.
WARNING:If you smell exhaust fumes inside your vehicle, have
your dealer inspect your vehicle immediately. Do not drive if you
smell exhaust fumes.
Important safety precautions
When the engine starts, the idle RPM runs faster to warm the engine. If
the engine idle speed does not slow down automatically, have the vehicle
checked.
Before starting the vehicle:
1. Make sure all vehicle occupants buckle their safety belts. For more
information on safety belts and their proper usage, refer to theSeating
and Safety Restraintschapter.
2. Make sure the headlamps and electrical accessories are off.
•Make sure the parking brake is
set.
12
2010 MKZ(378)
Owners Guide, 1st Printing
USA(fus)
Driving
199

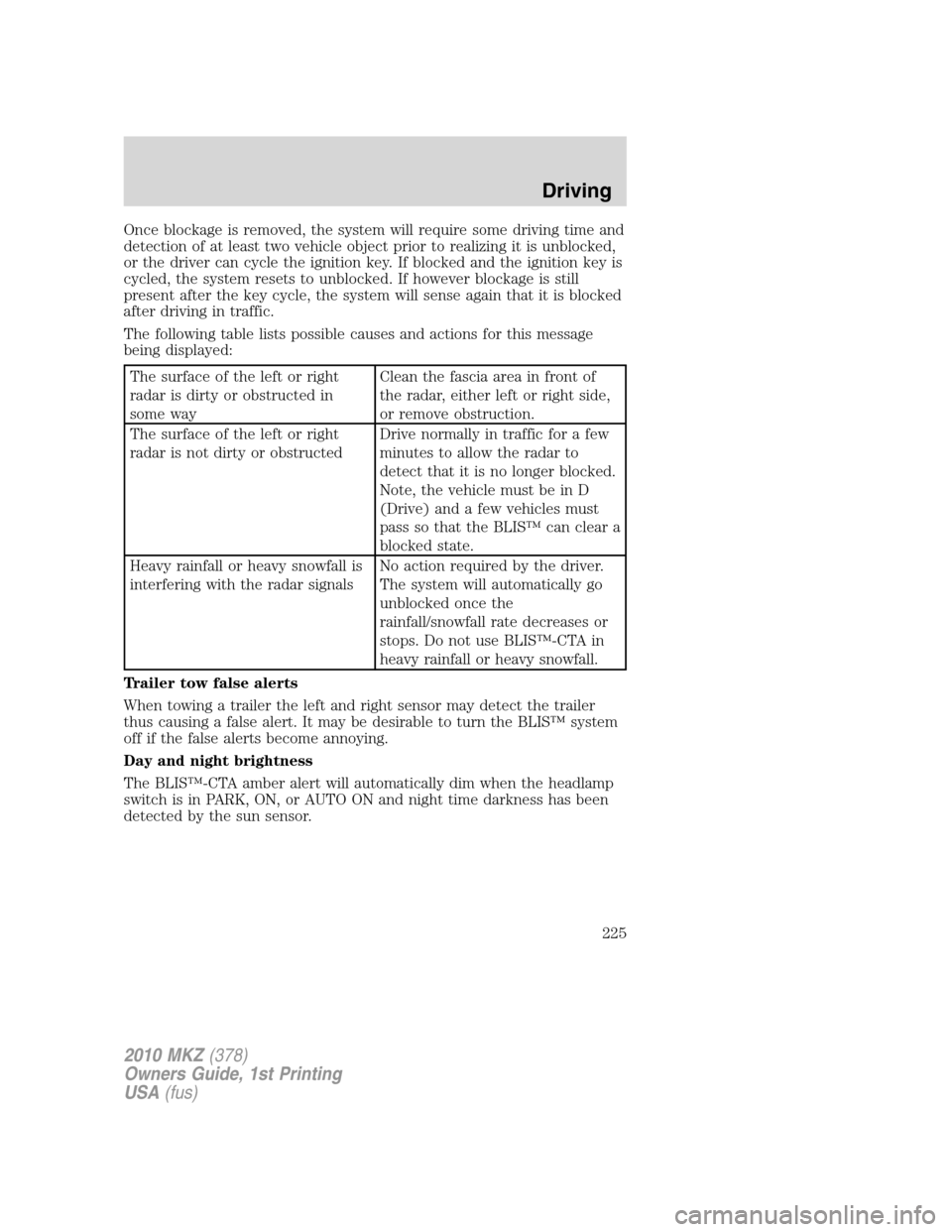

Once blockage is removed, the system will require some driving time and
detection of at least two vehicle object prior to realizing it is unblocked,
or the driver can cycle the ignition key. If blocked and the ignition key is
cycled, the system resets to unblocked. If however blockage is still
present after the key cycle, the system will sense again that it is blocked
after driving in traffic.
The following table lists possible causes and actions for this message
being displayed:
The surface of the left or right
radar is dirty or obstructed in
some wayClean the fascia area in front of
the radar, either left or right side,
or remove obstruction.
The surface of the left or right
radar is not dirty or obstructedDrive normally in traffic for a few
minutes to allow the radar to
detect that it is no longer blocked.
Note, the vehicle must be in D
(Drive) and a few vehicles must
pass so that the BLIS™ can clear a
blocked state.
Heavy rainfall or heavy snowfall is
interfering with the radar signalsNo action required by the driver.
The system will automatically go
unblocked once the
rainfall/snowfall rate decreases or
stops. Do not use BLIS™-CTA in
heavy rainfall or heavy snowfall.
Trailer tow false alerts
When towing a trailer the left and right sensor may detect the trailer
thus causing a false alert. It may be desirable to turn the BLIS™ system
off if the false alerts become annoying.
Day and night brightness
The BLIS™-CTA amber alert will automatically dim when the headlamp
switch is in PARK, ON, or AUTO ON and night time darkness has been
detected by the sun sensor.
2010 MKZ(378)
Owners Guide, 1st Printing
USA(fus)
Driving
225

The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 30A Driver smart window motor
2 15A Brake on/off switch, Center
high-mounted stop lamp
3 15A Not used (Spare)
4 30A Passenger front smart window
motor
5 10A Keypad illumination, Brake shift
interlock
6 20A Turn signal lamps
7 10A Low beam headlamps (left)
8 10A Low beam headlamps (right)
9 15A Courtesy lights/Illuminated scuff
plate
2010 MKZ(378)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
236

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
10 15A Backlighting, Puddle lamps
11 10A AWD module
12 7.5A Memory modules, Memory
seat/mirrors switches
13 5A SYNC module
14 10A Electronic Finish Panel (EFP)
radio and climate control buttons
module, Navigation display, Center
information display, GPS module,
Ambient lighting
15 10A Climate control
16 15A Not used (Spare)
17 20A Door locks, Trunk release
18 20A Not used (Spare)
19 25A Not used (Spare)
20 15A On-Board Diagnostic connector
21 15A Fog lamps
22 15A Front sidemarker lamps, Park
lamps, License plate lamp
23 15A High beam headlamps
24 20A Horn
25 10A Demand lamps/power saver relay
26 10A Instrument cluster battery power
27 20A Ignition switch
28 5A Radio crank sense circuit
29 5A Instrument cluster ignition power
30 5A Not used (Spare)
31 10A Not used (Spare)
32 10A Restraint control module
33 10A Not used (Spare)
34 5A Not used (Spare)
2010 MKZ(378)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
237

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
35 10A Rear park assist, Blind spot
monitor system, Rear video
camera, AWD
36 5A Passive Anti-Theft Sensor (PATS)
transceiver
37 10A Not used (Spare)
38 20A Subwoofer amplifier
39 20A Radio
40 20A Not used (Spare)
41 15A Automatic dimming mirror, Moon
roof, Compass, Front windows
42 10A Electronic stability control,
Adaptive headlamps
43 10A Rain sensor
44 10A Fuel diode/Powertrain control
module
45 5A Heated backlight and blower relay
coil, Wiper washer
46 7.5A Occupant Classification Sensor
(OCS) module, Passenger airbag
off lamp
47 30A Circuit
BreakerRear windows
48 — Delayed accessory relay
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
2010 MKZ(378)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
238

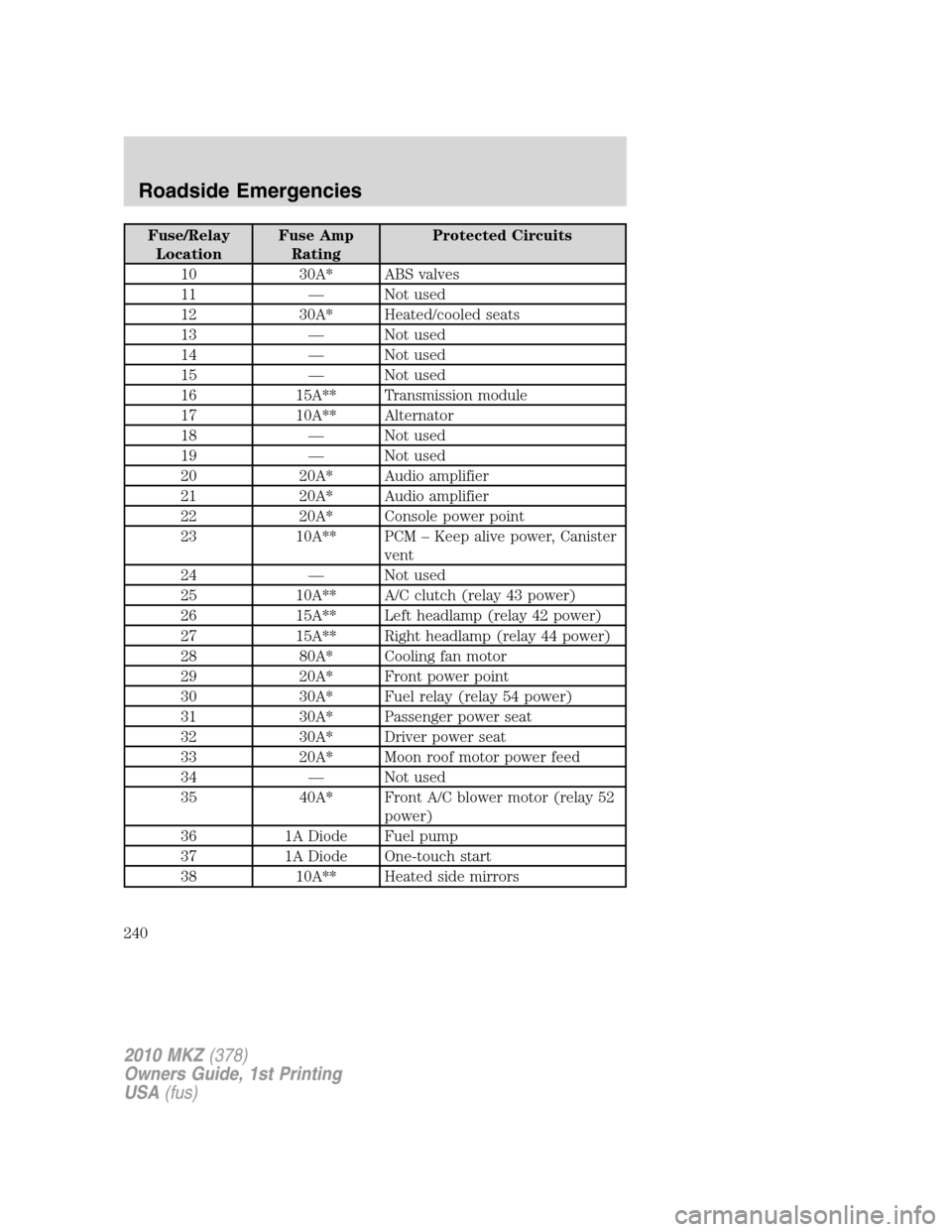

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
10 30A* ABS valves
11 — Not used
12 30A* Heated/cooled seats
13 — Not used
14 — Not used
15 — Not used
16 15A** Transmission module
17 10A** Alternator
18 — Not used
19 — Not used
20 20A* Audio amplifier
21 20A* Audio amplifier
22 20A* Console power point
23 10A** PCM – Keep alive power, Canister
vent
24 — Not used
25 10A** A/C clutch (relay 43 power)
26 15A** Left headlamp (relay 42 power)
27 15A** Right headlamp (relay 44 power)
28 80A* Cooling fan motor
29 20A* Front power point
30 30A* Fuel relay (relay 54 power)
31 30A* Passenger power seat
32 30A* Driver power seat
33 20A* Moon roof motor power feed
34 — Not used
35 40A* Front A/C blower motor (relay 52
power)
36 1A Diode Fuel pump
37 1A Diode One-touch start
38 10A** Heated side mirrors
2010 MKZ(378)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
240

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
39 — Not used
40 — Not used
41 G8VA relay Backup lamps
42 G8VA relay Left headlamps
43 G8VA relay A/C clutch
44 G8VA relay Right headlamps
45 15A** Injectors
46 15A** PCM
47 10A** General powertrain components,
A/C clutch, back-up lamps
48 15A** Ignition coils
4915A** Emissions related powertrain
components
50 — Not used
51 — Not used
52 Full ISO relay Blower motor relay
53 Full ISO relay Rear defrost relay
54 Full ISO relay Fuel relay
55 Full ISO relay Starter relay
56 — Not used
57 Full ISO relay PCM relay
58 — Not used
* Cartridge Fuses ** Mini Fuses
