WARNING:If the message SERVICE POWER STEERING is
displayed in the message center, the EPS system has detected a
problem with the system function. On the next key cycle the message
SERVICE POWER STEERING NOW will be displayed and steering
assist will be removed until the steering system is serviced. Have your
vehicle taken to the nearest dealer as soon as possible.
3.7L V6 Duratec engine:Your vehicle is equipped with a hydraulic
steering system.
To help prevent damage to the power steering system, never hold the
steering wheel at its furthest turning points (until it stops) for more than
a few seconds when the engine is running. If the power steering system
breaks down (or if the engine is turned off), you can steer the vehicle
manually, but it takes more effort.
•Do not operate the vehicle with a low power steering pump fluid level
(below the MIN mark on the reservoir).
•Some noise is normal during operation. If excessive, check for low
power steering pump fluid level before seeking service by your
authorized dealer.
•Heavy or uneven steering efforts may be caused by low power steering
pump fluid level. Check for low power steering pump fluid level before
seeking service by your authorized dealer.
•Do not fill the power steering pump reservoir above the MAX mark on
the reservoir, as this may result in leaks from the reservoir.
If the steering wanders or pulls equipped with either EPS or hydraulic
steering system, check for:
•an improperly inflated tire
•uneven tire wear
•loose or worn suspension components
•loose or worn steering components
•improper vehicle alignment
A high crown in the road or high crosswinds may also make the steering
seem to wander/pull.
Driving
294
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

REARVIEW CAMERA SYSTEM
The rearview camera system,
located on the liftgate, provides a
video image, which appears on the
navigation system screen, of the
area behind the vehicle. It adds
assistance to the driver while
reversing or reverse parking the
vehicle.
To use the camera system, place the transmission in R (Reverse); an
image will display on the navigation screen. The area displayed on the
screen may vary according to the vehicle orientation and/or road
condition.
•(1) Rear bumper
•(2) Red zone
•(3) Yellow zone
•(4) Green zone
•(5) Center line of vehicle
Always use caution while backing.
Objects in the red zone are closest
to your vehicle and objects in the
green zone are further away. Objects
are getting closer to your vehicle as they move from the green zone to
the yellow or red zones.
Use the side mirrors and rearview mirror to get better coverage on both
sides and rear of the vehicle. When shifting out of reverse and into any
other gear, the image will remain on for a few seconds before it shuts off
to assist in parking or trailer hookup.
After shifting out of R (Reverse) and into any gear other than P (Park),
the image will remain until the vehicle speed reaches 5 mph (8 km/h),
only if the rear camera delay feature is on, or until any navigation radio
button is pressed.
Note:The default setting for the rear camera delay is off. Press the
“Settings” button found on the navigation screen to set the rear camera
delay feature to on or off.
Driving
301
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

Collision Warning System Limitations
Due to the nature of radar technology, there may be certain instances
where vehicles will not provide a collision warning. These include:
•Stationary or slow moving vehicles below 6 mph (10 km/h).
•Pedestrians or objects in the roadway.
•Oncoming vehicles in the same lane.
•Severe weather conditions (see also blocked sensor section).
•Debris build up on the grille near the headlamps (see block sensor
section).
•Small distance to vehicle ahead.
•Steering wheel and pedal movements are large (very active driving
style).
•High interior temperatures, which may deactivate the illumination or
the warning lamps until the interior temperature reduces (audible
warning will alert the driver).
In addition, sun load and sunglasses may reduce the visibility of the
warning lamps. Therefore, it is recommended to keep the audible
warning on.
WARNING:The collision warning system’s brake support can
only help reduce the speed at which a collision occurs if the
driver applies the vehicle’s brakes. The brake pedal must be pressed
just like for any typical braking situation.
Blocked sensor
If a message regarding a blocked
sensor is displayed, the radar signals
from the sensor, located behind a
fascia cover near the driver side of
the lower grille, have been
obstructed. When the radar signals
are obstructed, a vehicle ahead
cannot be detected and the Collision
Warning system will not function.
The following table lists possible causes and actions for this message
being displayed.
Driving
304
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

Cause Action
The surface of the radar in the
grille is dirty or obstructed in
some wayClean the grille surface in front of
the radar or remove the object
causing the obstruction
The surface of the radar in the
grille is clean but the message
remains in the displayWait a short time. It may take
several minutes for the radar to
detect that it is no longer
obstructed
Heavy rain, spray, snow, or fog is
interfering with the radar signalsDo not use the Collision Warning
System in these conditions
because it may not detect, warn,
or respond to potential collisions
Swirling water, or snow or ice on
the surface of the road may
interfere with the radar signalsDo not use the Collision Warning
System in these conditions
because it may not detect, warn,
or respond to potential collisions
Activating/deactivating collision warning system
To turn the warning system and/or chime on or off and set the warning
sensitivity <– –>, refer toMessage centerin theInstrument Cluster
chapter.
Note:If the system cannot be turned off in a MyKey™ equipped vehicle,
refer toMyKey™in theLocks and Securitychapter for more
information.
Note:If collision warnings are perceived as being too frequent or
disturbing then the warning sensitivity can be reduced, though the
manufacturer recommends using the highest sensitivity setting where
possible. Setting lower sensitivity would lead to fewer and later system
warnings. Refer to theMessage centerin theInstrument Cluster
chapter for instructions on reducing the sensitivity.
ACTIVE PARK ASSIST (APA) (IF EQUIPPED)
Active Park Assist (APA) will detect an available parallel parking space
and automatically steer the vehicle into the space (hands free) while you
control the accelerator, gearshift and brakes. The system will visually
and/or audibly instruct the driver to park the vehicle.
Driving
305
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

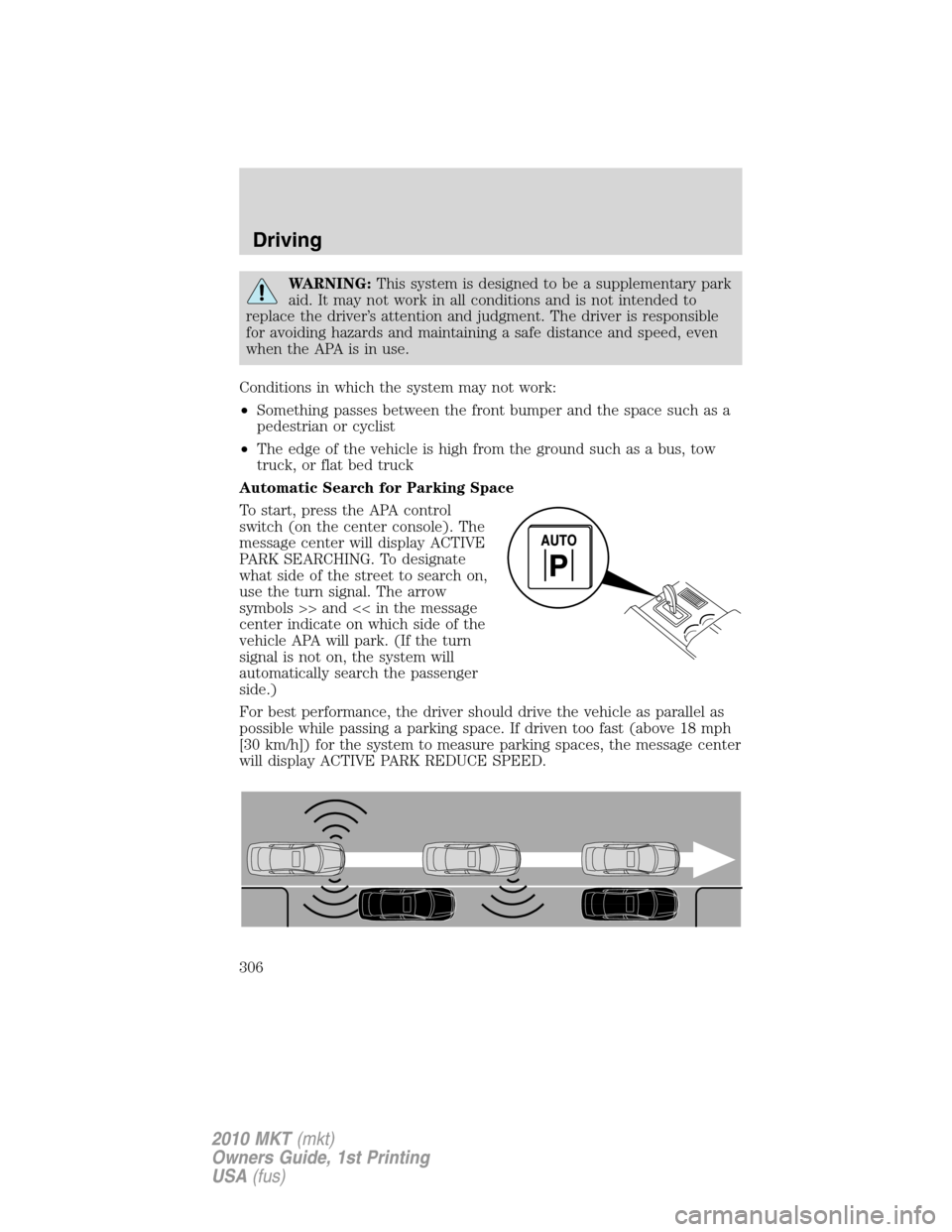

WARNING:This system is designed to be a supplementary park
aid. It may not work in all conditions and is not intended to
replace the driver’s attention and judgment. The driver is responsible
for avoiding hazards and maintaining a safe distance and speed, even
when the APA is in use.
Conditions in which the system may not work:
•Something passes between the front bumper and the space such as a
pedestrian or cyclist
•The edge of the vehicle is high from the ground such as a bus, tow
truck, or flat bed truck
Automatic Search for Parking Space
To start, press the APA control
switch (on the center console). The
message center will display ACTIVE
PARK SEARCHING. To designate
what side of the street to search on,
use the turn signal. The arrow
symbols >> and << in the message
center indicate on which side of the
vehicle APA will park. (If the turn
signal is not on, the system will
automatically search the passenger
side.)
For best performance, the driver should drive the vehicle as parallel as
possible while passing a parking space. If driven too fast (above 18 mph
[30 km/h]) for the system to measure parking spaces, the message center
will display ACTIVE PARK REDUCE SPEED.
Driving
306
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

When the system has found a space, the message center will display
SPACE FOUND PULL FORWARD followed by a chime. Drive forward
until the message center displays SPACE FOUND STOP followed by a
chime. When you stop the vehicle in position to begin parking, the
message center displays REMOVE HANDS PUT IN REVERSE. The driver
should always come to a complete stop before changing gears.
Automatic Steering into Parking Space
Automatic steering is activated when you stop the vehicle, remove your
hands from the steering wheel and select the R (Reverse) gear. Be sure
the steering wheel motion is not obstructed by any objects. The vehicle
will steer itself from this point on as you follow the instructions in the
message center to safely move the vehicle reverse and forward in the
space. You may cancel APA at anytime by grabbing the steering wheel or
by pressing the APA control switch. When the vehicle is in R (Reverse)
the message center displays BACK UP USE CAUTION.
When you determine the vehicle is back far enough or you hear a solid
tone from the Reverse Sensing System, bring the vehicle to a complete
stop and move the gearshift to D (Drive). The message center will now
display PULL FORWARD USE CAUTION followed by a chime.
Driving
307
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

When you determine the vehicle is far enough forward or a solid tone
from the Forward Sensing System (if equipped) is heard, bring the
vehicle to a complete stop and move the gearshift to R (Reverse). The
message center may display BACK UP SLOWLY USE CAUTION followed
by a chime. The system may offer subsequent backward and forward
maneuvers before proceeding to the finish phase.
APA Finished
When Active Park Assist has completed the automated steering, the
message center displays ACTIVE PARK FINISHED followed by a chime.
The driver is responsible to assess and correct as necessary the final
parking position and put the vehicle in P (Park).
The system can also be deactivated at any time by the following:
•Pressing the APA control switch
•Grabbing the steering wheel
•Exceeding a vehicle speed of 18 mph (30 km/h) for 30 seconds during
Active Park Searching
•Exceeding a vehicle speed of 6 mph (10 km/h) during automatic
steering
•Deactivating the AdvanceTrac
system or the system has activated on
a slippery or loose surface
•ABS activation or failure
•Any door (except the driver’s door) opens
•Something touching the steering wheel
If a fault is present in the system, the message ACTIVE PARK FAULT
will be displayed followed by a chime. Contact an authorized dealer to
have your vehicle serviced.
Driving
308
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

•The tires may not be installed and maintained correctly. For example,
one or more tires may not be inflated correctly, may not be of the
same size, or may not be authorized for use on this vehicle.
•The vehicle had a repair or alteration that is not authorized by the
manufacturer.
•One of the parked vehicles has a high altitude attachment (i.e. salt
sprayer, snow plow, moving truck high bed, etc.) High altitude
attachments may not be detected by the system.
•The parking space length or parked objects position have changed
after the vehicle has passed the parking space.
•The temperature around your vehicle changed quickly such as you
just drove from a heated garage into the cold or just left a car wash.
As a result, the outside air temperature displayed in the vehicle may
not be close enough to the actual temperature. APA relies on a
correctly sensing the temperature outside for precisely positioning the
vehicle.
BLIND SPOT MIRRORS (IF EQUIPPED)
Blind spot mirrors have an
integrated convex spotter mirror
built into the upper outboard corner
of the outside mirrors. They are
designed to assist the driver by
increasing visibility along the side of
the vehicle. For more information on
your side view mirrors, refer to
Exterior mirrorsin theDriver Controlschapter.
Driving
310
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)
