2010 Lexus IS F Owner's Manual

312
3-6. Using the storage features
10_IS F_U
Overhead consolePress the overhead console.
The overhead console is useful for
temporarily storing sunglasses and
similar small items.
■Console box light
The console box light turns on when the “ENGINE START STOP” switch is in
IGNITION ON mode.
■Using the console box to store CD cases
CAUTION
■Caution while driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.
Store a CD case with the hinged portion fac-
ing either the front or back of the console
box.
Console box and overhead console

313
3-6. Using the storage features
3
Interior features
10_IS F_U
Cup holdersFront (press-in type) Press down and release the front
of the cup holder lid.
Front (slide type) Pull up the knob to release the
lock.
Slide the armrest.
CAUTION
■Items that should not be left in the overhead console
Do not leave glasses or lighters in the console.
If the interior of the vehicle becomes hot, lighters may explode and glasses may
warp or become cracked.
■Caution while driving
Do not leave the overhead console open while driving.
Items may fall out and cause death or serious injury in case of an accident or sudden
stop.
Overhead console and cup holders

314
3-6. Using the storage features
10_IS F_URear
Press in and release the cup hold-
ers on the rear center armrest.
■Using the front cup holder (slide type) to store small items
CAUTION
■Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or sudden
braking and cause injury. If possible, cover hot drinks to prevent burns.
■When not in use
Keep the cup holders closed.
Injuries may result in the event of an accident or sudden braking.
Remove the cup holder insert by holding the
base part.
Cup holders

315
3-6. Using the storage features
3
Interior features
10_IS F_U

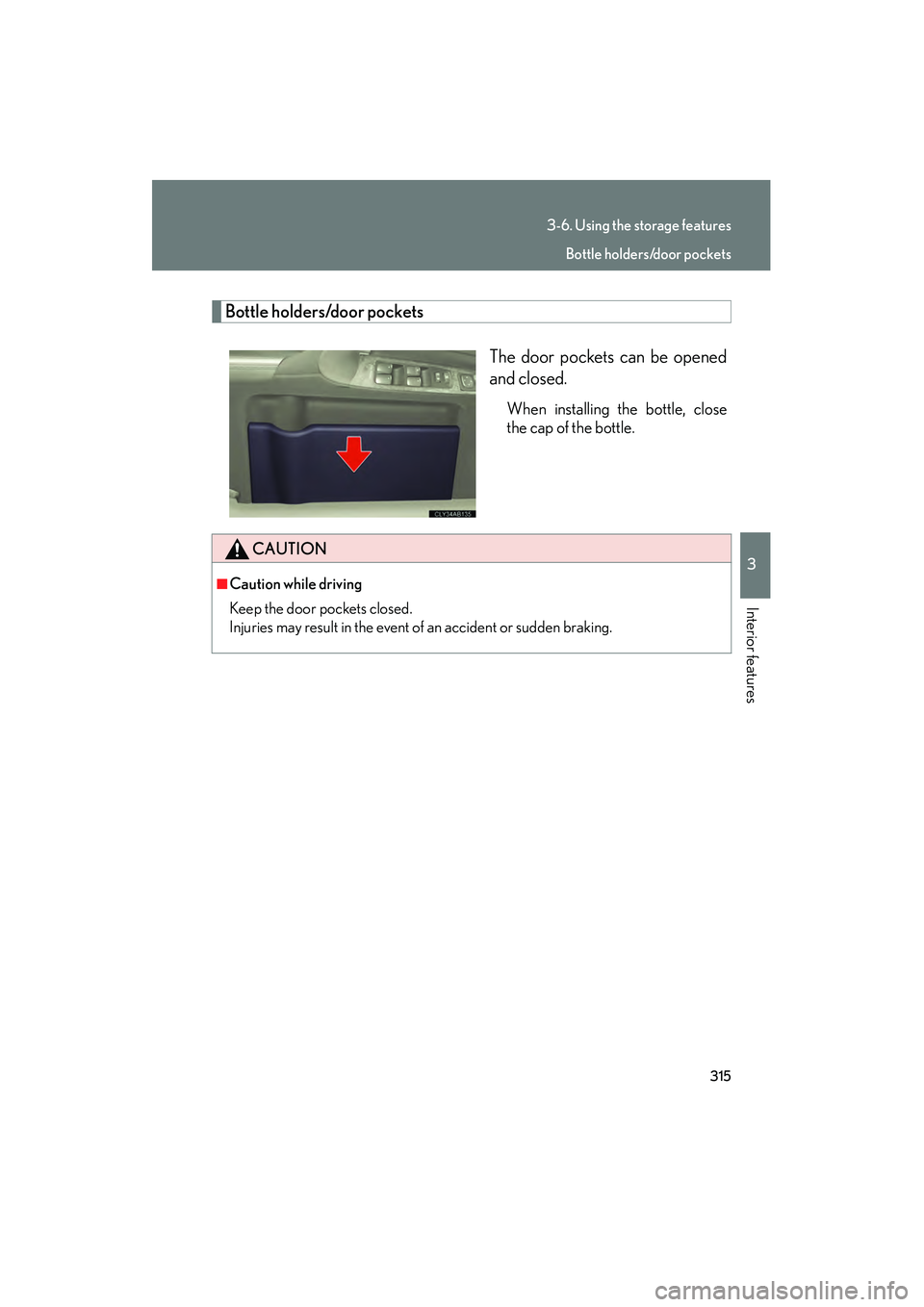

Bottle holders/door pocketsThe door pockets can be opened
and closed.
When installing the bottle, close
the cap of the bottle.
CAUTION
■Caution while driving
Keep the door pockets closed.
Injuries may result in the event of an accident or sudden braking.
Bottle holders/door pockets

316
10_IS F_U
3-7. Other interior features
Sun visors
Forward position:
Flip down.
Side position:
Flip down, unhook, and swing
to the side.

317
3-7. Other interior features
3
Interior features
10_IS F_U
Vanity mirrors
Slide the cover.
The light turns on when the
cover is opened.

318
3-7. Other interior features
10_IS F_U
Clock
■The clock is displayed when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
Adjusts the hour.
Adjusts the minutes.
Rounds to the nearest hour.
*
*: e.g. 1:00 to 1:29 → 1:00
1:30 to 1:59 → 2:00

319
3-7. Other interior features
3
Interior features
10_IS F_U
Satellite switches
The satellite switches can be used to change the settings of various fea-
tures. Settings are shown on the multi-information display.
■Operating the satellite switches
Bring up satellite switch mode
on the multi-information display.
Press “<”, “>” or the “ON/OFF”
button.
Select the item whose setting is
to be changed.
Press “<” or “>” to display the
item whose setting is to be
changed.
STEP1
STEP2
