2010 Lexus HS250h warning

449
4-3. Do-it-yourself maintenance
4
Maintenance and care
CAUTION
■When replacing wheels
●Do not use wheels that are a different size from those recommended in the
Owner’s Manual, as this may result in a loss of handling control.
●Never use an inner tube in a leaking wheel which is designed for a tubeless tire.
Doing so may result in an accident, causing death or serious injury.
NOTICE
■Replacing tire pressure warning valves and transmitters
●Because tire repair or replacement may affect the tire pressure warning valves
and transmitters, make sure to have tires serviced by your Lexus dealer or other
qualified service shop. In addition, make sure to purchase your tire pressure
warning valves and transmitters at your Lexus dealer.
●Ensure that only genuine Lexus wh eels are used on your vehicle. 
Tire pressure warning valves and transmitters may not work properly with non-
genuine wheels.

463
4-3. Do-it-yourself maintenance
4
Maintenance and care
3IGN10 A
Electronically controlled brake sys-
tem, multiport fuel injection system/
sequential multiport fuel injection sys-
tem, Lexus link system, smart access
system with push-button start, stop
lights
4MET7. 5 AMeters
5WIP30 AWindshield wipers
6WA S H E R15 AWindshield washer
7A/C10 AAir conditioning system
8GAUGE10 AAFS, turn signal lights, emergency
flasher lights
9AFS10 AAdaptive front-lighting system
10ECU-IG NO.210 A
Pre-collision system, LKA, dynamic
radar cruise control, air conditioning
system, outside rear view mirror,
HUD, navigation system, tire inflation
pressure warning system
FuseAmpereCircuit

When trouble arises5
481
5-1. Essential informationEmergency flashers .............. 482
If your vehicle needs to be 
towed ...................................... 483
If you think something is 
wrong ...................................... 489
Event data recorder.............. 490
5-2. Steps to take in an 
emergency
If a warning light turns on 
or a warning buzzer 
sounds..................................... 492
If a warning message is 
displayed................................. 501
If you have a flat tire................ 521
If the hybrid system will not 
start ......................................... 530
If you lose your keys .............. 532
If the electronic key does 
not operate properly.......... 533
If the vehicle 12-volt 
battery is discharged ......... 536
If your vehicle overheats ...... 541
If the vehicle becomes 
stuck........................................ 545

5
When trouble arises
489
5-1. Essential information
If you think something is wrong
If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact your Lexus dealer as soon as possible.
■ Visible symptoms
●Fluid leaks under the v
ehicle
(Water dripping from the air conditioning after use is normal.)
● Flat
-looking tires or uneven tire wear
●High engine coolant temper
ature warning light flashes or comes
on
■ A
udible symptoms
●Changes in e
xhaust sound
● Ex
cessive tire squeal when cornering
●Str
ange noises related to the suspension system
●P
inging or other noises related to the hybrid system
■ Oper
ational symptoms
●Engine mis
sing, stumbling or running rough
●A
ppreciable loss of power
●V
ehicle pulls heavily to one side when braking
●V
ehicle pulls heavily to one side when driving on a level road.
● L
oss of brake effectiveness, sp ongy feeling, pedal almost touches
the floor

492
5-2. Steps to take in an emergency
If a warning light turns on or a warning buzzer sounds...
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
The following warning indicates a possible problem in the brake system.
Immediately stop the vehicl e in a safe place and contact your Lexus
dealer.
*: Brake system warning buzzer
When there is a possible problem that could affect braking performance, the
warning light will come on and a warning buzzer will sound.
Parking brake engaged warning buzzer
 P.
5 0 5
Stop the vehicle immediately.
The following warning indicates the po ssibility of damage to the vehicle
that may lead to an ac cident. Immediately stop the vehicle in a safe place
and contact your Lexus dealer.
Warning lightWarning light/Details
(U.S.A.)

(Canada)
Brake system warning light and warning buzzer* 
(red indicator)
•Low brake fluid
• Malfunction in the brake system This light also comes on when the parking brake is not
released. If the light turns off after the parking brake is fully
released the system is operating normally.
Warning lightWarning light/Details
Charging system warning lightIndicates a malfunction in the vehicle’s charging system
Calmly perform the following actions if any of the warning lights comes on
or flashes. If a light comes on or flashes, but then goes off, this does not nec
-
essarily indicate a malfunction in the s
ystem. However, if this continues to
occur, have the vehicle inspected by your Lexus dealer.

5
When trouble arises
493
5-2. Steps to take in an emergency
Have the vehicle inspected by your Lexus dealer immediately.
Failing to investigate the cause of the following warnings may lead to the
system operating abnormally and possibly cause an accident. Have the
vehicle inspected by your Lexus dealer immediately.
High engine coolant temperatur e warning light (flashes or
comes on) Indicates that the engine is overheating P. 5 4 1
• Flashes: Engine is overheating. Drive carefully.
• Comes on: Engine is overheated. Stop the vehicle.
Warning lightWarning light/Details
Brake system warning light (yellow indicator) Indicates a malfunction in:
• The regenerative brake system; or
• The electronically controlled brake system
(U.S.A.)

(Canada)
Malfunction indicator lamp
Indicates a malfunction in:
• The hybrid system;
• The electronic engine control system;
• The electronic throttle control system; or
• The hybrid transmission control system
SRS warning lightIndicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system
(U.S.A.)

(Canada)
“ABS” warning lightIndicates a malfunction in:
•The ABS; or
• The brake assist system
Warning lightWarning light/Details

494
5-2. Steps to take in an emergency
Electric power steering system warning light (warning
buzzer)Indicates a malfunction in the EPS (Electric Power Steering)
system
(Flashing)
“PCS” warning light (if equipped)Indicates a malfunction in the pre-collision system 
 P. 2 3 2
(Flashing)
“AFS OFF” indicator light (if equipped)
Indicates a malfunction in the AFS (Adaptive Front-lighting
System)
Slip indicator light
Indicates a malfunction in:
• Enhanced VSC system;
•TRAC system; or
• Hill-start assist control system
(Flashing)
“LKA” indicator light (if equipped)Indicates a malfunction in the lane keeping assist system
 P. 2 1 7
(Flashing)
Cruise control indicator light
Indicates a malfunction in the cruise control system
 P. 2 0 1 205
(Flashing)
Radar cruise control indicator light (if equipped)
Indicates a malfunction in the Dynamic radar cruise control
system P. 2 0 5
Warning lightWarning light/Details

5
When trouble arises
495
5-2. Steps to take in an emergency

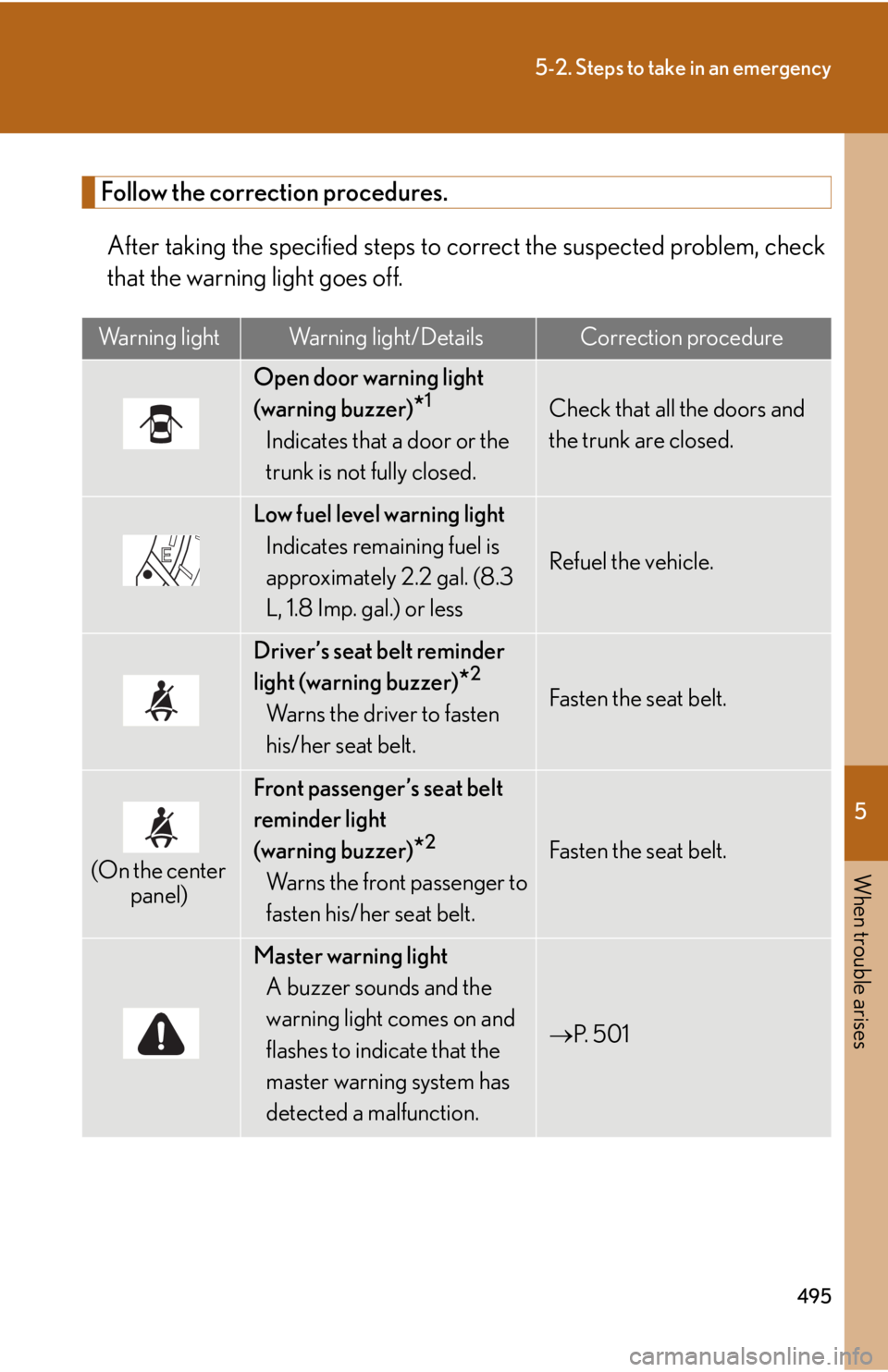

Follow the correction procedures.
After taking the specified steps to correct the suspected problem, check
that the warning light goes off.
Warning lightWarning light/DetailsCorrection procedure
Open door warning light
(warning buzzer)
*1
Indicates that a door or the
trunk is not fully closed.
Check that all the doors and
the trunk are closed.
Low fuel level warning light
Indicates remaining fuel is
approximately 2.2 gal. (8.3
L, 1.8 Imp. gal.) or less
Refuel the vehicle.
Driver’s seat belt reminder
light (warning buzzer)
*2
Warns the driver to fasten
his/her seat belt.Fasten the seat belt.
(On the center panel)
Front passenger’s seat belt
reminder light 
(warning buzzer)
*2
Warns the front passenger to
fasten his/her seat belt.
Fasten the seat belt.
Master warning light A buzzer sounds and the
warning light comes on and
flashes to indicate that the
master warning system has
detected a malfunction.
 P. 5 0 1
