2010 Lexus GX460 display

249
2-4. Using other driving systems
2
When driving
GX460_U.S.A. (OM60E69U)
■Changing the vehicle-to-vehicle distance
Pressing the button changes the
vehicle-to-vehicle distance as
follows:
Long
Medium
Short
The vehicle-to-vehicle distance
is set automatically to long
mode when the “ENGINE
START STOP” switch is turned
to IGNITION ON mode.
If a vehicle is running ahead of
you, the preceding vehicle mark
will also be displayed.
■Canceling and resuming the speed control
Pulling the lever toward you
cancels the cruise control.
The speed setting is also can-
celed when the brakes are
applied.
Pushing the lever up resumes
the cruise control and returns
vehicle speed to the set
speed.
Resuming is available when the
vehicle speed is more than
approximately 25 mph (40 km/
h).
Preceding vehicle mark

251
2-4. Using other driving systems
2
When driving
GX460_U.S.A. (OM60E69U)Example of constant speed cruising

When there are no vehicles ahead
The vehicle travels at the speed set by the driver. The desired vehicle-to-vehi-
cle distance can also be set by operat ing the vehicle-to-vehicle distance con-
trol.
Example of deceleration cruising
When the vehicle ahead is driving slower than the set speed
When a vehicle is detected running ahead of you, the system automatically
decelerates your vehicle. When a grea ter reduction in vehicle speed is nec-
essary, the system applies the brakes. A warning tone warns you when the
system cannot decelerate sufficiently to prevent your vehicle from closing in
on the vehicle ahead.
Example of follow-up cruising 
When following a vehicle driving slower than the set speed
The system continues follow-up cruising while adjusting for changes in the
speed of the vehicle ahead in order to maintain the vehicle-to-vehicle dis-
tance set by the driver.
Example of acceleration 
When there are no longer any vehicles ahead driving slower than the
set speed
The system accelerates until the set speed is reached. The system then
returns to constant speed cruising.
Approach warning
When your vehicle is too close to a vehicle ahead, and sufficient auto-
matic deceleration via the cruise cont rol is not possible, the display will
flash and the buzzer will so und to alert the driver. An example of this
would be if another driver cuts in fron t of you while you are following a
vehicle. Apply the brakes to ensure an appropriate vehicle-to-vehicle dis-
tance.

260
2-4. Using other driving systems
GX460_U.S.A. (OM60E69U)
Intuitive parking assist
: If equipped
The distance from your vehicle to nearby obstacles when parallel parking
or maneuvering into a garage is measured by the sensors and communi-
cated via the multi-information display and a buzzer. Always check the sur-
rounding area when using this system.
Vehicles with a navigation system
Refer to the “Navigation System Owner’s Manual”.
Vehicles without a navigation system
■Types of sensors
Front corner sensors
Front center sensors
Rear corner sensors
Rear center sensors

261
2-4. Using other driving systems
2
When driving
GX460_U.S.A. (OM60E69U)

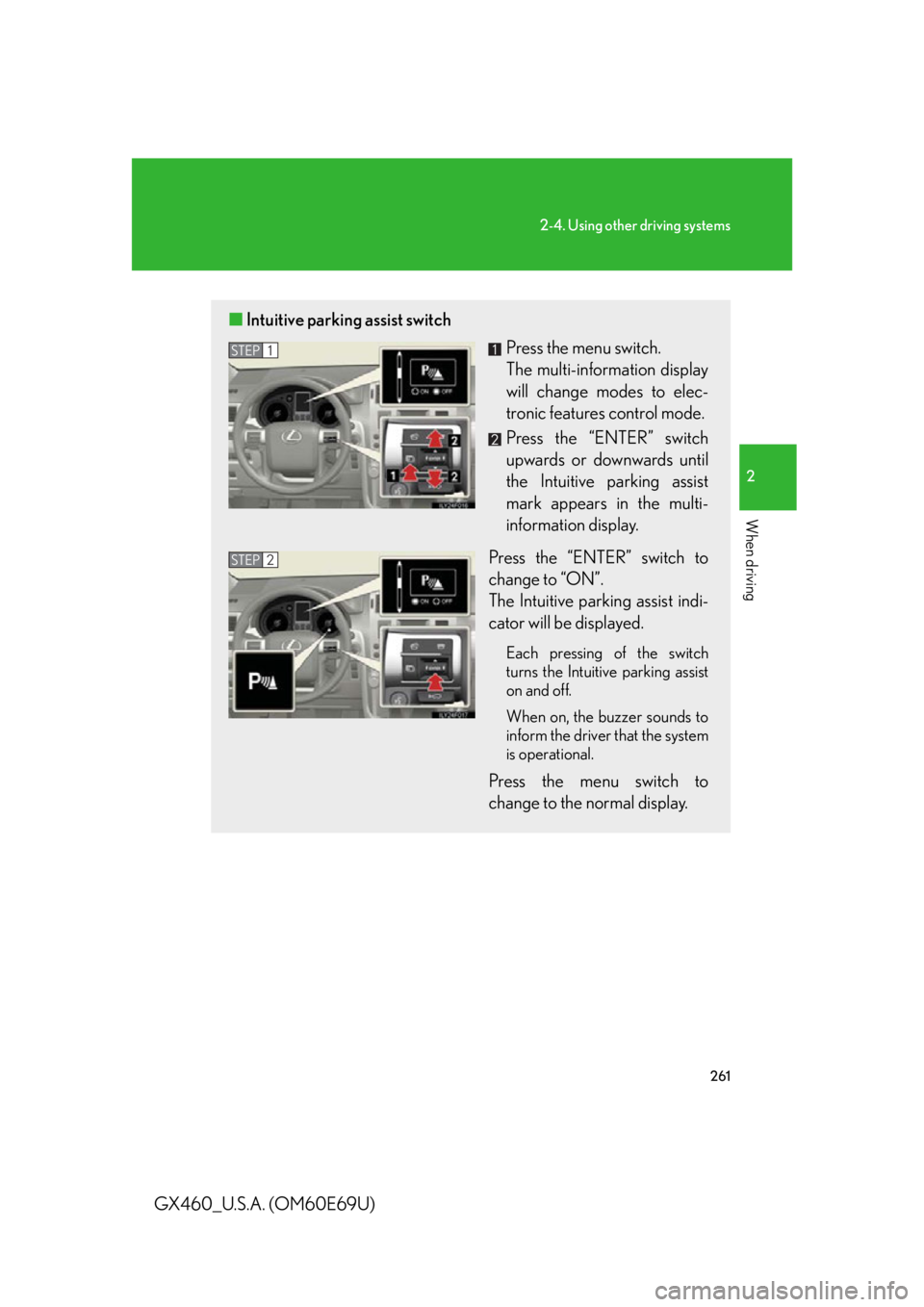

■Intuitive parking assist switch
Press the menu switch.
The multi-information display
will change modes to elec-
tronic features control mode.
Press the “ENTER” switch
upwards or downwards until
the Intuitive parking assist
mark appears in the multi-
information display.
Press the “ENTER” switch to
change to “ON”. 
The Intuitive parking assist indi-
cator will be displayed.
Each pressing of the switch
turns the Intuitive parking assist
on and off.
When on, the buzzer sounds to
inform the driver that the system
is operational.
Press the menu switch to
change to the normal display.
STEP1
STEP2

262
2-4. Using other driving systems
GX460_U.S.A. (OM60E69U)
DisplayWhen the sensors detect an obstacle, a graphic is shown on the multi-
information display depending on the position and distance to the obsta-
cle.
■ Optitron meter
Front corner sensor operation
Front center sensor operation
Front tire angle
Rear corner sensor operation
Rear center sensor operation
■ Accessory meter
When the vehicle is moving for-
ward or backward
A simplified image is displayed
when an obstacle is detected.

263
2-4. Using other driving systems
2
When driving
GX460_U.S.A. (OM60E69U)
The distance display and buzzerWhen a sensor detects an obstacle, the direction of and the approximate
distance to the obstacle are di splayed and the buzzer sounds.
■ Distance display
Corner sensor
Approximate distance to obstacleOptitron meterAccessory meter
(insert display)
Front: 
2.0 ft. (60 cm) to 1.6 ft. (47.5 cm)
Rear: 
1.8 ft. (55 cm) to 1.2 ft. (37.5 cm)
(continuous)(blinking)
Front: 
1.6 ft. (47.5 cm) to 1.1 ft. (35 cm)
Rear: 
1.2 ft. (37.5 cm) to 0.8 ft. (25 cm)
(continuous)(blinking rapidly)
Front: 
Less than 1.1 ft. (35 cm)
Rear: 
Less than 0.8 ft. (25 cm)
(blinking)(continuous)

264
2-4. Using other driving systems
GX460_U.S.A. (OM60E69U)Center sensors
Approximate distance to obstacleOptitron meterAccessory meter
(insert display)
Front: 
3.3 ft. (100 cm) to 1.6 ft. (50 cm)
Rear: 
4.9 ft. (150 cm) to 2.1 ft. (65 cm)
(continuous)(blinking slowly)
Front: 
1.6 ft. (50 cm) to 1.2 ft. (37.5 cm)
Rear: 
2.1 ft. (65 cm) to 1.6 ft. (50 cm)
(continuous)(blinking)
Front: 
1.2 ft. (37.5 cm) to 1.0 ft. (30 cm)
Rear: 
1.6 ft. (50 cm) to 1.3 ft. (40 cm)
(continuous)(blinking rapidly)
Front: 
Less than 1.0 ft. (30 cm)
Rear: 
Less than 1.3 ft. (40 cm)
(blinking)(continuous)

268
2-4. Using other driving systems
GX460_U.S.A. (OM60E69U)
■When there is a malfunction
In the following cases, have the vehicle inspected by your Lexus dealer
●If the bumper is damaged.
●If the distance display remains on without a buzzer sound.
■If a message is displayed
P. 6 9 8
■Certification (Canada only)
This ISM device complies with Canadian ICES-001.
■Customization that can be configured at Lexus dealer
Settings (e.g. buzzer volume) can be changed. (Customizable features P. 7 8 1 )
CAUTION
■Caution when using the Intuitive parking assist
Observe the following precautions. 
Failing to do so may result in the vehicle being unable to be driven safely and possi-
bly cause an accident.
●Do not use the sensor at speeds in excess of 8 mph (13 km/h).
●Do not attach any accessories within the sensor range.
NOTICE
■Notes when washing the vehicle
Do not apply intensive bursts of water or steam to the sensor area. 
Doing so may result in the sensor malfunctioning.
