2010 Lexus GS350 display

544
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Have the vehicle inspected immediately.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. Failure to investigate the cause of the following warnings may
lead to the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Lexus dealer immediately.
Wa r n i n g m e s s a g eDetails
Malfunction in the automatic headlight leveling sys-
tem.
Malfunction in the rear lights system.
(Flashing)
Malfunction in the steering lock system.
GS_U_G.book Page 544 Wednesday, January 27, 2010 4:48 PM

5
When trouble arises
545
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Wa r n i n g m e s s a g eDetails
(AWD models)
Malfunction in the AWD system.
(If equipped)
Intuitive parking assist malfunction.The malfunctioning sensor is shown flashing on the
display.
(If equipped)
Malfunction in the active stabilizer suspension sys-
tem.
(If equipped)
Malfunction in the PCS.
GS_U_G.book Page 545 Wednesday, January 27, 2010 4:48 PM

548
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Have the malfunction repaired immediately.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. After taking the spec ified steps to correct the suspected
problem, check that the warning message turns off.
Wa r n i n g m e s s a g eDetailsCorrection procedure
One or more of the doors
is not fully closed.
The system also indi-
cates which doors are
not fully closed.
flashes and a
buzzer sounds to indi-
cate that one or more of
the doors is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Make sure that all of the
doors are closed.
The hood is not fully
closed.
flashes and a
buzzer sounds to indi-
cate that hood is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Close the hood.
GS_U_G.book Page 548 Wednesday, January 27, 2010 4:48 PM

552
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Other messagesIf the following message is displayed, take appropriate action and confirm
that the message has disappeared.
MessageDetails
(If equipped)
Calibrate the neutral position of the steering wheel.
■Initializing the steering sensor
Use one of the following methods.
●With the vehicle stopped, turn the steering wheel all the way to the left and right.
(The order is not important.)
●Drive for more than 5 minutes on an un-crowded road with as few curves and
corners as possible.
If the steering guide symbol disappears, the steering sensor has been initialized. If
the steering guide symbol does not disappear, have the vehicle checked by your
Lexus dealer.
GS_U_G.book Page 552 Wednesday, January 27, 2010 4:48 PM

554
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection procedure
Once3 times
(Flashing)
The electronic key
was carried out-
side the vehicle
and the driver’s
door was opened
and closed with
the shift lever in P
without turning off
the “ENGINE
START STOP”
switch.Tu r n t h e
“ENGINE
START
STOP”
switch to
OFF or con-
firm the
location of
the elec-
tronic key.
Contin-
uousContin-
uous
(Displayed alternately)
(Flashing)
The electronic key
was carried out-
side the vehicle
and the driver’s
door was opened
and closed while
any shift position
other than P was
selected without
turning off the
“ENGINE START
STOP” switch.
•Shift the shift lever
to “P”.
•Confirm the loca-
tion of the
electronic
key.
Once(Comes on for 10 seconds)
(Flashing)
The electronic key
battery is low.Replace the
battery.
(→ P. 4 8 2 )
GS_U_G.book Page 554 Wednesday, January 27, 2010 4:48 PM

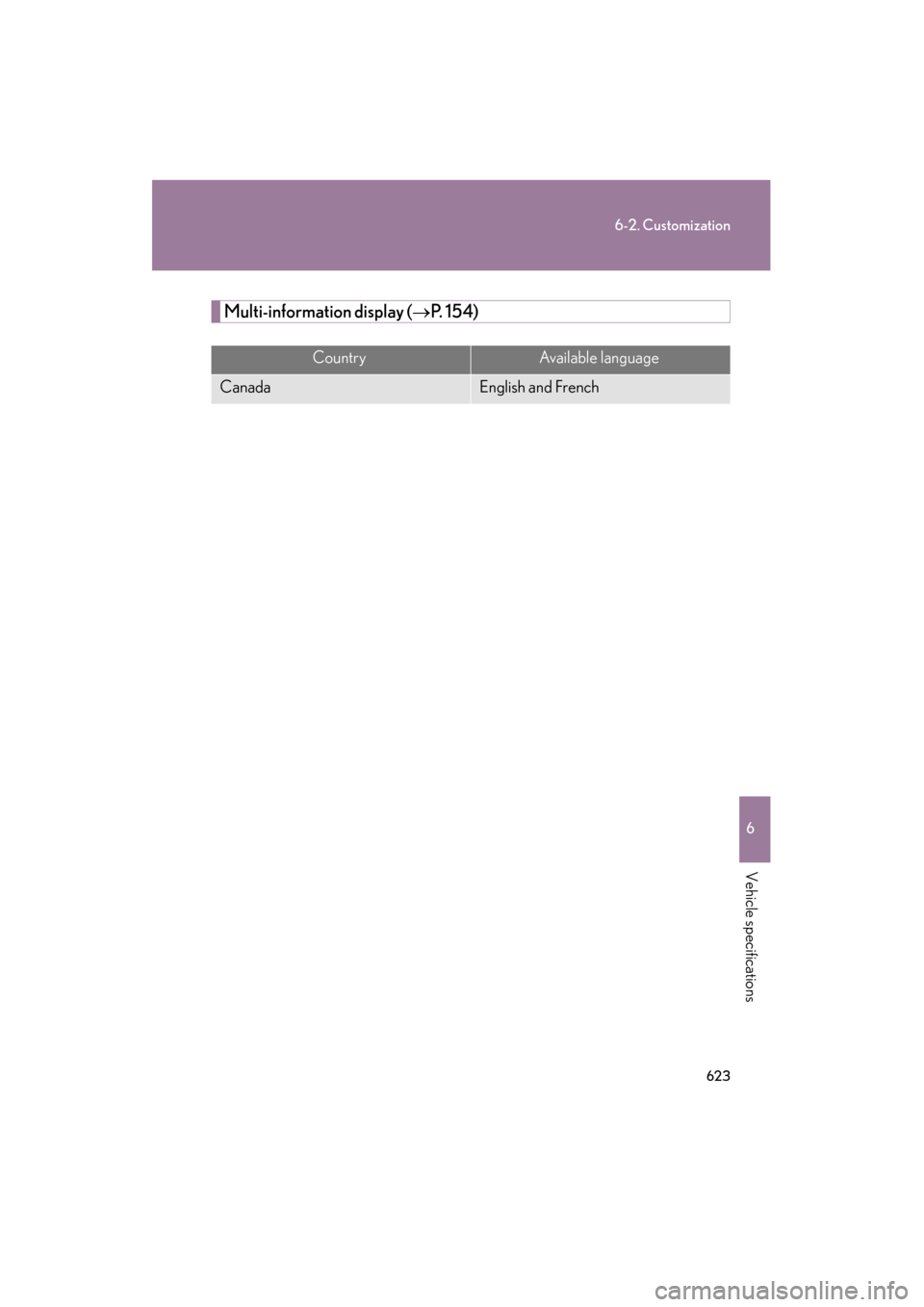

623
6-2. Customization
6
Vehicle specifications
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Multi-information display (→P. 154)
CountryAv a i l a b l e l a n g u a g e
CanadaEnglish and French
GS_U_G.book Page 623 Wednesday, January 27, 2010 4:48 PM

630
GS_G_U (OM30C80U)
January 27, 2010 4:48 pm
Abbreviation list
Abbreviation/Acronym list
ABBREVIATIONSMEANING
A/CAir Conditioning
ABSAnti-Lock Brake System
AFSAdaptive Front-lighting System
ALRAutomatic Locking Retractor
CRSChild Restraint System
DISPDisplay
ECUElectronic Control Unit
EDREvent Data Recorder
ELREmergency Locking Retractor
Enhanced VSCEnhanced Vehicle Stability Control
EPSElectric Power Steering
GAWRGross Axle Weight Ratings
GPSGlobal Positioning System
I/MEmission inspection and maintenance
INFOInformation
LATCHLower Anchors and Tethers for Children
LEDLight Emitting Diode
MMTMethylcy clopentadienyl Manganese Tricarbonyl
M + SMud and Snow
MTBEMethyl Tertiary Butyl Ether
OBDOn Board Diagnostics
GS_U_G.book Page 630 Wednesday, January 27, 2010 4:48 PM

634
Alphabetical index
GS_G_U (OM30C80U)
February 1, 2010 9:58 am
Daytime running light system ........... 158
DefoggerRear window........................................255
Side mirror ............................................255
Dimension ............................................... 586
Dinghy towing ........................................ 225
Display Multi-information display.................154
Touch screen ....................................... 228
Trip information ................................... 155
Warning message............................. 543
Do-it-yourself maintenance ............. 442
Door courtesy lights ............................382
Door pocket............................................392
Doors Door lock...................................29, 41, 43
Rear door child protector ................ 44
Driver’s seat belt reminder light .....536
Driver’s seat position memory ...........55
Driving
Correct posture ...................................... 91
Procedures ............................................. 126
DVD player/changer......................... 280
Electric power steering ..................... 200
Electronic key If the electronic key does not operate properly ...................... 571
Replacing battery .............................. 482 Emergency, in case of
If a warning light turns on .............. 534
If a warning message is displayed ............................................ 543
If the electronic key does not operate properly ..................... 571
If the engine will not start .......................................................568
If the shift lever cannot be shifted from “P” ............................... 569
If the 12 volt battery is discharged ........................................574
If you have a flat tire ........... 556, 566
If you lose your keys ........................ 570
If you think something is wrong .................................................. 530
If your vehicle becomes stuck ......581
If your vehicle has to be stopped in an emergency ............................ 583
If your vehicle needs to be
towed ................................................... 520
If your vehicle overheats................ 578
Engine ACCESSORY mode....................... 136
Compartment ..................................... 448
Engine (ignition) switch.................... 135
Hood ....................................................... 445
How to start the engine ................... 135
If the engine will not start ...............568
Overheating ........................................ 578
Engine compartment cover ............. 450
Engine coolant temperature gauge ....................................................... 147D
E
sec_08-02.fm Page 634 Monday, February 1, 2010 9:59 AM
