2010 Lexus GS350 display

379
3-4. Using the hands-free system (for cellular phone)
3
Interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
■Editing the passcode
Display the “Bluetooth
* Information” screen. (→P. 3 7 7 )
Touch “Edit” of “Passcode” on the “Bluetooth
* Information”
screen.
Input a passcode, and touch “OK”.
Touch “Save” on the “Bluetooth
* Information” screen.
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
STEP1
STEP2
STEP3
■While driving
You cannot change the state of “Handsfree Power” from “On” to “Off” while driving.
■About “Device Name”
The device names are common Bluetooth
 audio and Bluetooth phone.
If you change the device name of the phone, the device name of the audio
will change at same time. However, passcodes can be set separately.
■To return to the default detailed phone settings
Touch “Default”, and then “Yes”.
If the state of “Handsfree Power” is changed from “Off” to “On”, Bluetooth
 con-
nection will begin.
STEP4
GS_U_G.book Page 379 Wednesday, January 27, 2010 4:48 PM

380
3-4. Using the hands-free system (for cellular phone)
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Detailed settings
Changing the incoming call display mode
Changing the display phone status
To display the screen above, follow the steps below. Display the “Phone Settings” screen. (
→P. 353)
Touch “Details” on the “Phone Settings” screen.STEP1
STEP2
GS_U_G.book Page 380 Wednesday, January 27, 2010 4:48 PM

381
3-4. Using the hands-free system (for cellular phone)
3
Interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

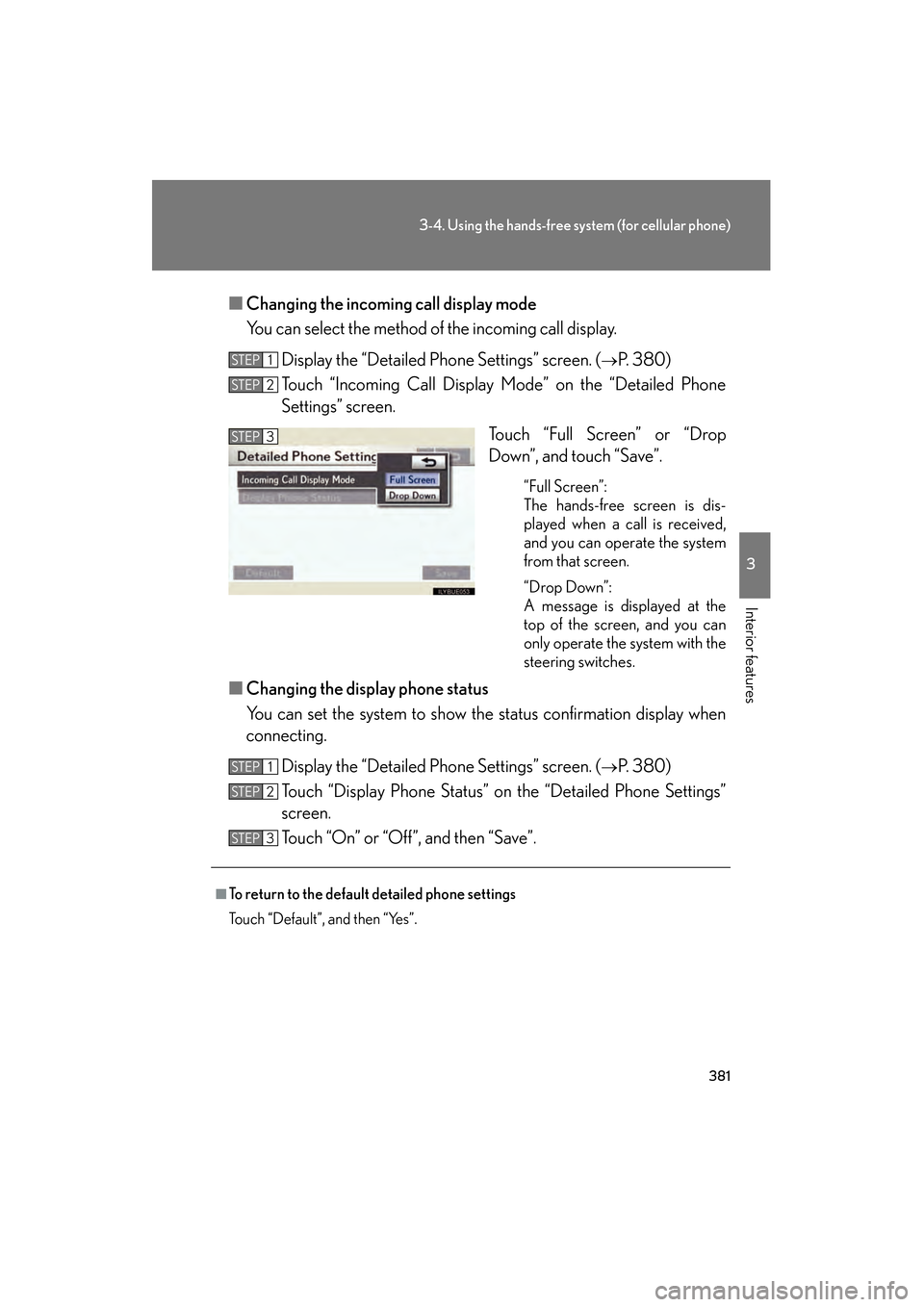

■Changing the incoming call display mode
You can select the method of the incoming call display.
Display the “Detailed Phone Settings” screen. (
→P. 380)
Touch “Incoming Call Display Mode” on the “Detailed Phone
Settings” screen.
Touch “Full Screen” or “Drop
Down”, and touch “Save”.
“Full Screen”:
The hands-free screen is dis-
played when a call is received,
and you can operate the system
from that screen.
“Drop Down”:
A message is displayed at the
top of the screen, and you can
only operate the system with the
steering switches.
■Changing the display phone status
You can set the system to show th e status confirmation display when
connecting.
Display the “Detailed Phone Settings” screen. (
→P. 380)
Touch “Display Phone Status” on the “Detailed Phone Settings”
screen.
Touch “On” or “Off”, and then “Save”.
STEP1
STEP2
STEP3
■To return to the default detailed phone settings
Touch “Default”, and then “Yes”.
STEP1
STEP2
STEP3
GS_U_G.book Page 381 Wednesday, January 27, 2010 4:48 PM

395
3-7. Other interior features
3
Interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Clock
■The clock is displayed when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
■When the 12 volt battery is disconnected
The time display will automatically be set to 1:00.
■Adjust clock
With navigation system
→ “Navigation System Owner’s Manual”.
Without navigation system
Press .
Touch “Clock” on the “Setup” screen.
Touch “-”, “+” or “:00” (Rounds to the nearest hour).
Touch “Save”.
STEP1
STEP2
STEP3
STEP4
GS_U_G.book Page 395 Wednesday, January 27, 2010 4:48 PM

396
3-7. Other interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Outside temperature display
■The outside temperature is displayed when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■When “--” or “E” is displayed
The system may be malfunctioning. Take your vehicle to your Lexus dealer.
■On the multi-information display
→P. 1 5 6
■Display
In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 12 mph [20 km/h])
●When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)
The displayed temperature ranges from -40°F (-40°C) up to 122°F
(50°C).
GS_U_G.book Page 396 Wednesday, January 27, 2010 4:48 PM

417
3-7. Other interior features
3
Interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Compass
The compass on the inside rear view mirror indicates the direction in which
the vehicle is heading.
■Operation
To turn the compass on or off,
press the button for more than 3
seconds.
■ Displays and directions
DisplayDirection
NNorth
NENortheast
EEast
SESoutheast
SSouth
SWSouthwest
WWe s t
NWNorthwest
GS_U_G.book Page 417 Wednesday, January 27, 2010 4:48 PM

418
3-7. Other interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Calibrating the compassThe direction display deviates from the true direction determined by the
earth’s magnetic field. The amount of deviation varies according to the
geographic position of the vehicle.
If you cross over a map boundary shown in illustration, the compass will devi-
ate.
To obtain higher precision or perfect calibration, refer to the following.
■ Deviation calibration
Stop the vehicle where it is safe to drive in a circle.
Press and hold the switch.
A number (1 to 15) appears on the
compass display.
STEP1
STEP2
GS_U_G.book Page 418 Wednesday, January 27, 2010 4:48 PM

419
3-7. Other interior features
3
Interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Referring to the map above, press the switch to select the number
of the zone you are in.
Wait a few seconds until the compass direction is displayed.
The calibration is complete.
■Circling calibration
If “CAL” appears on the display,
drive the vehicle at 5 mph (8 km/h)
or less in a circle until a direction is
displayed.
If there is not enough space to
drive in a circle, drive around the
block until the direction is dis-
played.
STEP3
STEP4
■Conditions unfavorable to correct operation
The compass may not show the correct di rection in the following conditions:
●The vehicle is stopped immediately after turning.
●The vehicle is on an inclined surface.
●The vehicle is in a place where the earth’s magnetic field is subject to interfer-
ence by artificial magnetic fields (underground car park/parking lot, under a
steel tower, between buildings, roof car park/parking lot, near an intersection,
near a large vehicle, etc.).
●The vehicle has become magnetized.
(There is a magnet or metal object near the inside rear view mirror.)
●The 12 volt battery has been disconnected.
●A door is open.
GS_U_G.book Page 419 Wednesday, January 27, 2010 4:48 PM
