SETUP
295
No.Function
1You can change the language.
(See “
Selecting a language” on
page 295.)
2“On” or “Off” can be selected to
sound beeps.
3
“On” or “Off” can be selected for
automatic screen changes from
the audio/air conditioner screen to
the map. When “On” is selected,
the screen will automatically re-
turn to the map from the audio/air
conditioner screen after 20 sec-
onds.
4Keyboard layout can be changed.
(See “
Selecting a keyboard lay-
out” on page 296.)
5Distance unit can be changed.
(See “
Unit of measurement” on
page 297.)
6The personal data can be deleted.
(See “
Delete personal data” on
page 297.)

Selecting a language
You can change the language.
1. Push the “SETUP” button.
2. Touch “General” on the “Setup”
screen.
3. Touch “Language”.
4. Touch the desired button.
The previous screen will be displayed.
5. Touch “Save”.

SETUP
296

Selecting a keyboard layout
Keyboard layout can be changed.
1. Push the “SETUP” button.
2. Touch “General” on the “Setup”
screen.
3. Touch “Keyboard Layout”.
4. Touch “ABC” or “QWERTY” of
“Keyboard Layout” to choose the key-
board layout.
5. Touch “Save”.LAYOUT TYPE
“ABC” type
“QWERTY” type

SETUP
320
3. Touch the phone to edit.
4. This screen is displayed.
If you want to change the device name,
touch “Edit”.
5. Use the software keyboard to input
the device name.
6. Confirm the device name and touch
“OK”.

SETUP
326

Registering the phonebook data
You can register the phonebook data.
Up to 3 numbers per person can be reg-
istered.
1. Touch “New Contact”.
2. Use the software keyboard to input
the name and touch “OK”.
3. Input the phone number and touch
“OK”.
If you want to use the tone signal after
the phone number, input the tone signal
too.
4. Touch the phone type.

SETUP
336

Editing the speed dial
You can edit the speed dial.
1. Touch “Edit Speed Dials”.
2. Touch the button you want to edit.
3. Touch “Edit”.
4. Use the software keyboard to input
the name.
5. Touch “Save”.

SETUP
346
Editing the device name
1. Touch “Edit” of “Device Name”.
2. Use the software keyboard to input
the device name.
INFORMATION
The device names are common
Bluetooth audio and Bluetooth
phone.
If you change the device name of the
phone, the device name of the audio
will change at same time.
However, passcodes can be set sep-
arately.
Editing the passcode
1. Touch “Edit” of “Passcode”.
2. Input a passcode and touch “OK”.

SETUP
352

Displaying Bluetooth information
You can see or change the information
of the portable player on the system.
“Device Name”
The name of Bluetooth portable . . .
player which is displayed on the
screen. You can change it into a de-
sired name.
“Device Address”
The address peculiar to the system. . . .
You cannot change it. If you have reg-
istered two Bluetooth portable play-
ers with the same device name and
you cannot distinguish one from the
other, refer to it.
“Connection Method”
The connection method can be . . .
switched between “From Vehicle” and
“From Portable Player”.
Touch the desired portable player and
then touch “Portable Player Info”.

Changing a device name
You can change a device name. Even if
you change a device name, the name
registered in your portable player is not
changed.
1. Touch “Portable Player Info” on
“Select Portable Player” screen.
2. Touch “Edit” for “Device Name” on
“Portable Player Information” screen.
3. Use the software keyboard to input
the device name.

SETUP
362

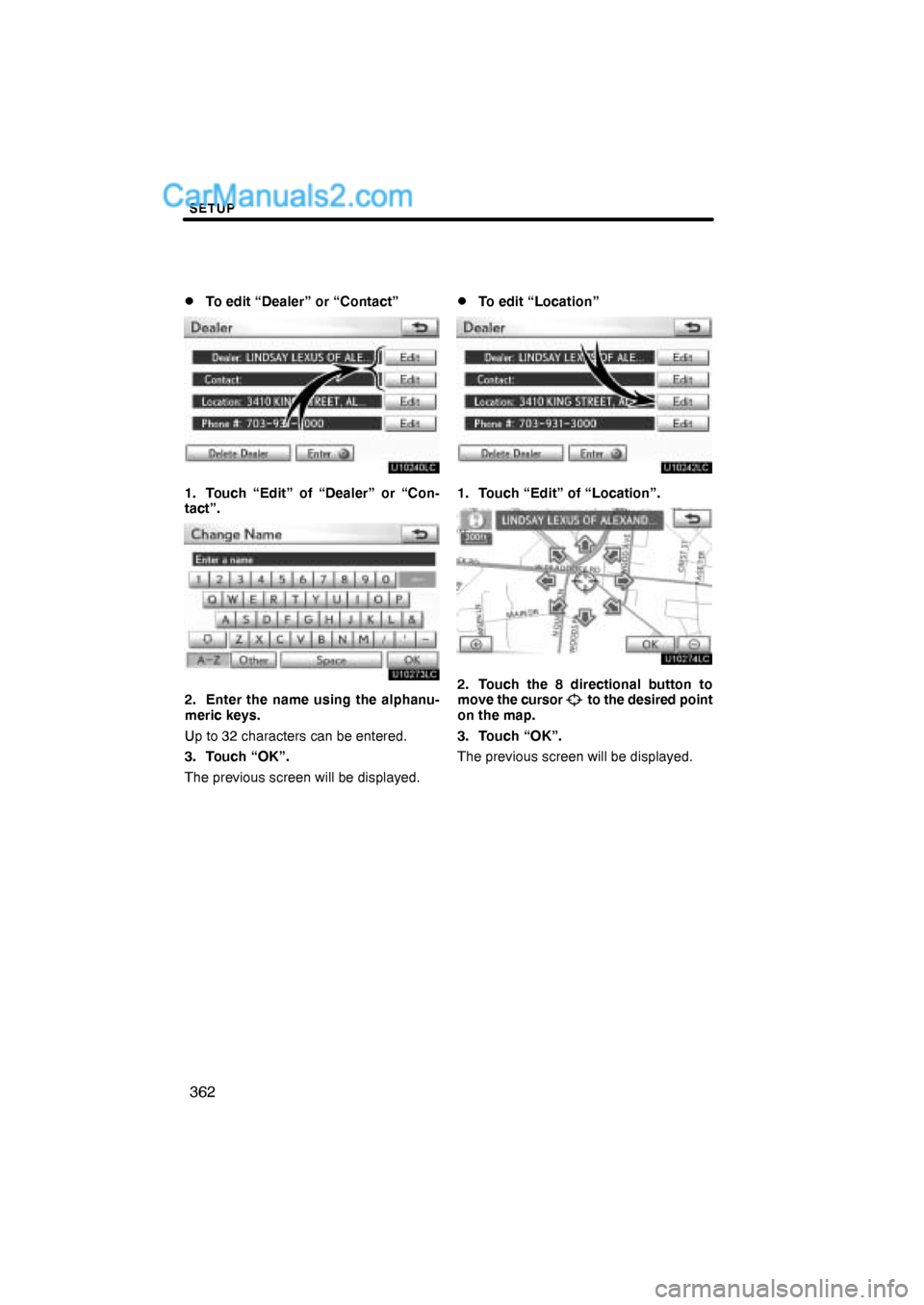

To edit “Dealer” or “Contact”
1. Touch “Edit” of “Dealer” or “Con-
tact”.
2. Enter the name using the alphanu-
meric keys.
Up to 32 characters can be entered.
3. Touch “OK”.
The previous screen will be displayed.

To edit “Location”
1. Touch “Edit” of “Location”.
2. Touch the 8 directional button to
move the cursor to the desired point
on the map.
3. Touch “OK”.
The previous screen will be displayed.
