Introduction61INDICATOR SYMBOLS ON THE INSTRUMENT CLUSTER
Seat Belt Warning LightHigh Beam IndicatorTurn Signal IndicatorABS Warning Light*
Parking Brake & Brake Fluid
Warning LightMalfunction Indicator*Immobilizer Indicator
Low Fuel Level Warning Light
* : if equipped Tailgate Open Warning Light
❈ For more detailed explanations, refer to “Instrument cluster” in section 4.
Charging System Warning Light
Door Ajar Warning Light
A050000AAM-EC
Front Fog Light Indicator*
Engine Oil Pressure Warning Light
O/D OFF Indicator*
O/D
OFF
Air Bag Warning Light*
TPMS (Tire Pressure Monitoring
System) Malfunction Indicator* Low Tire Pressure Telltale*
Cruise Indicator*Cruise SET Indicator*Shift Pattern Indicator
ESC Indicator*ESC OFF Indicator*
TPMS
Tail Light Indicator*Low Windshield Washer Fluid
Level Warning Light*
Low Beam Indicator*

2
Interior overview / 2-2
Instrument panel overview / 2-3
Engine compartment / 2-4
Your vehicle at a glance

Your vehicle at a glance22INTERIOR OVERVIEW
1. Door Lock/Unlock Button ....................4-8
2. Outside Rearview Mirror Control Switch* ..............................................4-30
3. Central Door Lock Switch* ................4-10
4. Power Window Lock Button* .............4-16
5. Power Window Switches* .................4-14
6. Fuse Box ...........................................7-43
7. Instrument Panel Illumination Control Knob* ................................................4-33
8. ESC OFF Button* .............................5-21
9. Hood Release Lever .........................4-17
10. Steering Wheel ...............................4-26
11. Steering Wheel Tilt Lever* ..............4-27
12. Seat...................................................3-2
13. Fuel Filler Lid Release Lever*.........4-19
* : if equipped
OAM019001
B010000AUN-EU-C1

23
Your vehicle at a glance
INSTRUMENT PANEL OVERVIEW

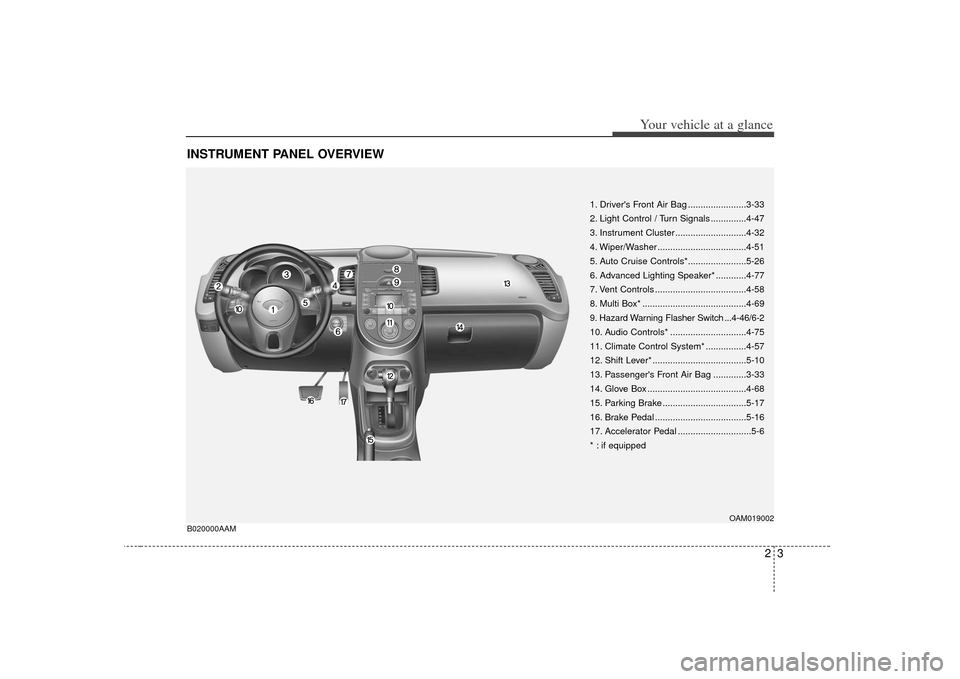

1. Driver's Front Air Bag .......................3-33
2. Light Control / Turn Signals ..............4-47
3. Instrument Cluster ............................4-32
4. Wiper/Washer ...................................4-51
5. Auto Cruise Controls*.......................5-26
6. Advanced Lighting Speaker* ............4-77
7. Vent Controls ....................................4-58
8. Multi Box* .........................................4-69
9. Hazard Warning Flasher Switch ...4-46/6-2
10. Audio Controls* ..............................4-75
11. Climate Control System* ................4-57
12. Shift Lever* .....................................5-10
13. Passenger's Front Air Bag .............3-33
14. Glove Box .......................................4-68
15. Parking Brake .................................5-17
16. Brake Pedal ....................................5-16
17. Accelerator Pedal .............................5-6
* : if equipped
OAM019002
B020000AAM

Your vehicle at a glance42ENGINE COMPARTMENTB030000AUN-C1
OAM019003N
* The actual engine room in the vehicle may differ from the illustration.1. Engine Coolant Reservoir ................7-15
2. Engine Oil Filler Cap ........................7-14
3. Brake Fluid Reservoir.......................7-18
4. Air Cleaner .......................................7-23
5. Fuse Box ..........................................7-43
6. Negative Battery Terminal ..........6-4/7-27
7. Positive Battery Terminal............6-4/7-27
8. Radiator Cap ..............................6-6/7-17
9. Engine Oil Dipstick ...........................7-14
10. Windshield Washer Fluid Reservoir ..7-22
11. Power Steering Fluid Reservoir* ....7-19
* : if equipped

3

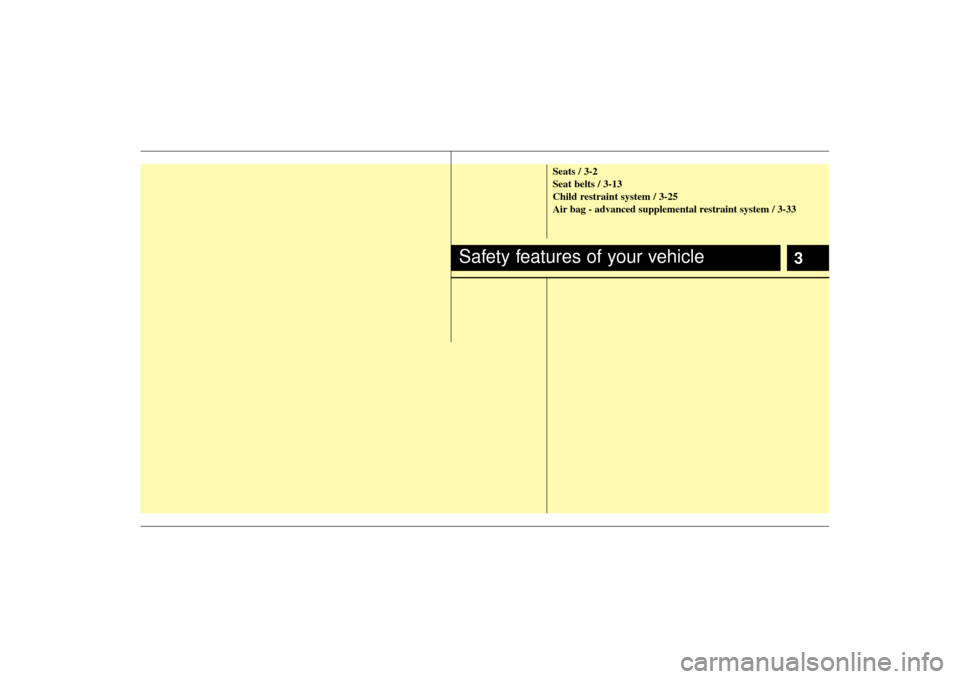

Seats / 3-2
Seat belts / 3-13
Child restraint system / 3-25
Air bag - advanced supplemental restraint system / 3-33
Safety features of your vehicle

Safety features of your vehicle23C010000AAM-EC

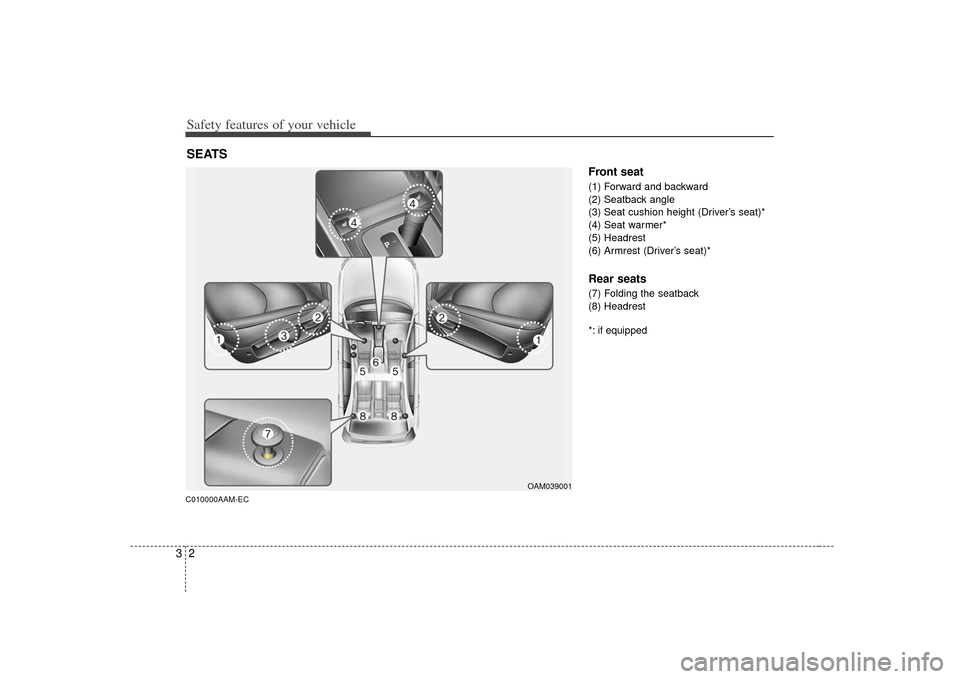

Front seat(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height (Driver’s seat)*
(4) Seat warmer*
(5) Headrest
(6) Armrest (Driver’s seat)*Rear seats(7) Folding the seatback
(8) Headrest*: if equipped
SEATS
OAM039001

33
Safety features of your vehicleWARNING
- Driver’s seat
Never attempt to adjust the seatwhile the vehicle is moving. This
could result in loss of control,
and an accident causing death,
serious injury, or property dam-
age.
Do not allow anything to interfere with the normal position of the
seatback. Storing items against a
seatback or in any other way
interfering with proper locking of
a seatback could result in serious
or fatal injury in a sudden stop or
collision.
seatback upright and the lap por-
tion of the seat belt snug and low
across the hips. This is the best
position to protect you in case of
an accident.
In order to avoid unnecessary and perhaps severe air bag
injuries, always sit as far back as
possible from the steering wheel
while maintaining comfortable
control of the vehicle. We recom-
mend that your chest be at least
250 mm (10 inches) away from
the steering wheel.
WARNING -
Uprighting
seat
When you return the seatback to its
upright position, hold the seatback
and return it slowly and be sure
there are no other occupants
around the seat. If the seatback is
returned without being held and
controlled, the back of the seat
could spring forward resulting in
accidental injury to a person struck
by the seatback.
WARNING
- Loose objects
Loose objects in the driver’s foot
area could interfere with the opera-
tion of the foot pedals, possibly
causing an accident. Do not place
anything under the front seats.
WARNING
- Driver respon-
sibility for passengers
Riding in a vehicle with the seat-
back reclined could lead to serious
or fatal injury in an accident. If a
seat is reclined during an accident,
the occupant’s hips may slide
under the lap portion of the seat
belt applying great force to the
unprotected abdomen. Serious or
fatal internal injuries could result.
The driver must advise the passen-
ger to keep the seatback in an
upright position whenever the vehi-
cle is in motion.
