2010 JEEP GRAND CHEROKEE sunroof

NOTE:
•If you try to remove the Key Fob before you place the
shift lever in PARK, it may become trapped tempo-
rarily in the ignition switch. If this occurs, rotate the
key to the right slightly, then remove the Key Fob as
described. If a malfunction occurs, the system will trap
the key in the ignition switch to warn you that this
safety feature is inoperable. The engine can be started
and stopped, but the Key Fob cannot be removed until
you obtain service.
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), the power window
switches, radio, power sunroof (if equipped), and
power outlets will remain active for up to 10 minutes
after the ignition switch is turned to the LOCK posi-
tion. Opening either front door will cancel this feature.
The time for this feature is programmable. Refer to
“Electronic Vehicle Information Center (EVIC) — IfEquipped/Personal Settings (Customer-
Programmable Features)” in “Understanding Your In-
strument Panel” for further information.
WARNING!
Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Do not leave the Key Fob in
the ignition. A child could operate power windows,
other controls, or move the vehicle.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove Key Fob from the ignition and lock all doors
when leaving the vehicle unattended.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!
•Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains Carbon Mon-
oxide (CO) which is odorless and colorless. Car-
bon Monoxide is poisonous and can cause serious
injury or death when inhaled.
•Keep Remote Keyless Entry (RKE) transmitters
away from children. Operation of the Remote Start
System, windows, door locks or other controls
could cause serious injury or death.
To Enter Remote Start Mode
Press and release the REMOTE START button
on the RKE transmitter twice, within five sec-
onds. The parking lights will flash and the horn
will chirp twice (if programmed). Then, the
engine will start and the vehicle will remain in the
Remote Start mode for a 15 minute cycle. NOTE:
•If an engine fault is present the vehicle will start and
then shut down 10 seconds later.
•The park lamps will turn on and remain on during
Remote Start mode.
•For security, power window and power sunroof op-
eration (if equipped) are disabled when the vehicle is
in the Remote Start mode.
•The engine can be started two consecutive times (two
15 minute cycles) with the RKE transmitter. However,
the ignition switch must be cycled to the ON position
before you can repeat the start sequence for a third
cycle.
To Exit Remote Start Mode Without Driving the
Vehicle
Press and release the REMOTE START button one time or
allow the engine to run for the entire 15 minute cycle.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25

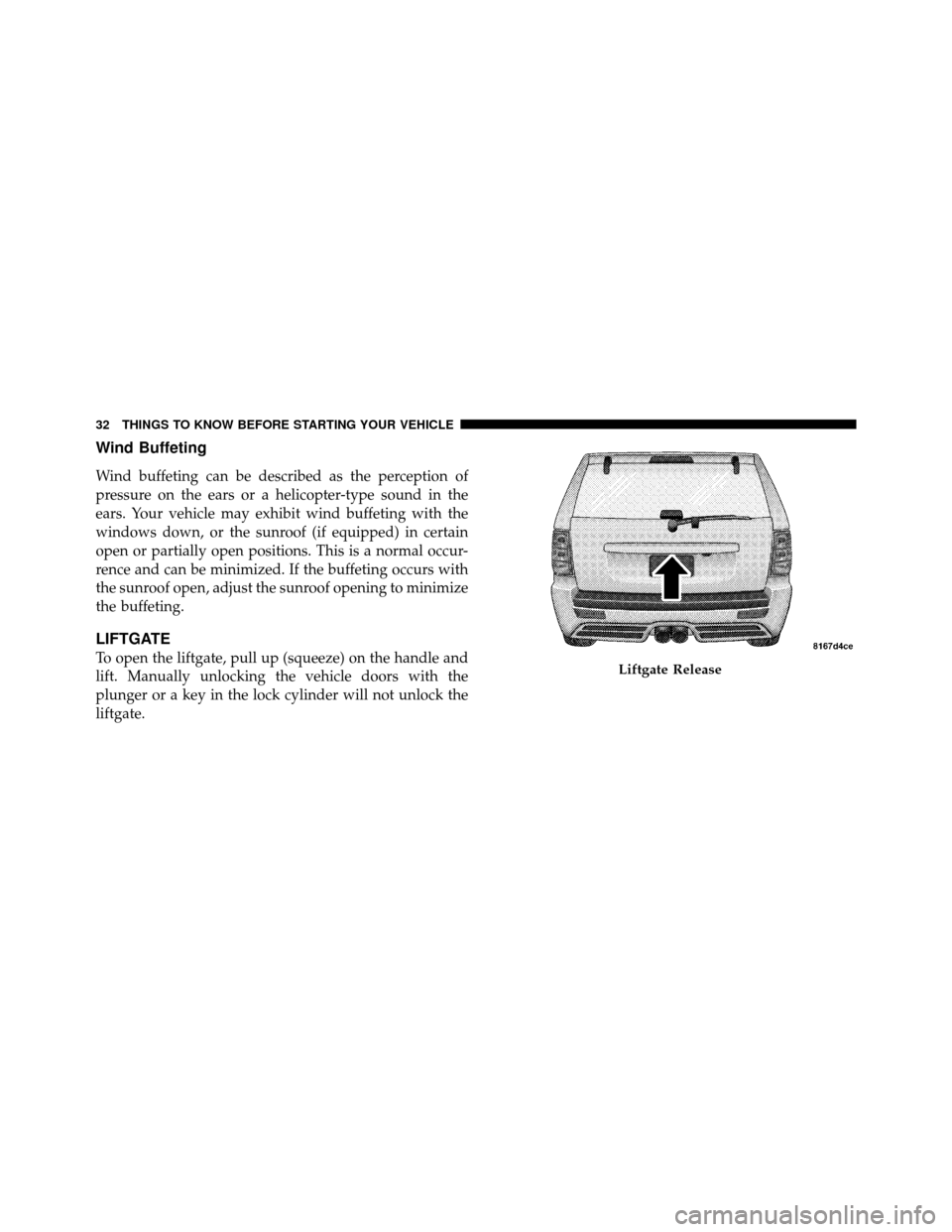

Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the sunroof open, adjust the sunroof opening to minimize
the buffeting.
LIFTGATE
To open the liftgate, pull up (squeeze) on the handle and
lift. Manually unlocking the vehicle doors with the
plunger or a key in the lock cylinder will not unlock the
liftgate.Liftgate Release
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫Cleaning Parksense .................. 122
▫ System Usage Precautions .............. 122
 Parkview Rear Back Up Camera — If
Equipped ............................ 125
▫ Turning Parkview On Or Off — With
Navigation/Multimedia Radio ........... 126
▫ Turning Parkview On Or Off — Without
Navigation/Multimedia Radio ........... 127
 Overhead Console ..................... 127
▫ Courtesy/Reading Lights .............. 127
▫ Sunglasses Storage ................... 128
 Garage Door Opener — If Equipped ........ 128
▫ Programming HomeLink .............. 129
▫ Gate Operator/Canadian Programming .... 132▫
Using HomeLink ................... 133
▫ Reprogramming A Single HomeLink
Button ............................ 133
▫ Security ........................... 133
▫ Troubleshooting Tips .................. 133
▫ General Information .................. 134
 Power Sunroof — If Equipped ............ 135
▫ Opening Sunroof — Express ............ 136
▫ Closing Sunroof — Express ............. 136
▫ Pinch Protect Feature ................. 136
▫ Pinch Protect Override ................ 136
▫ Venting Sunroof — Express ............. 136
▫ Sunshade Operation .................. 136
78 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

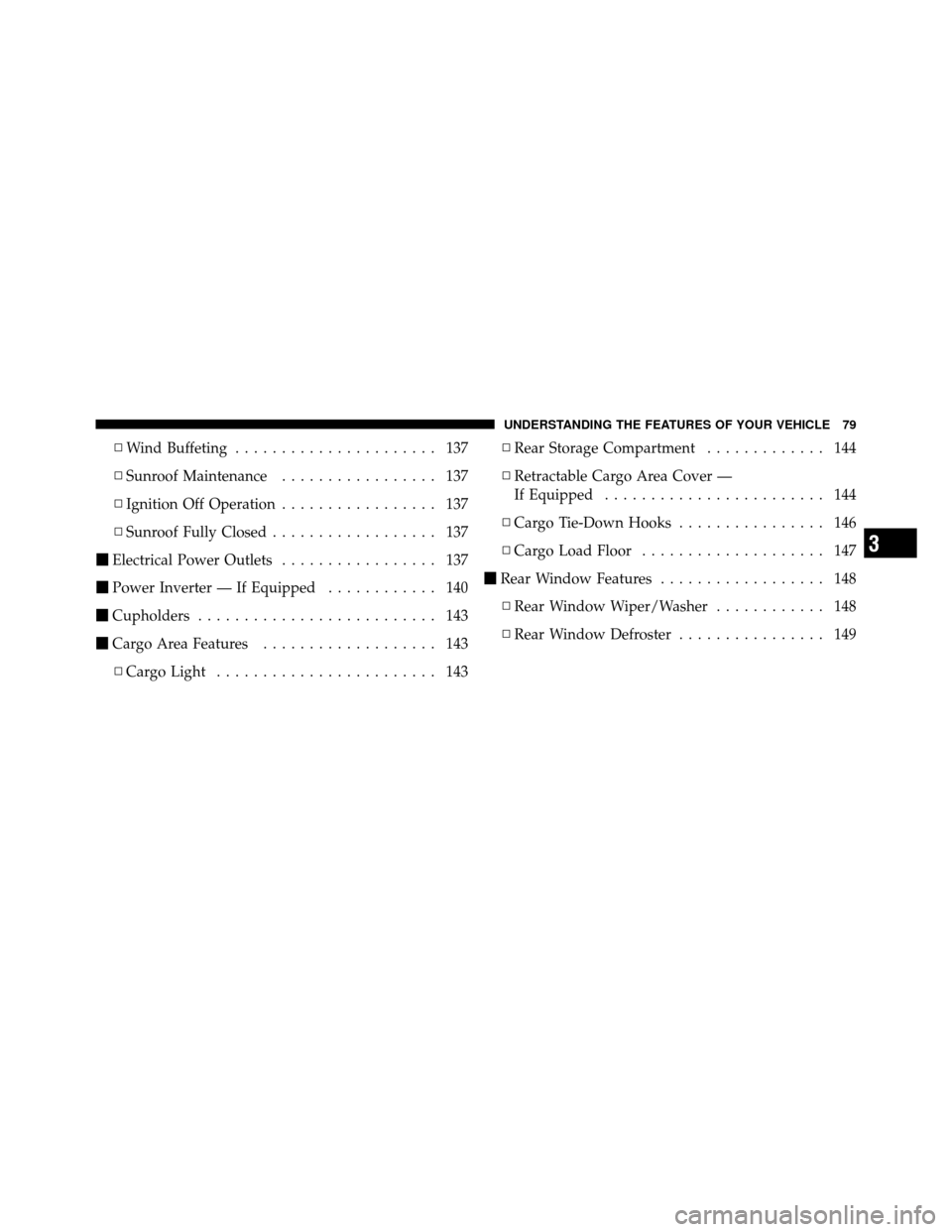

▫Wind Buffeting ...................... 137
▫ Sunroof Maintenance ................. 137
▫ Ignition Off Operation ................. 137
▫ Sunroof Fully Closed .................. 137
 Electrical Power Outlets ................. 137
 Power Inverter — If Equipped ............ 140
 Cupholders .......................... 143
 Cargo Area Features ................... 143
▫ Cargo Light ........................ 143 ▫
Rear Storage Compartment ............. 144
▫ Retractable Cargo Area Cover —
If Equipped ........................ 144
▫ Cargo Tie-Down Hooks ................ 146
▫ Cargo Load Floor .................... 147
 Rear Window Features .................. 148
▫ Rear Window Wiper/Washer ............ 148
▫ Rear Window Defroster ................ 149
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 79

Turning ParkViewOn or Off — Without
Navigation/Multimedia Radio
1. Press the “menu” hard key.
2. Select “system setup” soft key.
3. Enable or disable the rear camera feature by selecting
“enable rear camera in reverse” soft key.
4. When the vehicle is shifted into REVERSE, an image of
the rear of the vehicle will appear with a caution note to
“check entire surroundings” displayed across the top of
the screen. After five seconds this note will disappear.
5. When the vehicle is shifted out of REVERSE, the rear
camera mode is exited and the audio screen appears
again.
OVERHEAD CONSOLE
The overhead console contains courtesy/reading lights,
storage for sunglasses. Universal Garage Door Opener (HomeLink) and power sunroof switches may also be
included, if equipped.
Courtesy/Reading Lights
At the forward end of the console are two courtesy/
reading lights.
Overhead Console
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127

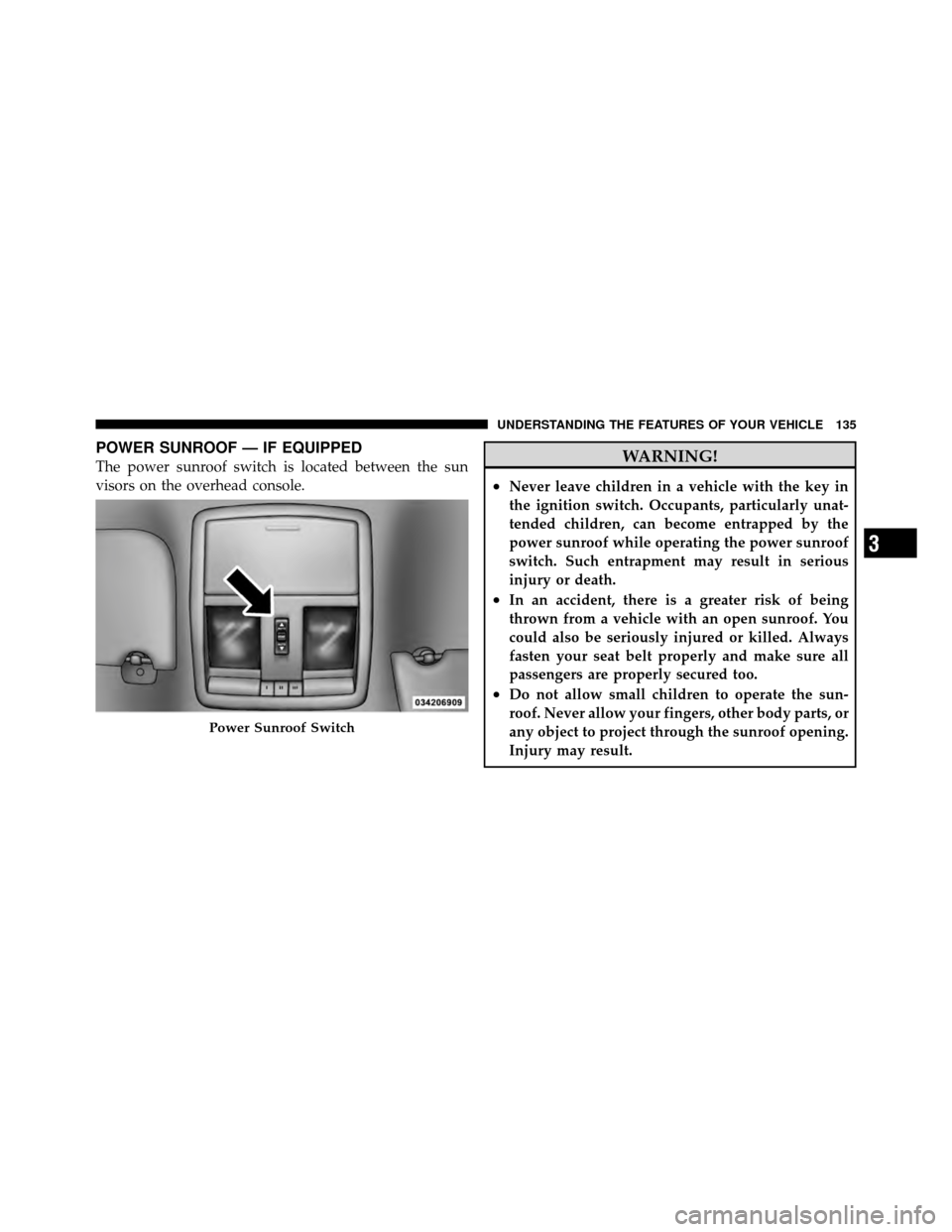

POWER SUNROOF — IF EQUIPPED
The power sunroof switch is located between the sun
visors on the overhead console.WARNING!
•Never leave children in a vehicle with the key in
the ignition switch. Occupants, particularly unat-
tended children, can become entrapped by the
power sunroof while operating the power sunroof
switch. Such entrapment may result in serious
injury or death.
•In an accident, there is a greater risk of being
thrown from a vehicle with an open sunroof. You
could also be seriously injured or killed. Always
fasten your seat belt properly and make sure all
passengers are properly secured too.
•Do not allow small children to operate the sun-
roof. Never allow your fingers, other body parts, or
any object to project through the sunroof opening.
Injury may result.
Power Sunroof Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135

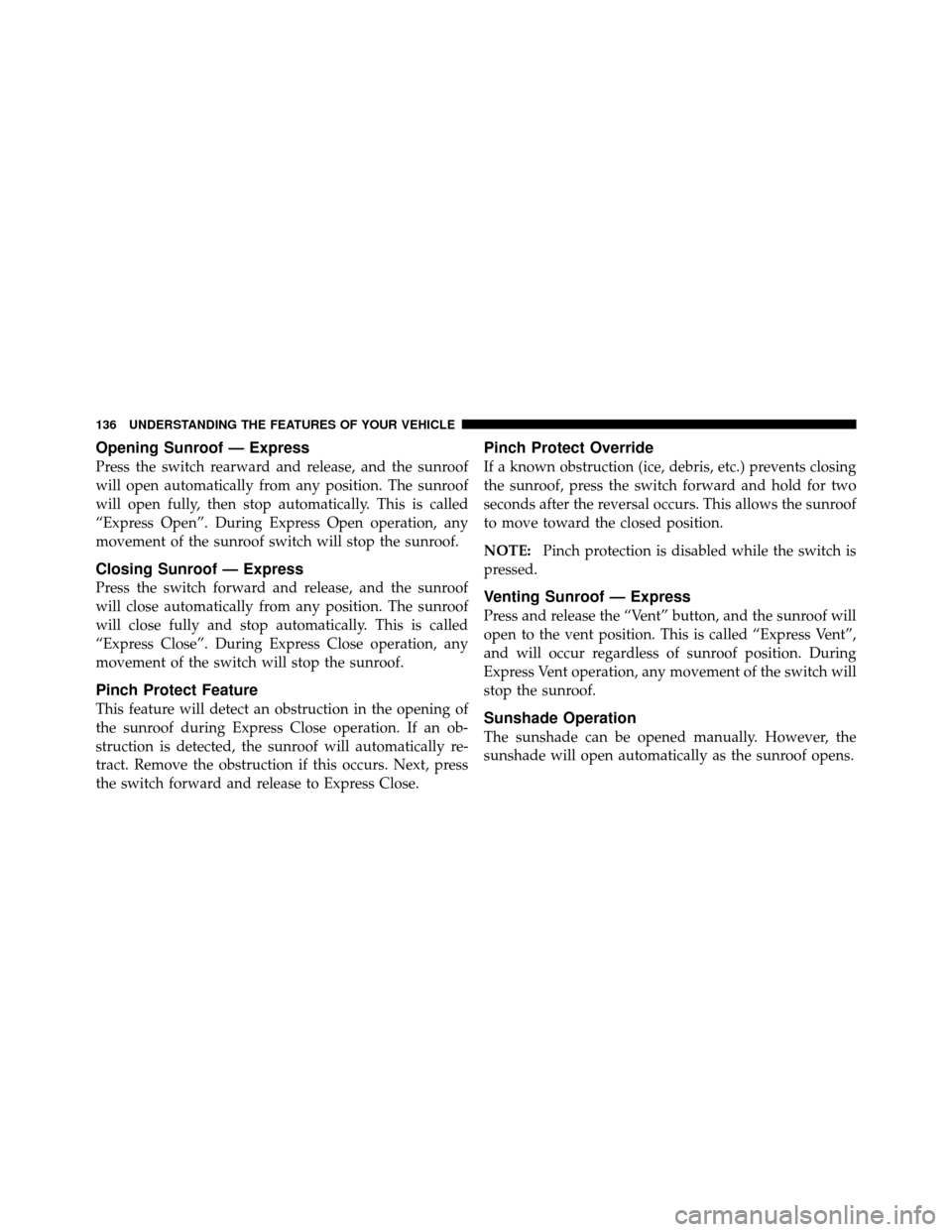

Opening Sunroof — Express
Press the switch rearward and release, and the sunroof
will open automatically from any position. The sunroof
will open fully, then stop automatically. This is called
“Express Open”. During Express Open operation, any
movement of the sunroof switch will stop the sunroof.
Closing Sunroof — Express
Press the switch forward and release, and the sunroof
will close automatically from any position. The sunroof
will close fully and stop automatically. This is called
“Express Close”. During Express Close operation, any
movement of the switch will stop the sunroof.
Pinch Protect Feature
This feature will detect an obstruction in the opening of
the sunroof during Express Close operation. If an ob-
struction is detected, the sunroof will automatically re-
tract. Remove the obstruction if this occurs. Next, press
the switch forward and release to Express Close.
Pinch Protect Override
If a known obstruction (ice, debris, etc.) prevents closing
the sunroof, press the switch forward and hold for two
seconds after the reversal occurs. This allows the sunroof
to move toward the closed position.
NOTE:Pinch protection is disabled while the switch is
pressed.
Venting Sunroof — Express
Press and release the “Vent” button, and the sunroof will
open to the vent position. This is called “Express Vent”,
and will occur regardless of sunroof position. During
Express Vent operation, any movement of the switch will
stop the sunroof.
Sunshade Operation
The sunshade can be opened manually. However, the
sunshade will open automatically as the sunroof opens.
136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
