2010 JEEP GRAND CHEROKEE seat memory

▫Head Restraints ...................... 87
▫ Front Heated Seats — If Equipped ......... 88
▫ Rear Heated Seats — If Equipped .......... 90
▫ 60/40 Split Rear Seat ................... 91
 Driver Memory Seat — If Equipped ......... 94
▫ Setting Memory Positions And Linking
Remote Keyless Entry Transmitter To
Memory ............................ 95
▫ Memory Position Recall ................. 96
▫ To Disable a RKE Transmitter Linked To
Memory ............................ 96
▫ Easy Entry/Exit Seat ................... 97
 To Open And Close The Hood ............. 98
 Lights ............................. 100 ▫
Multifunction Lever .................. 100
▫ Headlights And Parking Lights .......... 100
▫ Automatic Headlights — If Equipped ...... 101
▫ Headlights On Automatically With Wipers . . 101
▫ Smartbeam™ — If Equipped ............ 102
▫ Daytime Running Lights — If Equipped .... 103
▫ Automatic Headlight Leveling — HID
Headlights Only ..................... 103
▫ Instrument Panel Dimmer .............. 103
▫ Battery Saver Feature ................. 104
▫ Lights-On Reminder .................. 104
▫ Fog Lights — If Equipped .............. 105
▫ Turn Signals ........................ 106
76 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Press the latch and lift the top of the armrest to access the
storage bin.
DRIVER MEMORY SEAT — IF EQUIPPED
Once programmed, the memory buttons 1 and 2 on the
driver’s door panel can be used to recall the driver’s seat,
driver’s outside mirror, adjustable brake and acceleratorpedals and radio station preset settings. Your Remote
Keyless Entry (RKE) transmitters can also be pro-
grammed to recall the same positions when the UN-
LOCK button is pressed.
Armrest Storage Latch
Driver Memory Switches
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Your vehicle is equipped with two RKE transmitters. One
or both RKE transmitters can be linked to either memory
position. The memory system can accommodate up to
four RKE transmitters, each one linked to either of the
two memory positions.
Setting Memory Positions and Linking Remote
Keyless Entry Transmitter to Memory
NOTE:Each time the S (SET) button and a numbered
button 1 or 2 are pressed, you erase the memory settings
for that button and store a new one.
1. Insert the ignition key, and turn the ignition switch to
the ON position.
2. Press the driver door MEMORY button number 1 if
you are setting the memory for driver 1, or button
number 2 if you are setting the memory for driver 2. The
system will recall any stored settings. Wait for the system
to complete the memory recall before continuing to
Step 3. 3. Adjust the driver’s seat, recliner, and driver’s sideview
mirror to the desired positions.
4. Adjust the brake and accelerator pedals to the desired
positions.
5. Turn on the radio and set the radio station presets (up
to 12 AM and 12 FM stations can be set).
6. Turn the ignition switch to the LOCK position and
remove the key.
7. Press and release the S (SET) button located on the
driver’s door.
8. Within five seconds, press and release MEMORY
button 1 or 2 on the driver’s door. The next step must be
performed within five seconds if you desire to also use a
RKE transmitter to recall memory positions.
9. Press and release the LOCK button on one of the RKE
transmitters.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95

10. Insert the ignition key, and turn the ignition switch to
the ON position.
11. SelectRemote Linked to Memory in the Electronic
Vehicle Information Center (EVIC) and enter Ye s. Refer
to “Electronic Vehicle Information Center (EVIC)/
Customer-Programmable Features” in “Understanding
Your Instrument Panel” for further information.
12. Repeat the above steps to set the next memory
position, using the other numbered memory button, or to
link another RKE transmitter to memory.
Memory Position Recall
NOTE: The vehicle must be in PARK to recall memory
positions. If a recall is attempted when the vehicle is not
in PARK, a message will be displayed in the Electronic
Vehicle Information Center (EVIC). To recall the memory settings for driver one, press
MEMORY button number 1 on the driver’s door, or the
UNLOCK button on the RKE transmitter linked to
memory position 1.
To recall the memory setting for driver two, press
MEMORY button number 2 on the driver’s door, or the
UNLOCK button on the RKE transmitter linked to
memory position 2.
A recall can be cancelled by pressing any of the
MEMORY buttons on the drivers door during a recall (S,
1, or 2). When a recall is cancelled, the driver’s seat,
driver’s mirror and the pedals stop moving. A delay of
one second will occur before another recall can be
selected.
To Disable a RKE Transmitter Linked to Memory
1. Turn the ignition switch to the LOCK position, and
remove the key.
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

2. Press and release MEMORY button number 1. The
system will recall any memory settings stored in position
1. Wait for the system to complete the memory recall
before continuing to Step 3.
3. Press and release the memory S (SET) button located
on the driver’s door.
4. Within five seconds, press and release MEMORY
button 1 on the driver’s door.
5. Within five seconds, press and release the UNLOCK
button on the RKE transmitter.
To disable another RKE transmitter linked to either
memory position, repeat steps 1 through 5 for each RKE
transmitter.
NOTE:Once programmed, all RKE transmitters linked
to memory can be easily enabled or disabled at one time.
Refer to “Electronic Vehicle Information Center (EVIC)/
Customer-Programmable Features” in “Understanding
Your Instrument Panel” for further information.Easy Entry/Exit Seat
This feature provides automatic driver’s seat positioning
which will enhance driver mobility out of and into the
vehicle.
There are two possible Easy Entry/Exit adjustments
available:
•The seat cushion will move rearward approximately
2.5 in (60 mm), if the starting position of the seat is
greater than or equal to 2.67 in (68 mm) forward of the
rear seat stop when the key is removed from the
ignition switch. The seat will then move forward
approximately 2.5 in (60 mm) when the key is placed
into the ignition and turned out of the LOCK position.
•The seat will move to the position located 0.3 in
(8 mm) forward of the rear stop if the starting position
is between 0.9 to 2.67 in (23 to 68 mm) forward of the
rear stop when the key is removed from the ignition
switch. The seat will move forward to the memory/
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97

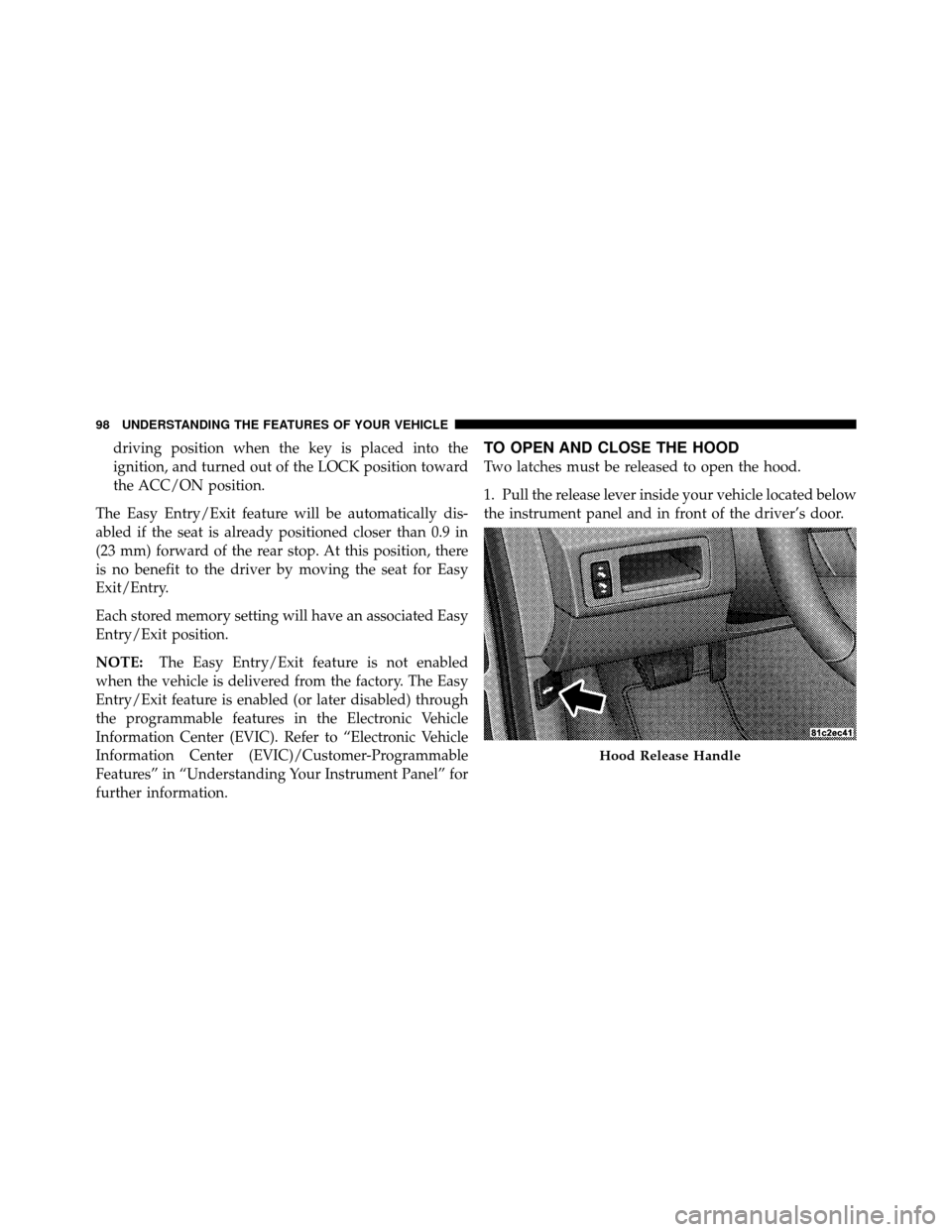

driving position when the key is placed into the
ignition, and turned out of the LOCK position toward
the ACC/ON position.
The Easy Entry/Exit feature will be automatically dis-
abled if the seat is already positioned closer than 0.9 in
(23 mm) forward of the rear stop. At this position, there
is no benefit to the driver by moving the seat for Easy
Exit/Entry.
Each stored memory setting will have an associated Easy
Entry/Exit position.
NOTE: The Easy Entry/Exit feature is not enabled
when the vehicle is delivered from the factory. The Easy
Entry/Exit feature is enabled (or later disabled) through
the programmable features in the Electronic Vehicle
Information Center (EVIC). Refer to “Electronic Vehicle
Information Center (EVIC)/Customer-Programmable
Features” in “Understanding Your Instrument Panel” for
further information.TO OPEN AND CLOSE THE HOOD
Two latches must be released to open the hood.
1. Pull the release lever inside your vehicle located below
the instrument panel and in front of the driver’s door.
Hood Release Handle
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

•MEMORY SYSTEM DISABLED — SEATBELT BUCK-
LED (with graphic)
•MEMORY SYSTEM DISABLED — VEHICLE NOT IN
PARK
•DRIVER 1 MEMORY
•DRIVER 2 MEMORY
•ADJ. PEDALS DISABLED — CRUISE CONTROL SET
•ADJ. PEDALS DISABLED — SHIFTER IN REVERSE
•TIRE LOW PRESSURE
•CHECK TPM SYSTEM
•LEFT FRONT LOW PRESSURE (Premium TPM Sys-
tem Only)
•RIGHT FRONT LOW PRESSURE (Premium TPM Sys-
tem Only)
•LEFT REAR LOW PRESSURE (Premium TPM System
Only)
•RIGHT REAR LOW PRESSURE (Premium TPM Sys-
tem Only)
•Stereo (if equipped with Driver-Selectable Surround
Sound [DSS])
•Video Surround (if equipped with Driver-Selectable
Surround Sound [DSS])
•Audio Surround (if equipped with Driver-Selectable
Surround Sound [DSS])
•0-60 mph (0-100 km/h) (if equipped with Performance
Pages)
•Braking Distance (if equipped with Performance
Pages)
•1/8 Mile (if equipped with Performance Pages)
170 UNDERSTANDING YOUR INSTRUMENT PANEL

Rain Sensing Wipers — If Equipped
When YES (Y) is selected, the system will automatically
activate the windshield wipers if it senses moisture on
the windshield. To make your selection, press and release
the FUNCTION SELECT button until YES (Y) or NO (N)
appears. When NO (N) is selected, the system reverts to
the standard intermittent wiper operation.
Service Interval
When this feature is selected, a service interval between
2,000 miles (3 200 km) and 6,000 miles (10 000 km) in
500 miles (800 km) increments may be selected. Pressing
the STEP button when in this display will select distances
between 2,000 miles (3 200 km) and 6,000 miles
(10 000 km) in 500 miles (800 km) increments.
Reset Service Distance (Displays Only if Service
Interval was Changed)
When this feature is selected, the current accumulated
service distance can be reset to the newly selected service
interval. Press and release the FUNCTION SELECT but-
ton until YES (Y) or NO (N) appears.
Easy Entry/Exit Seat (Available with Memory Seat
Only)
This feature provides automatic driver seat positioning to
enhance driver mobility when entering and exiting the
vehicle. To make your selection, press and release the
FUNCTION SELECT button until YES (Y) or NO (N)
appears.
NOTE:The seat will return to the memorized seat
location (if Recall Memory with Remote Key Unlock is set
to ON) when the RKE transmitter is used to unlock the
door. Refer to “Driver Memory Seat” in “Understanding
The Features Of Your Vehicle” for further information.
182 UNDERSTANDING YOUR INSTRUMENT PANEL
