2010 JEEP GRAND CHEROKEE run flat

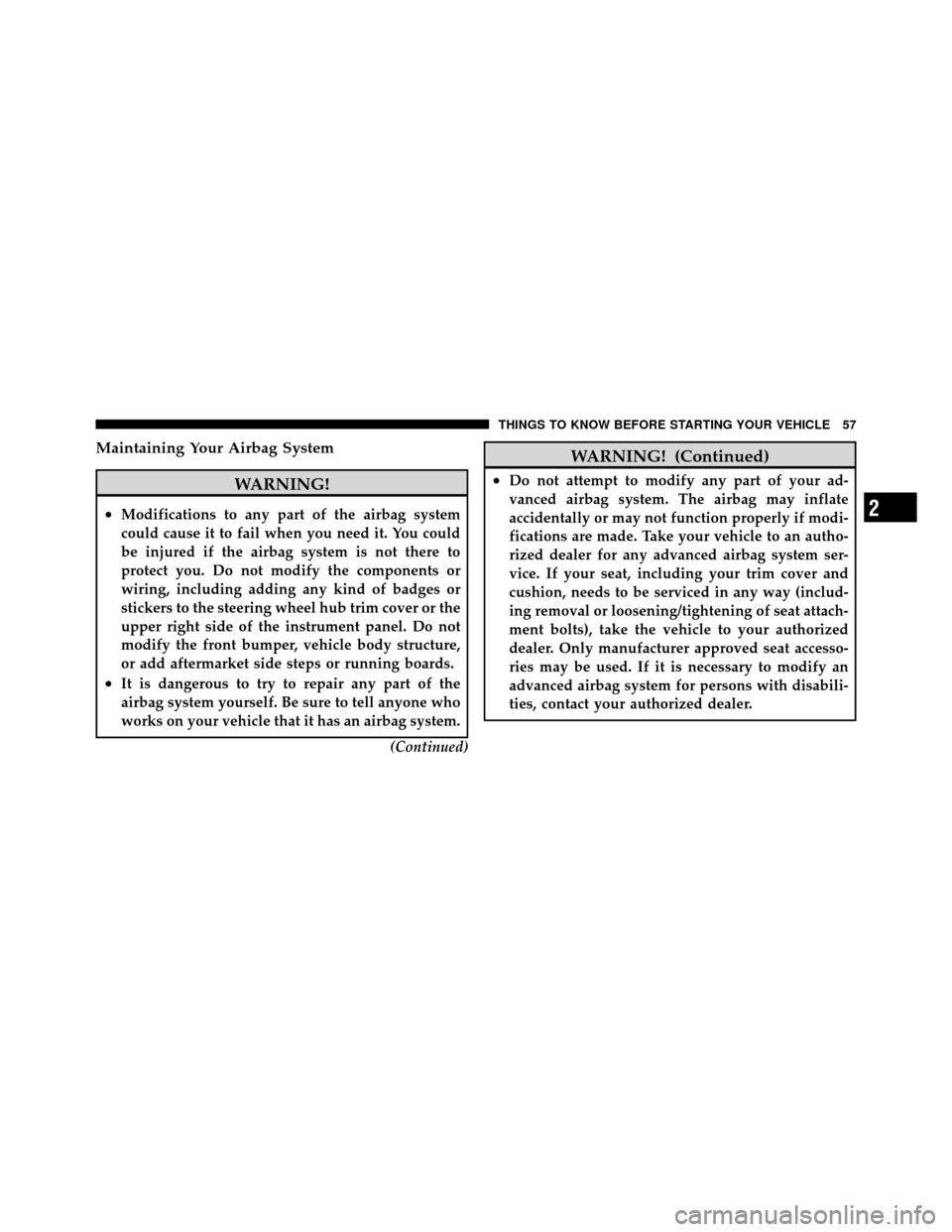

Maintaining Your Airbag System
WARNING!
•Modifications to any part of the airbag system
could cause it to fail when you need it. You could
be injured if the airbag system is not there to
protect you. Do not modify the components or
wiring, including adding any kind of badges or
stickers to the steering wheel hub trim cover or the
upper right side of the instrument panel. Do not
modify the front bumper, vehicle body structure,
or add aftermarket side steps or running boards.
•It is dangerous to try to repair any part of the
airbag system yourself. Be sure to tell anyone who
works on your vehicle that it has an airbag system.(Continued)
WARNING! (Continued)
•Do not attempt to modify any part of your ad-
vanced airbag system. The airbag may inflate
accidentally or may not function properly if modi-
fications are made. Take your vehicle to an autho-
rized dealer for any advanced airbag system ser-
vice. If your seat, including your trim cover and
cushion, needs to be serviced in any way (includ-
ing removal or loosening/tightening of seat attach-
ment bolts), take the vehicle to your authorized
dealer. Only manufacturer approved seat accesso-
ries may be used. If it is necessary to modify an
advanced airbag system for persons with disabili-
ties, contact your authorized dealer.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 57

▫Power Steering Fluid Check ............. 249
 Parking Brake ........................ 250
 Anti-Lock Brake System ................. 252
 Electronic Brake Control System ........... 255
▫ Anti-Lock Brake System (ABS) ........... 255
▫ Traction Control System (TCS) ........... 255
▫ Brake Assist System (BAS) .............. 256
▫ Electronic Roll Mitigation (ERM) ......... 257
▫ Electronic Stability Program (ESP) ........ 257
▫ Trailer Sway Control (TSC) ............. 260
▫ ESP/BAS Warning Light And ESP/TCS
Indicator Light ...................... 260
 Tire Safety Information ................. 262 ▫
Tire Markings ....................... 262
▫ Tire Identification Number (TIN) ......... 266
▫ Tire Terminology And Definitions ......... 267
▫ Tire Loading And Tire Pressure .......... 268
 Tires — General Information ............. 272
▫ Run Flat Tires ....................... 272
▫ Tire Pressure ....................... 272
▫ Tire Inflation Pressures ................ 274
▫ Tire Pressures For High Speed Operation . . . 275
▫ Radial-Ply Tires ..................... 275
▫ Tire Spinning ....................... 276
▫ Tread Wear Indicators ................. 276
▫ Life Of Tire ........................ 277
236 STARTING AND OPERATING

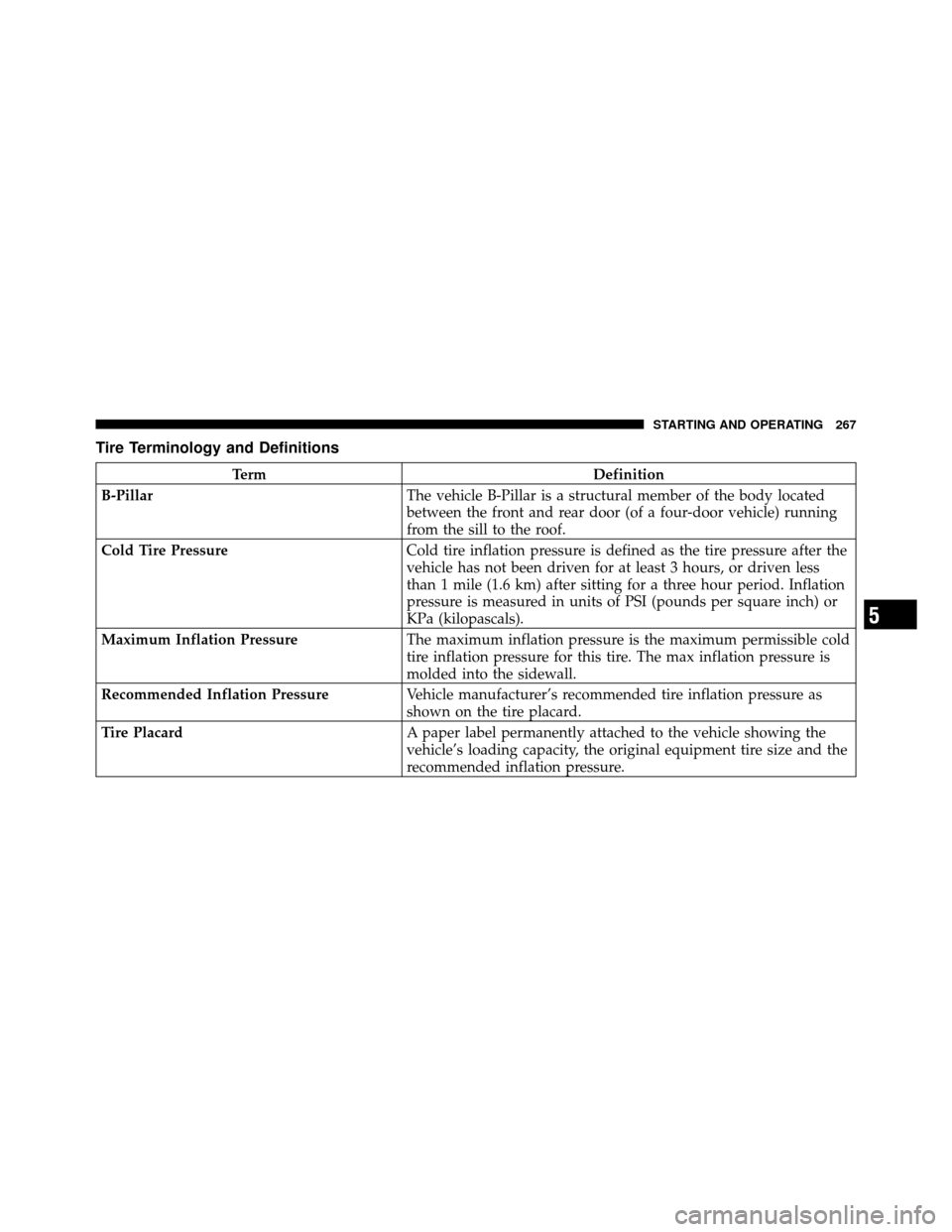

Tire Terminology and Definitions
TermDefinition
B-Pillar The vehicle B-Pillar is a structural member of the body located
between the front and rear door (of a four-door vehicle) running
from the sill to the roof.
Cold Tire Pressure Cold tire inflation pressure is defined as the tire pressure after the
vehicle has not been driven for at least 3 hours, or driven less
than 1 mile (1.6 km) after sitting for a three hour period. Inflation
pressure is measured in units of PSI (pounds per square inch) or
KPa (kilopascals).
Maximum Inflation Pressure The maximum inflation pressure is the maximum permissible cold
tire inflation pressure for this tire. The max inflation pressure is
molded into the sidewall.
Recommended Inflation Pressure Vehicle manufacturer’s recommended tire inflation pressure as
shown on the tire placard.
Tire Placard A paper label permanently attached to the vehicle showing the
vehicle’s loading capacity, the original equipment tire size and the
recommended inflation pressure.
5
STARTING AND OPERATING 267

WARNING!
Overloading of your tires is dangerous. Overloading
can cause tire failure, affect vehicle handling, and
increase your stopping distance. Use tires of the
recommended load capacity for your vehicle. Never
overload them.
TIRES — GENERAL INFORMATION
Run Flat Tires
This vehicle is equipped with run flat tires. Although the
tires are designed with a “run flat” feature that allows the
vehicle to be driven about 50 miles (80 km) at 55 mph
(88 km/h), immediate service should be obtained.
WARNING!
Do not exceed 50 mph (80 km/h) if the “Tire Pressure
Monitoring Telltale Light” is illuminated. Vehicle
handling and braking may be reduced. You could
have an accident and be severely or fatally injured.
NOTE: The “run flat” feature eliminates the need for a
spare tire or jack. This vehicle is not equipped with either
a spare tire or jack.
Tire Pressure
Proper tire inflation pressure is essential to the safe and
satisfactory operation of your vehicle. Three primary
areas are affected by improper tire pressure:
272 STARTING AND OPERATING

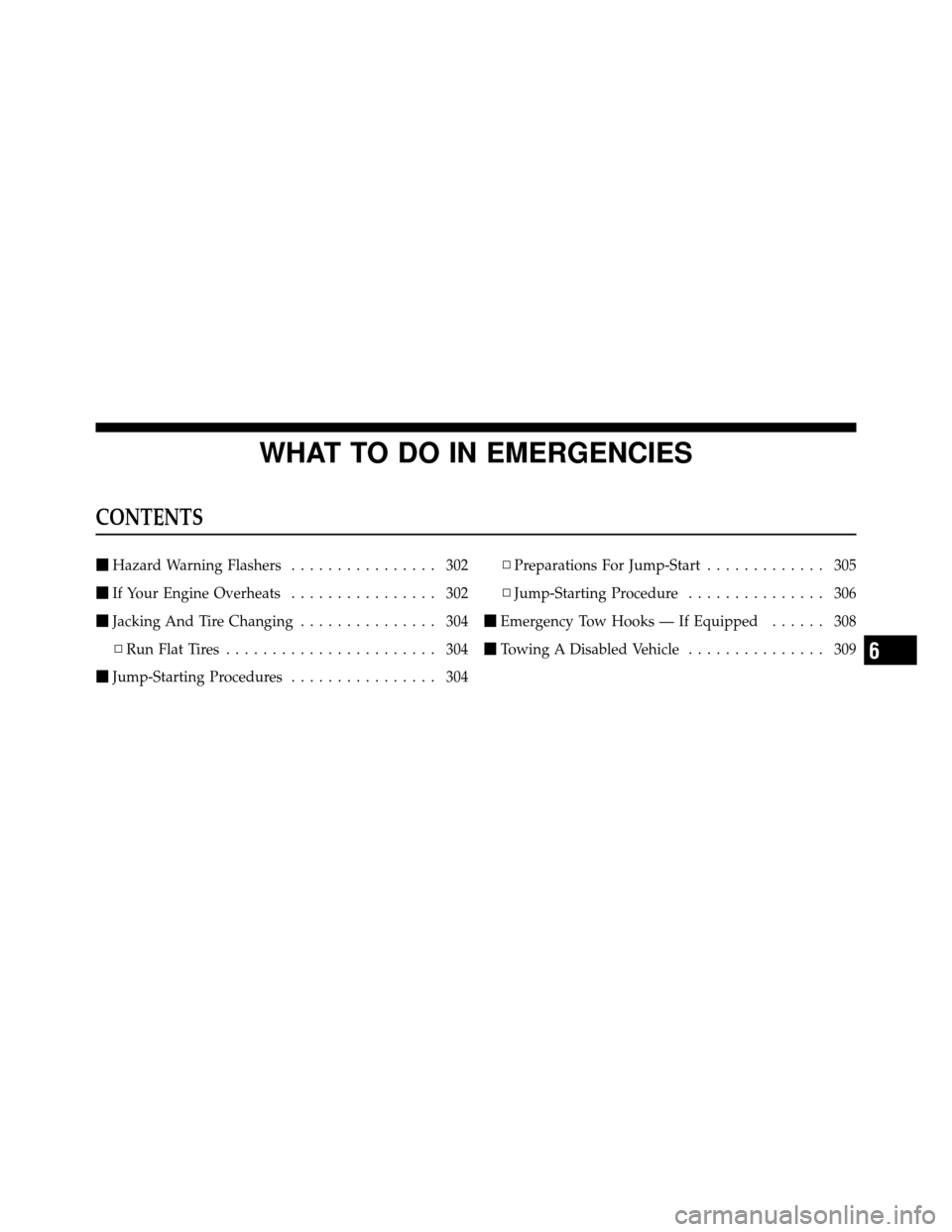

WHAT TO DO IN EMERGENCIES
CONTENTS
Hazard Warning Flashers ................ 302
 If Your Engine Overheats ................ 302
 Jacking And Tire Changing ............... 304
▫ Run Flat Tires ....................... 304
 Jump-Starting Procedures ................ 304 ▫
Preparations For Jump-Start ............. 305
▫ Jump-Starting Procedure ............... 306
 Emergency Tow Hooks — If Equipped ...... 308
 Towing A Disabled Vehicle ............... 309
6

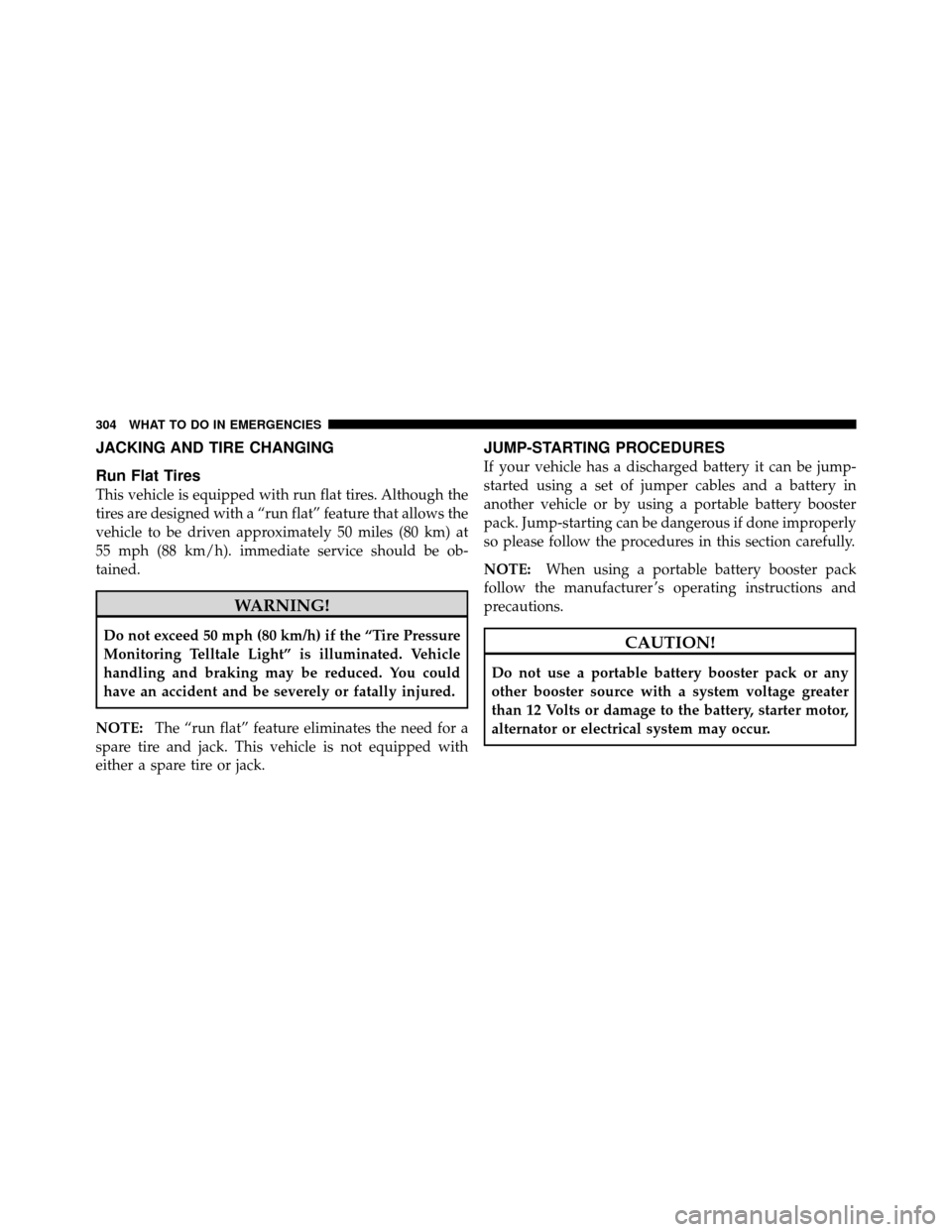

JACKING AND TIRE CHANGING
Run Flat Tires
This vehicle is equipped with run flat tires. Although the
tires are designed with a “run flat” feature that allows the
vehicle to be driven approximately 50 miles (80 km) at
55 mph (88 km/h). immediate service should be ob-
tained.
WARNING!
Do not exceed 50 mph (80 km/h) if the “Tire Pressure
Monitoring Telltale Light” is illuminated. Vehicle
handling and braking may be reduced. You could
have an accident and be severely or fatally injured.
NOTE: The “run flat” feature eliminates the need for a
spare tire and jack. This vehicle is not equipped with
either a spare tire or jack.
JUMP-STARTING PROCEDURES
If your vehicle has a discharged battery it can be jump-
started using a set of jumper cables and a battery in
another vehicle or by using a portable battery booster
pack. Jump-starting can be dangerous if done improperly
so please follow the procedures in this section carefully.
NOTE: When using a portable battery booster pack
follow the manufacturer ’s operating instructions and
precautions.
CAUTION!
Do not use a portable battery booster pack or any
other booster source with a system voltage greater
than 12 Volts or damage to the battery, starter motor,
alternator or electrical system may occur.
304 WHAT TO DO IN EMERGENCIES

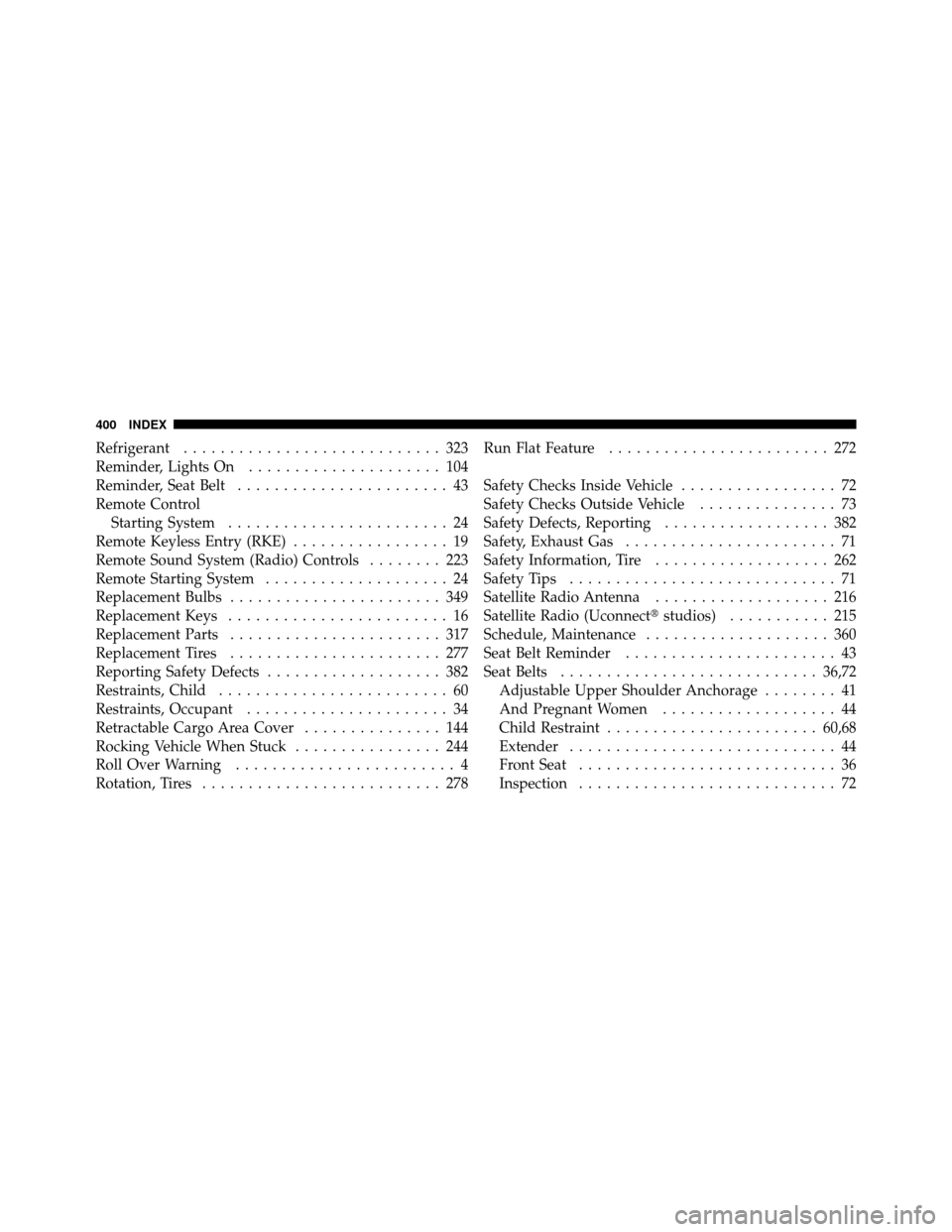

Refrigerant............................ 323
Reminder, Lights On ..................... 104
Reminder, Seat Belt ....................... 43
Remote Control Starting System ........................ 24
Remote Keyless Entry (RKE) ................. 19
Remote Sound System (Radio) Controls ........ 223
Remote Starting System .................... 24
Replacement Bulbs ....................... 349
Replacement Keys ........................ 16
Replacement Parts ....................... 317
Replacement Tires ....................... 277
Reporting Safety Defects ................... 382
Restraints, Child ......................... 60
Restraints, Occupant ...................... 34
Retractable Cargo Area Cover ............... 144
Rocking Vehicle When Stuck ................ 244
Roll Over Warning ........................ 4
Rotation, Tires .......................... 278 Run Flat Feature
........................ 272
Safety Checks Inside Vehicle ................. 72
Safety Checks Outside Vehicle ............... 73
Safety Defects, Reporting .................. 382
Safety, Exhaust Gas ....................... 71
Safety Information, Tire ................... 262
Safety Tips ............................. 71
Satellite Radio Antenna ................... 216
Satellite Radio (Uconnect studios)........... 215
Schedule, Maintenance .................... 360
Seat Belt Reminder ....................... 43
Seat Belts ............................ 36,72
Adjustable Upper Shoulder Anchorage ........ 41
And Pregnant Women ................... 44
Child Restraint ....................... 60,68
Extender ............................. 44
Front Seat ............................ 36
Inspection ............................ 72
400 INDEX
