make a record of the odometer reading before the repair/
service, so that you can be sure that it is properly reset, or
that the door jamb sticker is accurate if the odometer
must be reset at zero.
19. Shift Lever Indicator
The Shift Lever Indicator is self-contained within the
instrument cluster. It displays the gear position of the
automatic transmission.
NOTE:You must apply the brakes before shifting from
PARK.
20. Fuel Gauge
The pointer shows the level of fuel in the fuel tank when
the ignition switch is in the ON position.
21. Electronic Throttle Control (ETC) Warning Light This light informs you of a problem with the
Electronic Throttle Control (ETC) system. If a
problem is detected the light will come on while the engine is running. Cycle the ignition key when
the vehicle has completely stopped and the shift lever is
placed in the PARK position. The light should turn off. If
the light remains lit with the engine running, your
vehicle will usually be drivable; however, see your
authorized dealer for service as soon as possible. If the
light is flashing when the engine is running, immediate
service is required and you may experience reduced
performance, an elevated/rough idle or engine stall and
your vehicle may require towing. The light will come on
when the ignition is first turned on and remain on briefly
as a bulb check. If the light does not come on during
starting, have the system checked by an authorized
dealer.
22. Front Fog Light Indicator — If Equipped
This indicator will illuminate when the front fog
lights are on.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 165

REPLACEMENT BULBS
Interior LightsBulb Type
Glove Box Lamp ......................... 194
Grab Handle Lamp ................ L002825W5W
Overhead Console Reading Lamps .........VT4976
Rear Cargo Lamp ....................... 214–2
Visor Vanity Lamp ..................... V26377
Underpanel Courtesy Lamps ................ 906
Instrument Cluster (General Illumination) ....... 103
Telltale/Hazard Lamp ...................... 74
Exterior Lights Bulb Type
Backup Lamps ......................... 3157K
Front Park/Turn Lamp ................... 3757A
Front Fog Lamps ........................ 9145
Front Side Marker ...................... W5W
Headlamps (Low Beam) – High Intensity Discharge
(HID) .......... D1S (Serviced at Authorized Dealer) Headlamps (Low Beam)
................... 9006
Headlamps (High Beam) ..................9005
Rear Turn/Stop/Tail Lamps ...............3157K
NOTE: Numbers refer to commercial bulb types that
can be purchased from your authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.
BULB REPLACEMENT
High Intensity Discharge Headlamps (HID) — If
Equipped
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed. Because of
this, you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to
an authorized dealer for service.7

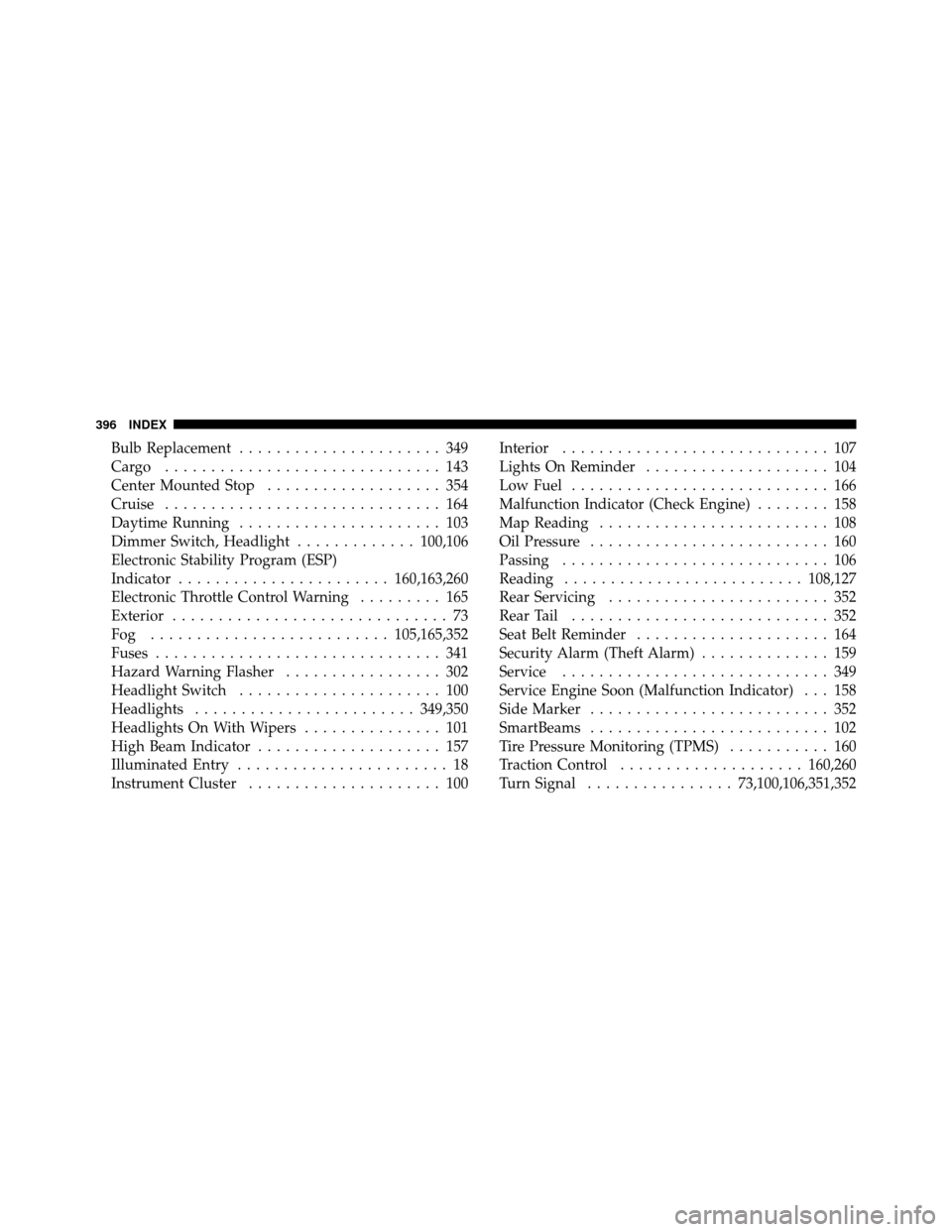

MAINTAINING YOUR VEHICLE 349

Bulb Replacement...................... 349
Cargo .............................. 143
Center Mounted Stop ................... 354
Cruise .............................. 164
Daytime Running ...................... 103
Dimmer Switch, Headlight .............100,106
Electronic Stability Program (ESP)
Indicator ....................... 160,163,260
Electronic Throttle Control Warning ......... 165
Exterior .............................. 73
Fog .......................... 105,165,352
Fuses ............................... 341
Hazard Warning Flasher ................. 302
Headlight Switch ...................... 100
Headlights ........................ 349,350
Headlights On With Wipers ............... 101
High Beam Indicator .................... 157
Illuminated Entry ....................... 18
Instrument Cluster ..................... 100 Interior
............................. 107
Lights On Reminder .................... 104
Low Fuel ............................ 166
Malfunction Indicator (Check Engine) ........ 158
Map Reading ......................... 108
Oil Pressure .......................... 160
Passing ............................. 106
Reading .......................... 108,127
Rear Servicing ........................ 352
Rear Tail ............................ 352
Seat Belt Reminder ..................... 164
Security Alarm (Theft Alarm) .............. 159
Service ............................. 349
Service Engine Soon (Malfunction Indicator) . . . 158
Side Marker .......................... 352
SmartBeams .......................... 102
Tire Pressure Monitoring (TPMS) ........... 160
Traction Control .................... 160,260
Turn Signal ................ 73,100,106,351,352
396 INDEX
