2010 JEEP COMMANDER headlights

General Information
The Sentry Keysystem complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
VEHICLE SECURITY ALARM
This Vehicle Security Alarm monitors the vehicle doors,
liftgate, liftgate flipper glass, and ignition for unautho-
rized operation. When the alarm is activated, the Vehicle
Security Alarm provides both audio and visual signals.
The horn will sound, the headlights, park lamps and/or
turn signals will flash repeatedly for three minutes. If
disturbance is still present (driver’s door, passenger door,
other doors, ignition) after three minutes, the headlights, park lamps and/or turn signals will flash for an addi-
tional 15 minutes.
NOTE:
The Panic and Security alarms are quite differ-
ent. Please take a moment to activate the Panic and the
Security modes to hear the differences in the horn. In case
one should go off in the future, you will need to know
which mode has been activated in order to deactivate it.
Rearming The System
If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn off the
horn after three minutes, turn off all of the visual signals
after 15 minutes, and then the Vehicle Security Alarm will
rearm itself.
To Set the Alarm
The alarm will set when you use the Remote Keyless
Entry (RKE) transmitter to lock the doors and liftgate, or
when you use the power door lock switch while the door
is open. After all the doors are locked and closed, the
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19

Remote Key Unlock, Driver Door/All Doors First
Press
This feature lets you program the system to unlock either
the driver’s door or all doors, on the first press of the
UNLOCK button on the RKE transmitter. To change the
current setting, proceed as follows:
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Remote Key
Unlock,” under “Personal Settings (Customer-
Programmable Features)” in the “Electronic Vehicle
Information Center (EVIC),” in Section 4 of this
manual.
Flash Lamps with Remote Key Lock
This feature will cause the turn signal lamps to flash
when the doors are locked or unlocked with the RKE
transmitter. This feature can be turned on or off. To
change the current setting, proceed as follows:
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Flash Lamps with
Lock,” under “Personal Settings (Customer-
Programmable Features)” in theElectronic Vehicle
Information Center (EVIC),” in Section 4 of this
manual.
Turn Headlights On with Remote Key Unlock
This feature activates the headlights for up to 90 seconds
when the doors are unlocked with the RKE transmitter.
The time for this feature is programmable on vehicles
equipped with the Electronic Vehicle Information Center
(EVIC). For details, refer to “Headlamp Off Delay,” under
“Personal Settings (Customer-Programmable Features)”
in the “Electronic Vehicle Information Center (EVIC),” in
Section 4 of this manual.
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Using the Panic Alarm
To turn the Panic Alarm feature on or off, press and hold
the PANIC button on the RKE transmitter for at least one
second and release. When the Panic Alarm is on, the
headlights and park lamps will flash, the horn will pulse
on and off, and the interior lights will turn on.
The Panic Alarm will stay on for three minutes unless
you turn it off by either pressing the PANIC button a
second time, or drive the vehicle at a speed of 15 mph
(24 km/h) or greater.
NOTE:
•The interior lights will turn off if you turn the ignition
switch to the ACC or ON position while the Panic
Alarm is activated. However, the exterior lamps and
horn will remain on.
Programming Additional Transmitters
If you do not have a programmed RKE transmitter,
contact your authorized dealer for details.
Transmitter Battery Service
The recommended replacement battery is one CR2032
battery.
NOTE:
•Perchlorate Material — special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
•Do not touch the battery terminals that are on the back
housing or the printed circuit board.
1. Battery access is through a door located on the rear of
the fob. Insert a small, flat blade screwdriver into the slot
and gently pry open the access door.
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫Four-Way Passenger’s Power Seat
— If Equipped ....................... 88
▫ Head Restraints ...................... 89
▫ Front Heated Seats — If Equipped ......... 90
▫ Rear Heated Seats — If Equipped .......... 91
▫ 40/20/40 Second Row Folding Seat ........ 93
▫ 50/50 Third Row Folding Seat
— If Equipped ....................... 97
 Driver Memory Seat — If Equipped ......... 98
▫ Setting Memory Positions And Linking
Remote Keyless Entry Transmitter To
Memory ............................ 99
▫ Memory Position Recall ................ 100
▫ To Disable a RKE Transmitter Linked To
Memory ........................... 101 ▫
Easy Entry/Exit Seat .................. 102
 To Open And Close The Hood ............ 103
 Lights ............................. 104
▫ Multifunction Lever .................. 104
▫ Headlights And Parking Lights .......... 105
▫ Automatic Headlight System
— If Equipped ...................... 105
▫ Headlights On Automatically With Wipers . . 106
▫ Smartbeam™ — If Equipped ............ 106
▫ Automatic Headlight Leveling — HID
Headlights Only ..................... 107
▫ Daytime Running Lights — If Equipped .... 108
▫ Fog Lights — If Equipped .............. 108
▫ Instrument Panel And Interior Lights ...... 109
78 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
If the hood is not fully latched, it could fly up when
the vehicle is moving and block your forward vision.
Be sure all hood latches are fully latched before
driving.
LIGHTS
Multifunction Lever
The multifunction lever controls the operation of the
headlights, turn signals, headlight beam selection, instru-
ment panel light dimming, passing light, interior
courtesy/dome lights and optional fog lights. The mul-
tifunction lever is located on the left side of the steering
column.
Multifunction Lever
104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Headlights and Parking Lights
Turn the end of the multifunction lever to the first detent
for parking light operation. Turn to the second detent for
headlight operation. Turn to the third detent for Auto-
matic Headlight operation (if equipped).
Automatic Headlight System — If Equipped
Turn the end of the multifunction lever to the third detent
(AUTO) to activate the Automatic Headlight system.
Headlight Switch
Headlight Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105

This system performs two functions. With the engine
running and the multifunction lever in the AUTO posi-
tion, the headlights will turn on and off based on the
surrounding light levels.
Headlights On Automatically With Wipers
If your vehicle is equipped with Automatic Headlights it
also has this customer-programmable feature. When
your headlights are in the AUTO position, and the engine
is running, they will automatically turn on when the
wiper system is on. Refer to “Headlamps On with
Wipers” under “Electronic Vehicle Information (EVIC) —
Customer-Programmable Features” in Section 4.
If your vehicle is equipped with a “Rain Sensitive Wiper
System,” and it is activated, the headlights will automati-
cally turn on after the wipers complete five wipe cycles
within approximately one minute, and they will turn offapproximately four minutes after the wipers completely
stop. Refer to “Windshield Wipers and Washers” in this
section for more information.
NOTE:
When your headlights come on during the
daytime, the instrument panel lights will automatically
dim to the lower nighttime intensity. Refer to “Instru-
ment Panel and Interior Lights” below for setting the
instrument panel lights to full daytime intensity.
SmartBeam™ — If Equipped
The SmartBeam™ system provides increased forward
lighting at night by automating high beam control
through the use of a digital camera mounted on the
inside rearview mirror. This camera detects vehicle spe-
cific light and automatically switches from high beams to
low beams until the approaching vehicle is out of view.
106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

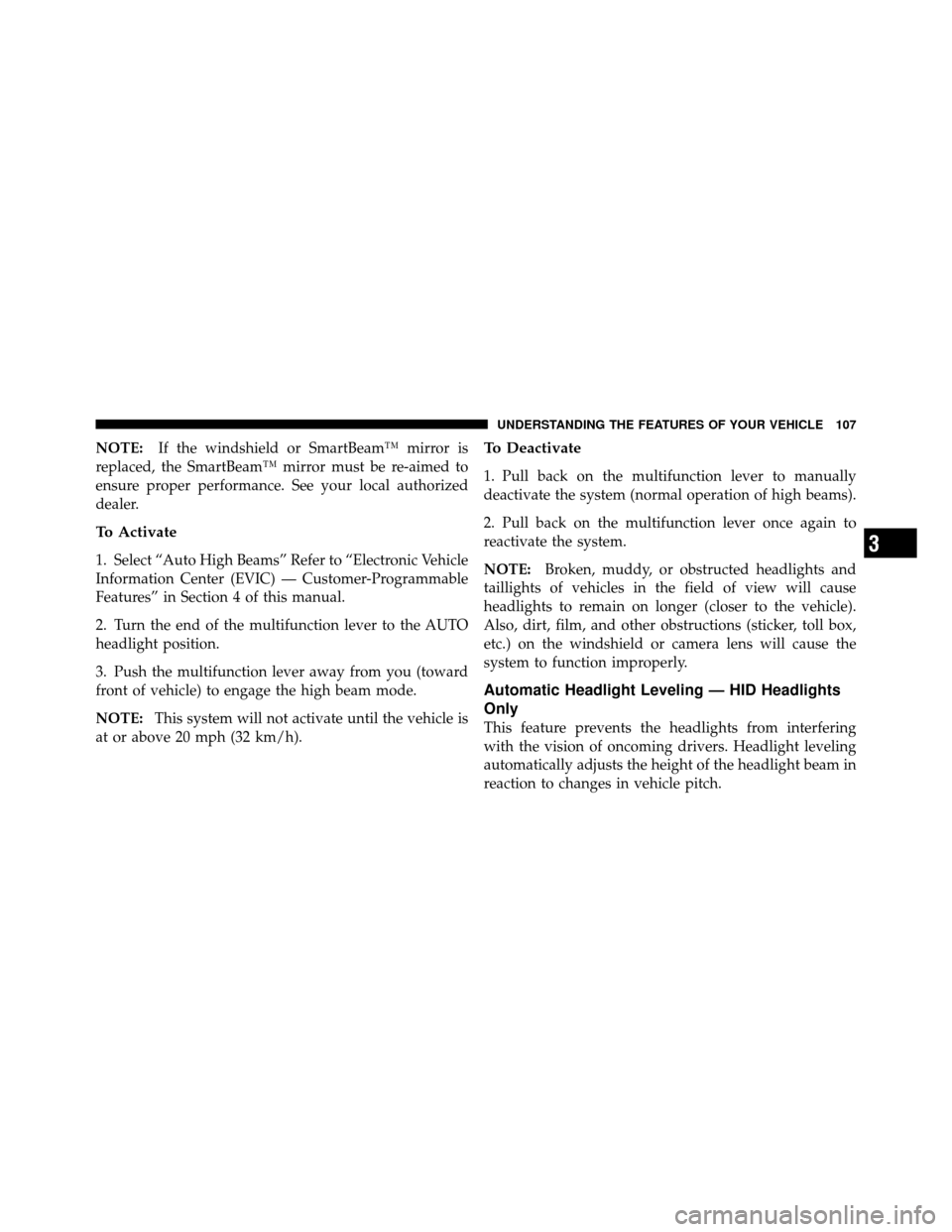

NOTE:If the windshield or SmartBeam™ mirror is
replaced, the SmartBeam™ mirror must be re-aimed to
ensure proper performance. See your local authorized
dealer.
To Activate
1. Select “Auto High Beams” Refer to “Electronic Vehicle
Information Center (EVIC) — Customer-Programmable
Features” in Section 4 of this manual.
2. Turn the end of the multifunction lever to the AUTO
headlight position.
3. Push the multifunction lever away from you (toward
front of vehicle) to engage the high beam mode.
NOTE: This system will not activate until the vehicle is
at or above 20 mph (32 km/h).
To Deactivate
1. Pull back on the multifunction lever to manually
deactivate the system (normal operation of high beams).
2. Pull back on the multifunction lever once again to
reactivate the system.
NOTE: Broken, muddy, or obstructed headlights and
taillights of vehicles in the field of view will cause
headlights to remain on longer (closer to the vehicle).
Also, dirt, film, and other obstructions (sticker, toll box,
etc.) on the windshield or camera lens will cause the
system to function improperly.
Automatic Headlight Leveling — HID Headlights
Only
This feature prevents the headlights from interfering
with the vision of oncoming drivers. Headlight leveling
automatically adjusts the height of the headlight beam in
reaction to changes in vehicle pitch.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107
