Second row center

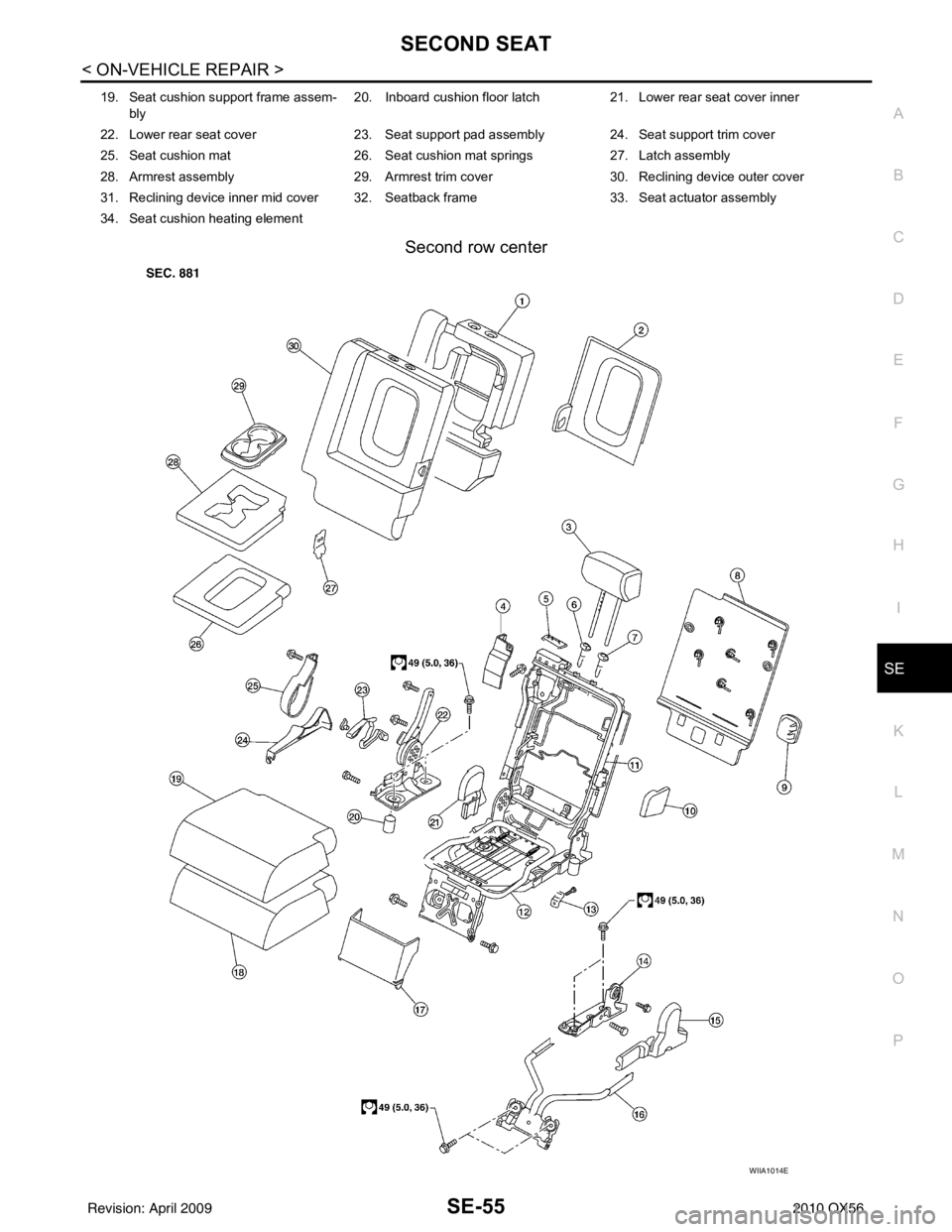

19. Seat cushion support frame assem- bly 20. Inboard cushion floor latch
21. Lower rear seat cover inner
22. Lower rear seat cover 23. Seat support pad assembly 24. Seat support trim cover
25. Seat cushion mat 26. Seat cushion mat springs 27. Latch assembly
28. Armrest assembly 29. Armrest trim cover 30. Reclining device outer cover
31. Reclining device inner mid cover 32. Seatback frame 33. Seat actuator assembly
34. Seat cushion heating element
WIIA1014E
Revision: April 20092010 QX56

THIRD SEATSE-57
< ON-VEHICLE REPAIR >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
THIRD SEAT
Exploded ViewINFOID:0000000005147413
Third seat RH
ALIIA0070GB
1. Headrest 2. Headrest holder, locking 3. Headrest holder, free
4. Seatback board 5. Seatback pad 6. Seatback frame assembly
7. Seatback cushion 8. Seatback trim cover 9. RH hinge cover
Revision: April 20092010 QX56

THIRD SEATSE-59
< ON-VEHICLE REPAIR >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
LH Side SeatINFOID:0000000005147414
REMOVAL
1. Remove the storage bin. Refer to INT-19, "Removal and Installation".
2. Remove the lower base trim covers.
3. Remove front link nuts and the LH hinge front bolt.
4. Remove push pin (2) and release elastic band (3) from seat frame (1).
•⇐ : Vehicle front
5. Partially lift seatback upright, then remove seat belt buckle (2) from between hinge cover (1) and seat cushion side facing (3).
•⇐ : Vehicle front
6. Retract the seat into the cargo floor position.
10. Seat cushion trim cover 11. Front link covers 12. Flex mat
13. Flex mat springs 14. Seat cushion frame assembly 15. Seat motor/hinge assembly
16. Control module/cross beam assem- bly 17. LH hinge cover
18. Side link cover
19. RH hinge cover
LIIA2324E
LIIA2370E
LIIA2371E
Revision: April 20092010 QX56

THIRD SEATSE-61
< ON-VEHICLE REPAIR >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
5. Remove the two screws from the power seat motor cover assembly.
6. Disconnect the wiring harness from the power seat motor cover clips (A).
7. Remove the power seat motor cover.
8. Release the power motor cross-beam clip and open the hinged strap.
9. Remove the power motor cross-beam screws.
ALIIA0099ZZ
ALIIA0100ZZ
ALIIA0101ZZ
ALIIA0103ZZ
Revision: April 20092010 QX56

THIRD SEATSE-63
< ON-VEHICLE REPAIR >
C
DE
F
G H
I
K L
M A
B
SE
N
O P

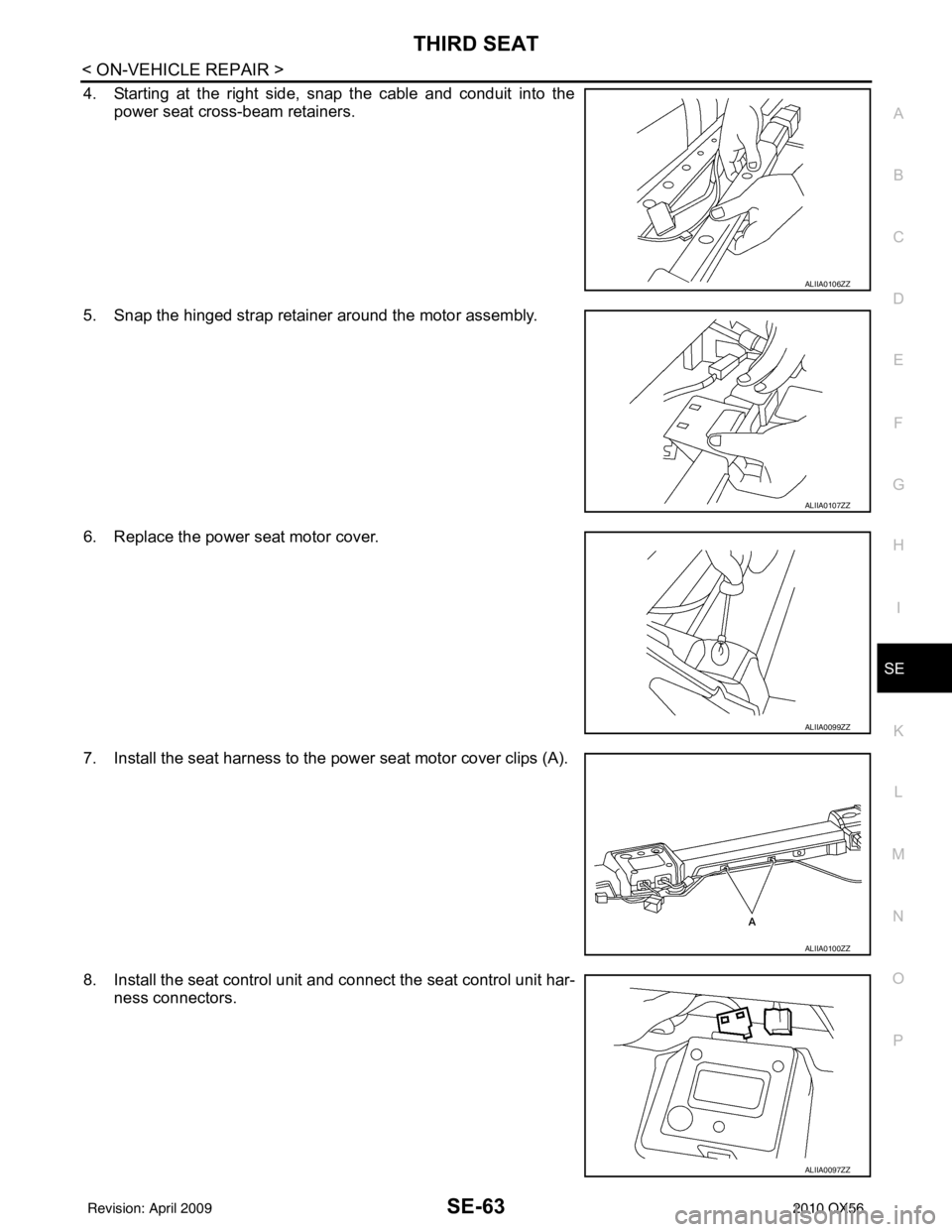

4. Starting at the right side, snap the cable and conduit into the power seat cross-beam retainers.
5. Snap the hinged strap retainer around the motor assembly.
6. Replace the power seat motor cover.
7. Install the seat harness to the power seat motor cover clips (A).
8. Install the seat control unit and connect the seat control unit har-
ness connectors.
ALIIA0106ZZ
ALIIA0107ZZ
ALIIA0099ZZ
ALIIA0100ZZ
ALIIA0097ZZ
Revision: April 20092010 QX56

THIRD SEATSE-65
< ON-VEHICLE REPAIR >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
7. Remove the rear bolts from the seat assembly.
8. Disconnect the seat harness.
9. Remove the seat assembly.
INSTALLATION
Installation is in the reverse order of removal.
LIIA2327E
Revision: April 20092010 QX56

FRONT SEATSE-67
< DISASSEMBLY AND ASSEMBLY >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
1. Headrest 2. Headrest holder with multi-position
lock 3. Seatback assembly
4. Lumbar switch bezel 5. Power seat switch escutcheon 6. Recliner switch knob
7. Slide switch knob 8. Driver power seat frame assembly 9. Inner leg cover
10. Driver seat wiring harness 11. Bolt cover 12. Seat cushion outer finisher
13. Outer pedestal finisher 14. Seat cushion front finisher15. Seat cushion inner finisher
16. Seat cushion frame 17. Seat cushion heating element 18. Seat cushion pad
19. Seat cushion trim cover 20. Armrest assembly 21. Headrest holder
22. Seat slide/ recline switch 23. Power lumbar switch
Revision: April 20092010 QX56

FRONT SEATSE-69
< DISASSEMBLY AND ASSEMBLY >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
Disassembly and AssemblyINFOID:0000000005256345
SEATBACK TRIM AND PAD
Disassembly
CAUTION:
• Only complete seatback assemblies can be replaced on vehicles equipped with side air bags.
• When removing or installing the seat trim, handle it carefully to keep dirt out and avoid damage.
1. Remove the seatback assembly. Refer to SE-51, "
Removal and Installation".
2. Remove the headrest.
3. From inside of the seatback, squeeze the headrest holder tabs
at the base of the stay pipe and pull the up to remove.
NOTE:
Before installing the headrest holder, check its orientation (front/
rear and right/left).
4. Remove the snap ring and the lumbar support lever knob (if equipped).
5. Remove the seatback trim and pad assembly.
6. Remove the hog rings to separate the seatback trim from the pad.
Assembly
Assembly is in the reverse order of disassembly.
SEAT CUSHION TRIM AND PAD
Disassembly
CAUTION:
• Front passenger seat is equipped with an Occupant Classification System sensor and control mod-
ule. Do not disassemble front passenger seat cushion assembly or remove the trim as this will affect
the Occupant Classificatio n System calibration.
• Always replace passenger seat cushion as an assembly.
• When removed, the passenger seat cushion must al ways be placed pan side UP to prevent damage.
• During installation, the wire harness clips must be reinstalled in the holes they were originally in. Do
not add additional clips.
• The Occupant Classification System control module can only be replaced as part of the seat cushion
assembly.
19. Outer pedestal finisher 20. Seat cushion outer finisher21. Seat cushion assembly
22. Power seat switch escutcheon 23. Slide switch knob 24. Recliner switch knob
25. Seatback assembly 26. Headrest holder27. Seat slide/ recline switch
28. Power lumbar switch
LRS023
PIIA1156E
Revision: April 20092010 QX56
