EC-340
< COMPONENT DIAGNOSIS >[VK56DE]
P1572 ICC BRAKE SWITCH
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK ICC BRAKE HOLD RE
LAY POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check the voltage between ICC brake hold relay terminal 4 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 14.
NG >> GO TO 6.
6.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors M31, E152
• Fuse block (J/B) connector M4
• 10 A fuse (No.15)
• Harness for open or short between ICC brake hold relay and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
7.CHECK ICC BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ICC brake switch terminal 2 and ECM terminal 108, ICC brake switch
terminal 2 and ICC unit terminal 29.
Refer Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK ICC BRAKE SWITCH
Refer to EC-343, "
Component Inspection".
OK or NG
OK >> GO TO 15.
NG >> Replace ICC brake switch.
9.CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF. Continuity should exist.
Voltage: Battery voltage
MBIB0059E
Continuity should exist.
Revision: April 20092010 QX56

P1572 ICC BRAKE SWITCHEC-341
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
2. Disconnect stop lamp switch harness connector.
3. Check voltage between stop lamp switch terminal 3 and ground
with CONSULT -III or tester.
4. Disconnect ICC brake hold relay.
5. Check voltage between ICC brake hold relay terminal 7 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors M31, E152
• Fuse block (J/B) connector M60
• 10 A fuse (No. 20)
• Harness for open or short between stop lamp switch and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
11 .CHECK INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
BBIA0470E
Voltage: Battery voltage

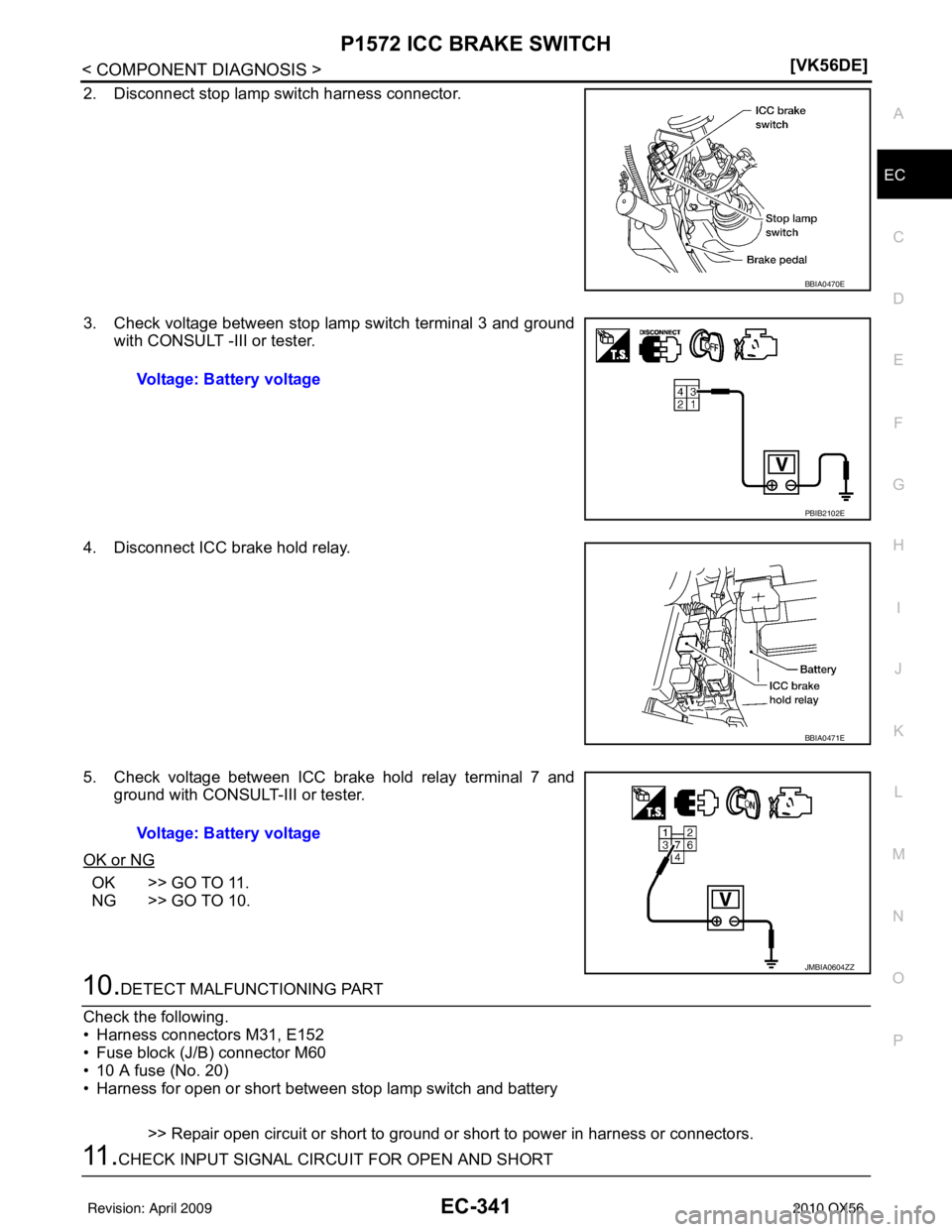

PBIB2102E
BBIA0471E
Voltage: Battery voltage
JMBIA0604ZZ
Revision: April 20092010 QX56

EC-342
< COMPONENT DIAGNOSIS >[VK56DE]
P1572 ICC BRAKE SWITCH
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 101 and stop lamp switch terminal 4.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
5. Check harness continuity between ECM terminal 101 and ICC hold relay terminal 6. Refer to Wiring Diagram.
6. Also check harness for short to ground and short to power.
7. Disconnect ICC unit harness connector.
8. Check harness continuity between ECM terminal 101 and ICC unit terminal 38. Refer to Wiring Diagram.
9. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 13.
NG >> GO TO 12.
12.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors E34, B40
• Harness for open or short between ICC unit and ECM
• Harness for open or short between ECM and ICC brake hold relay
• Harness for open or short between ECM and ICC brake switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
13.CHECK STOP LAMP SWITCH
Refer to EC-343, "
Component Inspection".
OK or NG
OK >> GO TO 14.
NG >> Replace stop lamp switch.
14.CHECK ICC BRAKE HOLD RELAY POWER SUPPLY AND GROUND CIRCUIT FOR OPEN AND
SHORT
1. Check harness continuity between ICC brake hold re lay terminal 1 and ICC unit terminal 47, ICC brake
hold relay terminal 2 and ground.
Refer to Wiring Diagram
2. Also check harness for short to ground or short to power in harness or connectors.
OK or NG
OK >> GO TO 15.
NG >> Repair or replace.
15.CHECK ICC BRAKE HOLD RELAY
Refer to EC-343, "
Component Inspection".
OK >> GO TO 16.
NG >> Replace ICC brake hold relay.
16.CHECK INTERMITTENT INCIDENT Continuity should exist.
Continuity should exist.
Continuity should exist.
Continuity should exist
Revision: April 20092010 QX56

P1572 ICC BRAKE SWITCHEC-343
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Refer to
GI-35, "How to Check Terminal" and GI-38, "Intermittent Incident".
>> INSPECTION END
Component InspectionINFOID:0000000005149403
ICC BRAKE SWITCH
1. Turn ignition switch OFF.
2. Disconnect ICC brake switch harness connector.

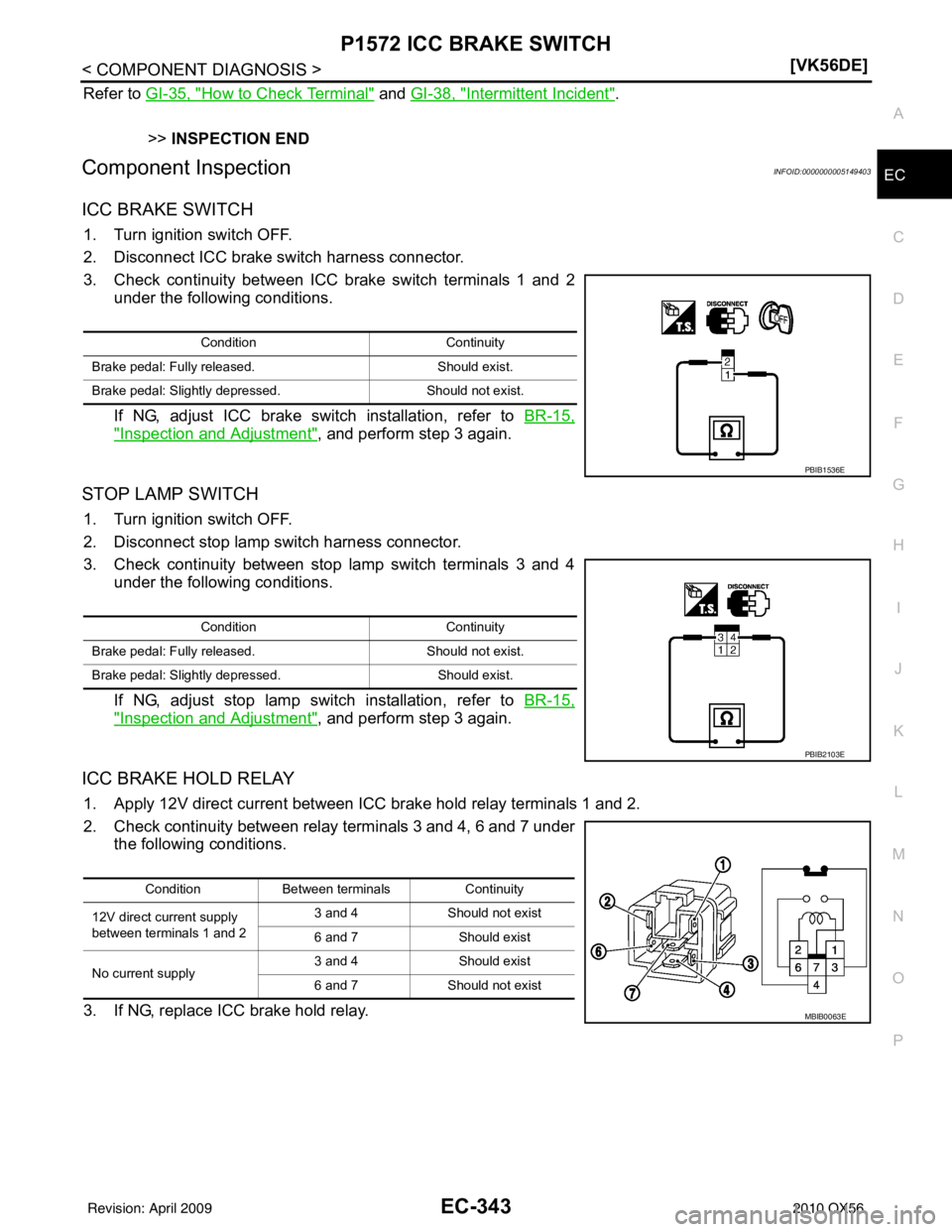

3. Check continuity between ICC brake switch terminals 1 and 2
under the following conditions.
If NG, adjust ICC brake switch installation, refer to BR-15,
"Inspection and Adjustment", and perform step 3 again.
STOP LAMP SWITCH
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.
3. Check continuity between stop lamp switch terminals 3 and 4
under the following conditions.
If NG, adjust stop lamp switch installation, refer to BR-15,
"Inspection and Adjustment", and perform step 3 again.
ICC BRAKE HOLD RELAY
1. Apply 12V direct current between ICC brake hold relay terminals 1 and 2.
2. Check continuity between relay terminals 3 and 4, 6 and 7 under
the following conditions.
3. If NG, replace ICC brake hold relay.
Condition Continuity
Brake pedal: Fully released. Should exist.
Brake pedal: Slightly depressed. Should not exist.
PBIB1536E
ConditionContinuity
Brake pedal: Fully released. Should not exist.
Brake pedal: Slightly depressed. Should exist.
PBIB2103E
ConditionBetween terminals Continuity
12V direct current supply
between terminals 1 and 2 3 and 4
Should not exist
6 and 7 Should exist
No current supply 3 and 4
Should exist
6 and 7 Should not exist
MBIB0063E
Revision: April 20092010 QX56

EC-356
< COMPONENT DIAGNOSIS >[VK56DE]
P2100, P2103 THROTTLE
CONTROL MOTOR RELAY
P2100, P2103 THROTTLE CONTROL MOTOR RELAY
Component DescriptionINFOID:0000000005149422
Power supply for the throttle control motor is provided to the ECM via throttle control motor relay. The throttle
control motor relay is ON/OFF controlled by the ECM. When the ignition switch is turned ON, the ECM sends
an ON signal to throttle control motor relay and battery voltage is provided to the ECM. When the ignition
switch is turned OFF, the ECM sends an OFF signal to throttle control motor relay and battery voltage is not
provided to the ECM.
On Board Diagn osis LogicINFOID:0000000005149423
These self-diagnoses have the one trip detection logic.
FA I L - S A F E M O D E
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureINFOID:0000000005149424
NOTE:
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure
before conducting the next step.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
PROCEDURE FOR DTC P2100
1. Turn ignition switch ON and wait at least 2 seconds.
2. Start engine and let it idle for 5 seconds.
3. Check DTC.
4. If DTC is detected, go to EC-356, "
Diagnosis Procedure".
PROCEDURE FOR DTC P2103
TESTING CONDITION:
Before performing the following procedure, co nfirm that battery voltage is more than 8 V.
1. Turn ignition switch ON and wait at least 1 second.
2. Check DTC.
3. If DTC is detected, go to EC-356, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000005149425
1.CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2100
2100 Throttle control motor
relay circuit open ECM detects a voltage of power source for
throttle control motor is excessively low. • Harness or connectors
(Throttle control motor relay circuit is
open)
• Throttle control motor relay
P2103
2103 Throttle control motor
relay circuit short ECM detect the throttle control motor relay is
stuck ON. • Harness or connectors
(Throttle control motor relay circuit is
shorted)
• Throttle control motor relay
Engine operating condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) b y the return
spring.
Revision: April 20092010 QX56

P2100, P2103 THROTTLE CONTROL MOTOR RELAYEC-357
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

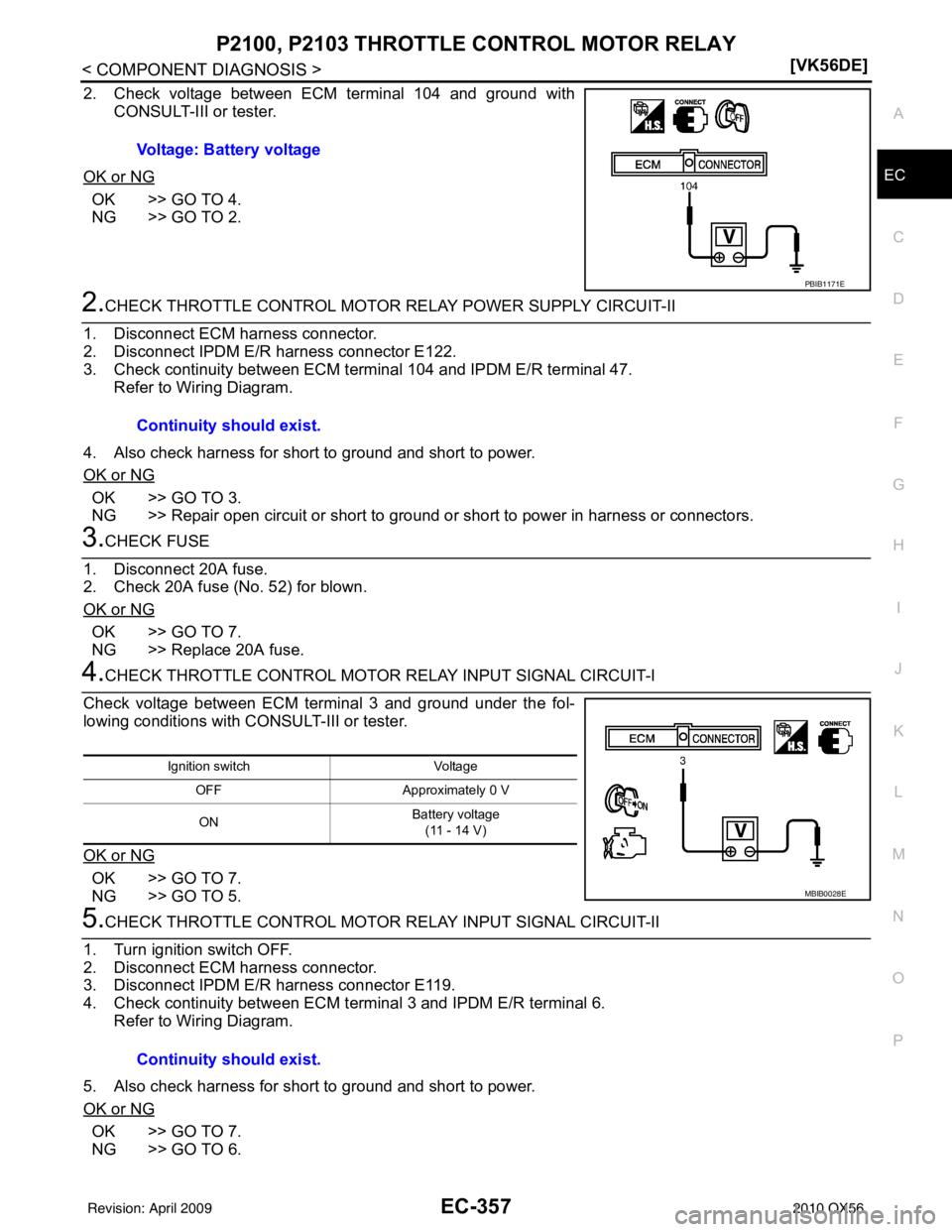

2. Check voltage between ECM terminal 104 and ground with
CONSULT-III or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2.CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-II
1. Disconnect ECM harness connector.
2. Disconnect IPDM E/R harness connector E122.
3. Check continuity between ECM terminal 104 and IPDM E/R terminal 47. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3.CHECK FUSE
1. Disconnect 20A fuse.
2. Check 20A fuse (No. 52) for blown.
OK or NG
OK >> GO TO 7.
NG >> Replace 20A fuse.
4.CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-I
Check voltage between ECM terminal 3 and ground under the fol-
lowing conditions with CONSULT-III or tester.
OK or NG
OK >> GO TO 7.
NG >> GO TO 5.
5.CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Disconnect IPDM E/R harness connector E119.
4. Check continuity between ECM terminal 3 and IPDM E/R terminal 6. Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6. Voltage: Battery voltage
PBIB1171E
Continuity should exist.
Ignition switch
Voltage
OFF Approximately 0 V
ON Battery voltage
(11 - 14 V)
MBIB0028E
Continuity should exist.
Revision: April 20092010 QX56

EC-358
< COMPONENT DIAGNOSIS >[VK56DE]
P2100, P2103 THROTTLE
CONTROL MOTOR RELAY
6.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors E2, F32
• Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
7.CHECK INTERMITTENT INCIDENT
Refer to GI-35, "
How to Check Terminal" and GI-38, "Intermittent Incident".
OK or NG
OK >> Replace IPDM E/R. Refer to PCS-35, "Removal and Installation of IPDM E/R".
NG >> Repair or replace harness or connectors.
Revision: April 20092010 QX56

EC-360
< COMPONENT DIAGNOSIS >[VK56DE]
P2101 ELECTRIC THROTTLE CONTROL FUNCTION

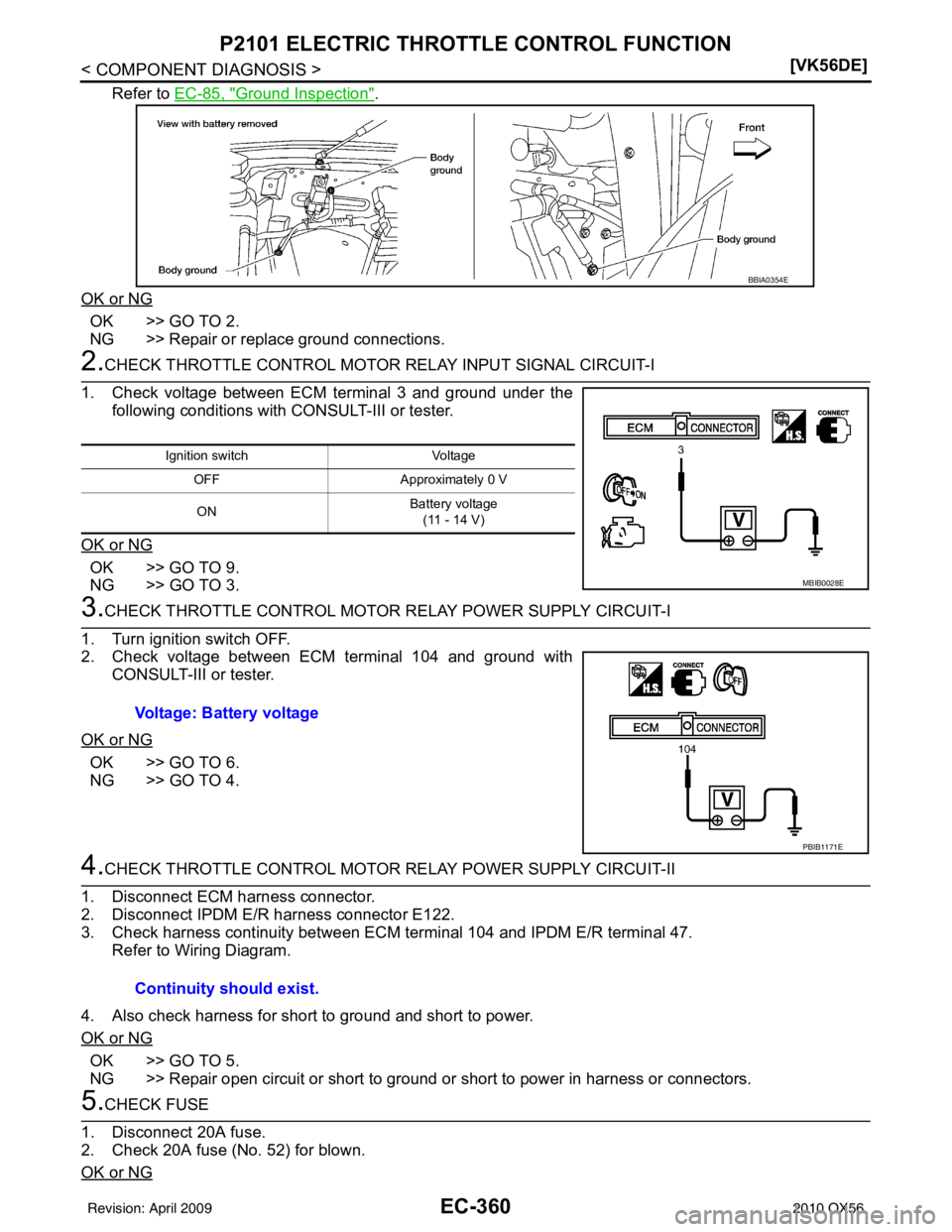

Refer to EC-85, "Ground Inspection".
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2.CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-I
1. Check voltage between ECM terminal 3 and ground under the following conditions with CONSULT-III or tester.
OK or NG
OK >> GO TO 9.
NG >> GO TO 3.
3.CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF.
2. Check voltage between ECM terminal 104 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 6.
NG >> GO TO 4.
4.CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-II
1. Disconnect ECM harness connector.
2. Disconnect IPDM E/R harness connector E122.
3. Check harness continuity between ECM terminal 104 and IPDM E/R terminal 47. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK FUSE
1. Disconnect 20A fuse.
2. Check 20A fuse (No. 52) for blown.
OK or NG
BBIA0354E
Ignition switch Voltage
OFF Approximately 0 V
ON Battery voltage
(11 - 14 V)
MBIB0028E
Voltage: Battery voltage
PBIB1171E
Continuity should exist.
Revision: April 20092010 QX56
