2010 INFINITI M check engine

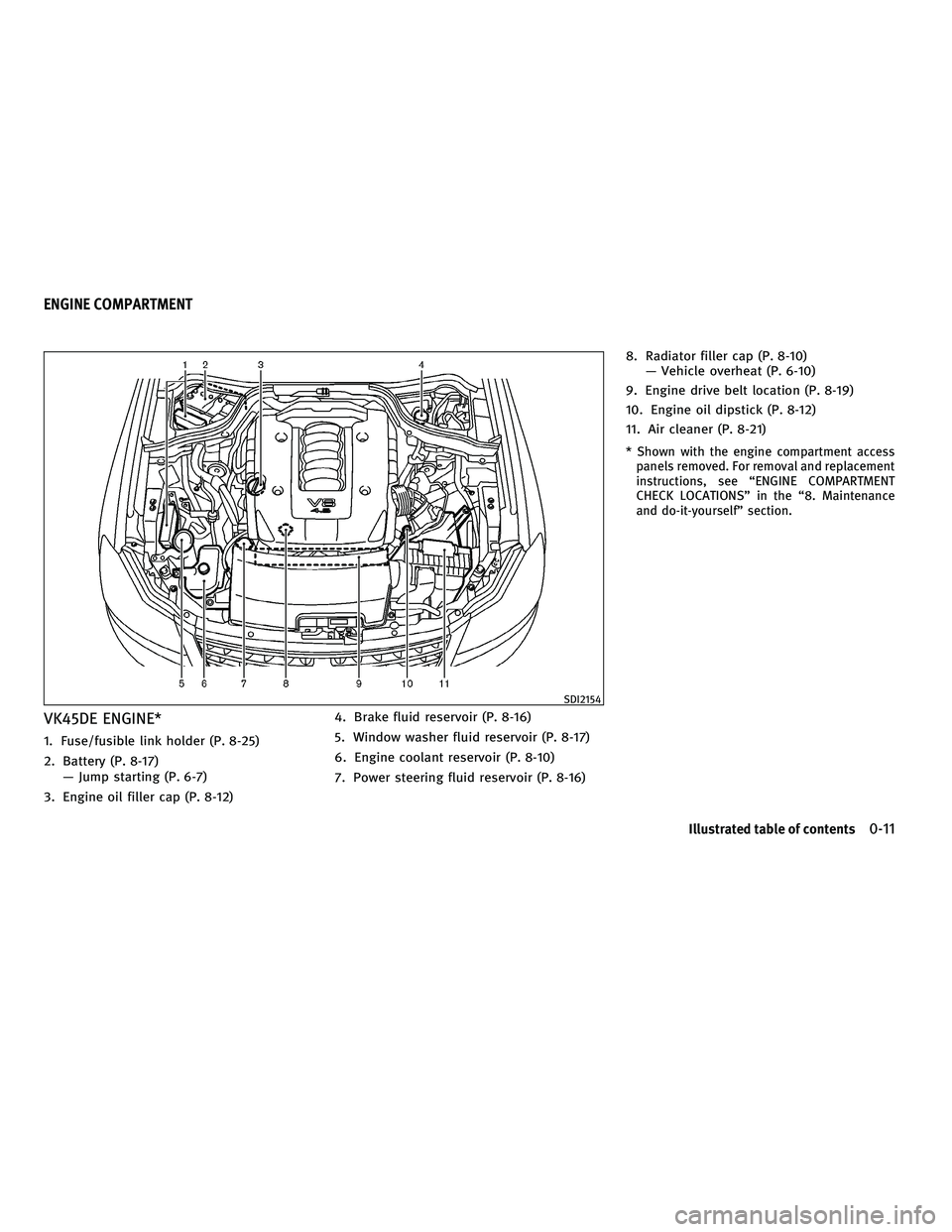

VK45DE ENGINE*
1. Fuse/fusible link holder (P. 8-25)
2. Battery (P. 8-17)Ð Jump starting (P. 6-7)
3. Engine oil filler cap (P. 8-12) 4. Brake fluid reservoir (P. 8-16)
5. Window washer fluid reservoir (P. 8-17)
6. Engine coolant reservoir (P. 8-10)
7. Power steering fluid reservoir (P. 8-16)8. Radiator filler cap (P. 8-10)
Ð Vehicle overheat (P. 6-10)
9. Engine drive belt location (P. 8-19)
10. Engine oil dipstick (P. 8-12)
11. Air cleaner (P. 8-21)
* Shown with the engine compartment access panels removed. For removal and replacement
instructions, see ªENGINE COMPARTMENT
CHECK LOCATIONSº in the ª8. Maintenance
and do-it-yourselfº section.
SDI2154
ENGINE COMPARTMENT
Illustrated table of contents0-11
wÐ
Ð
05/14/09Ðpattie
X

VQ35HR ENGINE*
1. Fuse/fusible link holder (P. 8-25)
2. Battery (P. 8-17)Ð Jump starting (P. 6-7) 3. Radiator filler cap (P. 8-10)
Ð Vehicle overheat (P. 6-10)
4. Engine oil dipstick (P. 8-12)
5. Engine oil filler cap (P. 8-12)
6. Brake fluid reservoir (P. 8-16) 7. Window washer fluid reservoir (P. 8-17)
8. Power steering fluid reservoir (P. 8-16)
9. Air cleaner (P. 8-21)
10. Engine drive belt location (P. 8-19)
11. Engine coolant reservoir (P. 8-10)
* Shown with the engine compartment access
panels removed. For removal and replacement
instructions, see ªENGINE COMPARTMENT
CHECK LOCATIONSº in the ª8. Maintenance
and do-it-yourselfº section.
SDI2307
0-12Illustrated table of contents
wÐ
Ð
05/14/09Ðpattie
X

WarninglightName Page
All-Wheel Drive (AWD) warning
light (AWD models)* 2-13
Anti-lock Braking System (ABS)
warning light2-13
Automatic Transmission (AT)
check warning light2-13
Brake warning light
2-14
Charge warning light2-14
Door open warning light2-14
Engine oil pressure warning
light2-14
Intelligent Cruise Control (ICC)
system warning light (orange)*2-15
Intelligent Key system warning
light 2-15
Lane departure warning light
(orange)*2-15
Warning
lightName Page
Low fuel warning light 2-15
Low tire pressure warning light 2-15
Low washer fluid warning light 2-17
Preview Function warning light
(orange)*2-17
Rear Active Steer warning light* 2-17
Seat belt warning light
2-17
Supplemental air bag warning
light 2-17
IndicatorlightName Page
Adaptive Front lighting System
(AFS) indicator light 2-18
Automatic Transmission (AT)
position indicator light2-18
Cruise main switch indicator
light (green)2-18
IndicatorlightName Page
Cruise set switch indicator light 2-18
Front passenger air bag status
light 2-18
High beam indicator light
2-18
Intelligent Cruise Control (ICC)
system MAIN switch indicator
light (green)* 2-19
Lane Departure Prevention
(LDP) ON indicator light
(green)*2-19
Malfunction Indicator Light
(MIL)
2-19
Slip indicator light
2-20
Small light indicator lights 2-20
Turn signal/hazard indicator
lights2-20
Vehicle Dynamic Control (VDC)
off indicator light2-20
*: if so equipped
WARNING AND INDICATOR LIGHTS
Illustrated table of contents0-13
wÐ
Ð
05/14/09Ðpattie
X

WARNING
cDo not ride in a moving vehicle when the
seatback is reclined. This can be dangerous.
The shoulder belt will not be against your
body. In an accident, you could be thrown
into it and receive neck or other serious inju-
ries. You could also slide under the lap belt
and receive serious internal injuries.
c For the most effective protection when the
vehicle is in motion, the seat should be up-
right. Always sit well back in the seat with
both feet on the floor and adjust the seat
properly. See ªPRECAUTIONS ON SEAT BELT
USAGEº later in this section. c
After adjustment, gently rock in the seat to
make sure it is securely locked.
c Do not leave children unattended inside the
vehicle. They could unknowingly activate
switches or controls. Unattended children
could become involved in serious accidents.
c The seatback should not be reclined any
more than needed for comfort. Seat belts are
most effective when the passenger sits well
back and straight up in the seat. If the seat-
back is reclined, the risk of sliding under the
lap belt and being injured is increased.
CAUTION
When adjusting the seat positions, be sure not
to contact any moving parts to avoid possible
injuries and/or damages.
FRONT SEATS
Front power seat adjustment
Operating tips :
c The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
c Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
See ªAUTOMATIC DRIVE POSITIONERº in the ª3.
Pre-driving checks and adjustmentsº section for
the seat position memory function.
SSS0133
SEATS
1-2Safety Ð Seats, seat belts and supplemental restraint system
wÐ
Ð
05/14/09Ðpattie
X

2 Instruments and controls
Cockpit........................................... 2-2
Instrument panel .................................. 2-3
Meters and gauges ................................ 2-5
Speedometer and odometer ..................... 2-6
Tachometer .................................... 2-6
Engine coolant temperature gauge ............... 2-7
Fuel gauge ..................................... 2-7
Meter/ring illumination and needle sweep ........ 2-8
Compass (if so equipped) .......................... 2-9
Zone variation change procedure ...............2-10
Warning/indicator lights and audible reminders .....2-12
Checking bulbs ............................... 2-13
Warning lights ................................ 2-13
Indicator lights ................................ 2-18
Audible reminders ............................. 2-20
Dot matrix liquid crystal display ...................2-21
Indicators for operation ........................ 2-22
Security systems ................................. 2-24
Vehicle security system ........................ 2-24
INFINITI Vehicle Immobilizer System ............2-25
Windshield wiper and washer switch ...............2-27
Rain-sensing auto wiper system ................2-28
Rear window and outside mirror defroster switch . . . 2-28 Headlight and turn signal switch
..................2-29
Xenon headlights ............................. 2-29
Headlight switch .............................. 2-29
Turn signal switch ............................. 2-33
Fog light switch ............................... 2-33
Hazard warning flasher switch .....................2-33
Horn ............................................ 2-34
Heated seats (rear seats) (if so equipped) ..........2-34
Climate controlled seats (front seats) ..............2-35
Lane Departure Warning (LDW) switch
(if so equipped) .................................. 2-36
SNOW mode switch (if so equipped) ...............2-37
Vehicle Dynamic Control (VDC) OFF switch ..........2-37
Clock ............................................ 2-38
Adjusting the time ............................. 2-38
Power outlets .................................... 2-38
Cigarette lighter and ashtrays .....................2-39
Front ......................................... 2-39
Rear ......................................... 2-39
Storage ......................................... 2-40
Cup holders .................................. 2-40
Sunglasses holder ............................. 2-41
Glove box .................................... 2-41
wÐ
Ð
05/19/09Ðtbrooks
X

All-Wheel Drive (AWD) warning light
(AWD models)*Lane departure warning light (or-
ange)*Cruise set switch indicator light
Anti-lock Braking System (ABS) warn-
ing lightLow fuel warning lightFront passenger air bag status light
Low tire pressure warning lightHigh beam indicator light
Automatic Transmission (AT) check
warning lightLow washer fluid warning lightIntelligent Cruise Control (ICC) system
MAIN switch indicator light (green)*
Brake warning light
Preview Function warning light
(orange)*Lane Departure Prevention (LDP) ON
indicator light (green)*
Rear Active Steer warning light*Malfunction Indicator Light (MIL)
Charge warning lightSeat belt warning lightSlip indicator light
Door open warning lightSupplemental air bag warning lightSmall light indicator lights
Engine oil pressure warning lightAdaptive Front lighting System (AFS)
indicator lightTurn signal/hazard indicator lights
Intelligent Cruise Control (ICC) sys-
tem warning light (orange)*Automatic Transmission (AT) position
indicator lightVehicle Dynamic Control (VDC) off
indicator light
Intelligent Key system warning lightCruise main switch indicator light
(green)*: if so equipped

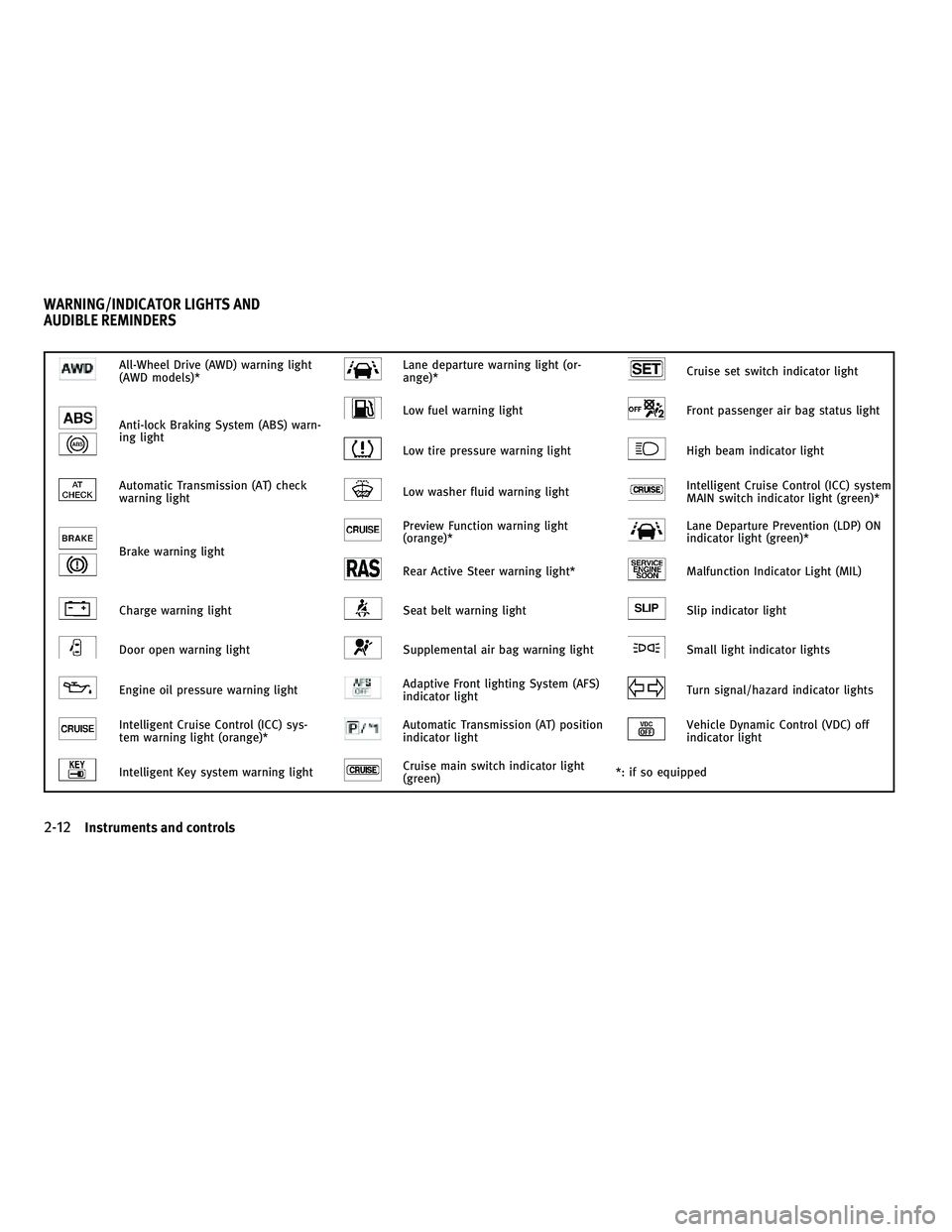

WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
2-12Instruments and controls
wÐ
Ð
05/14/09Ðpattie
X

CHECKING BULBS
With all doors closed, apply the parking brake
and push the ignition switch to the ON position
without starting the engine. The following lights
will come on:
,or,,,
,,,,
The following lights come on briefly and then go
off (if so equipped):
,or,,,
,,,,
If any light does not come on, it may indicate a
burned-out bulb or an open circuit in the elec-
trical system. Have the system checked by an
INFINITI retailer.
WARNING LIGHTS
All-Wheel Drive (AWD)
warning light (AWD models)
The light comes on when the ignition switch is
pushed to the ON position. It turns off soon
after the engine is started.
If the All-Wheel Drive (AWD) system malfunc-
tions, or the diameter of the front and the rear
wheels are different, the warning light willeither remain illuminated or blink. (See ªALL-
WHEEL DRIVE (AWD)º in the ª5. Starting and
drivingº section.)
CAUTION
c
If the warning light comes on while driving
there may be a malfunction in the AWD sys-
tem. Reduce the vehicle speed and have your
vehicle checked by an INFINITI retailer as
soon as possible.
c If the AWD warning light blinks while
driving:
± blinks rapidly (about twice a second): Pull off the road in a safe area, and idle the
engine. The driving mode will change to
2WD to prevent the AWD system from
malfunctioning. If the warning light turns
off, you can drive again.
± blinks slowly (about once every 2 sec- onds):
Pull off the road in a safe area, and idle the
engine. Check that all tire sizes are the
same, tire pressure is correct and tires are
not worn.
c If the warning light is still on after the above
operations, have your vehicle checked by an
INFINITI retailer as soon as possible.
orAnti-lock Braking
System (ABS)
warning light
When the ignition switch is in the ON position,
the Anti-lock Braking System (ABS) warning
light illuminates and then turns off. This indi-
cates the ABS is operational.
If the ABS warning light illuminates while the
engine is running, or while driving, it may
indicate the ABS is not functioning properly.
Have the system checked by an INFINITI retailer.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock assis-
tance. (See ªBRAKE SYSTEMº in the ª5. Starting
and drivingº section.)
Automatic Transmission (AT)
check warning light
When the ignition switch is pushed to the ON
position, the light comes on for 2 seconds. If
the light comes on at any other time, it may
indicate the transmission is not functioning
properly. Have your INFINITI retailer check and
repair the transmission.
Instruments and controls2-13
wÐ
Ð
05/14/09Ðpattie
X

orBrake warning
light
This light functions for both the parking brake
and the foot brake systems.
Parking brake indicator :
When the ignition switch is in the ON position,
the light comes on when the parking brake is
applied.
Low brake fluid warning light :
When the ignition switch is in the ON position,
the light warns of a low brake fluid level. If the
light comes on while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:
1. Check the brake fluid level. Add brakefluid as necessary. (See ªBRAKE FLUIDº in
the ª8. Maintenance and do-it-yourselfº
section.)
2. If the brake fluid level is correct, have the warning system checked by an INFINITI
retailer.
Anti-lock Braking System (ABS) warning indica-
tor :
When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the Anti-lock Braking System (ABS) warning light illuminate, it may indicate
the ABS is not functioning properly. Have the
brake system checked, and if necessary re-
paired, by an INFINITI retailer promptly. (See
ªAnti-lock Braking System (ABS) warning lightº
earlier in this section.)
WARNING
c
Your brake system may not be working prop-
erly if the warning light is on. Driving could
be dangerous. If you judge it to be safe, drive
carefully to the nearest service station for
repairs. Otherwise, have your vehicle towed
because driving it could be dangerous.
c Pressing the brake pedal with the engine
stopped and/or low brake fluid level may
increase your stopping distance and braking
will require greater pedal effort as well as
pedal travel.
c If the brake fluid level is below the minimum
or MIN mark on the brake fluid reservoir, do
not drive until the brake system has been
checked at an INFINITI retailer.
Charge warning light
If the light comes on while the engine is run-
ning, it may indicate the charging system is not functioning properly. Turn the engine off and
check the alternator belt. If the belt is loose,
broken, missing or if the light remains on, see
an INFINITI retailer immediately.
CAUTION
Do not continue driving if the alternator belt is
loose, broken or missing.
Door open warning light
This light comes on when any of the doors are
not closed securely while the ignition switch is
in the ON position.
Engine oil pressure warning
light
This light warns of low engine oil pressure. If
the light flickers or comes on during normal
driving, pull off the road in a safe area, stop the
engine
immediately and call an INFINITI retailer
or other authorized repair shop.
The engine oil pressure warning light is not de-
signed to indicate a low oil level. Use the dip-
stick to check the oil level. (See ªENGINE OILº in
the ª8. Maintenance and do-it-yourselfº sec-
tion.)
2-14Instruments and controls
wÐ
Ð
05/14/09Ðpattie
X
