2010 INFINITI G37 check engine

Warn-
ing
light Name Page
All-Wheel Drive (AWD)
warning light (AWD
models)* 2-12
Anti-lock Braking Sys-
tem (ABS) warning light 2-12
Automatic Transmission
check warning light 2-12
Brake warning light 2-12
Charge warning light 2-13
Engine oil pressure
warning light 2-13
4 Wheel Active Steer
(4WAS) warning light* 2-13 Warn-
ing
light Name Page
Intelligent Cruise Con-
trol (ICC) system warn-
ing light (orange)* 2-14
Intelligent Key system
warning light 2-14
Low tire pressure warn-
ing light 2-14
Master warning light 2-15
Preview Function warn-
ing light (orange)* 2-15
Seat belt warning light 2-16
Supplemental air bag
warning light 2-16 Indica-
tor
light Name Page
Automatic Transmission
position indicator light* 2-16
Front fog light indicator
light 2-17
Front passenger air bag
status light 2-17
High beam indicator
light 2-17
Malfunction Indicator
Light (MIL) 2-17
Security indicator light 2-18
Slip indicator light 2-18
Low Beam indicator
light (green) 2-18WARNING AND INDICATOR LIGHTS
Illustrated table of contents
0-13
 —
—
12/08/09—debbie


FRONT SEATS
Front power seat adjustment Operating tips :
● The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
● Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
See “AUTOMATIC DRIVE POSITIONER” in the “3.
Pre-driving checks and adjustments” section for
the seat position memory function.
Forward and backward :
Moving the switch
 1
forward or backward will
slide the seat forward or backward to the
desired position.
Reclining :
Move the recline switch
 2
backward until the
desired angle is obtained. To bring the seatback
forward again, move the switch
 2
forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “PRECAUTIONS ON SEAT BELT
USAGE” later in this section.) Also, the seatback can be reclined to allow occupants to rest when
the vehicle is parked. SSS1051
Safety — Seats, seat belts and supplemental restraint system
1-3
 —
—
10/12/09—tbrooks

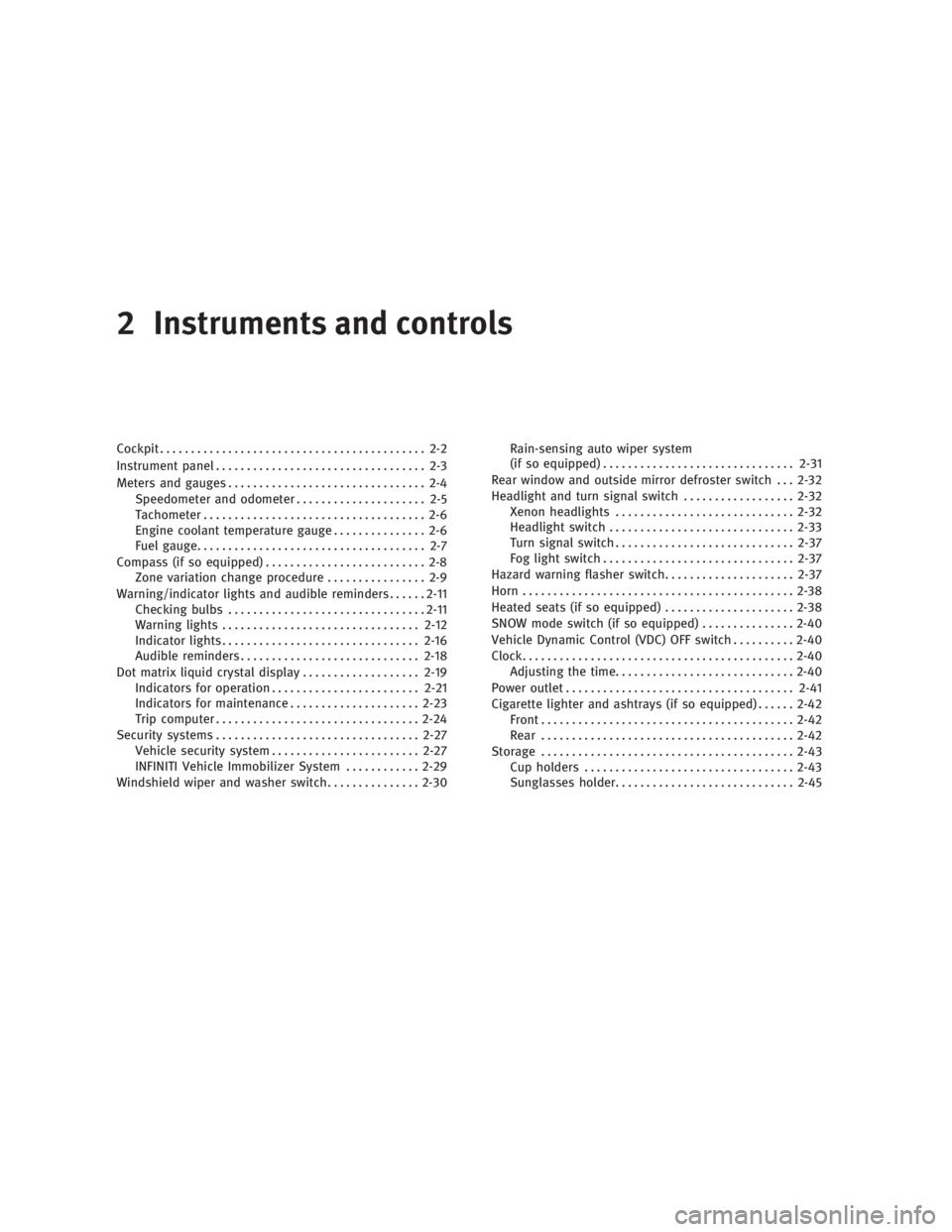

2 Instruments and controls Cockpit ........................................... 2-2
Instrument panel .................................. 2-3
Meters and gauges ................................ 2-4
Speedometer and odometer ..................... 2-5
Tachometer .................................... 2-6
Engine coolant temperature gauge ............... 2-6
Fuel gauge ..................................... 2-7
Compass (if so equipped) .......................... 2-8
Zone variation change procedure ................ 2-9
Warning/indicator lights and audible reminders ...... 2-11
Checking bulbs ................................ 2-11
Warning lights ................................ 2-12
Indicator lights ................................ 2-16
Audible reminders ............................. 2-18
Dot matrix liquid crystal display ................... 2-19
Indicators for operation ........................ 2-21
Indicators for maintenance ..................... 2-23
Trip computer ................................. 2-24
Security systems ................................. 2-27
Vehicle security system ........................ 2-27
INFINITI Vehicle Immobilizer System ............ 2-29
Windshield wiper and washer switch ............... 2-30 Rain-sensing auto wiper system
(if so equipped) ............................... 2-31
Rear window and outside mirror defroster switch . . . 2-32
Headlight and turn signal switch .................. 2-32
Xenon headlights ............................. 2-32
Headlight switch .............................. 2-33
Turn signal switch ............................. 2-37
Fog light switch ............................... 2-37
Hazard warning flasher switch ..................... 2-37
Horn ............................................ 2-38
Heated seats (if so equipped) ..................... 2-38
SNOW mode switch (if so equipped) ............... 2-40
Vehicle Dynamic Control (VDC) OFF switch .......... 2-40
Clock ............................................ 2-40
Adjusting the time ............................. 2-40
Power outlet ..................................... 2-41
Cigarette lighter and ashtrays (if so equipped) ...... 2-42
Front ......................................... 2-42
Rear ......................................... 2-42
Storage ......................................... 2-43
Cup holders .................................. 2-43
Sunglasses holder ............................. 2-45
 —
—
10/12/09—tbrooks


All-Wheel Drive (AWD) warning light
(AWD models)* Intelligent Cruise Control (ICC) sys-
tem warning light (orange)* Front passenger air bag status light
Anti-lock Braking System (ABS) warn-
ing light Intelligent Key warning light High beam indicator light
Low tire pressure warning light Malfunction Indicator Light (MIL)
Automatic transmission check warn-
ing light Master warning light Security indicator light
Brake warning light Preview Function warning light (or-
ange)* Slip indicator light
Seat belt warning light Low Beam indicator light (green)
Charge warning light Supplemental air bag warning light Turn signal/hazard indicator lights
Engine oil pressure warning light Automatic transmission position indi-
cator light* Vehicle Dynamic Control (VDC) off
indicator light
4 Wheel Active Steer (4WAS) warning
light* Front fog light indicator light *: if so equipped
CHECKING BULBS With all doors closed, apply the parking brake
and push the ignition switch to the ON position
without starting the engine. The following lights
will come on (if so equipped):
, or , , , ,
, , The following lights come on briefly and then go
off (if so equipped):
, or , , , ,
, If any light does not come on, it may indicate a
burned-out bulb or an open circuit in the elec-
trical system. Have the system checked by an
INFINITI retailer.
Some indicators and warnings are also dis-
played on the dot matrix crystal display be-
tween the speedometer and tachometer. (See
“DOT MATRIX LIQUID CRYSTAL DISPLAY” later in
this section.)WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
Instruments and controls
2-11
 —
—
12/08/09—debbie


WARNING LIGHTS
All-Wheel Drive (AWD)
warning light (AWD models)The warning light comes on when the
ignition switch is pushed to ON. It turns off
soon after the engine is started.
If the AWD system malfunctions, or the diam-
eter of the front and the rear wheels are differ-
ent, the warning light will either remain illumi-
nated or blink. (See “ALL-WHEEL DRIVE (AWD)”
in the “5. Starting and driving” section.)
CAUTION● If the warning light comes on while driving
there may be a malfunction in the AWD sys-
tem. Reduce the vehicle speed and have your
vehicle checked by an INFINITI retailer as
soon as possible.
● If the AWD warning light blinks on when you
are driving:
– blinks rapidly (about twice a second):
Pull off the road in a safe area, and idle the
engine. The driving mode will change to
2WD to prevent the AWD system from
malfunctioning. If the warning light turns
off, you can drive again. – blinks slowly (about once every 2 sec-
onds):
Pull off the road in a safe area, and idle the
engine. Check that all tire sizes are the
same, tire pressure is correct and tires are
not worn.
● If the warning light is still on after the above
operations, have your vehicle checked by an
INFINITI retailer as soon as possible.
or Anti-lock Braking
System (ABS)
warning lightWhen the ignition switch is in the ON position,
the Anti-lock Braking System (ABS) warning
light illuminates and then turns off. This indi-
cates the ABS is operational.
If the ABS warning light illuminates while the
engine is running, or while driving, it may
indicate the ABS is not functioning properly.
Have the system checked by an INFINITI retailer.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock assis-
tance. (See “BRAKE SYSTEM” in the “5. Starting
and driving” section.) Automatic transmission
check warning light (if so
equipped) When the ignition switch is pushed to the ON
position, the light comes on for 2 seconds. If
the light comes on at any other time, it may
indicate the transmission is not functioning
properly. Have your INFINITI retailer check and
repair the transmission.
or Brake warning
light This light functions for both the parking brake
and the foot brake systems.
Parking brake indicator :
When the ignition switch is in the ON position,
the light comes on when the parking brake is
applied.
Low brake fluid warning light :
When the ignition switch is in the ON position,
the light warns of a low brake fluid level. If the
light comes on while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:
2-12 Instruments and controls
 —
—
10/12/09—tbrooks


1. Check the brake fluid level. If brake fluid is
necessary, add fluid and have the system
checked by your INFINITI retailer. (See
“BRAKE AND CLUTCH FLUID” in the “8.
Maintenance and do-it-yourself” section.)
2. If the brake fluid level is correct, have the
warning system checked by an INFINITI
retailer.
Anti-lock Braking System (ABS) warning indica-
tor :
When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the Anti-lock Braking System
(ABS) warning light illuminate, it may indicate
the ABS is not functioning properly. Have the
brake system checked, and if necessary re-
paired, by an INFINITI retailer promptly. (See
“Anti-lock Braking System (ABS) warning light”
earlier in this section.)
WARNING● Your brake system may not be working prop-
erly if the warning light is on. Driving could
be dangerous. If you judge it to be safe, drive
carefully to the nearest service station for
repairs. Otherwise, have your vehicle towed
because driving it could be dangerous. ● Pressing the brake pedal with the engine
stopped and/or low brake fluid level may
increase your stopping distance and braking
will require greater pedal effort as well as
pedal travel.
● If the brake fluid level is below the minimum
or MIN mark on the brake fluid reservoir, do
not drive until the brake system has been
checked at an INFINITI retailer.
Charge warning light If the light comes on while the engine is run-
ning, it may indicate the charging system is not
functioning properly. Turn the engine off and
check the alternator belt. If the belt is loose,
broken, missing or if the light remains on, see
an INFINITI retailer immediately.
CAUTIONDo not continue driving if the alternator belt is
loose, broken or missing.
4 Wheel Active Steer (4WAS)
warning light (if so equipped) If the light comes on while the engine is run-
ning, it may indicate that there is a malfunction
with the 4 Wheel Active Steer (4WAS) portion of the steering system. Push the ignition switch to
the OFF position and then to the ON position. If
the light does not turn off after cycling the
engine, have the system checked by an INFINITI
retailer.
For further information about the 4 Wheel Active
Steer system, see “4 WHEEL ACTIVE STEER
(4WAS) SYSTEM” in the “5. Starting and driv-
ing” section.
If a malfunction occurs in the system, the 4
Wheel Active Steer (4WAS) function will cease
but driving can be continued. However, the
steering wheel is slightly turned even when
driving on a straight road. Drive carefully to the
nearest INFINITI retailer.
Engine oil pressure warning
light This light warns of low engine oil pressure. If
the light flickers or comes on during normal
driving, pull off the road in a safe area, stop the
engine immediately and call an INFINITI retailer
or other authorized repair shop.
The engine oil pressure warning light is not de-
signed to indicate a low oil level. Use the dip-
stick to check the oil level. (See “ENGINE OIL” in
the “8. Maintenance and do-it-yourself” sec-
tion.)
Instruments and controls
2-13
 —
—
10/12/09—tbrooks


CAUTIONRunning the engine with the engine oil pres-
sure warning light on could cause serious dam-
age to the engine almost immediately. Such
damage is not covered by warranty. Turn off the
engine as soon as it is safe to do so.
Intelligent Cruise Control
(ICC) system warning light
(orange; if so equipped)This light comes on if there is a malfunction in
the Intelligent Cruise Control (ICC) system.
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart the
engine, resume driving and set the ICC system
again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the sys-
tem is malfunctioning. Although the vehicle is
still driveable under normal conditions, have the
vehicle checked at an INFINITI retailer.
Intelligent Key warning lightAfter the ignition switch is pushed to the ON
position, this light comes on for about 2 sec-
onds and then turns off. This light warns of a malfunction with the
electrical steering lock system or the Intelligent
Key system.
If the light comes on while the engine is
stopped, it may be impossible to free the
steering lock or to start the engine. If the light
comes on while the engine is running, you can
drive the vehicle. However in these cases, con-
tact an INFINITI retailer for repair as soon as
possible.
Low tire pressure warning
light Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the
tire pressure of all tires except the spare.
The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.
After the ignition switch is pushed ON, this light
illuminates for about 1 second and turns off.
Low tire pressure warning :
If the vehicle is being driven with low tire
pressure, the warning light will illuminate.
When the low tire pressure warning light illumi-
nates, you should stop and adjust the tire
pressure to the recommended COLD tire pres-
sure shown on the Tire and Loading Information label. The low tire pressure warning light does
not automatically turn off when the tire pres-
sure is adjusted. After the tire is inflated to the
recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h) to
activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.
For additional information, see “TIRE PRESSURE
MONITORING SYSTEM (TPMS)” in the “5. Start-
ing and driving” section and “TIRE PRESSURE
MONITORING SYSTEM (TPMS)” in the “6. In case
of emergency” section.
TPMS malfunction :
If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
pushed ON. The light will remain on after the 1
minute. Have the system checked by an INFINITI
retailer.
For additional information, see “TIRE PRESSURE
MONITORING SYSTEM (TPMS)” in the “5. Start-
ing and driving” section.
2-14 Instruments and controls
 —
—
10/12/09—tbrooks


WARNING● If the light does not illuminate with the ignition
switch pushed ON, have the vehicle checked
by an INFINITI retailer as soon as possible.
● If the light illuminates while driving, avoid
sudden steering maneuvers or abrupt brak-
ing, reduce vehicle speed, pull off the road to
a safe location and stop the vehicle as soon
as possible. Driving with under-inflated tires
may permanently damage the tires and in-
crease the likelihood of tire failure. Serious
vehicle damage could occur and may lead to
an accident and could result in serious per-
sonal injury. Check the tire pressure for all
four tires. Adjust the tire pressure to the rec-
ommended COLD tire pressure shown on the
Tire and Loading Information label to turn
the low tire pressure warning light OFF. If the
light still illuminates while driving after ad-
justing the tire pressure, a tire may be flat. If
you have a flat tire, replace it with a spare
tire as soon as possible.
● When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after the 1 minute. Contact your
INFINITI retailer as soon as possible for tire
replacement and/or system resetting. ● Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
CAUTION● The TPMS is not a substitute for the regular
tire pressure check. Be sure to check the tire
pressure regularly.
● If the vehicle is being driven at speeds of less
than 16 MPH (25 km/h), the TPMS may not
operate correctly.
● Be sure to install the specified size of tires to
the four wheels correctly.
Master warning light When the ignition switch is in the ON position,
the master warning light illuminates if any of
the following are displayed on the dot matrix
liquid crystal display:
● No key warning
● Low fuel warning
● Low washer fluid warning
● Parking brake release warning
● Door/trunk open warning ● Loose fuel cap warning (if so equipped)
● Check tire pressure warning (if so equipped)
See “DOT MATRIX LIQUID CRYSTAL DISPLAY”
later in this section.
Preview Function warning
light (orange; if so equipped) The light comes on if there is a malfunction in the
Brake Assist (with Preview Function) system.
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart the
engine, resume driving and set the ICC system
again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the sys-
tem is malfunctioning. Although the vehicle is
still driveable under normal conditions, have the
vehicle checked at an INFINITI retailer.
Instruments and controls
2-15
 —
—
04/21/10—debbie
