In the event of a roadside emergency, Roadside
Assistance Service is available to you. Please
refer to your Warranty Information Booklet
(U.S.) or Warranty & Roadside Assistance Infor-
mation Booklet (Canada) for details.
Emergency engine shut off To shut off the engine in an emergency situation
while driving perform the following procedure:
− Rapidly push the push-button ignition switch
3 consecutive times, or
− Push and hold the push-button ignition for
more than 2 seconds.
TIRE PRESSURE MONITORING SYSTEM
(TPMS) This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS). It monitors tire
pressure of all tires except the spare. When the
low tire pressure warning light is lit, one or
more of your tires is significantly under-
inflated. If the vehicle is being driven with low
tire pressure, the TPMS will activate and warn
you of it by the low tire pressure warning light.
This system will activate only when the vehicle
is driven at speeds above 16 MPH (25 km/h). For
more details, see “WARNING/INDICATOR LIGHTS
AND AUDIBLE REMINDERS” in the “2. Instru-
ments and controls” section and “TIRE PRES-
SURE MONITORING SYSTEM (TPMS)” in the “5.
Starting and driving” section. WARNING● If the low tire pressure warning light illumi-
nates while driving, avoid sudden steering
maneuvers or abrupt braking, reduce vehicle
speed, pull off the road to a safe location and
stop the vehicle as soon as possible. Driving
with under-inflated tires may permanently
damage the tires and increase the likelihood
of tire failure. Serious vehicle damage could
occur and may lead to an accident and could
result in serious personal injury. Check the
tire pressure for all four tires. Adjust the tire
pressure to the recommended COLD tire
pressure shown on the Tire and Loading In-
formation label to turn the low tire pressure
warning light OFF. If the light still illumi-
nates while driving after adjusting the tire
pressure, a tire may be flat. If you have a flat
tire, replace it with a spare tire as soon as
possible.
● When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after 1 minute. Contact your INFINITI
retailer as soon as possible for tire replace-
ment and/or system resetting.ROADSIDE ASSISTANCE PROGRAM FLAT TIRE
6-2 In case of emergency
 —
—
04/21/10—debbie


CAUTION● Do not continue to drive if your vehicle over-
heats. Doing so could cause engine damage
or a vehicle fire.
● To avoid the danger of being scalded, never
remove the radiator cap while the engine is
still hot. When the radiator cap is removed,
pressurized hot water will spurt out, possi-
bly causing serious injury.
● Do not open the hood if steam is coming out.
If your vehicle is overheating (indicated by an
extremely high temperature gauge reading), or
if you feel a lack of engine power, detect
abnormal noise, etc., take the following steps:
1. Move the vehicle safely off the road, apply
the parking brake and move the selector
lever to the P (Park) position (Automatic
transmission models). Move the shift lever
to the N (Neutral) position (Manual trans-
mission models).
Do not stop the engine.
2. Turn off the climate control. Open all the
windows, move the heater or air condi-
tioner temperature control to maximum
hot and fan control to high speed. 3. If engine overheating is caused by climb-
ing a long hill on a hot day, run the engine
at a fast idle (approximately 1,500 rpm)
until the temperature gauge indication
returns to normal.
4. Get out of the vehicle. Look and listen for
steam or coolant escaping from the radia-
tor before opening the hood. (If steam or
coolant is escaping, turn off the engine.)
Do not open the hood further until no
steam or coolant can be seen.
5. Open the engine hood.
WARNINGIf steam or water is coming from the engine,
stand clear to prevent getting burned.
6. Visually check drive belts for damage or
looseness. Also check if the cooling fan is
running. The radiator hoses and radiator
should not leak water. If coolant is leak-
ing or the cooling fan does not run, stop
the engine. WARNINGBe careful not to allow your hands, hair, jewelry
or clothing to come into contact with, or get
caught in, engine belts or the engine cooling
fan. The engine cooling fan can start at any
time.
7. After the engine cools down, check the
coolant level in the reservoir tank with the
engine running. Add coolant to the reser-
voir tank if necessary. Have your vehicle
repaired at the nearest INFINITI retailer.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada).IF YOUR VEHICLE OVERHEATS
6-10 In case of emergency
 —
—
04/21/10—debbie


8 Maintenance and do-it-yourself Maintenance requirement .......................... 8-2
Scheduled maintenance ........................ 8-2
General maintenance ........................... 8-2
Where to go for service ......................... 8-2
General maintenance .............................. 8-2
Explanation of maintenance items ............... 8-2
Maintenance precautions .......................... 8-5
Engine compartment check locations ................ 8-6
VQ37VHR engine ............................... 8-6
Engine cooling system ............................. 8-7
Checking engine coolant level ................... 8-7
Changing engine coolant ........................ 8-8
Engine oil ........................................ 8-8
Checking engine oil level ....................... 8-8
Changing engine oil and filter ................... 8-9
Automatic transmission fluid ....................... 8-11
Power steering fluid ............................... 8-11
Brake and clutch fluid ............................ 8-12
Brake fluid ................................... 8-12
Clutch fluid (if so equipped) .................... 8-12
Window washer fluid ............................. 8-13
Battery .......................................... 8-13
Coupe ........................................ 8-13 Sedan and coupe ............................. 8-14
Jump starting ................................. 8-15
Variable voltage control system ................... 8-15
Drive belts ....................................... 8-16
Spark plugs ..................................... 8-16
Replacing spark plugs ......................... 8-17
Air cleaner ....................................... 8-17
Windshield wiper blades .......................... 8-18
Cleaning ...................................... 8-18
Replacing ..................................... 8-18
Brakes .......................................... 8-19
Self-adjusting brakes .......................... 8-19
Brake pad wear warning ....................... 8-19
Fuses ........................................... 8-20
Engine compartment ........................... 8-20
Passenger compartment ....................... 8-21
Intelligent
Key
battery replacement ................ 8-22
Lights ........................................... 8-23
Sedan ........................................ 8-23
Coupe ........................................ 8-24
Headlights .................................... 8-25
Exterior and interior lights ..................... 8-25
Wheels and tires ................................. 8-28
 —
—
04/21/10—debbie

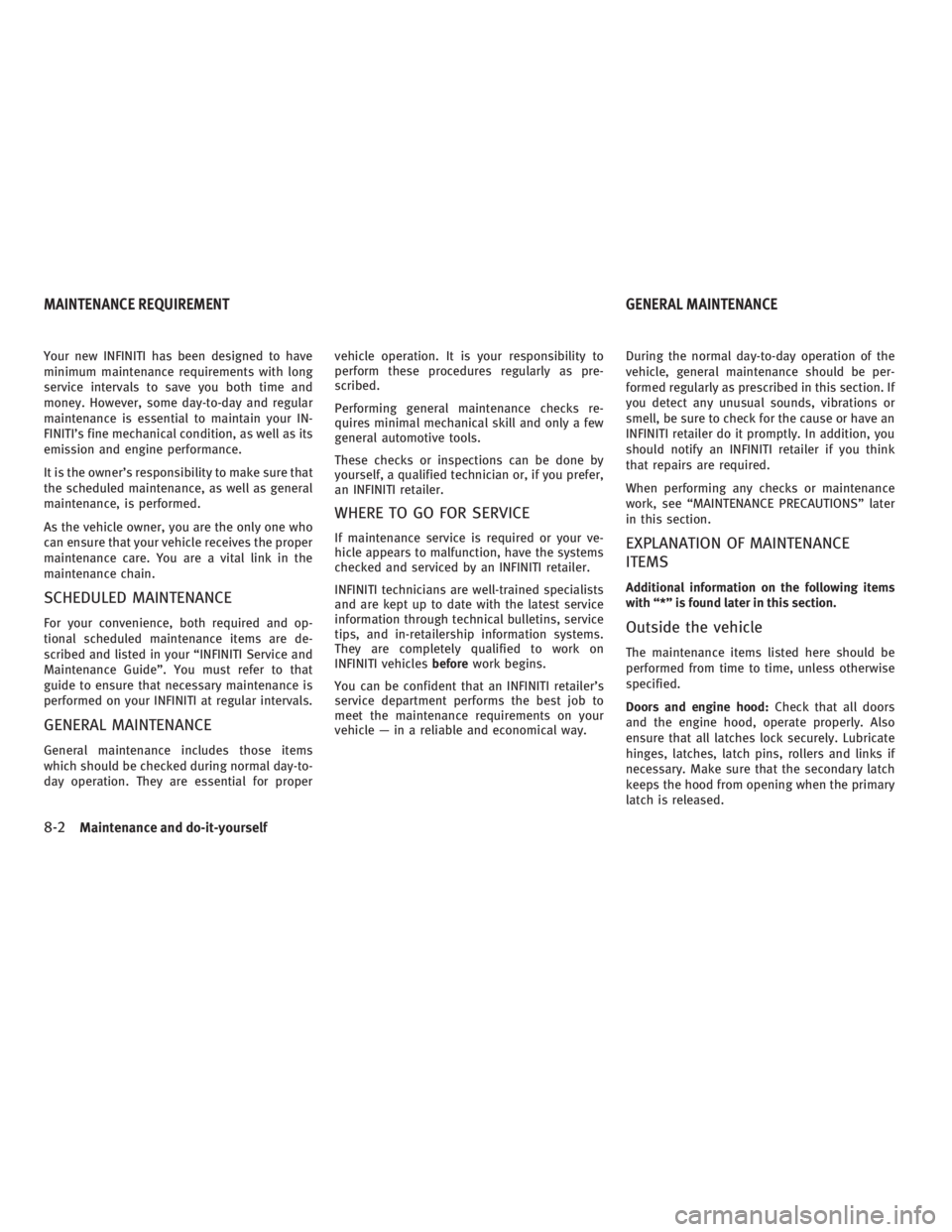

Your new INFINITI has been designed to have
minimum maintenance requirements with long
service intervals to save you both time and
money. However, some day-to-day and regular
maintenance is essential to maintain your IN-
FINITI’s fine mechanical condition, as well as its
emission and engine performance.
It is the owner’s responsibility to make sure that
the scheduled maintenance, as well as general
maintenance, is performed.
As the vehicle owner, you are the only one who
can ensure that your vehicle receives the proper
maintenance care. You are a vital link in the
maintenance chain.
SCHEDULED MAINTENANCE For your convenience, both required and op-
tional scheduled maintenance items are de-
scribed and listed in your “INFINITI Service and
Maintenance Guide”. You must refer to that
guide to ensure that necessary maintenance is
performed on your INFINITI at regular intervals.
GENERAL MAINTENANCE General maintenance includes those items
which should be checked during normal day-to-
day operation. They are essential for proper vehicle operation. It is your responsibility to
perform these procedures regularly as pre-
scribed.
Performing general maintenance checks re-
quires minimal mechanical skill and only a few
general automotive tools.
These checks or inspections can be done by
yourself, a qualified technician or, if you prefer,
an INFINITI retailer.
WHERE TO GO FOR SERVICE If maintenance service is required or your ve-
hicle appears to malfunction, have the systems
checked and serviced by an INFINITI retailer.
INFINITI technicians are well-trained specialists
and are kept up to date with the latest service
information through technical bulletins, service
tips, and in-retailership information systems.
They are completely qualified to work on
INFINITI vehicles before work begins.
You can be confident that an INFINITI retailer’s
service department performs the best job to
meet the maintenance requirements on your
vehicle — in a reliable and economical way. During the normal day-to-day operation of the
vehicle, general maintenance should be per-
formed regularly as prescribed in this section. If
you detect any unusual sounds, vibrations or
smell, be sure to check for the cause or have an
INFINITI retailer do it promptly. In addition, you
should notify an INFINITI retailer if you think
that repairs are required.
When performing any checks or maintenance
work, see “MAINTENANCE PRECAUTIONS” later
in this section.
EXPLANATION OF MAINTENANCE
ITEMS Additional information on the following items
with “*” is found later in this section.
Outside the vehicle The maintenance items listed here should be
performed from time to time, unless otherwise
specified.
Doors and engine hood: Check that all doors
and the engine hood, operate properly. Also
ensure that all latches lock securely. Lubricate
hinges, latches, latch pins, rollers and links if
necessary. Make sure that the secondary latch
keeps the hood from opening when the primary
latch is released.MAINTENANCE REQUIREMENT GENERAL MAINTENANCE
8-2 Maintenance and do-it-yourself
 —
—
04/21/10—debbie


restraints move up and down smoothly and that
the locks (if so equipped) hold securely in all
latched positions.
Steering wheel: Check for changes in the steer-
ing conditions, such as excessive free play,
hard steering or strange noises.
Warning lights and chimes: Make sure that all
warning lights and chimes are operating prop-
erly.
Windshield defroster: Check that the air comes
out of the defroster outlets properly and in
sufficient quantity when operating the heater or
air conditioner.
Windshield wiper and washer*: Check that the
wipers and washer operate properly and that
the wipers do not streak.
Under the hood and vehicle The maintenance items listed here should be
checked periodically (for example, each time
you check the engine oil or refuel).
Battery*: Check the fluid level in each cell. It
should be between the MAX and MIN lines.
Vehicles operated in high temperatures or un-
der severe condition require frequent checks of
the battery fluid level. Brake fluid level*: Make sure that the brake
fluid level is between the MAX and MIN lines on
the reservoir.
Engine coolant level*: Check the coolant level
when the engine is cold.
Engine drive belts*: Make sure that no belt is
frayed, worn, cracked or oily.
Engine oil level*: Check the level after parking
the vehicle on a level spot and turning off the
engine. Wait more than 15 minutes for the oil to
drain back into the oil pan.
Exhaust system: Make sure there are no loose
supports, cracks or holes. If the sound of the
exhaust seems unusual or there is a smell of
exhaust fumes, immediately have the exhaust
system inspected by an INFINITI retailer. (See
“PRECAUTIONS WHEN STARTING AND DRIVING”
in the “5. Starting and driving” section for
exhaust gas (Carbon monoxide).)
Fluid leaks: Check under the vehicle for fuel, oil,
water or other fluid leaks after the vehicle has
been parked for a while. Water dripping from
the air conditioner after use is normal. If you
should notice any leaks or if gasoline fumes are
evident, check for the cause and have it cor-
rected immediately. Power steering fluid level* and lines: Check the
level when the fluid is cold, with the engine off.
Check the lines for proper attachment, leaks,
cracks, etc.
Radiator and hoses: Check the front of the
radiator and clean off any dirt, insects, leaves,
etc., that may have accumulated. Make sure the
hoses have no cracks, deformation, rot or loose
connections.
Underbody: The underbody is frequently ex-
posed to corrosive substances such as those
used on icy roads or to control dust. It is very
important to remove these substances, other-
wise rust will form on the floor pan, frame, fuel
lines and around the exhaust system. At the
end of winter, the underbody should be thor-
oughly flushed with plain water, being careful
to clean those areas where mud and dirt may
accumulate. For additional information, see
“CLEANING EXTERIOR” in the “7. Appearance
and care” section.
Windshield washer fluid*: Check that there is
adequate fluid in the reservoir.
8-4 Maintenance and do-it-yourself
 —
—
04/21/10—debbie


VQ37VHR ENGINE 1. Fuse/fusible link holder
2. Battery
3. Engine oil filler cap
4. Brake fluid reservoir 5. Clutch fluid reservoir (Manual Transmis-
sion models)
6. Window washer fluid reservoir
7. Power steering fluid reservoir
8. Air cleaner 9. Radiator filler cap
10. Drive belts
11. Engine coolant reservoir
12. Engine oil dipstick
SSI0345ENGINE COMPARTMENT CHECK
LOCATIONS
8-6 Maintenance and do-it-yourself
 —
—
04/21/10—debbie


The engine cooling system is filled at the factory
with a high-quality, year-round, anti-freeze
coolant solution. The antifreeze solution con-
tains rust and corrosion inhibitors, therefore
additional cooling system additives are not
necessary.
WARNING● Never remove the radiator cap when the en-
gine is hot. Wait until the engine and radia-
tor cool down. Serious burns could be
caused by high pressure fluid escaping from
the radiator. See precautions in “IF YOUR
VEHICLE OVERHEATS” in the “6. In case of
emergency” section of this manual.
● The radiator is equipped with a pressure
type radiator cap. To prevent engine dam-
age, use only a genuine NISSAN radiator cap. CAUTION● When adding or replacing coolant, be sure to
use only a Genuine NISSAN Long Life
Antifreeze/Coolant (blue) or equivalent with
the proper mixture ratio shown in the follow-
ing chart. The life expectancy of the factory-
fill coolant is 105,000 miles (168,000 km) or
7 years. Mixing any other type of coolant or
the use of non-distilled water will reduce the
life expectancy of the factory-fill coolant. Re-
fer to the Infiniti Service and Maintenance
Guide for more details. The use of other
types of coolant solutions may damage the
engine cooling system.
● The coolant reservoir is equipped with a
pressure type radiator cap. To prevent en-
gine damage, use only a genuine NISSAN
coolant reservoir cap.
Outside
temperature
down to Antifreeze Demineral-
ized water
or distilled
water
°F °C
 30  35 50% 50% CHECKING ENGINE COOLANT LEVEL Check the coolant level in the reservoir when the
engine is cold. If the coolant level is below MIN
 2
, open the reservoir tank cap and add coolant
up to the MAX
 1
level. If the reservoir tank is
empty, check the coolant level in the radiator
when the engine is cold. If there is insufficient
coolant in the radiator, fill the radiator with
coolant up to the filler opening and also add it
to the reservoir tank up to the MAX level
 1
.
Tighten the cap securely after adding engine
coolant.
This vehicle contains Genuine NISSAN Long Life
Antifreeze/Coolant (blue). The life expectancy of
the factory-fill coolant is 105,000 miles SDI2043
ENGINE COOLING SYSTEM
Maintenance and do-it-yourself
8-7
 —
—
04/22/10—debbie


(168,000 km) or 7 years. Mixing any other type
of coolant or the use of non-distilled water will
reduce the life expectancy of the factory-fill
coolant. Refer to the INFINITI Service and Main-
tenance Guide for more details.
If the cooling system requires coolant fre-
quently, have it checked by an INFINITI retailer.
CHANGING ENGINE COOLANT Major cooling system repairs should be per-
formed by an INFINITI retailer. The service pro-
cedures can be found in the appropriate INFINITI
Service Manual.
Improper servicing can result in reduced heater
performance and engine overheating.
WARNING● To avoid the danger of being scalded, never
change the coolant when the engine is hot.
● Never remove the radiator cap when the en-
gine is hot. Serious burns could be caused by
high pressure fluid escaping from the
radiator.
● Avoid direct skin contact with used coolant.
If skin contact is made, wash thoroughly
with soap or hand cleaner as soon as
possible. ● Keep coolant out of reach of children and
pets.
Engine coolant must be disposed of properly.
Check your local regulations.
CHECKING ENGINE OIL LEVEL 1. Park the vehicle on a level surface and
apply the parking brake.
2. Run the engine until it reaches operating
temperature.
3. Turn off the engine. Wait more than 15
minutes for the oil to drain back into the oil
pan.
4. Remove the dipstick and wipe it clean.
Reinsert it all the way.
5. Remove the dipstick again and check the
oil level. It should be within the range
 1
.
If the oil level is below
 2
, remove the oil
filler cap and pour recommended oil
through the opening. Do not overfill
 3
. SDI2045
ENGINE OIL
8-8 Maintenance and do-it-yourself
 —
—
04/22/10—debbie
